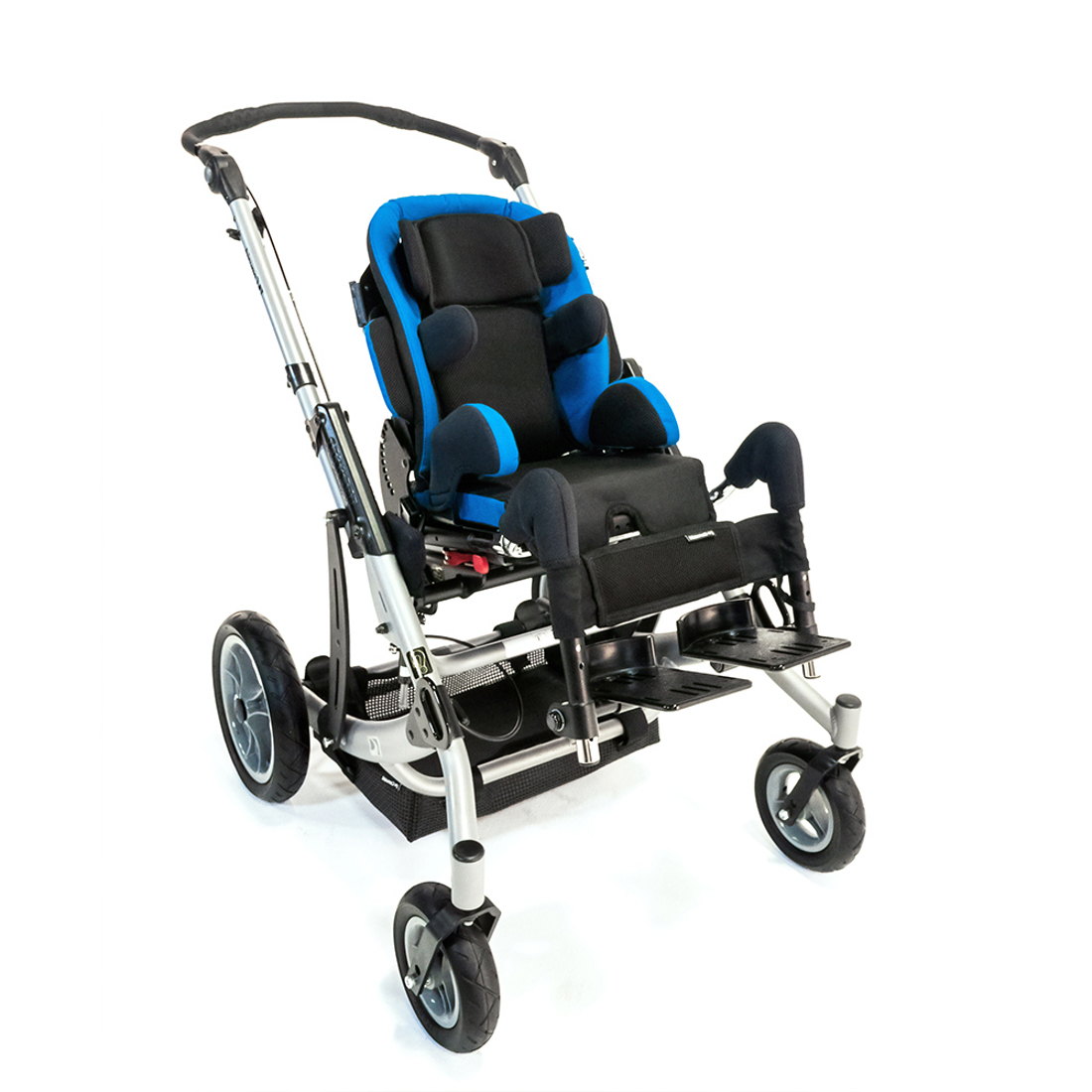

Convaid Trekker

A tilt-in-space, lightweight wheelchair offering the flexibility of 180° reversible seating, allowing occupants to face forward or face their caregivers.

Proudly made in USA, the new Trekker is lightweight and compact and has an improved docking interface, making it easy for you to slide the seat and lock it when you need to attach, detach or reverse the seat. Fold your Trekker frame easily into a compact and lightweight package with or without the seat and use only one hand to unfold.

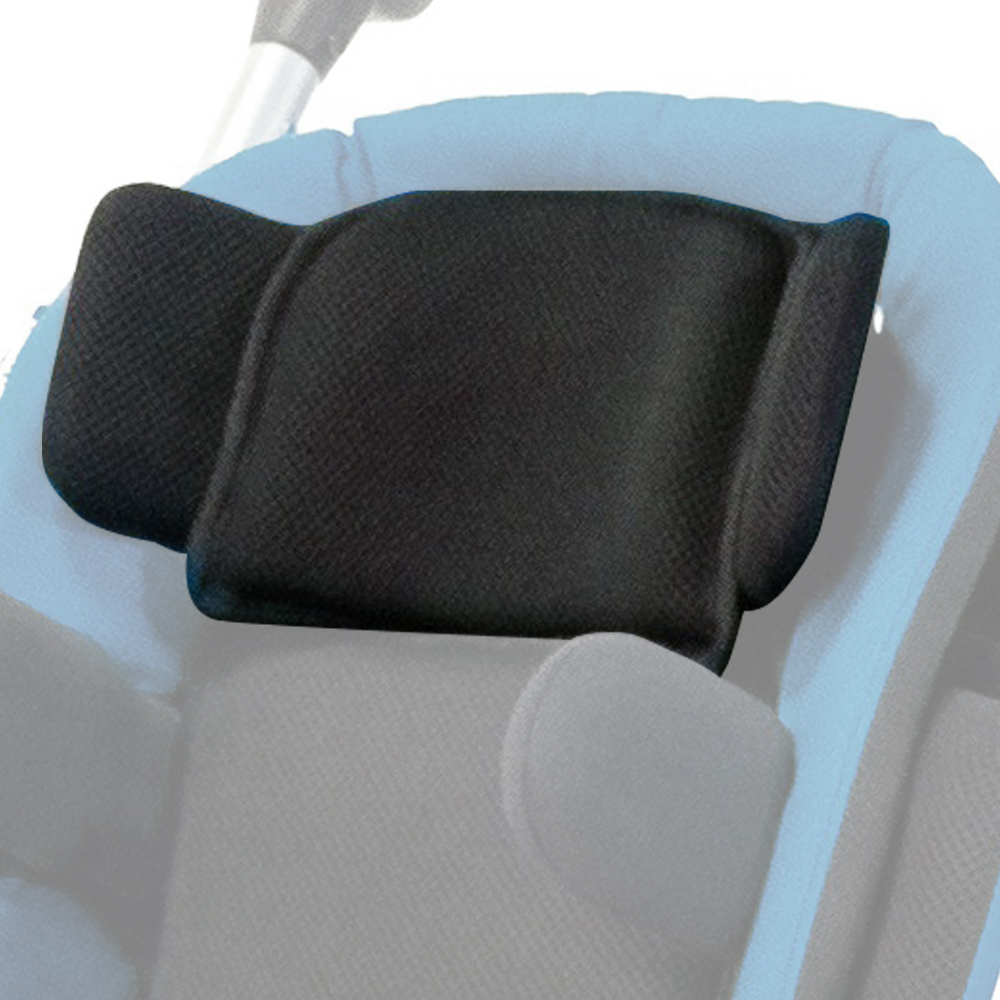

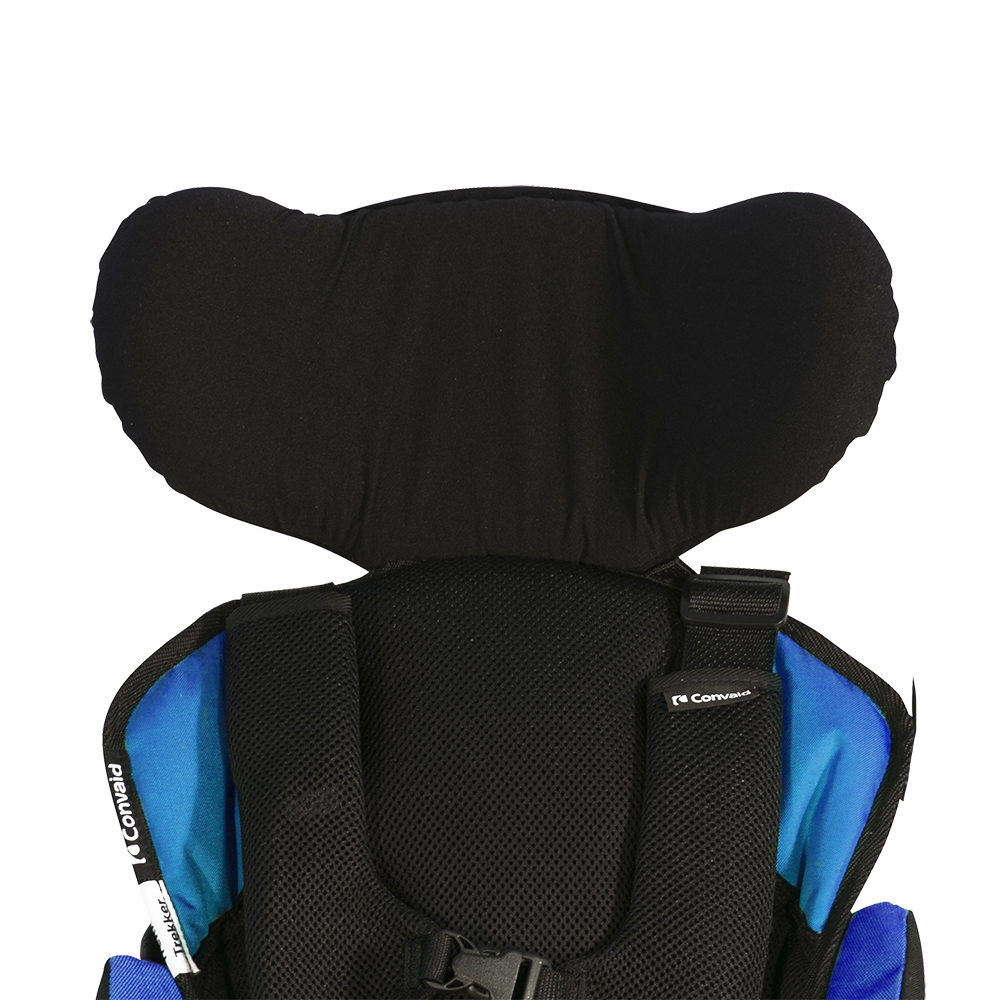

Enjoy the new Snuggle Upholstery, which offers Convaid’s most cocooned upholstery and can now accommodate a user as small as 5.5” hip width, 5.5” seat depth, and 9” shoulder height, due to the extra padded hip guides and a new integrated headrest.

Continue on to learn more about highly versatile seating options offered with new Trekker: The Trekker seating module can grow in seat depth and back height over the course of a child’s life, allowing consistency with your tilt-in-space wheelchair. The adaptive docking system lets you use the Trekker seating module with the R82 High-Low indoor frame or use the R82 Stingray size 1 seat with the Trekker frame, to meet the needs of a child’s Activities of Daily Living.

Discover

Features

Reverse Seating

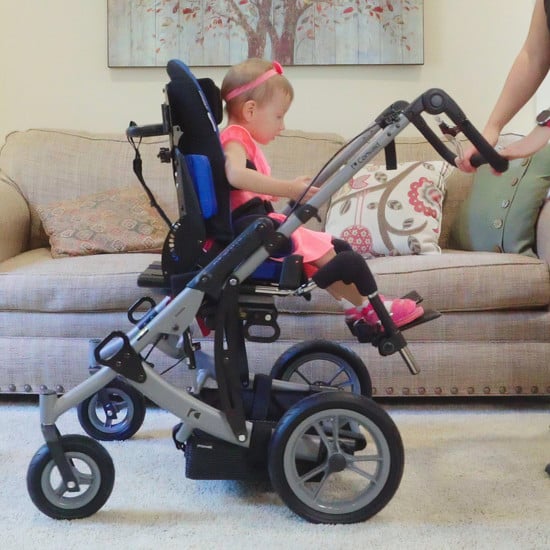

Reverse seating

Facing forward, allowing your child to experience their world, or facing you for convenient caregiver oversight.

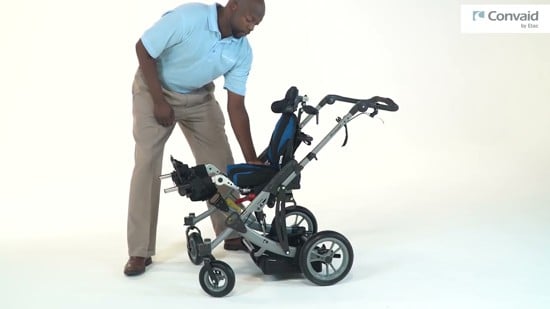

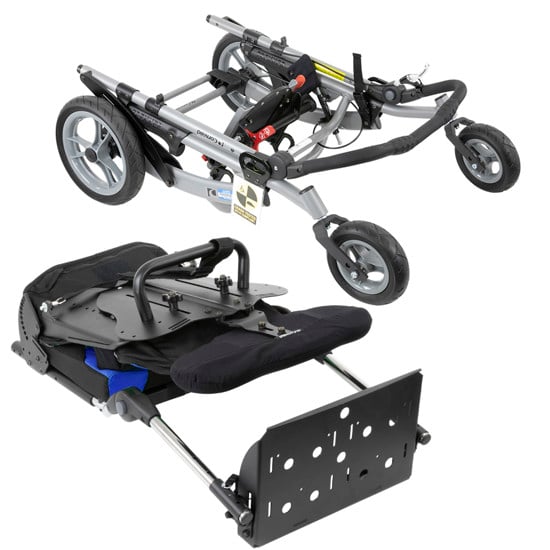

Separate base & seating module

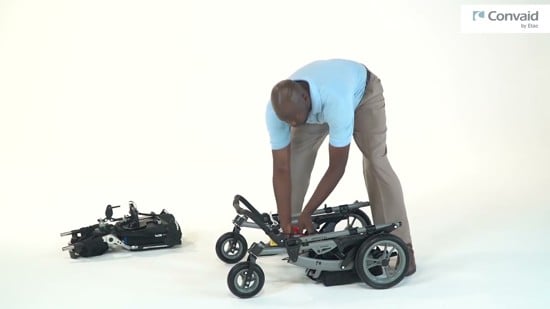

Compact Fold

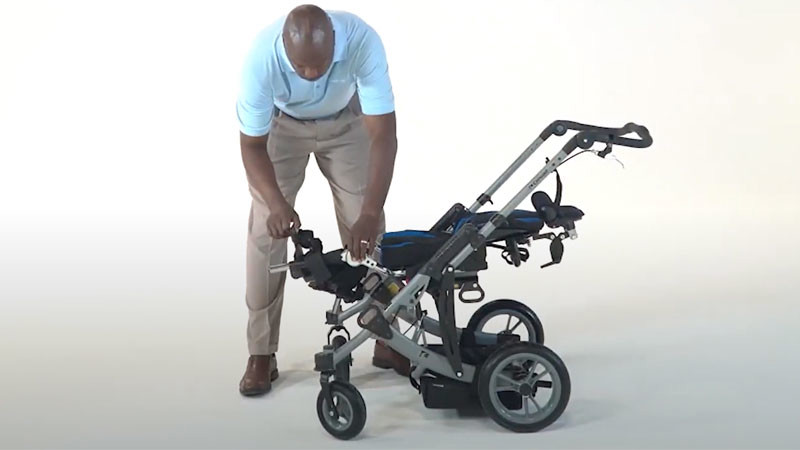

Fold your frame easily into a compact and a lightweight package with or without the seat and use only one hand to unfold.
Convaid Trekker

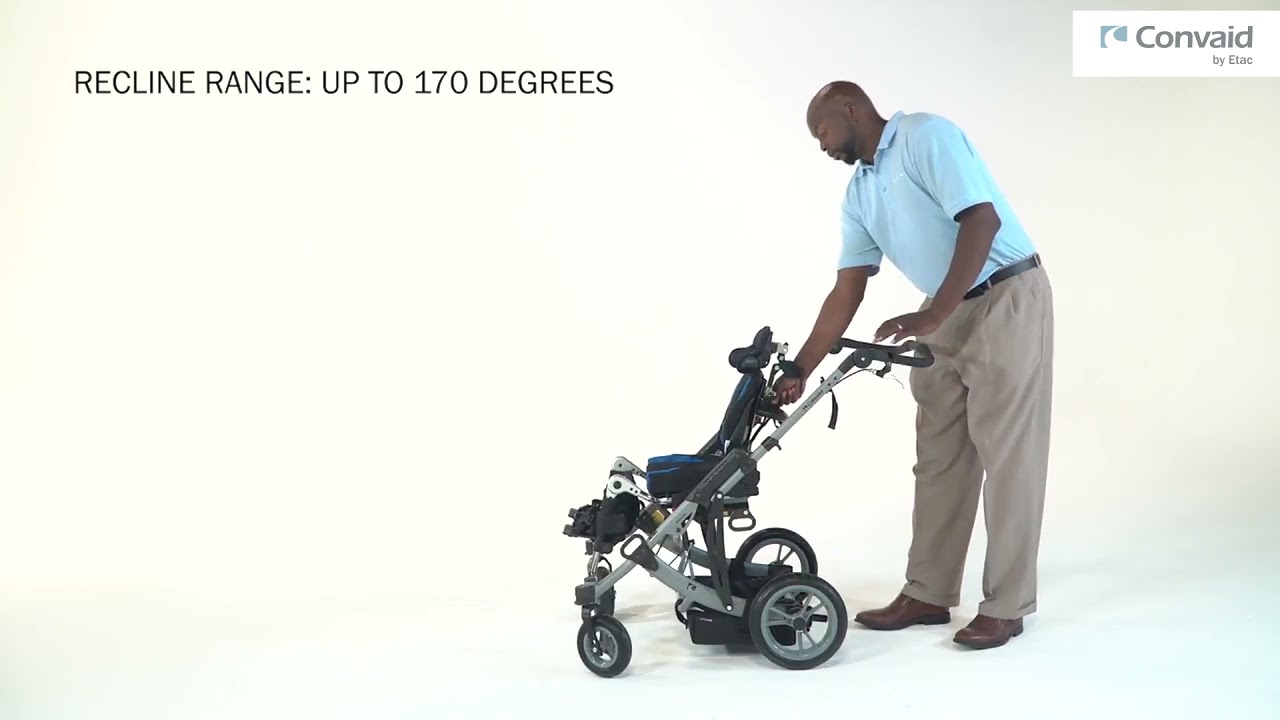

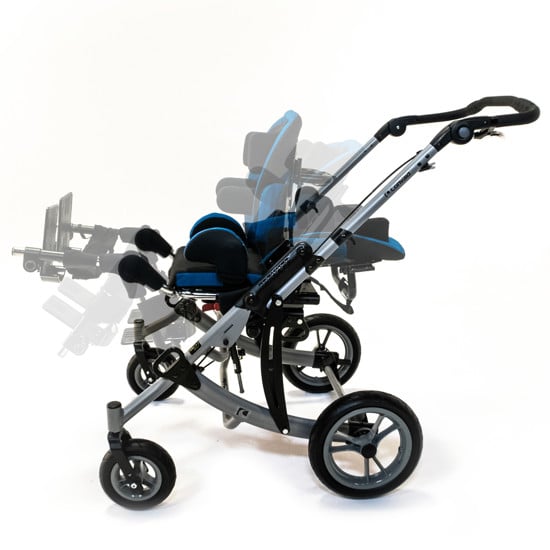

Recline and tilt

The posterior tilt and 170° recline can be used for resting and changing breaks.

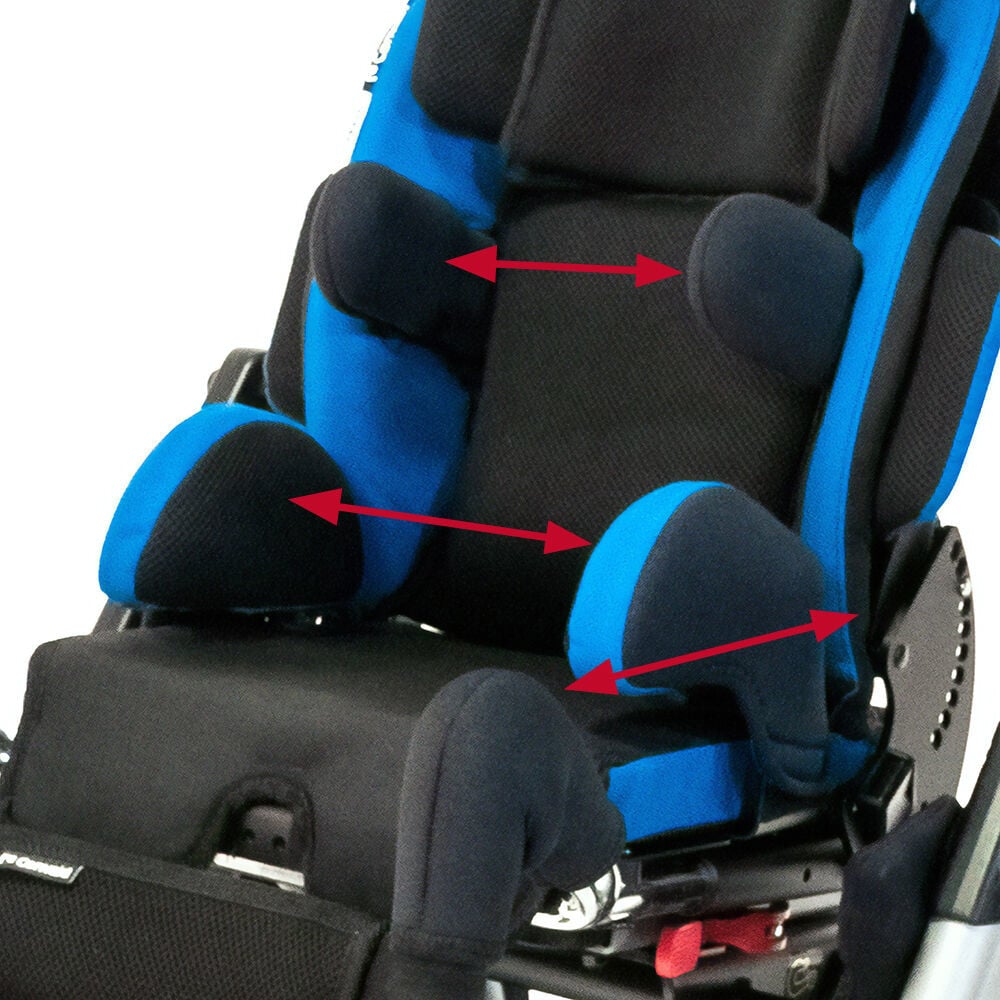

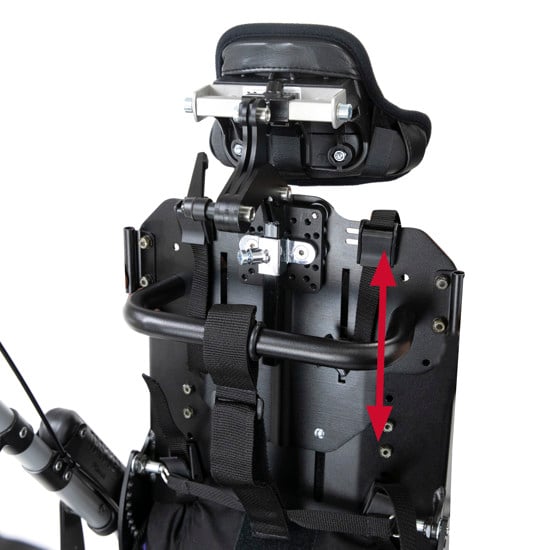

Multiple Growth Options

Multiple growth options

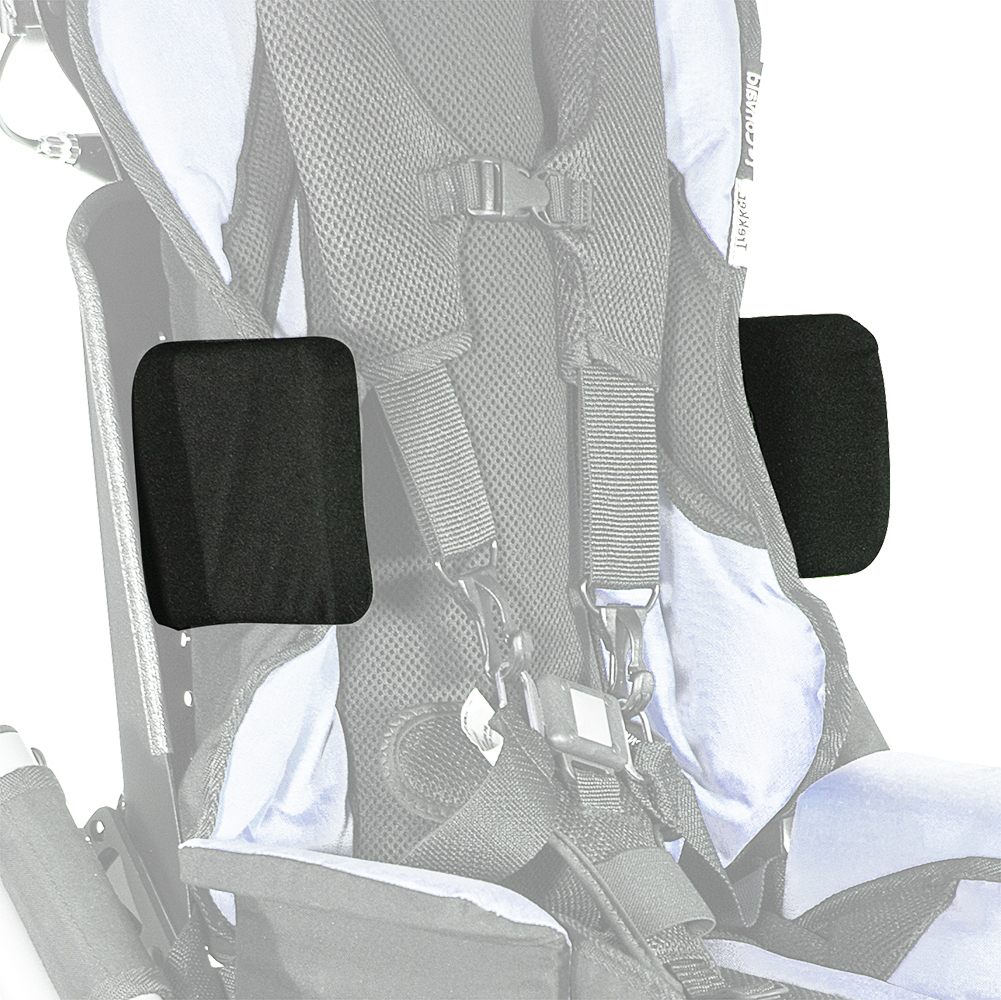

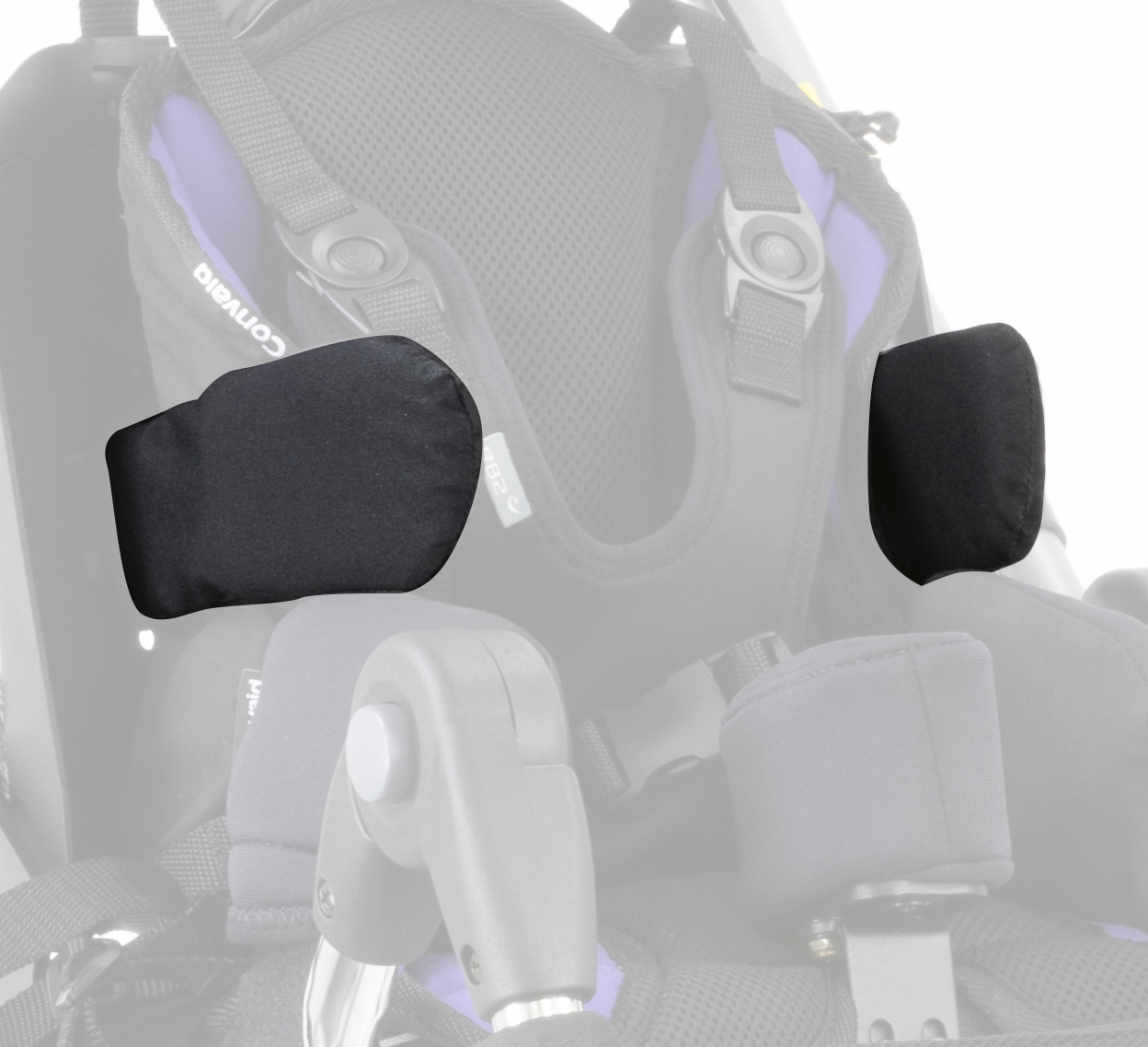

Seat depth, height, width adjustable. Firm laterals for thoracic support. Hip guides are width, height, and depth adjustable for pelvic support.

Standard specifications

TR12
TR14
Folded height (inch) 13.5 13.5
Folded length (inch) 39 39
Folded width (inch) 26 26
Frame weight (lbs) 27 27
Overall height (inch) 37.5 37.5
Overall length (inch) 42.5 42.5
Overall width (inch) 26 26
Push handle adjustments (inch) 29-43 29-43
Seat back height (inch) 9-17 12-26
Seat depth (inch) 5.5-12 8-15
Seat to back angle (°) 80° - 110° 80° - 110°
Seat to flipped individual angle adjustable footplate (inch) 2-5 4-7
Seat to flipped one piece angle adjustable footplate (inch) 2-8 4.25-10.25
Seat to individual angle adjustable footplate (inch) 5-11 7-13
Seat to one piece angle adjustable footplate (inch) 4.75-10.75 6.25-12.25
Seat width (inch) 11.75 13.75
Tilt in space tilt angle (°) -5° - 45° -5° - 45°
Weight capacity (lbs) 75 110
Weight capacity transit (lbs) 75 110
Weight seat unit (lbs) 10 11.5

Options

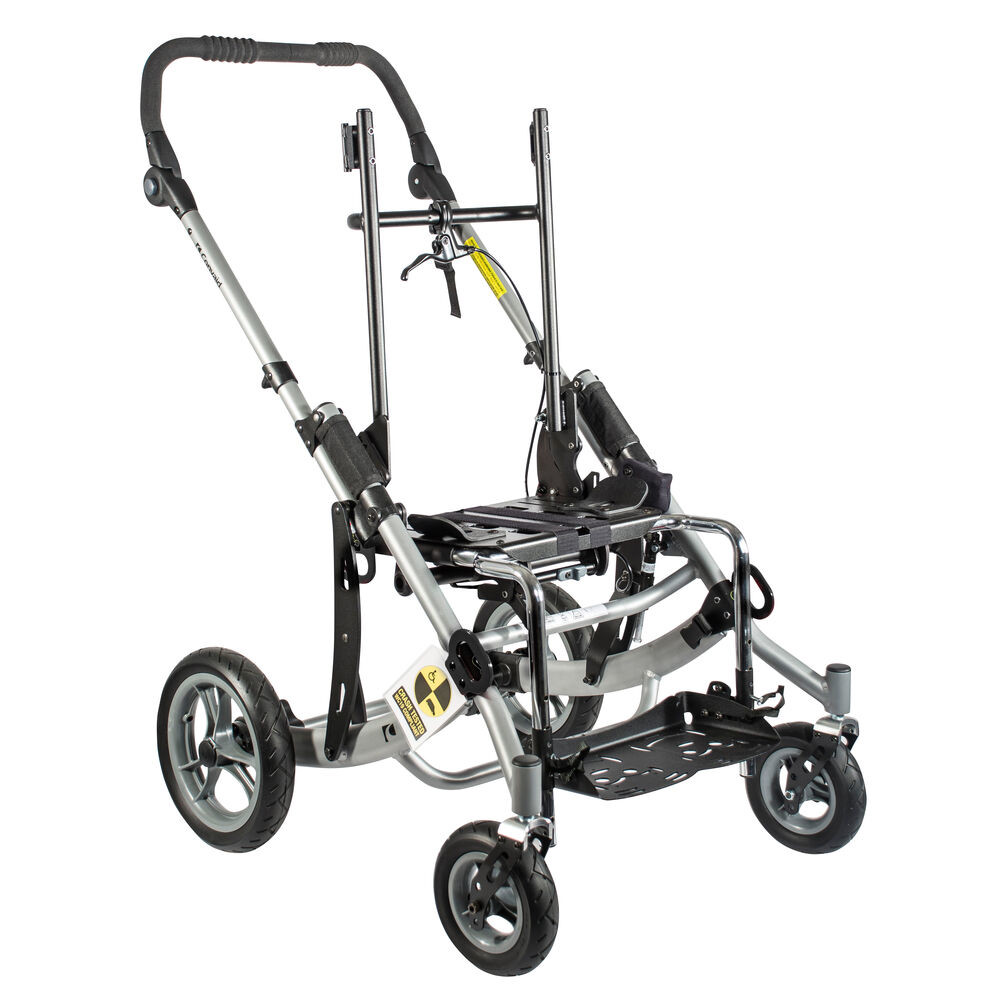

Back canes (accepts after-market seating)

Choice of two back cane width sizes: 12" or 14"

Height adjustable solid back pans

Back height adjustment ranges: Size 12": 9" - 17", Size 14": 17" - 26"

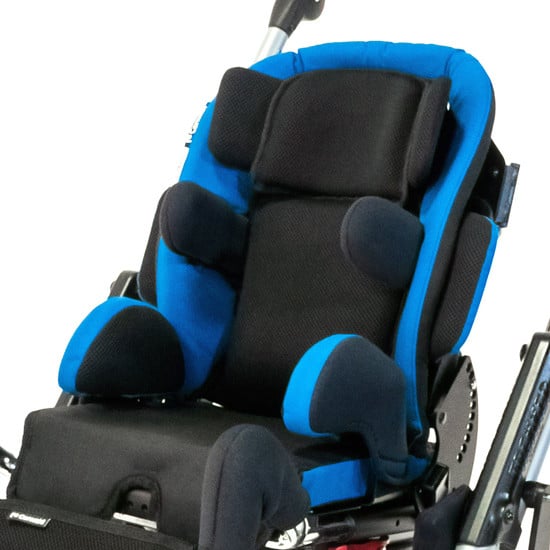

Snuggle upholstery back cushion

Available in three sizes: Short 12: 12x18, Short 14: 14x20, Tall 14: 14x23

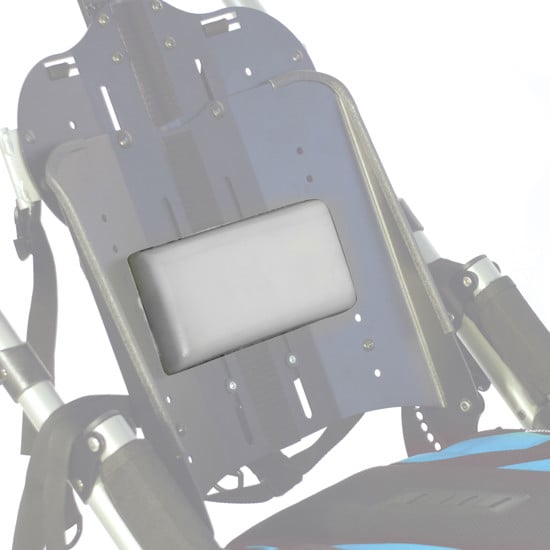

Lumbar support

Extra back support.

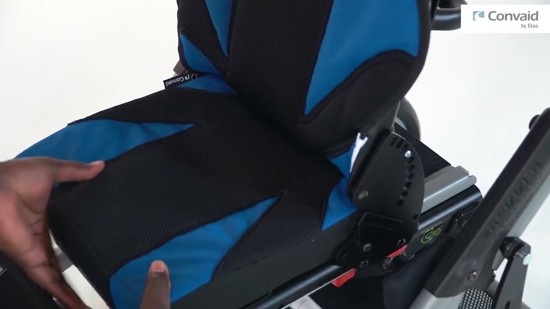

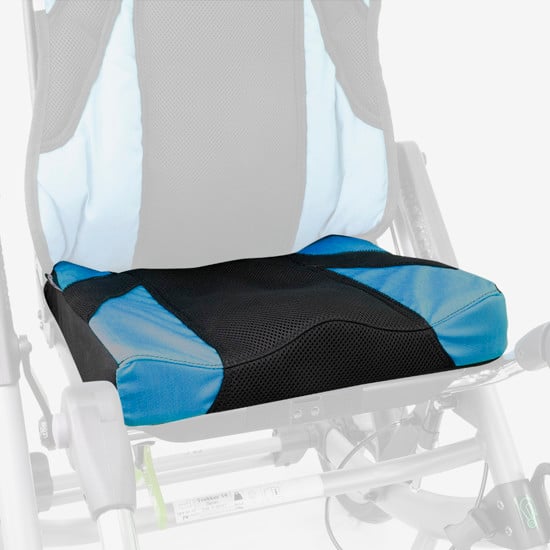

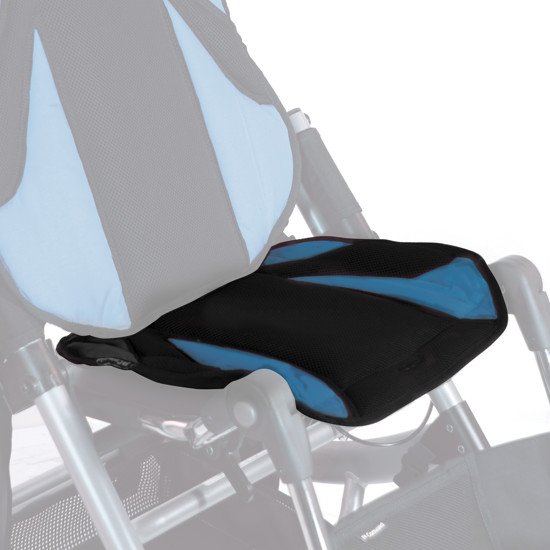

Snuggle contoured seat cushion

Cordura fabric (standard) Spacer fabric (option)

Snuggle planar seat cushion

Cordura fabric (standard) Spacer fabric (option)

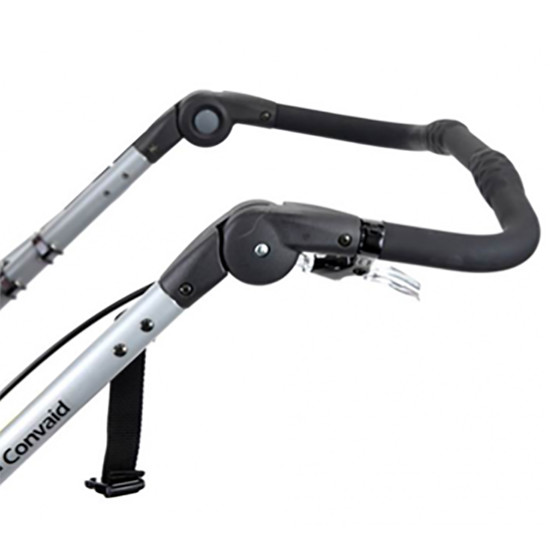

One-piece height-adjustable push handle

Inside mount (standard)

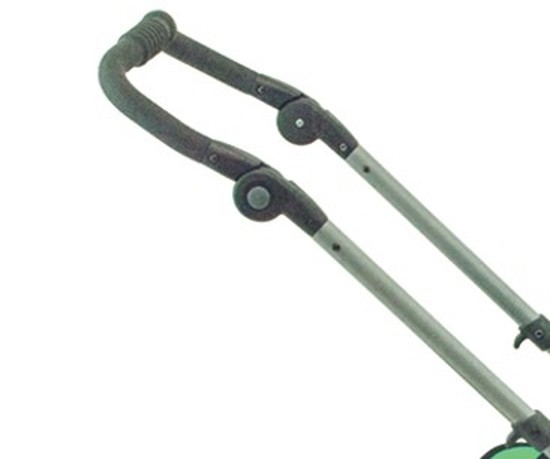

One-piece height-adjustable push handle

Outside mount (option)

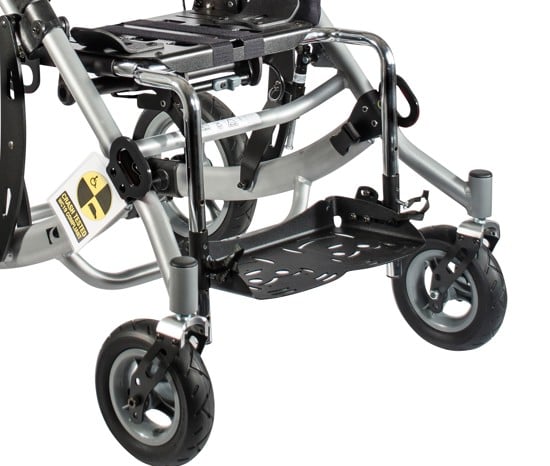

90° Fixed front riggings

Standard

Angle adjustable elevating leg rest (ELR)

90° Fixed footplate

Standard

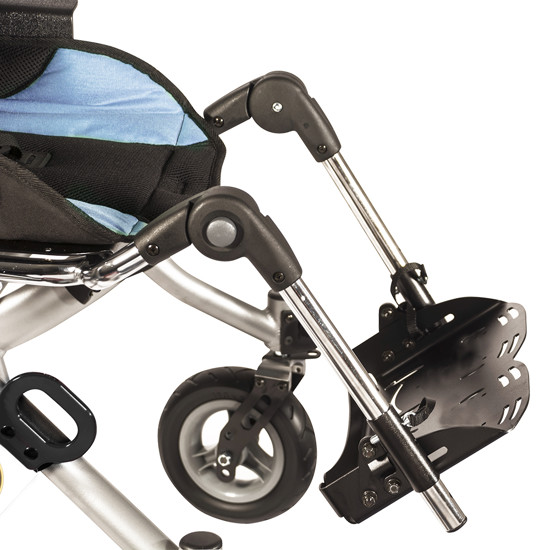

One-piece angle adjustable flip-up footplate

(-15° - +15°)

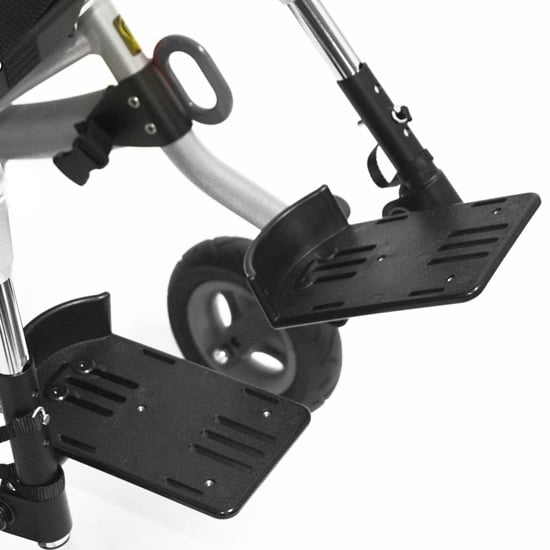

Individual angle adjustable footplates

The individual footplates are angel adjustable for optimum leg and foot positioning. These footplates can be adjusted to accommodate a shorter leg to footplate desired height.

7.5” X 2” Front pneumatic tires

Only offered on model sizes 10-16.

12.5” X 2” Rear pneumatic knobby tires

Only offered on model sizes 10-16.

12.5” X 2” Rear solid knobby tires

Only offered on model sizes 10-16.

Recline System (80° to 170°)

Manufacturer Installation Required

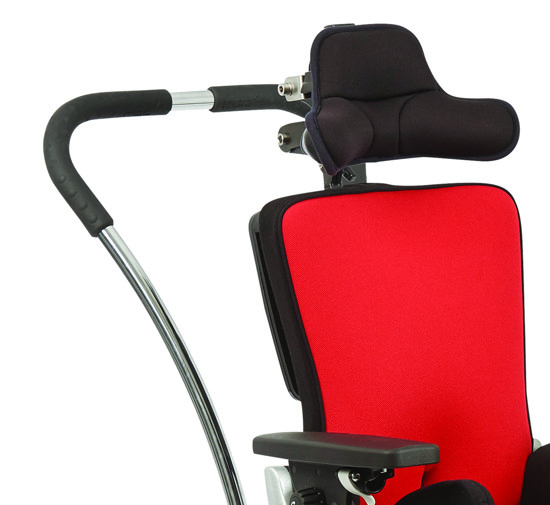

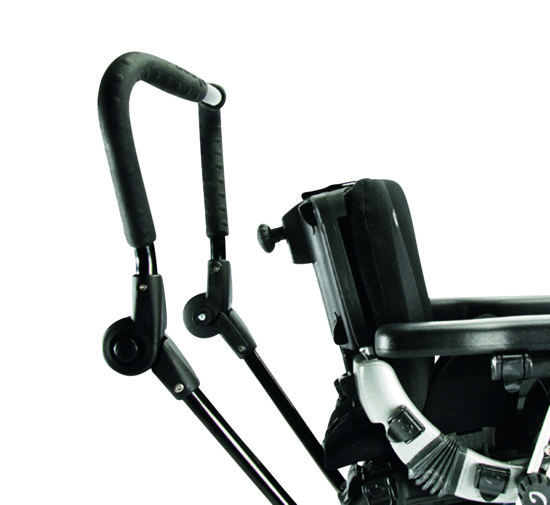

Push Brace - Fixed Angle

A push brace can be mounted

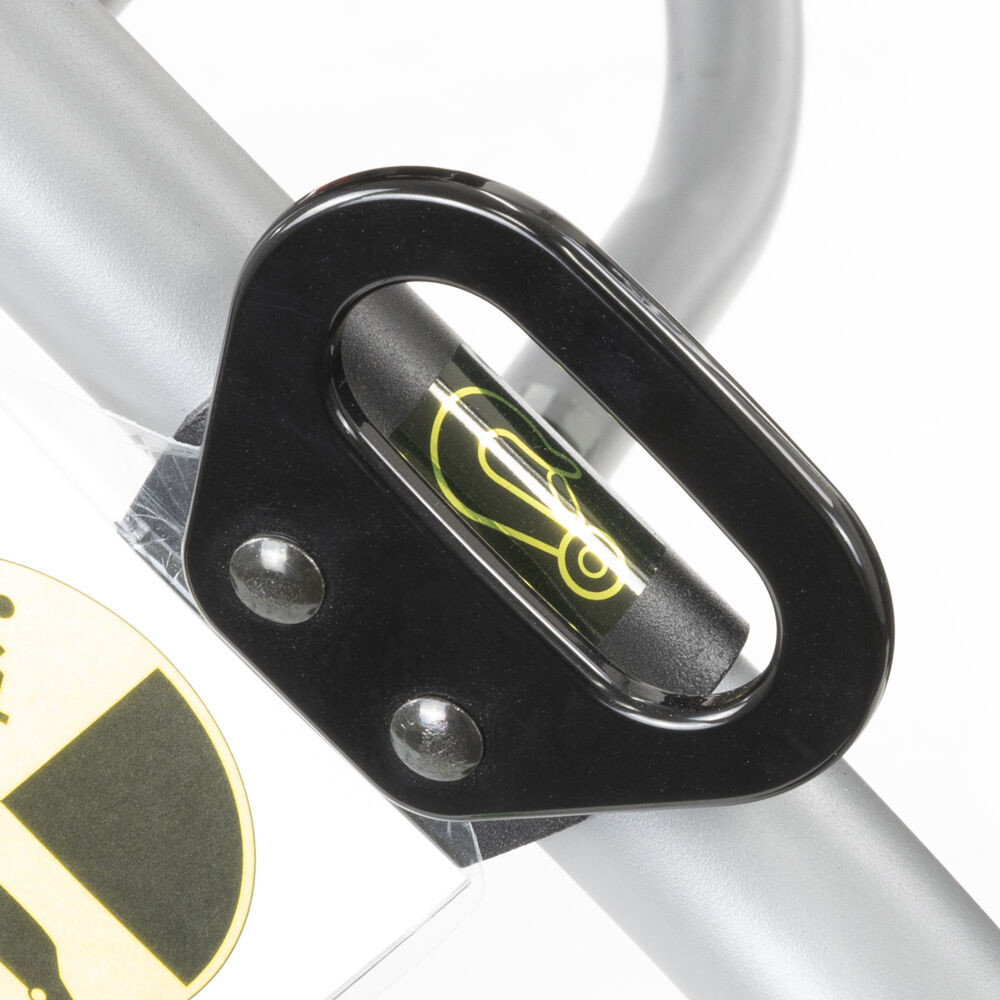

Transit ready frame

Adheres to WC19 safety standards for safe transportation.

Transit lap belt

The crash-tested (SAE J2249) transit lap belt provides additional occupant safety when riding in a bus or van. The belt connects to the bus anchored shoulder restraint harness and is used in addition to the pelvic positioning belt.

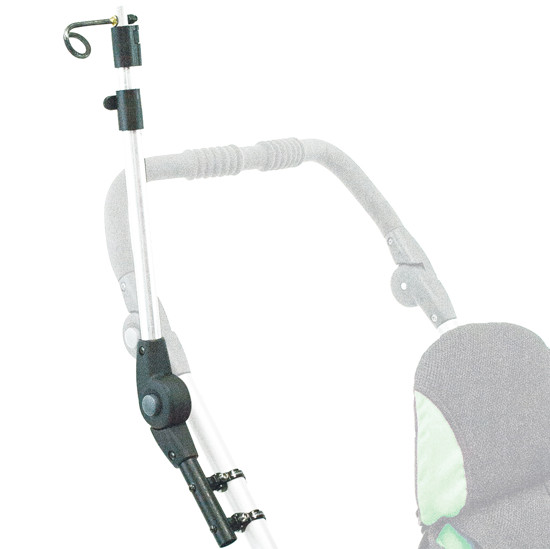

IV pole

Convenient IV bag hanger that is height adjustable. The 7/8" diameter tubing allows for easy IV pump installation. Easily folds for compact storage and quick release

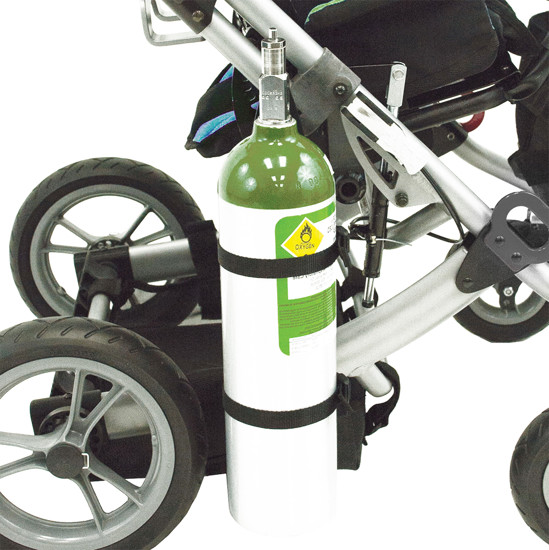

O2 Tank holder

The oxygen tank holder accommodates D & E Oxygen Tanks which are the most common Oxygen Tank sizes. It mounts to the side of the chair for easy access, and can be easily removed.

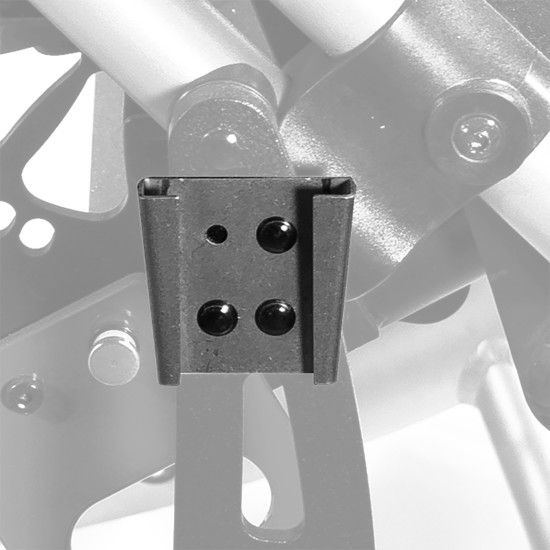

LTV ventilator holder

"This design allows LTV series ventilator to be mounted on the side of the chair frame, both forward and in reverse configuration."

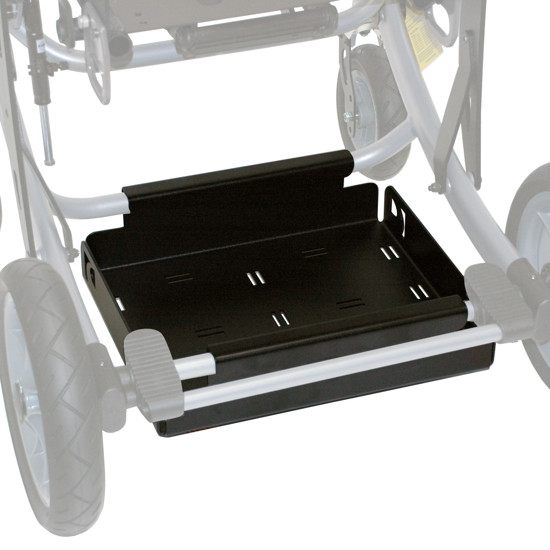

TR Ventilator/suction/hard tray

Is made of aluminum, a very durable material preventing damage to ventilator or other essential equipment from impact on any side. It can easily be attached or removed from bottom of frame for transport needs. This feature allows for lightweight transportability of vent-dependent individuals.

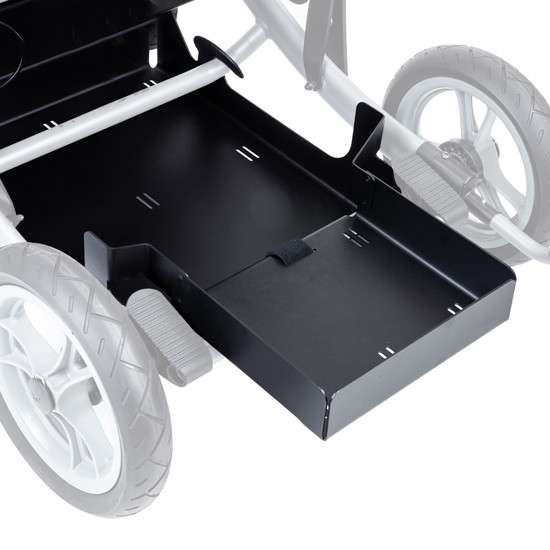

Extended ventilator/suction/hard tray (kit or lower tray only)

Is made of aluminum, a very durable material preventing damage to ventilator or other essential equipment from impact on any side. It can easily be attached or removed from bottom of frame for transport needs. This feature allows for lightweight transportability of vent-dependent individuals.
