R82 High-low:x Frame

The High-low:x Frame is a stable base with a user friendly height adjustment from floor to table height.

The High-low:x Frame is available either as an indoor frame with small lockable castors or as an outdoor frame with large wheels and foot brake.

The frames are available with either gas, power or hydraulic height adjustment. The frames accomodate various seats, e.g. the x:panda seats from R82.

The High-low:x Frame is available in three sizes as indoor version and in two sizes as outdoor version. The High-low:x Frame max load is 100 kg.

Features

The High-low:x Frame, outdoor, complies with the international transit wheelchair standard ISO 7176-19. The High-low:x Frame, outdoor, can be used with seat units that comply with ISO 16840-4

Safe transportation in vehicles

The High-low:x Frame, outdoor, complies with the international transit wheelchair standard ISO 7176-19. The High-low:x Frame, outdoor, can be used with seat units that comply with ISO 16840-4
The height is adjustable from floor to table height. The frames are available with either gas, power or hydraulic height adjustment

Height adjustment

The height is adjustable from floor to table height. The frames are available with either gas, power or hydraulic height adjustment
On the High-low:x size 1 and 2 the seats are mounted into the interface. On size 3 the seats can be mounted either directly onto the High-low:x Frame or by using an interface

Fixed mounting or interface

On the High-low:x size 1 and 2 the seats are mounted into the interface. On size 3 the seats can be mounted either directly onto the High-low:x Frame or by using an interface
The seat base has an angle range of 40° which helps obtain varied seating positions. The base can be angled from 0 to 30° or from -10° to 20°

Angling of seat base

The seat base has an angle range of 40° which helps obtain varied seating positions. The base can be angled from 0 to 30° or from -10° to 20°

Standard specifications

Indoor frame, gas, size 1
Indoor frame, power, size 1
Indoor frame, gas, size 2
Indoor frame, power, size 2
Indoor frame, hydraulic, size 2
Indoor frame, power, size 3
Outdoor frame, gas, size 1
Outdoor frame, gas, size 2
Outdoor frame, power, size 1
Outdoor frame, power, size 2
Outdoor frame, hydraulic, size 2
Item number 8911603-02 8911603-02EL 8911605-02 8911605-02EL 8911606-02 8911607-02EL 8911613-02 8911615-02 8911613-02EL 8911615-02EL 8911616-02
Footrest to adaptor plate (inch) 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5 2-11.5
Length (inch) 27.25 27.25 30.75 30.75 30.75 30.75 1.80902777777778 1.55902777777778 1.80902777777778 37.75 43.75
Mass device (lbs) 27.5 28.6 30.8 36.3 36.5 37.4 45.1 39.6 45.1 38.5 44
Max load (lbs) 132.25 132.25 132.25 132.25 132.25 220.4 132.25 132.25 132.25 132.25 132.25
Max load at transportation (lbs) - - - - - - 94.75 94.75 94.75 94.75 94.75
Maximum rated load (lbs) 164.2 165.3 167.5 173 173 262.3 181.8 176.3 181.8 175.2 176.3
Overall width (inch) 22 22 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5
Seat plane angle (°) (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30
Seat surface height at front edge (inch) 7.5-24.25 6.75-23.5 9.5-24.25 10-23.5 8.5-22 10.25-21.75 17-23.25 10.25-27.5 13-25.25 10.25-27.5 13-25.25

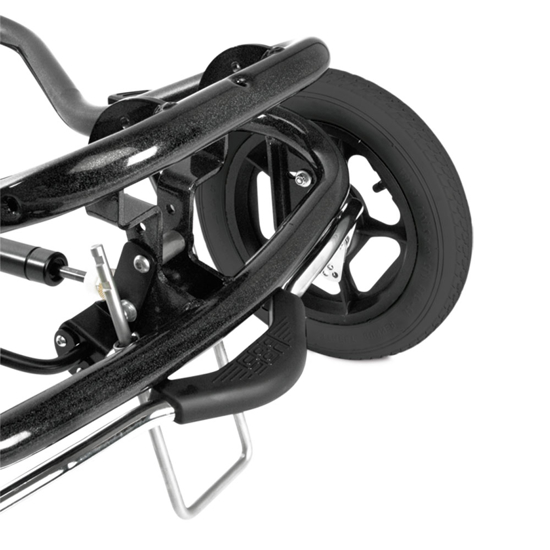

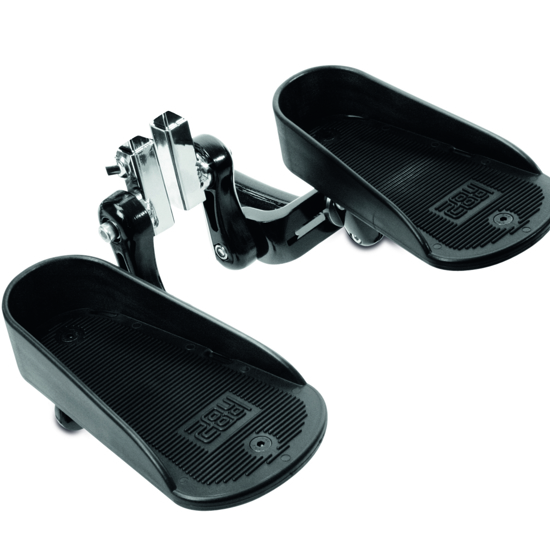

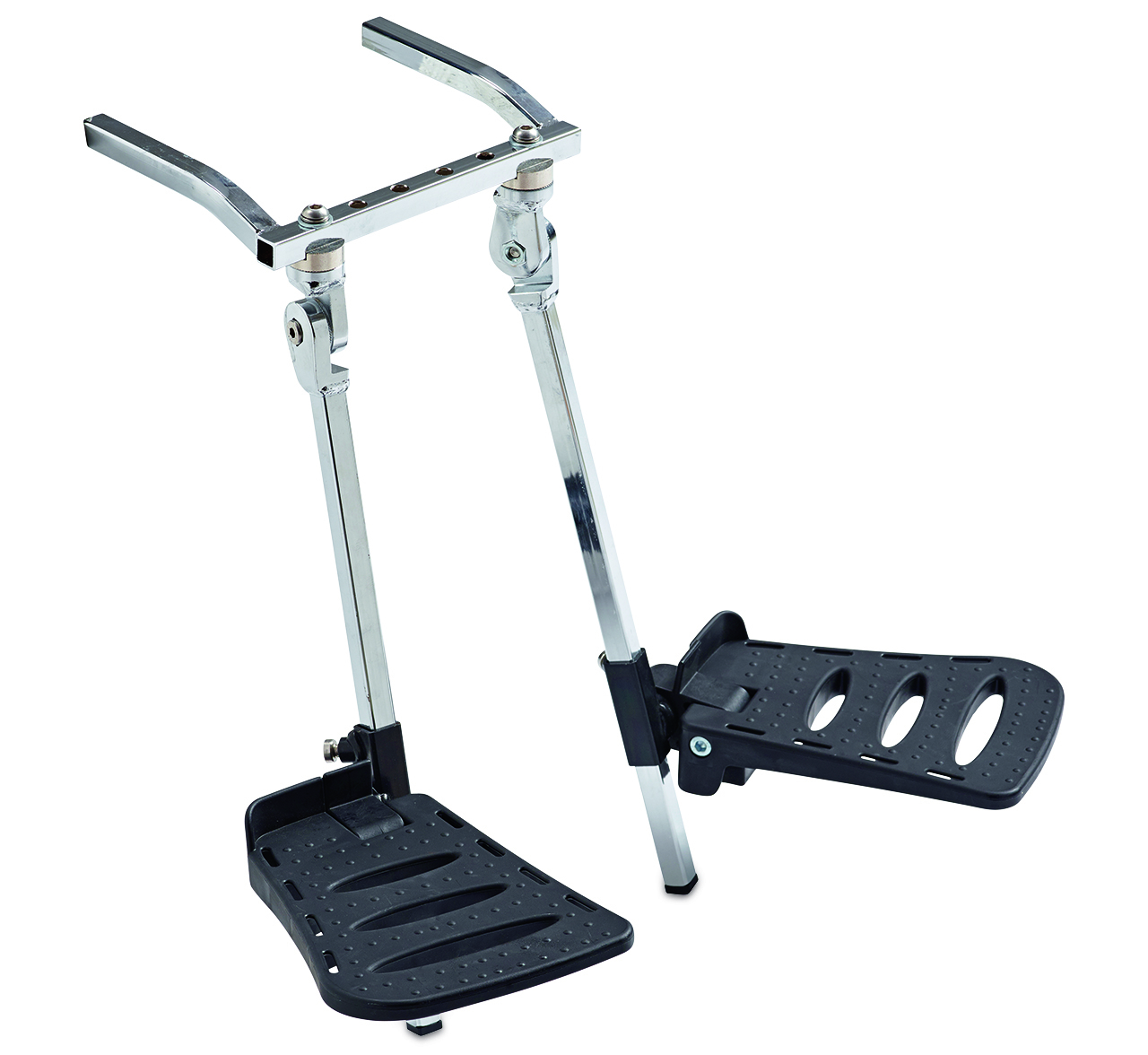

Options

The indoor frame is available in 3 sizes - the outdoor frame is available in 2 sizes.

Size 1 indoor frame with power

Size 2 indoor frame with power

Size 3 indoor frame with power

x:panda: We recommend; x:panda size 1-2 on frame size 1 x:panda size 3 on frame size 2-3 x:panda size 4 on frame size 3

We recommend; x:panda size 1-2 on frame size 1 x:panda size 3 on frame size 2-3 x:panda size 4 on frame size 3.

Stingray Possible combinations; Stingray size 1-2 on frame size 2

Possible combinations; Stingray size 1-2 on frame size 2

Gas

Hydraulic

Power
