Molift Quick Raiser 205

Ergonomic sit-to-stand hoist with outstanding transfer capability

The Molift Quick Raiser 205 is a state-of-the-art sit-to-stand hoist with outstanding transfer capabilities and exceptional manoeuvrability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.

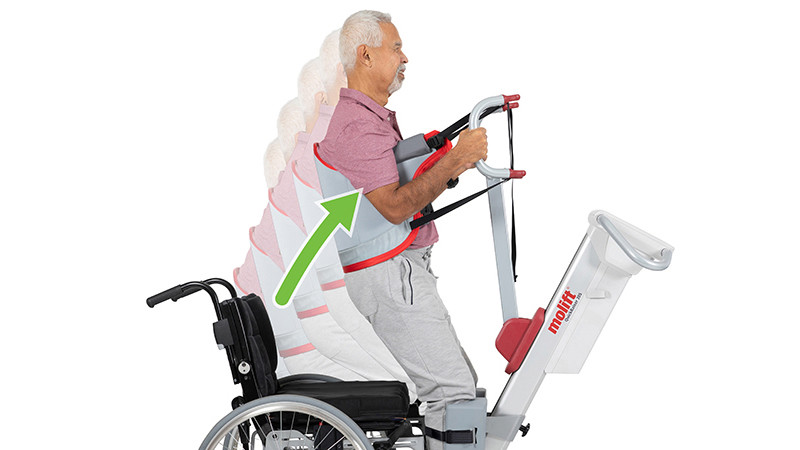

The natural movement pattern
The inclined column encourages a natural movement pattern and fulfils the lifting needs of users up to 205 kg, with some weight-bearing capacity. The user can feel safe and comfortable in every movement as the lifting experience is the same regardless of the carer, lifting arm or sling.

Exceptional maneuverability
The Quick Raiser 205 is compact, stable and exceptionally easy to manoeuvre. The hoist has a small turning radius and good manoeuvrability even in tight spaces, thanks to the unique wheel position, angled push rod and outstanding weight distribution of the base.

The hoist fits under most beds and chairs, and the variant with electrically adjustable legs allows accessibility almost anywhere. The fixed leg option enables a very small footprint.

Molift QR 205 discover 1 - Card item

Consistent & safe lifting

The lifting trajectory follows a natural movement pattern and is always the same due to the design of the inclined column. Thanks to this movement pattern, the sling stays in place and does not slide up, which is a usual problem with sit-to-stand hoists. This means that the lifting path is always the same regardless of the sling and who the carer is. This results in a safe, comfortable, consistent lifting experience for the user.

Features

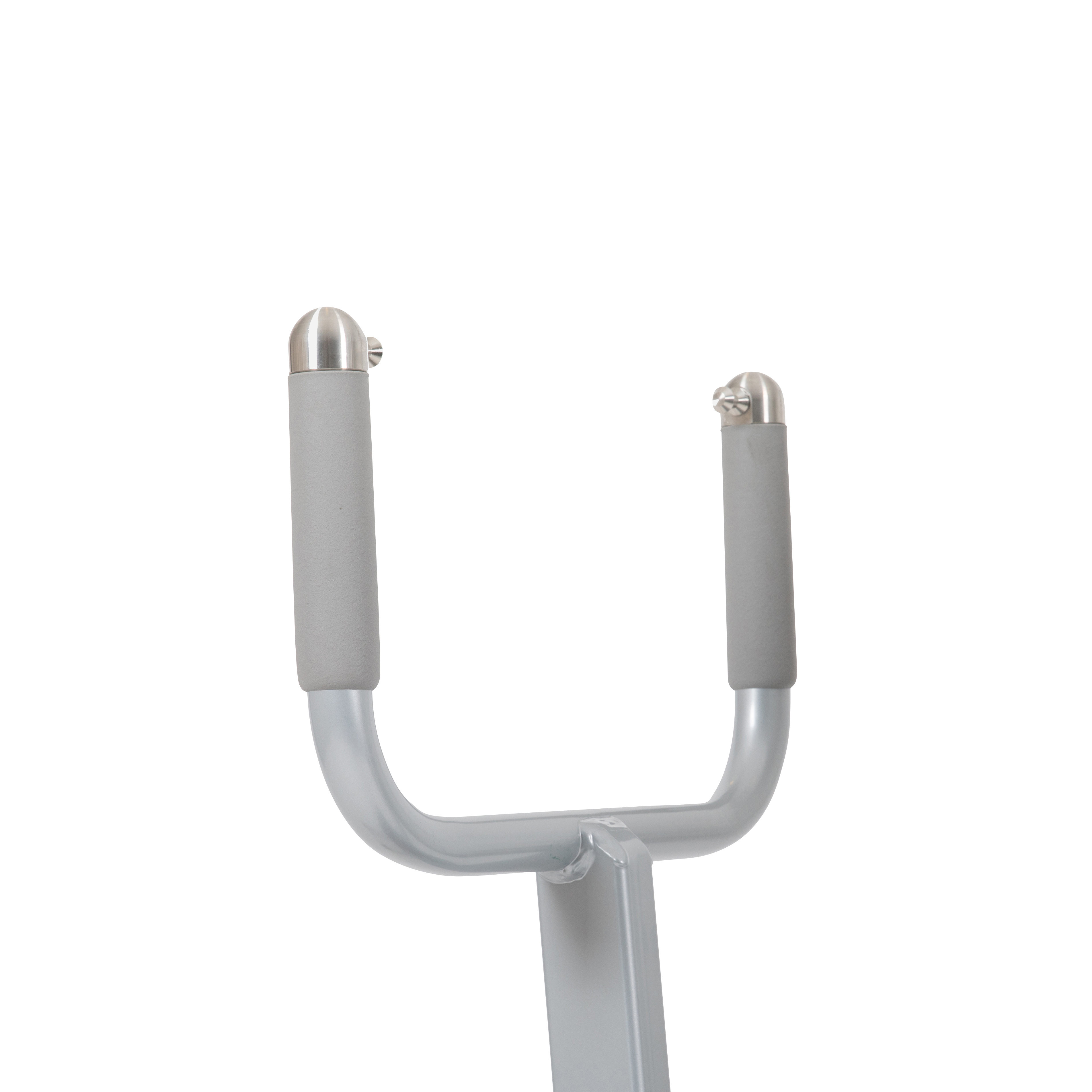

Molift Quick Raiser 205 - Flexible lifting arm

Flexible lifting arm

To facilitate the carer’s work and not worry stressed users, the lifting bar can be folded away from the user towards the column when it’s not in use.
Excellent accessibility

Excellent accessibility

Quick Raiser 205 fits under most beds and chairs, and the electrically adjustable legs enable accessibility almost everywhere.
Easily manoeuvred

Easily manoeuvred

Easy to manoeuvre even in tight spaces thanks to the base’s small turning radius and weight distribution.
Ergonomic for the carer

Ergonomic for the carer

The adjustable legs can remain closed, regardless of movement, giving the carer room to work with minimized risk of injury.

Variants and details

Specifications for all variants
Battery SLA 24V 2,9 Ah Protection class IP24
Battery charge time (hours) 5 Rated performance 100 hoists/75 kg
Expected lifetime 30 000 cycles or 10 years Service software Molift Service Tool
Height (mm) 1140 Width chassis, legs inner (mm) 220
Hoisting speed 75 kg (mm/sec) 35 Width chassis, legs open inner (mm) 590
Material Aluminium, Plastic, Steel Width chassis, outer (mm) 630
Maximum user weight (kg) 205
Item number
Length (mm)
Product includes
Total weight (kg)
Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg. M29000 1320 Castor size Ø75 mm. Standard leg supports. 44.5
Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg. M29100 1320 Castor size Ø100 mm. Standard leg supports. 44.5
Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg. M29150 1165 Castor size Ø75 mm. Standard leg supports. 42.5
Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg. M29200 1320 Castor size Ø100 mm. Standard leg supports. 42.5
Molift Quick Raiser 205, StandUp 2-point lifting arm. Adjustable leg. M29001 1320 Castor size Ø75 mm. Standard leg supports. 44.5
Molift Quick Raiser 205, Standup 2-point lifting arm. Adjustable leg. M29101 1320 Castor size Ø100 mm. Standard leg supports. 44.5
Molift Quick Raiser 205, StandUp 2-point lifting arm. Fixed leg. M29151 1165 Castor size Ø75 mm. Standard leg supports. 42.5
Molift Quick Raiser 205, StandUp 2-point lifting arm, Fixed leg. M29201 1165 Castor size Ø100 mm. Standard leg supports. 42.5

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
