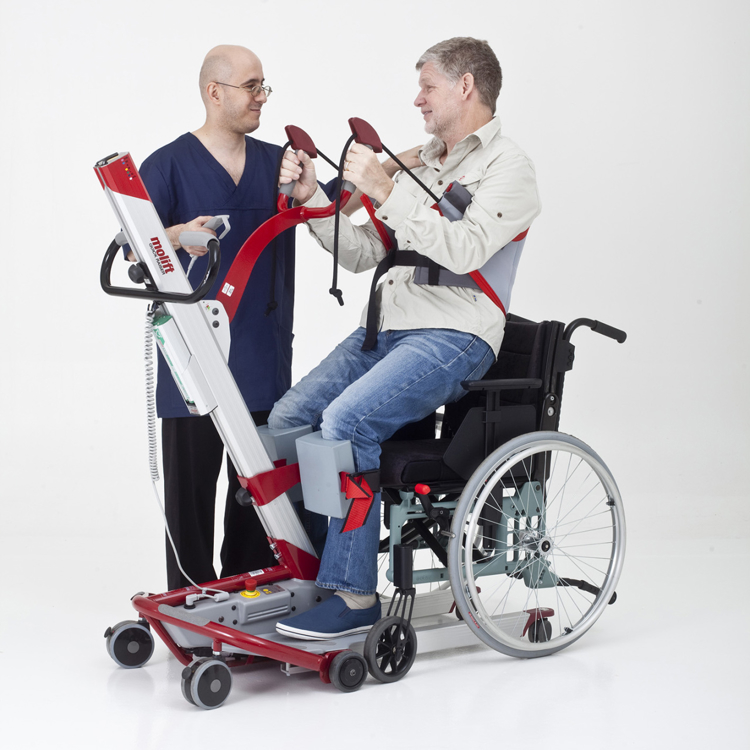

Molift Quick Raiser 2

Sit-to-stand hoist with electrically adjustable leg base

Stable and easy to manoeuvre
Molift Quick Raiser 2 with an electrically adjustable leg base is compact, stable and easy to manoeuvre. The unique wheel position and near-perfect weight distribution of the base provides a good turning radius and easy manoeuvrability even in narrow spaces.

Fits almost everywhere
The inclined straight column imitates the natural pattern of movement and fulfils the hoisting needs of users with some degree of weight-bearing capacity. Molift Quick Raiser 2 has a safe working load of 160 kg (352 lbs).

The low base, 10 cm (4”), fits under most beds and chairs while the electrically adjustable legs enable accessibility almost everywhere.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance, and enables analysis of the lift's use.

Features

Electrically adjustable legs

The perfect alternative when the hoist is used with a chair which has no accessibility underneath, such as electric wheelchairs and recliners.

Multiple adjustable knee pads

The knee pads are height adjustable and can be turned around for better fitting and to give alternative support for the legs.

Battery indicator

All Molift hoists have an integrated battery indicator that provides audio and visual notification. All Molift hoists are equipped with an environmentally friendly NiMH-battery.

Unique wheel positioning

The lightweight construction combined with the unique wheel positioning, provides exceptional manoeuvrability.

Variants and details

Specifications for all variants
Battery	NiMH 14,4 V - 2,2 Ah	Material	Aluminium, steel
Battery charge time (hours)	3	Maximum user weight (kg)	160
Height (mm)	1280	Rated performance	40 hoists at: 75 kg and 500 mm
Hoisting speed 75 kg (mm/sec)	50	Service software	Included
Leg height (mm)	100	Weight (kg)	36
Length (mm)	1150	Width chassis, outer (mm)	610

	V-shape arm	U-shape arm
Item number	M04200	M04400

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
