R82 Gazelle PS
The R82 Gazelle PS is an advanced standing frame for children, meticulously crafted to suit a broad spectrum of needs. This standing frame supports prone, upright, or supine positions, offering flexibility tailored to each child's unique needs.
One of the attributes of this standing frame is its ability to provide up to 30 degrees of hip abduction in each leg. Beyond its design ingenuity, research indicates that this specific feature can play role in hip development , potentially mitigating hip migration in children with cerebral palsy. Constructed with exceptional care, the R82 Gazelle PS standing frame is available in three sizes, accommodating children from heights of 700 mm (27 1/2") to 1650 mm (65"). Its durability is further emphasized by a maximum user mass of 80 kg (176 lb). During daily activities, the R82 Gazelle PS standing frame offers dependable support for children. With a focus on adaptability, its features are tailored to meet specific user needs. In summary, the R82 Gazelle PS is a comprehensive solution for children requiring standing assistance. By accommodating diverse postures, potentially facilitating hip health , and ensuring durability, it responds effectively to various needs. Tailored for different sizes and designed for daily reliability, this standing encapsulates thoughtful engineering with a keen focus on the well-being of its users.
Features
Tilt vertical-horizontal

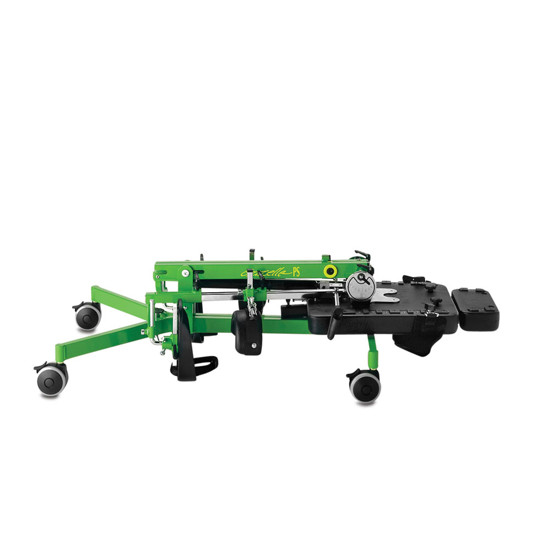

Foldable

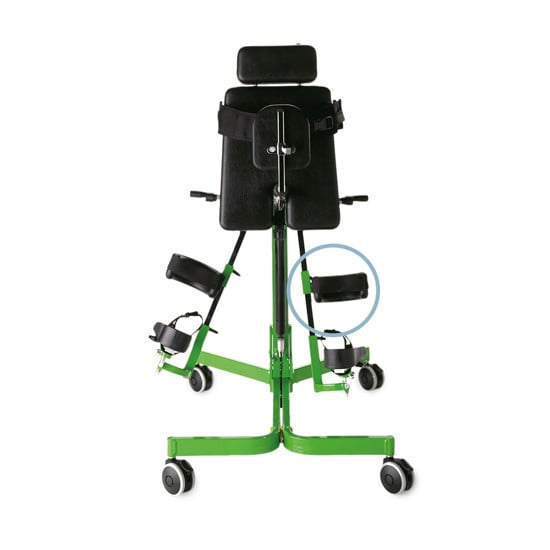

Manual leg abduction

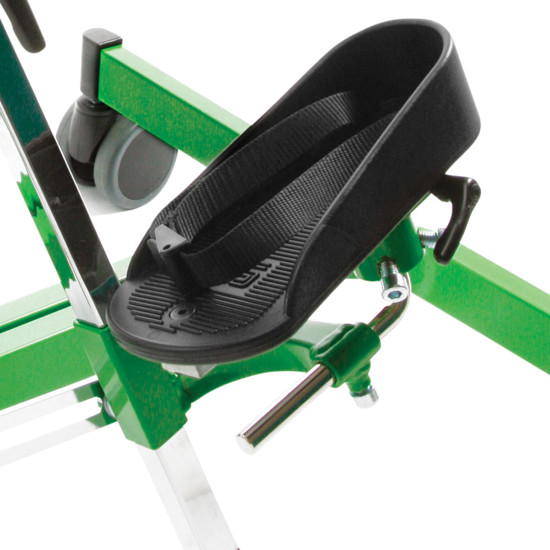

Multi-adjustable foot supports
Variants and details
| Size 1 | Size 2 | Size 3 | |
|---|---|---|---|
| Item number | 88010-1 | 88010-2 | 88010-3 |
| Angle board (°) | 90-(-15) | 90-(-15) | 90-(-15) |
| Length (mm) | 760 | 880 | 990 |
| Mass device (kg) | 20 | 22 | 24 |
| Mass device (lbs) | 44 | 48 | 53 |
| Maximum rated load (kg) | 62 | 85 | 106 |
| Maximum user mass (kg) | 40 | 60 | 80 |
| Overall height, horizontal (mm) | 760 | 800 | 900 |
| Overall width (mm) | 480 | 580 | 650 |
| User height: floor to axil (mm) | 450-950 | 600-1050 | 700-1250 |
Options
Frame colour
Delivered in different colours for size 1, 2 and 3.
Yellow for size 1
Green for size 2
Blue for size 3

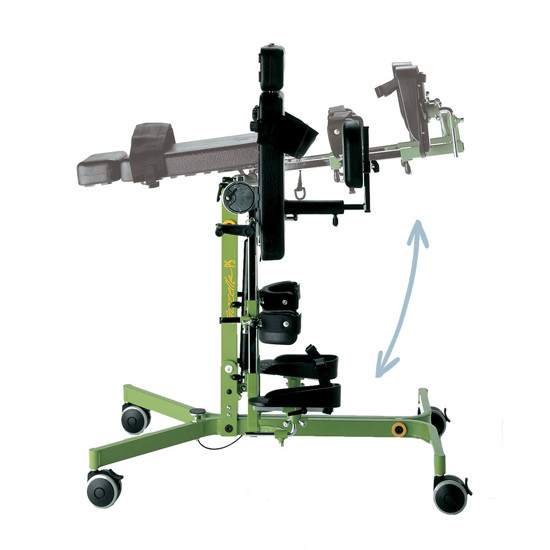

Tilt vertical-horizontal
The tilt angle can vary from child to child. Tilt angle from 90° to -15°.

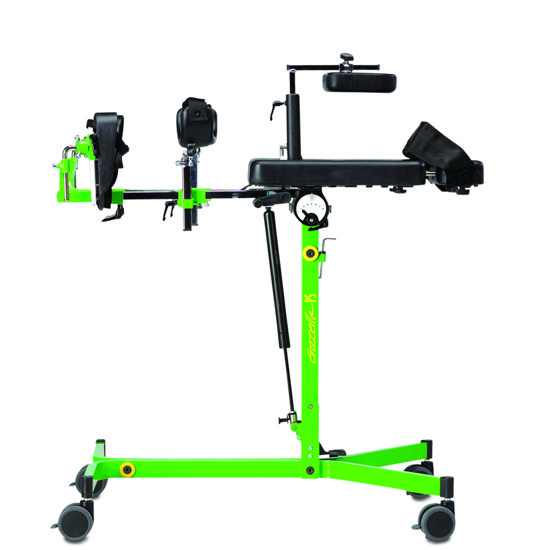

Tilt 0°

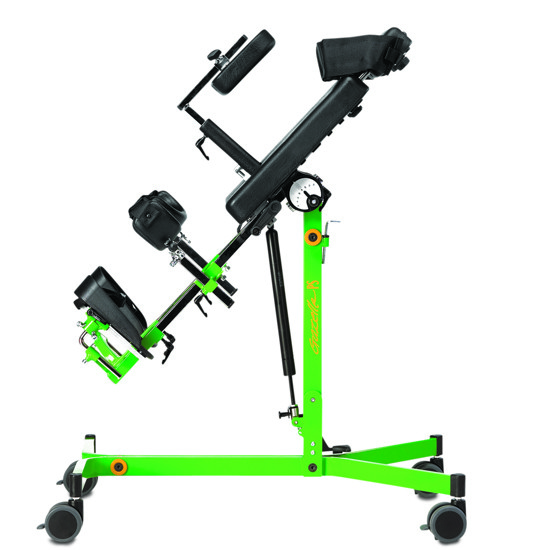

Tilt 45°

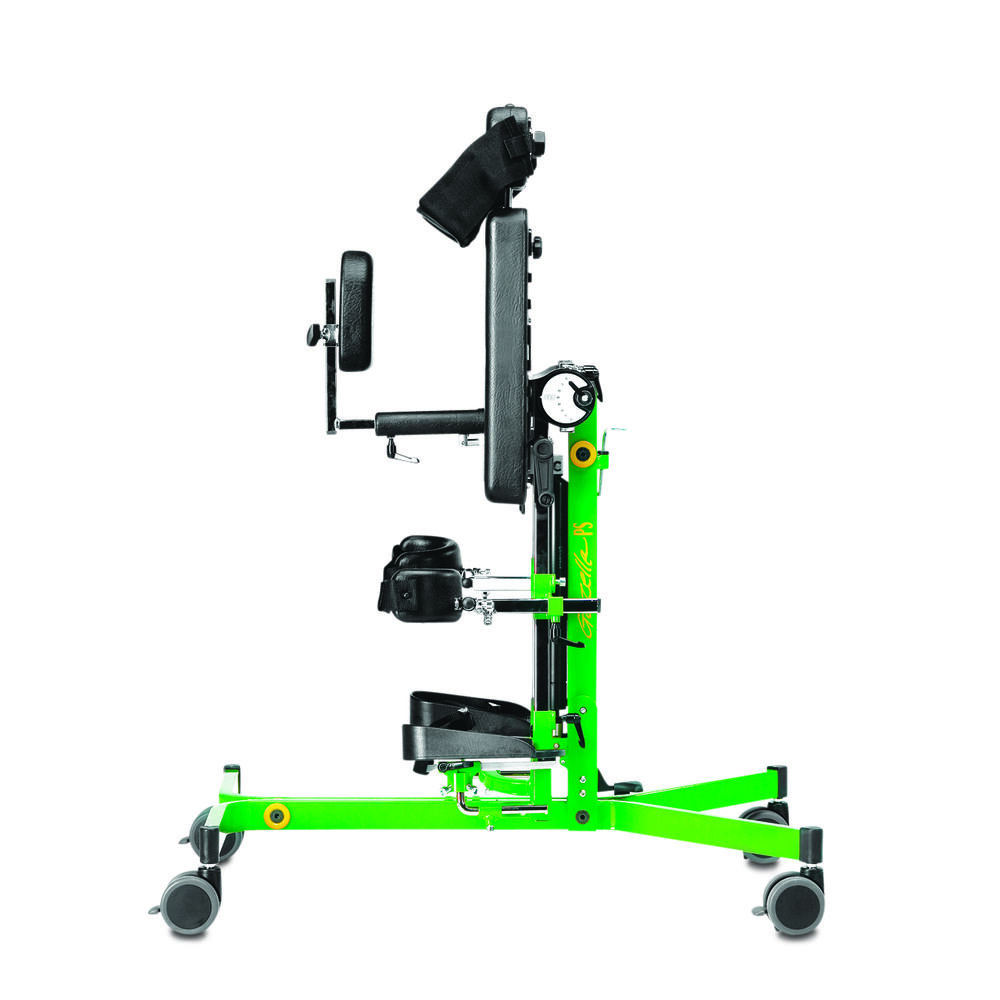

Tilt 90°

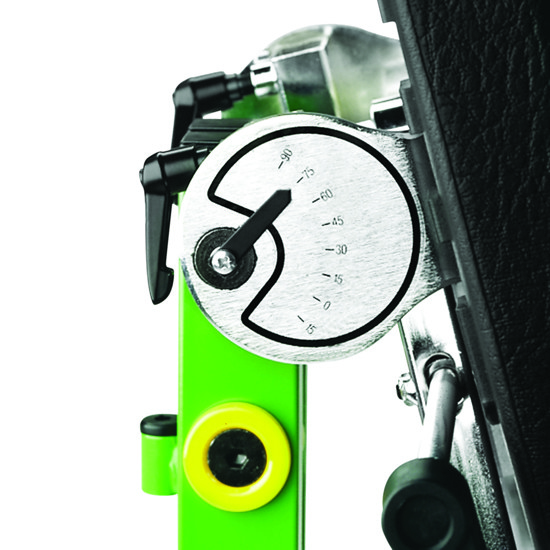

Keep track of the tilt angle with the protractor
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
