R82 High-low:xo Frame

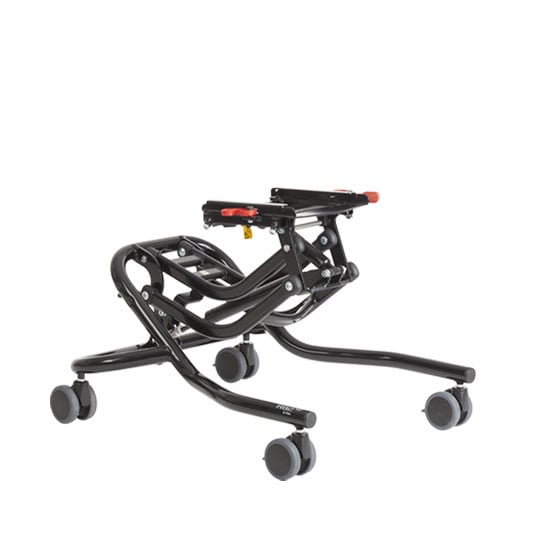

The High-low:xo is an indoor or outdoor frame for a seating system with user friendly height adjustment from floor to table height.
The High-low:xo frame is designed to support activity and participation in any environment. Available in both indoor and outdoor models, it can be configured with a wide range of functions and accessories to create the best possible solution for the child and caregiver. This adaptability helps compensate for physical limitations and fosters engagement in daily life. At the same time, it optimises working conditions for the caregiver by promoting better ergonomics. A versatile, dependable frame that works with many seating systems to support mobility and active participation.
Features
-
Features
Height adjustment

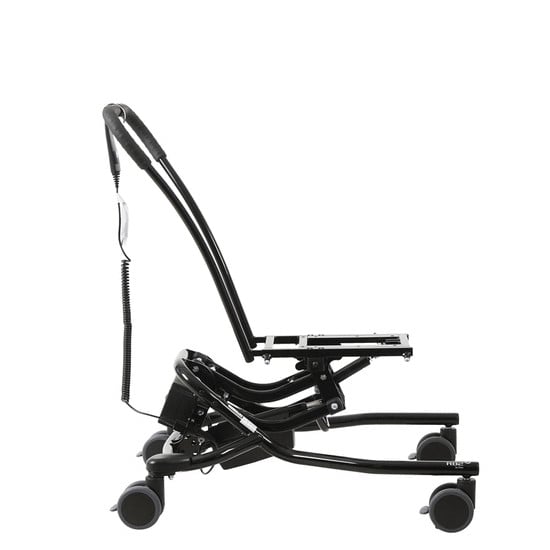

The High-low:xo takes the user from the floor to table height assisted by a gas spring, power or hydraulic with a minimum of frontal / backwards movement to enable the user to participate in activities important to them.
-
Features

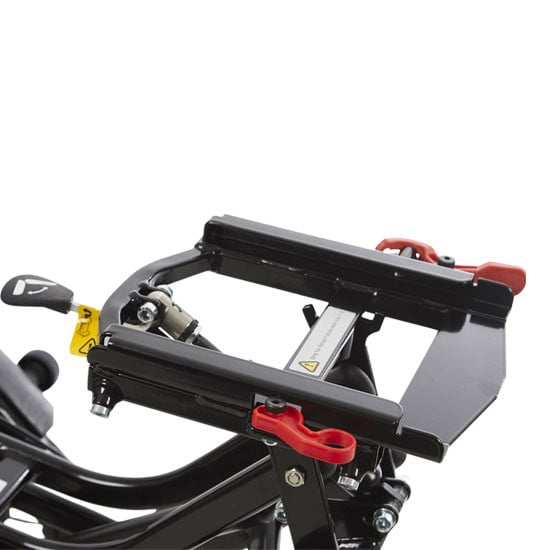

Fixed mounting or interface
An adapter offers simple and secure mounting of the seat to the frame, and the interface makes it easy to change to another seat. Larger seats can be mounted directly onto the High-low:xo.
-
Features

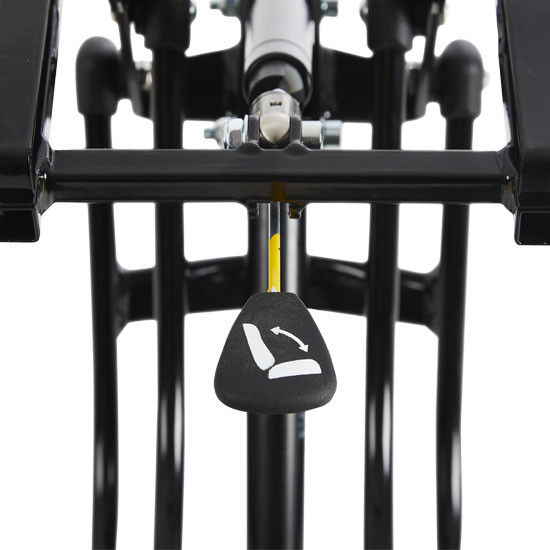

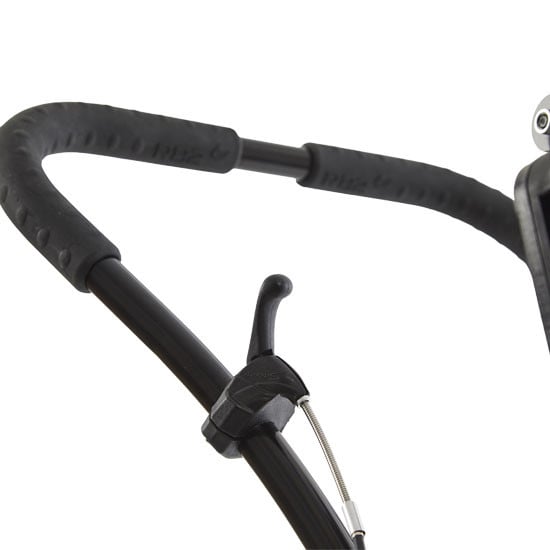

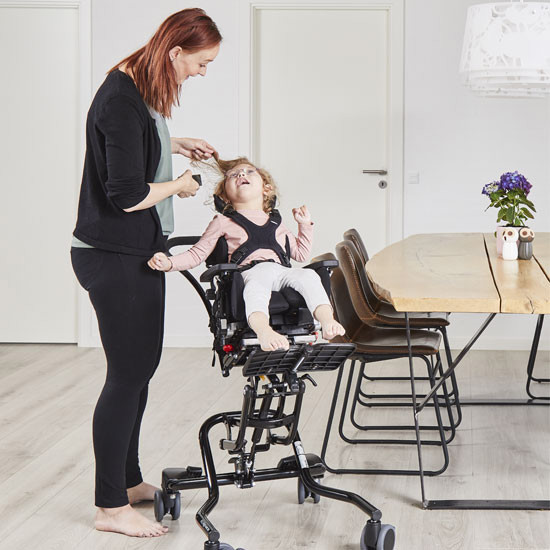

Tilt of the seat plate angle
The High-low:xo tilts from -10° to 30°. Tilting can help position the user and help with their abilities to maintain an upright position of the head and trunk. Furthermore, the adjustability can help create the best possible working condition for the caregiver.
-
Features

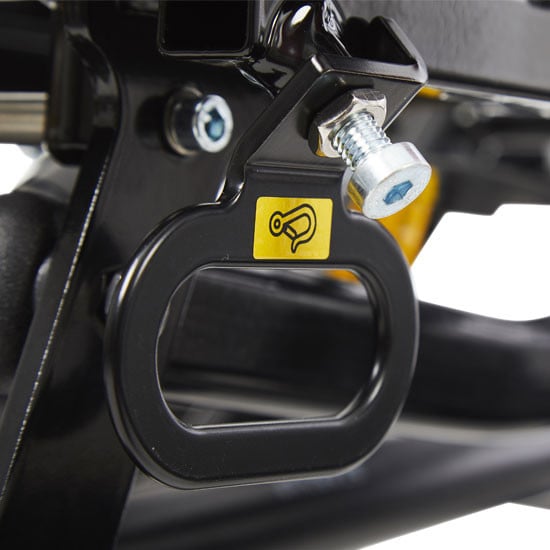

Safe transportation in vehicles
The High-low:xo outdoor complies with the international transit wheelchair standard ISO 7176-19. The High-low:xo outdoor can be used with seat units that comply with ISO 16840-4.

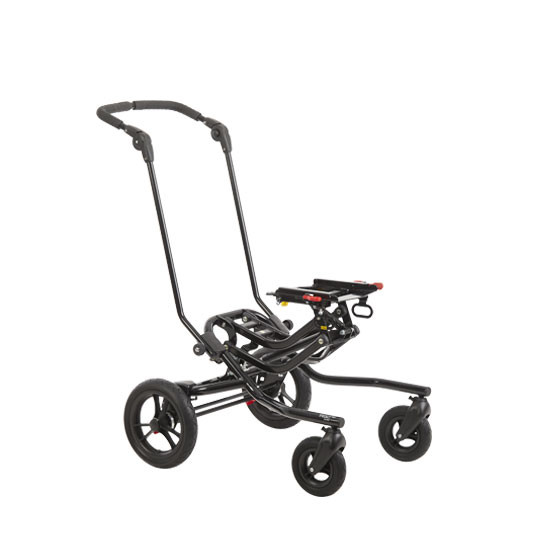

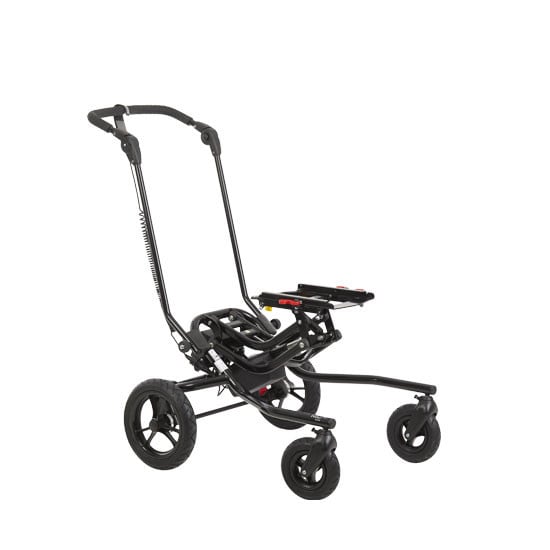

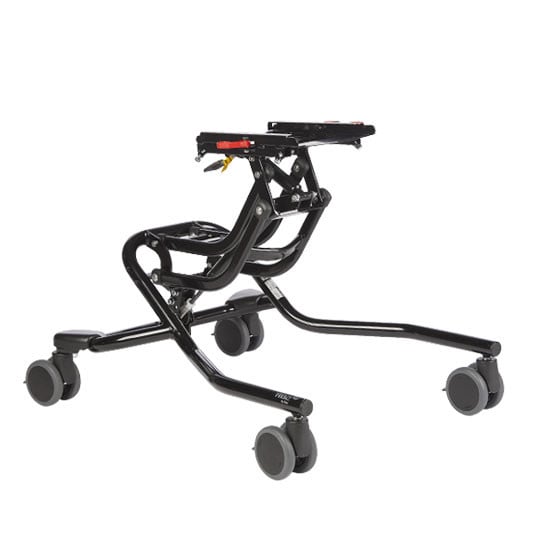

Variants and details

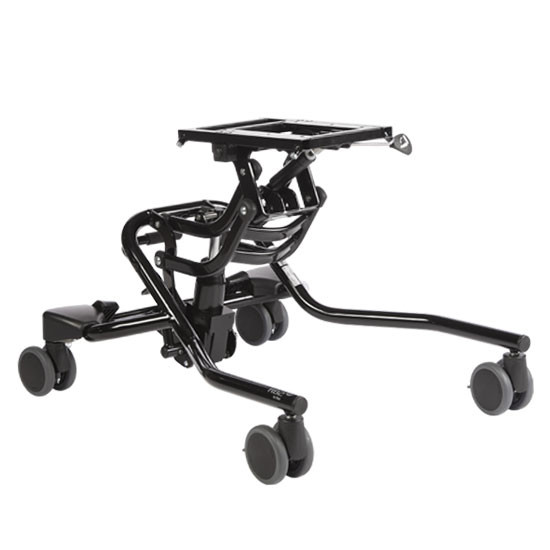

| Indoor frame, gas, size 1 | Indoor frame, gas, size 2 | Indoor frame, power, size 1 | Indoor frame, power, size 2 | Indoor frame, power, size 3 | Indoor frame, hydraulic, size 2 | Indoor frame, hydraulic, size 3 | Outdoor frame, gas, size 1 | Outdoor frame, gas, size 2 | Outdoor frame, power, size 1 | Outdoor frame, power, size 2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Folded height (mm) | - | - | - | - | - | - | - | 460 | 460 | 460 | 460 |
| Footrest to adaptor plate (mm) | - | - | - | - | - | - | - | 50-290 | 50-290 | 50-290 | 50-290 |

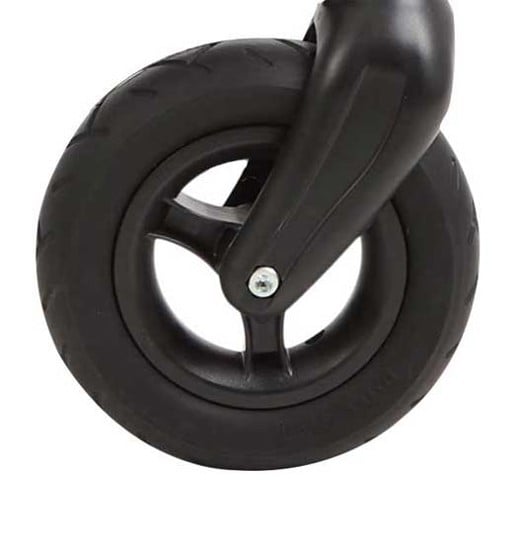

| Front wheel Height × Width (mm) | - | - | - | - | - | - | - | 190x50 | 190x50 | 190x50 | 190x50 |
| Horizontal location of axle (mm) | - | - | - | - | - | - | - | 200-210 | 255-265 | 200-210 | 255-265 |
| Leg to seat surface angle (°) | - | - | - | - | - | - | - | (-30)-30 | (-30)-30 | (-30)-30° | (-30)-30° |
| Length (mm) | 655 (with 75 mm castors) | 795 (with 75 mm castors) | 660 (with 75 mm castors) | 795 (with 75 mm castors) | 795 (with 75 mm castors) | 795 (with 100 mm castors) | 795 (with 100 mm castors) | 795 (with standard solid wheels) | 800 (with standard solid wheels) | 795 (with standard solid wheels) | 800 (with standard solid wheels) |
| Mass device (kg) | 13 | 13 | 16 | 17 | 18 | 19 | 19 | 22 | 22 | 25 | 26 |
| Mass of the heaviest part (kg) | - | - | - | - | - | - | - | 18 | 18 | 21 | 22 |
| Max load (kg) | 70 | 75 | 70 | 75 | 95 | 75 | 100 | 70 | 75 | 70 | 75 |
| Maximum rated load (kg) | 85 | 90 | 88 | 94 | 116 | 96 | 121 | 94 | 99 | 97 | 103 |
| Maximum slope (for use of parking brake) (°) | - | - | - | - | - | - | - | 7 | 7 | 7 | 7 |
| Maximum user mass in transportation (kg) | - | - | - | - | - | - | - | 57 | 57 | 57 | 57 |
| Minimum turning radius (mm) | 400 | 475 | 400 | 475 | 475 | 475 | 475 | 875 | 930 | 875 | 930 |
| Minimum user mass in transportation (kg) | - | - | - | - | - | - | - | 22 | 22 | 22 | 22 |
| Overall height to push brace with 100 mm castors (mm) | - | - | 1130 | 1130 | 1130 | 1130 | 1130 | - | - | - | - |
| Overall height to push brace with 125 mm castors (mm) | - | - | 1170 | 1170 | 1170 | 1170 | 1170 | - | - | - | - |
| Overall height to push brace with 75 mm castors (mm) | 1100 | 1100 | 1100 | 1100 | 1100 | - | - | - | - | - | - |
| Overall height to push brace with standard solid wheels (mm) | - | - | - | - | - | - | - | 1045 | 1045 | 1045 | 1045 |
| Overall length (mm) | 670 | 830 | 670 | 830 | 830 | 830 | 830 | 1070 | 1170 | 1070 | 1170 |
| Overall length with leg rest (mm) | - | - | - | - | 1115 | - | - | 1115 | 1190 | 1115 | 1190 |
| Overall width (mm) | 560 | 620 | 560 | 620 | 620 | 620 | 620 | 660 | 700 | 660 | 700 |
| Pivot width (mm) | - | - | - | - | - | - | - | 1180 | 1250 | 1180 | 1250 |
| Rear wheel Height × Width (mm) | - | - | - | - | - | - | - | 290x60 | 290x60 | 290x60 | 290x60 |
| Seat plane angle (°) | (-10)-30° | (-10)-30° | (-10)-30 | (-10)-30 | (-5)-25 | (-10) - 30 | (-5) - 25 | (-10)-30 | (-10)-30 | (-10)-30° | (-10)-30° |
| Seat surface height at front edge (mm) | - | - | - | - | - | - | - | 300-720 | 345-720 | 300-720 | 345-720 |
| Seat surface height at front edge, 100 mm castors (mm) | 200-620 | 245-620 | 200-610 | 240-610 | 300-560 | 240-600 | 300-540 | - | - | - | - |
| Seat surface height at front edge, 125 mm castors (mm) | 240-660 | 285-660 | 240-650 | 280-650 | 350-600 | 280-640 | 340-580 | - | - | - | 350-600 |
| Seat surface height at front edge, 75 mm castors (mm) | 170-590 | 215-590 | 170-580 | 210-580 | 270-530 | - | - | - | - | - | - |
| Static stability downhill (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Static stability sideways (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Static stability uphill (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Wheel size (mm) | 75/100/125 Ø (3/4/5") | 75/100/125 Ø (3/4/5") | 75/100/125 Ø (3/4/5") | 75/100/125 Ø (3/4/5") | 75/100/125 Ø (3/4/5") | 100/125 Ø (4/5") | 100/125 Ø (4/5") | - | - | - | - |
Hydraulic indoor measurements on "mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 100 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 100/125 mm (4/5")
Power indoor measurements on "mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 75 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 75/100/125 mm (3/4/5")
Power Outdoor measurements on "mass device", "max. rated load" & "length": The High-low:xo Outdoor measurements above are based on the use of standard solid wheels with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without.
Gas spring indoor measurements on "overall height to push brace", " mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 75 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 75/100/125 mm (3/4/5")
Gas spring Outdoor measurements on "overall height to push brace", " mass device", "max. rated load" & "length": The High-low:xo Outdoor measurements above are based on the use of standard solid wheels with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without.

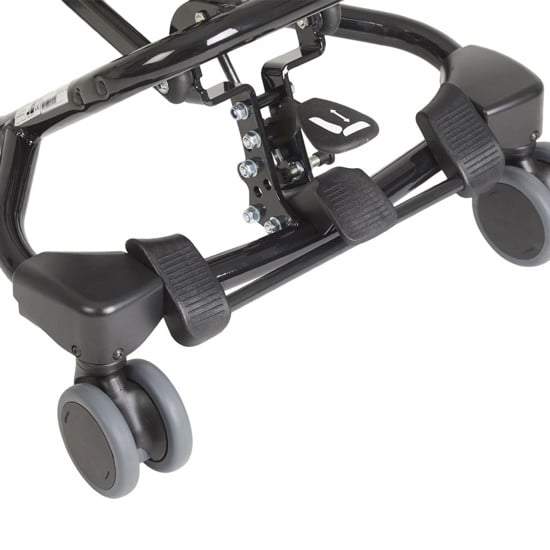

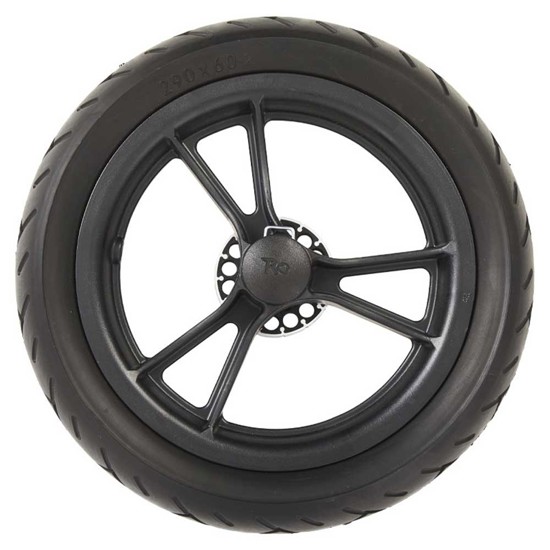

Options
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to mount threshold assistance
How to mount lock of height adjustment

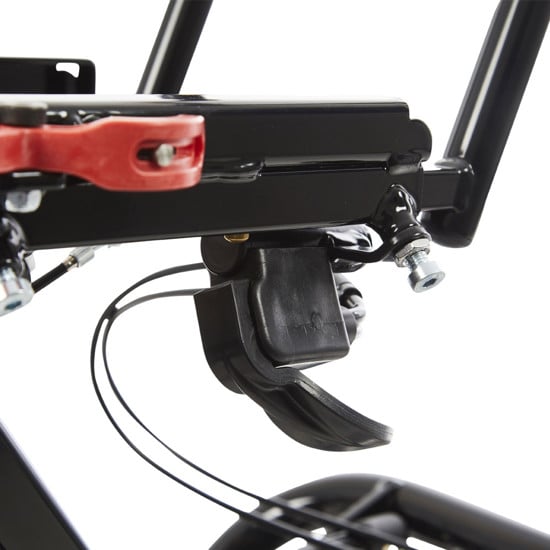

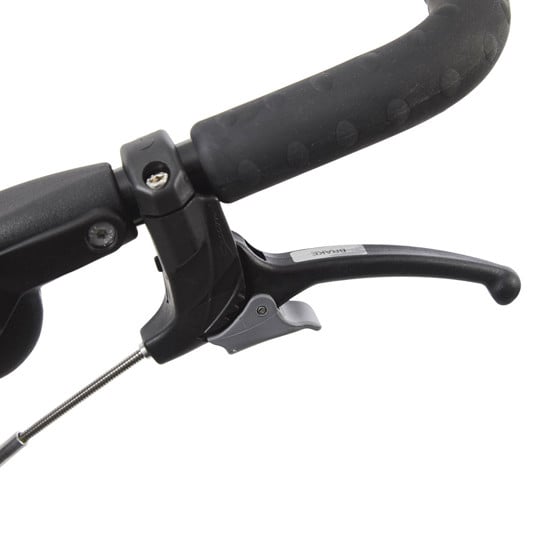

How to mount hand operated central brake
