R82 Mustang

The Mustang is a walking aid for children and youngsters with disabilities, who need supplementary assistance with their daily walking.

The Mustang provides excellent and snug support for the upper body whilst also keeping the child’s pelvis gently supported. The upright, slightly forward leaning position stimulates the walking function and encourages the child to participate in daily activities.

The Mustang can be used by children with cerebral palsy and others with impairments of their motor function. The Mustang is developed as an anterior walker but can also be used as a posterior gait trainer, depending on the child’s level of ability.

The Mustang is available in four sizes and suitable for children and young people.

Features

The user is placed at the centre of the Mustang which provides core stability and enables the user to focus energy on walking

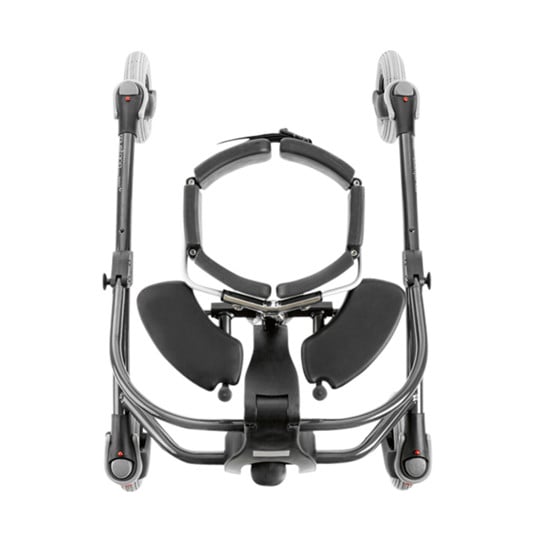

Motivating the child to walk

The user is placed at the center of the Mustang which provides stability of the upper body and enables the user to focus energy on walking.
The Mustang has easy to adjust central bar for height and angle adjustments. A slight forward leaning position, combined with built-in suspension, stimulates the natural walking pattern

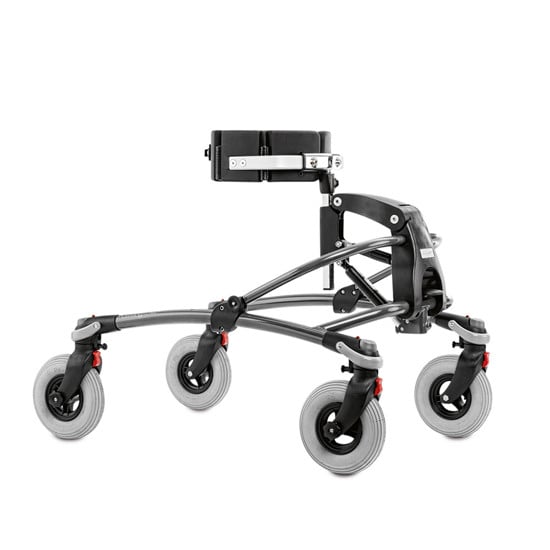

Natural walking pattern

The Mustang has an easy and steady angle adjustable center bar. A slight forward leaning position, combined with built-in suspension, stimulates the natural walking pattern
The Mustang has been constructed with accessibility in mind. The U-shaped frame and wrap around support, allows for easy access and transfer

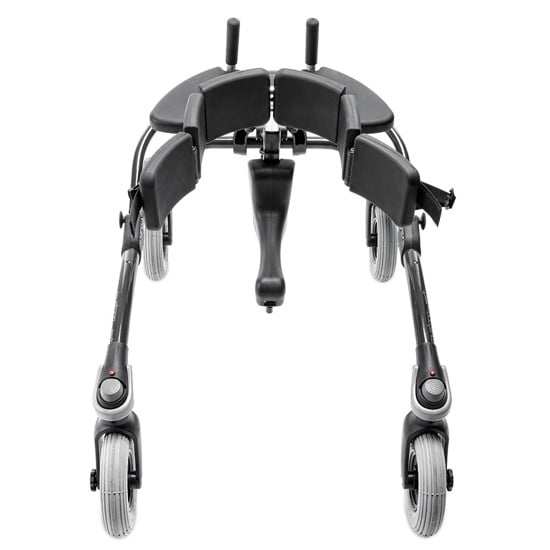

Easy to access

The Mustang has been constructed with accessibility in mind. The U-shaped frame and wrap around support, allows for easy access and transfer.

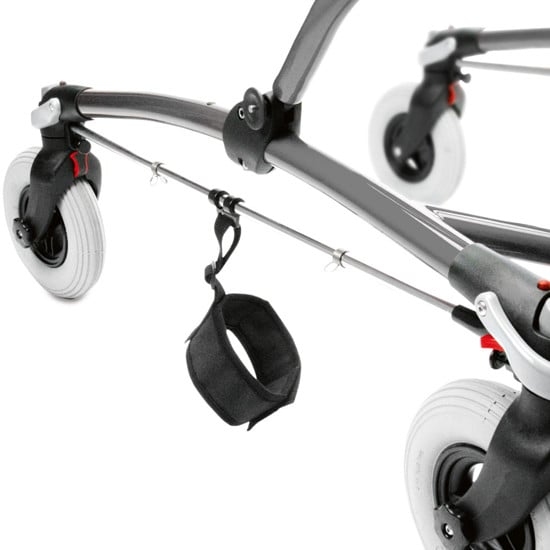

The Accessories are easily added or removed for the carers convenience

Easy changeable accessories

Accessories are easily added or removed for the carers' convenience.

Standard specifications

Size 1
Size 2
Size 3
Size 4
Item number 869011 869024 869033 869042
Angle, center bar (°) 30 30 25 25
Height with 4" wheels (inch) 15.75-25.5 23.5-33.5 - -
Height with 8" wheels (Inch) 20-25.5 23.5-33.5 27.5-41.25 40.5-49.25
Inside width (inch) 15 17.75 19.5 22
Length with 4" wheels (inch) 29.5 32.75 - -
Mass device with 4" wheels (lbs) 22 24.2 - -
Mass device with 8" wheels (lbs) 28.6 30.8 39.6 41.8
Maximum rated load (lbs) 99.2 123.4 176.3 222.6
Maximum user mass (lbs) 66.1 88.1 132.2 176.3
Minimum turning radius (inch) 14.25 21.75 23.5 26.5
Overall width with 4" or 8" wheels (inch) 20.5 22.75 25.5 27.5
Seat height with 4" wheels (Comfort seat) (inch) 6.75-17 9.5-19.25 - -
Seat height with 4" wheels (PU seat) (inch) 6.75-13.75 9.5-16.25 - -
Seat height with 8" wheels (Comfort seat) (inch) 10.25-20.5 13-22.75 17.75-30 24.5-36.25
Seat height with 8" wheels (PU seat) (inch) 10.25-17.25 13-19.75 17.75-26.75 24.5-33
Static stability downhill (°) 7 7 7 7
Static stability sideways (°) 4.5 4.5 4.5 4.5
Static stability uphill (°) 15 15 15 15
User height: floor to axil (inch) 15.75-25.5 23.5-33.5 27.5-41.25 34.25-51.25
Width between handles (inch) 6.25-12.5 6.25-12.5 6.5-15.75 6.5-15.75

Options

Available in 4 colors.

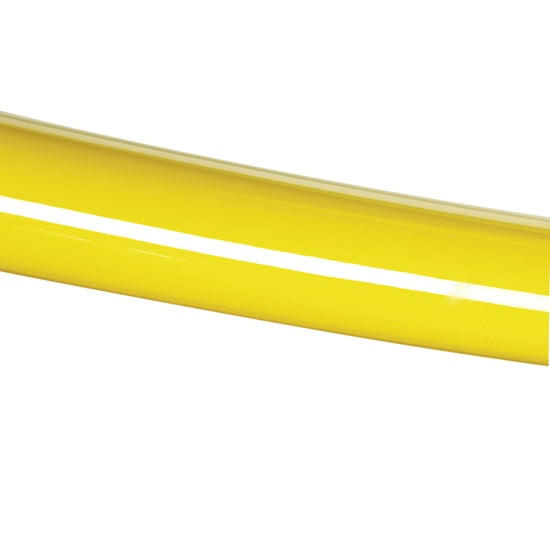

Yellow for size 1

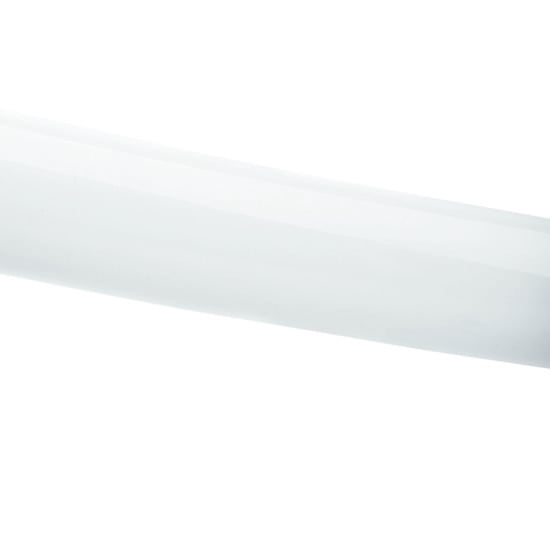

White for size 2

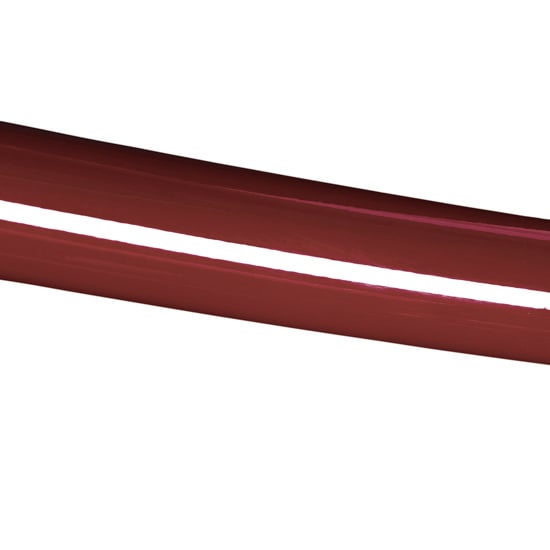

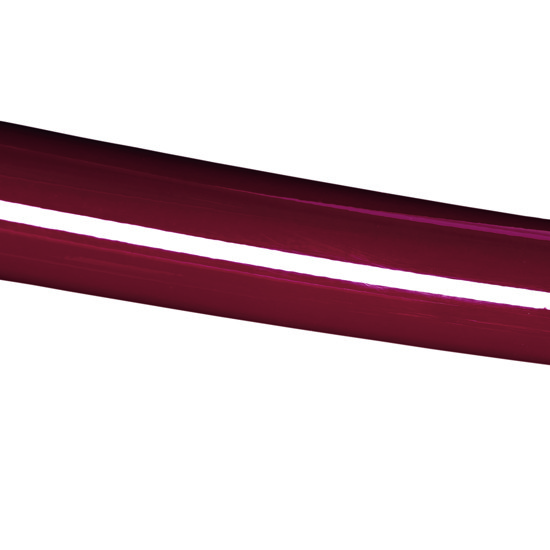

Red for size 3

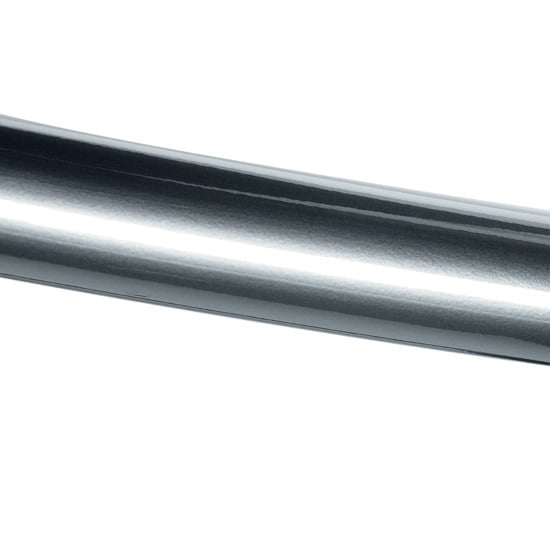

Anthracite grey for size 4

The Mustang is delivered as standard with various wheel options. Choose between the below options.

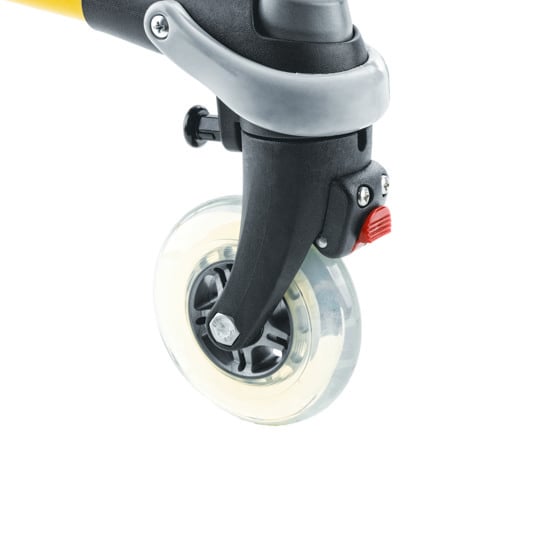

4" castor for size 1 and 2

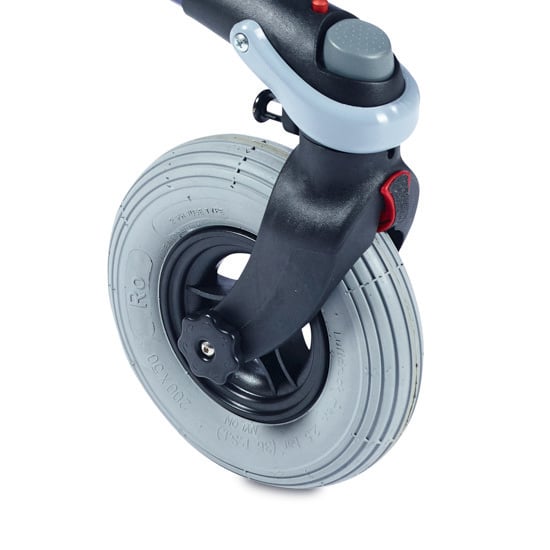

8" wheel

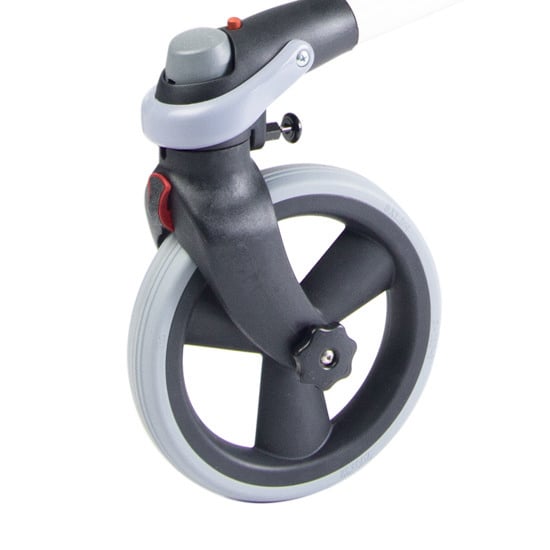

8" slimline wheel

Unique features and adjustment possibilities.

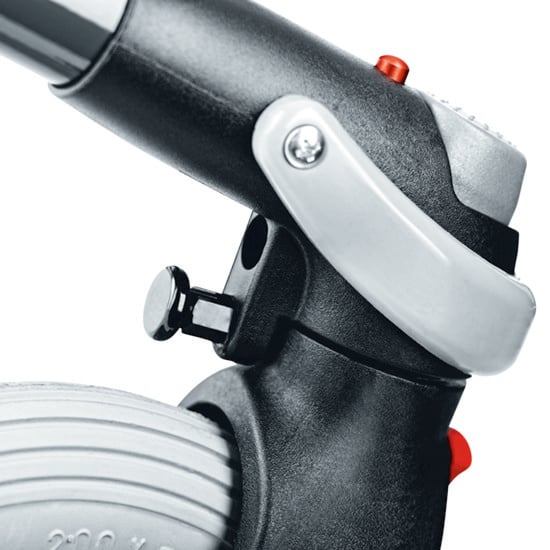

Directional stabilizer

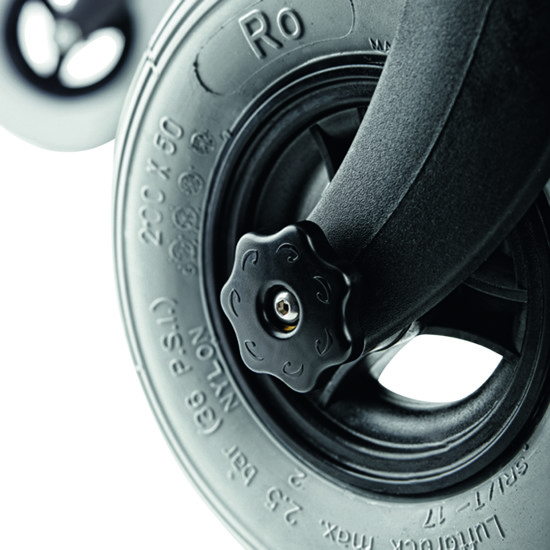

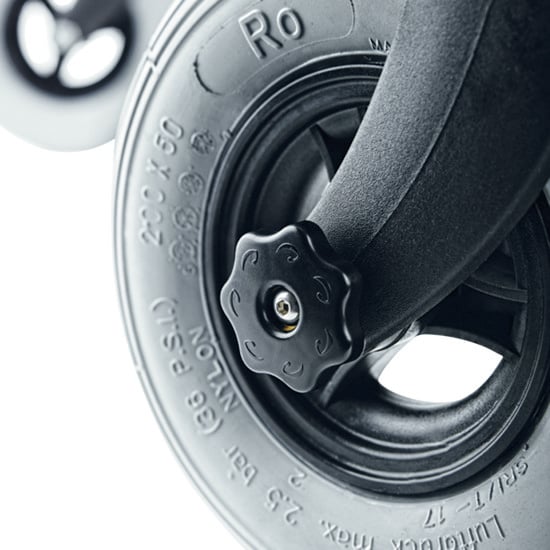

Tension adjustable wheels

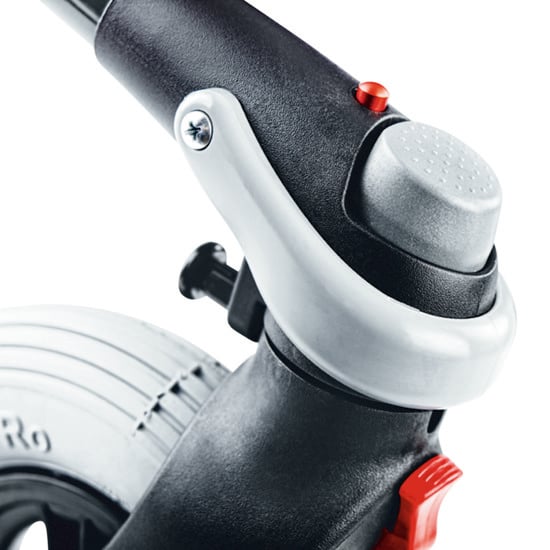

Brake on all 4 wheels

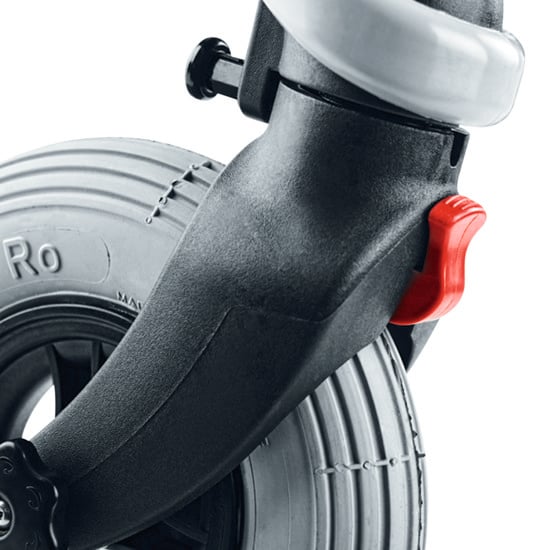

Anti-reverse wheel stop - release

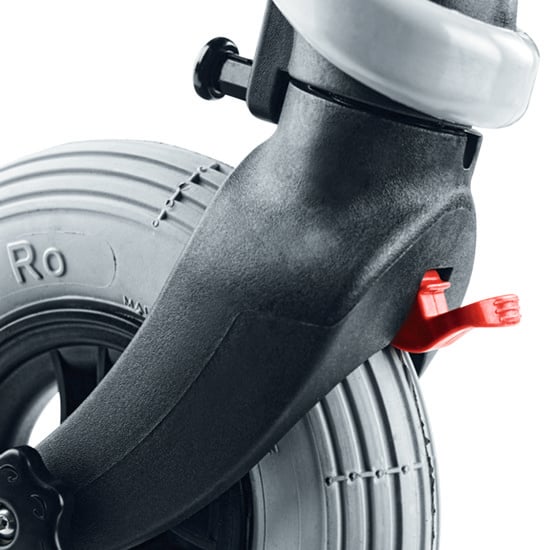

Anti-reverse wheel stop - lock
