R82 Crocodile

The Crocodile is a walking aid for children and youngsters with disabilities, who need supplementary assistance with their daily walking.

The Crocodile walker aims for harmony, balance and rhythm. Placed behind the child, the frame allows freedom of movement and facilitates walking in the upright position. The adjustable handles can be individually adapted to a position conveniently close to the child’s body providing maximum support and stability.

The Crocodile is light, easy to dismantle and safe and easy to use. Crocodile can be used just as effectively by a child who needs little support or by a child needing a fully supported upright gait trainer with all the accessories added.

The Crocodile is available in three sizes and suitable for a large group of children and youngsters. Not all children are alike - that is why it is important to use the measuring chart to find the correct size.

Features


Height adjustable top frame

Easy to adjust the height without using any tools.
Allows you to grow in width as well as in height. Positioning the grips close to the body gives better support and a better walking position.

Multi-adjustable handles

Allows the Crocodile to grow in width as well as in height. Positioning the handles close to the body gives better support and a better walking position.
Keep the unit from rolling backwards. It is very easy to lock/unlock once walking skills improve. The anti-reverse wheel stops are used for children with less balance and control.

On/off anti-reverse wheel stops

Keeping the Crocodile from rolling backwards. It is very easy to lock/unlock the function.

Standard specifications

Size 1
Size 2
Size 3
Item number 86801 86802 86803
Brake grip distance (inch) 3 3 3
Folded height (inch) 12.25 10.75 11.5
Folded length (inch) 28.50 34 39.50
Height from floor to handles (inch) 16½ - 28¼ 21¾ - 33 29½-41¼
Large castor (inch) W=1¼/ D=8 W=1¼/ D=8 W=1¼/ D=8
Length (inch) 28¼ 33 34¼
Mass device (lbs) 15.4 15.7 26.7
Max user height (inch) 45¼ 59 70¾
Maximum rated load (lbs) 85.9 119 207.2
Maximum user mass (lbs) 66 99 176
Overall width (inch) 24.75 27.25 27.25
Small castor (inch) W=1/D=5½ W=1/D=5½ W=1/D=5½
Static stability downhill (°) 15 15 15
Static stability sideways (°) 4.5 4.5 4.5
Static stability uphill (°) 7 7 7
Turning width (inch) 63 75 78.75
Width between handles (inch) 7½ - 13¾ 9½ - 16½ 13-19

Options

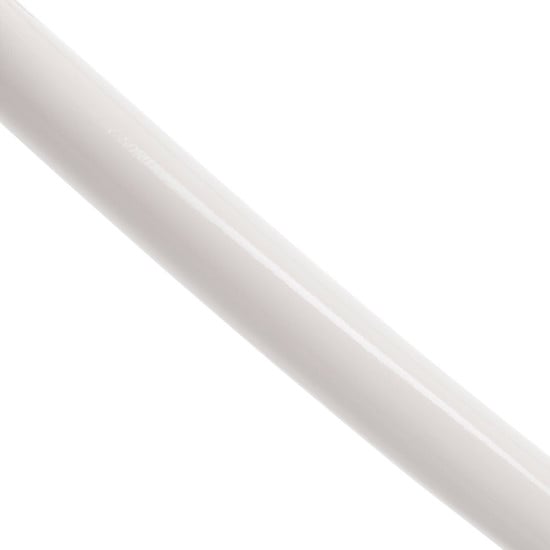

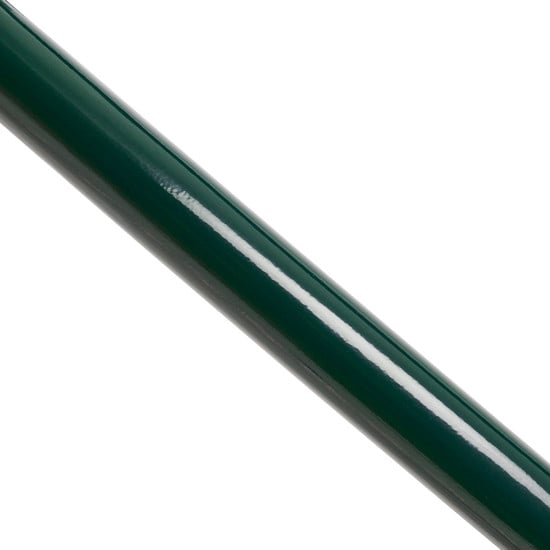

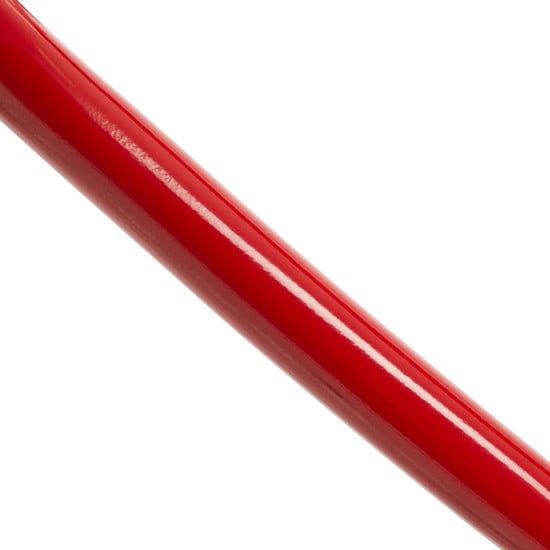

Available in different colours.

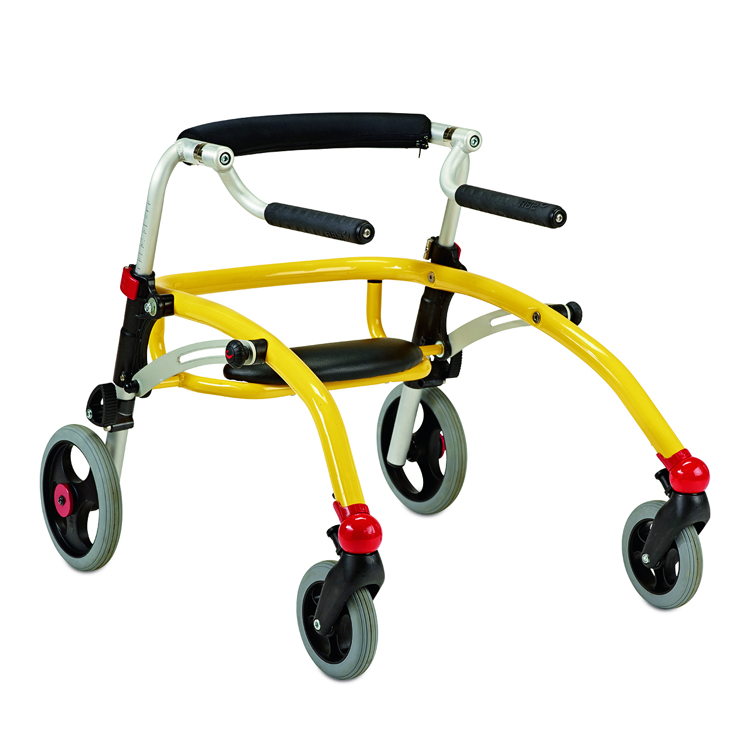

Yellow for size 1

Orange for size 2

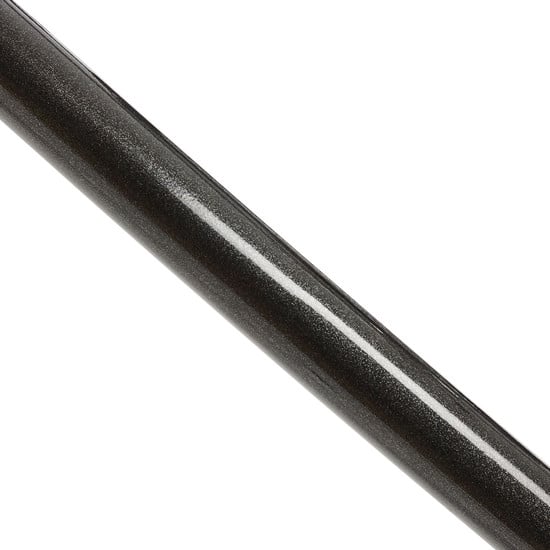

Metallic black for size 2

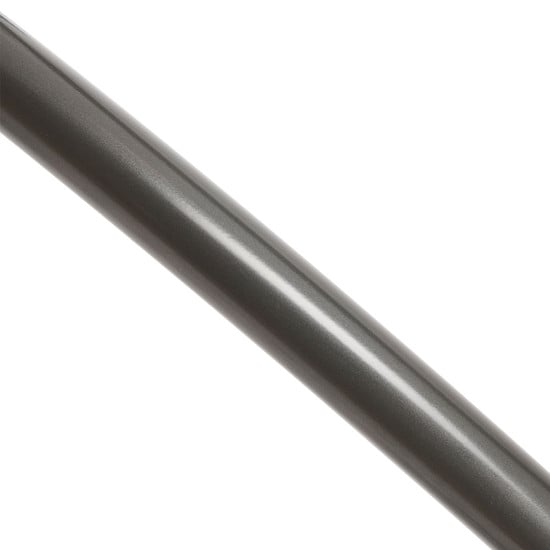

Anthracite grey for size 3

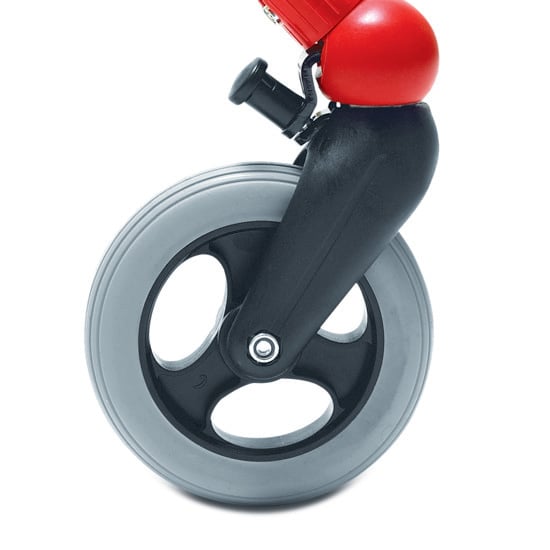

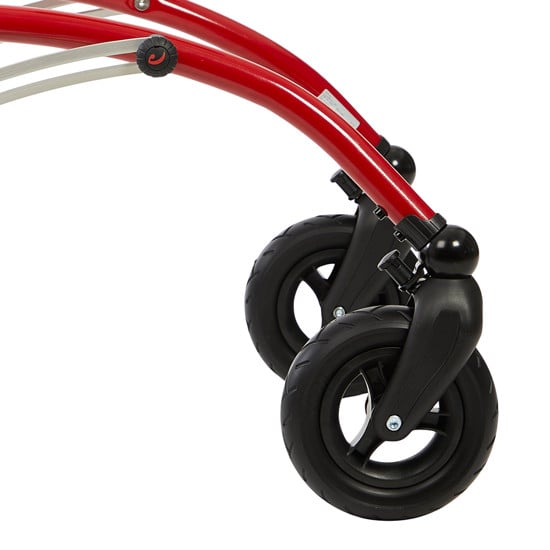

Front wheels with directional stabilizer

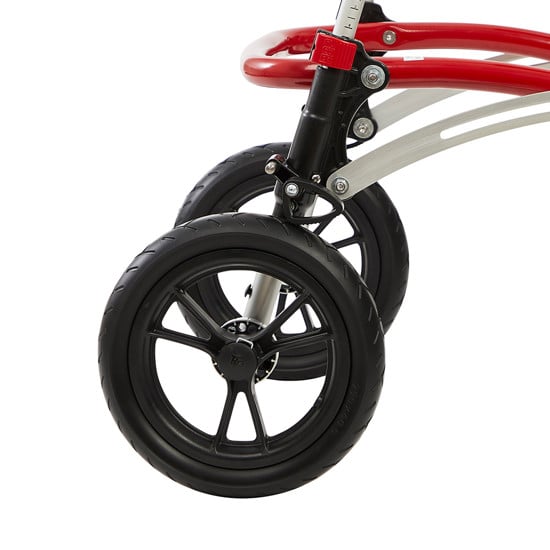

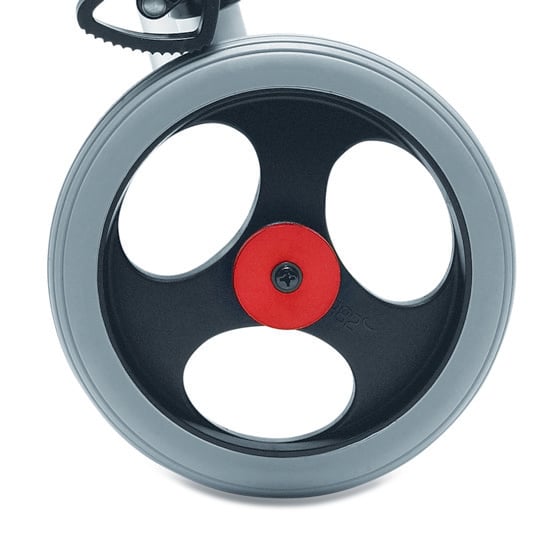

Tension adjustable back wheels

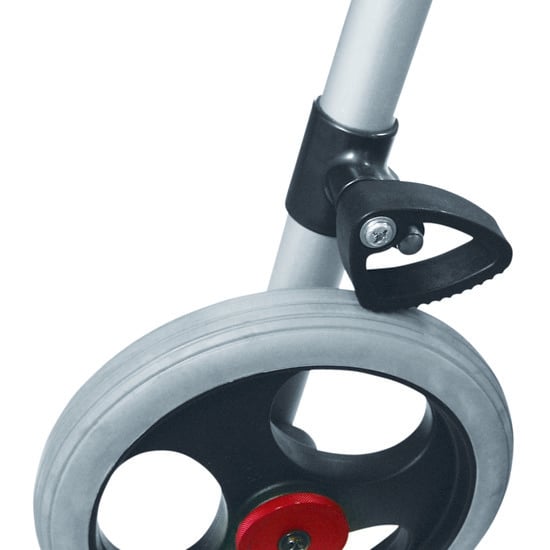

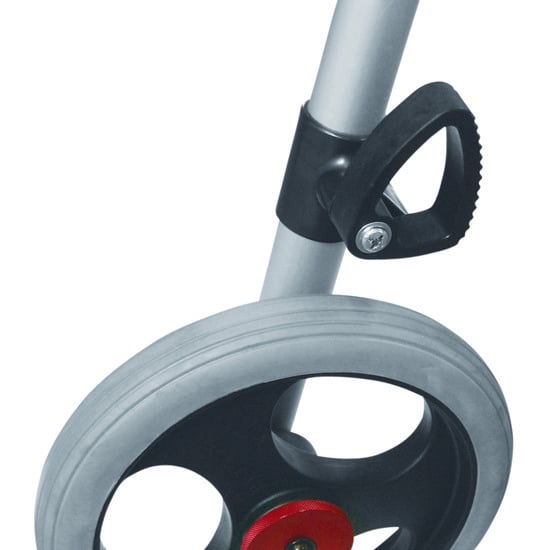

The unique on/off anti-reverse wheel stops are very easy to lock and unlock.

Unlocked

Locked
