R82 Rabbit Up

The Rabbit Up is a standing frame that supports an upright or prone standing position.

The Rabbit Up is a truly adaptable stander. It offers the users the freedom and opportunity to move about and explore using the two optional driving wheels. Thus, the Rabbit Up enables the child to be an active participant whilst stimulating senses and providing the child with more independence.

The Rabbit Up is available in four sizes and suitable for children from approximately 870 mm (34 1/4“) to 1800 mm (70 3/4“). The max. user mass is 70 kg (154 lb).

Features

While meeting all your standing needs, the Rabbit Up offers the independence to explore using the optional driving wheels.

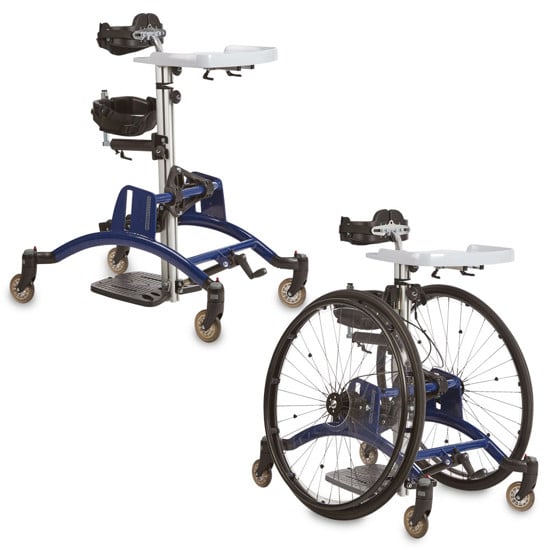

Stander and Mobile stander

While meeting all your standing needs, the Rabbit Up offers the independence to explore using the optional driving wheels.
The Rabbit Up has a simple, easy to use and controlled angle adjustment, making it possible to obtain the best standing position.

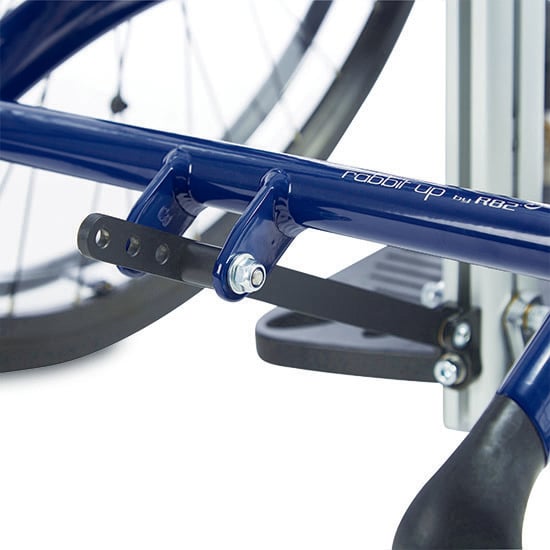

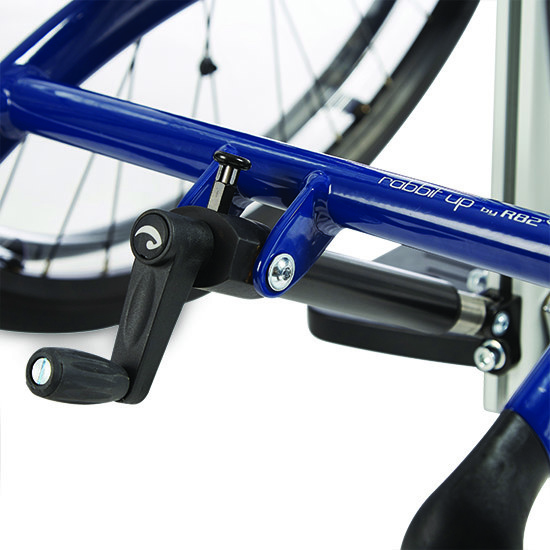

Angle adjustable center bar

The Rabbit Up has a simple, easy to use and controlled angle adjustment, making it possible to obtain the best standing position.
The two driving wheels are equipped with quick release for easy mounting. The wheels are available in a variety of sizes.

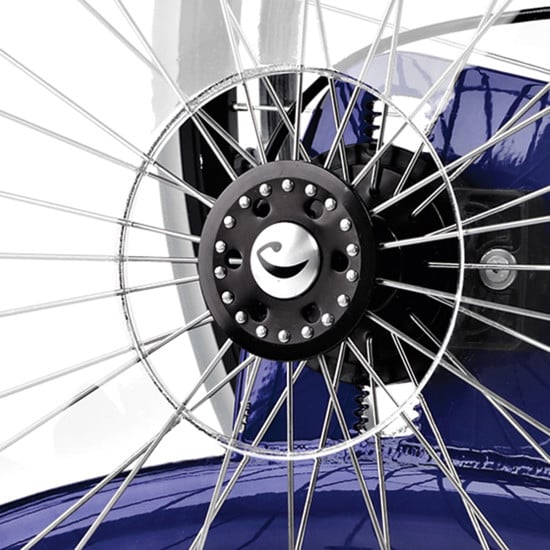

Quick release wheels

The two driving wheels are equipped with quick release for easy mounting. The wheels are available in a variety of sizes.
R82 Rabbit Up

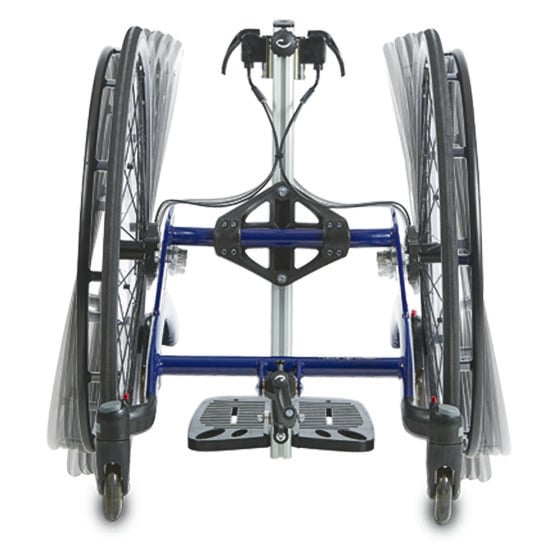

Camber angling

Rabbit Up gives the possibility to change the camber angle of the driving wheels to enable an optimum fit for the child.

Standard specifications

Size 1
Size 1 without driving wheels
Size 2
Size 2 Without driving wheels
Size 3
Size 3 without driving wheels
Size 4
Size 4 without driving wheels
Item number 86212xx-00 86212XX-00 8622xx-00 86222XX-00 8632xx-00 86232XX-00 8642xx-00 86242XX-00
Angle of the centre bar (°) 0-30 0-30 0-30 0-30 0-30 0-30 0-30 0-30
Camber angle (°) 8 - 6 - 6 - 4 -
Floor to foot plate (inch) 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
Inside width (inch) 12.75 12.75 14.75 14.75 16.75 16.75 16.75 16.75
Length (inch) 24.5 27.5 29.5 31.25 31.5 31.25 35.5 36.5
Length, centre bar (inch) 19.75 19.75 27.5 27.5 31.5 31.5 39.25 39.25
Mass device (lbs) 29.75 19.8 34.1 23.1 35.25 24.2 40.75 29.3
Maximum rated load (lbs) 122.3 112.4 148.8 137.7 171.9 160.9 199.5 188.4
Maximum user mass (lbs) 88.1 88.1 110.2 110.2 132.2 132.2 154.3 154.3
Maximum user weight (lbs) 88.1 88.1 110.2 110.2 132.2 132.2 154.3 154.3
Minimum turning diameter (inch) 33.5 33.5 37.5 37.5 38.5 38.5 42.75 42.75
Overall height (inch) 26.5-39.25 26.5-39.25 33.5-46.5 33.5-46.5 39-51.5 39-51.5 47.25-60.25 47.25-60.25
Overall width (inch) 25 20.25 26.75 21.75 28.75 23.5 28.25 23.5
Static stability downhill (°) 10 10 10 10 10 10 10 10
Static stability sideways (°) 10 10 10 10 10 10 10 10
Static stability uphill (°) 10 10 10 10 10 10 10 10
User height: floor to axil (inch) 21.75-29.25 21.75-29.25 29.5-42.5 29.5-42.5 33.75-46.75 33.75-46.75 37.75-56 37.75-56

Options

Standard camber angle: Size 1: 8°, Size 2+3: 6°, Size 4: 4°

Available to choose standard camber angle +3°, +6°, -3°, -6°

Camber angling

Choose between a stander or mobile stander with big driving wheels.

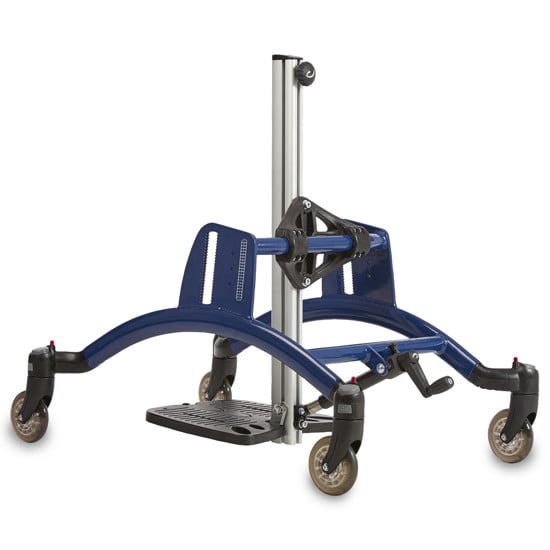

Stander

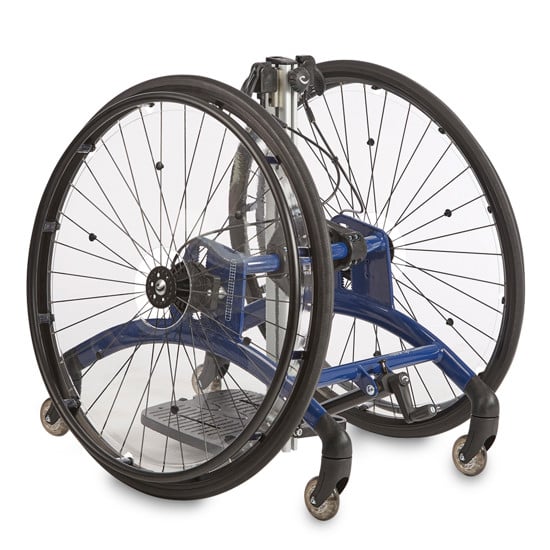

Mobile stander

Rabbit Up is available in 4 sizes with 4 different frame colors.

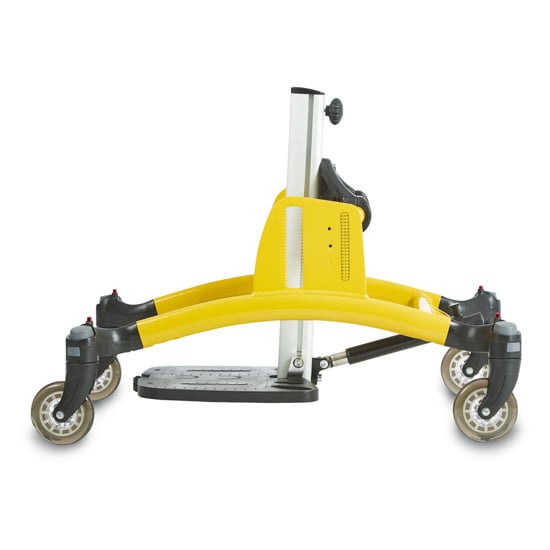

Size 1: Yellow

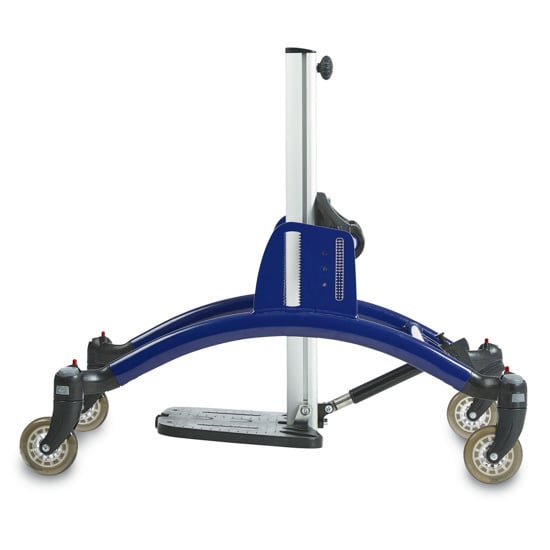

Size 2: Blue

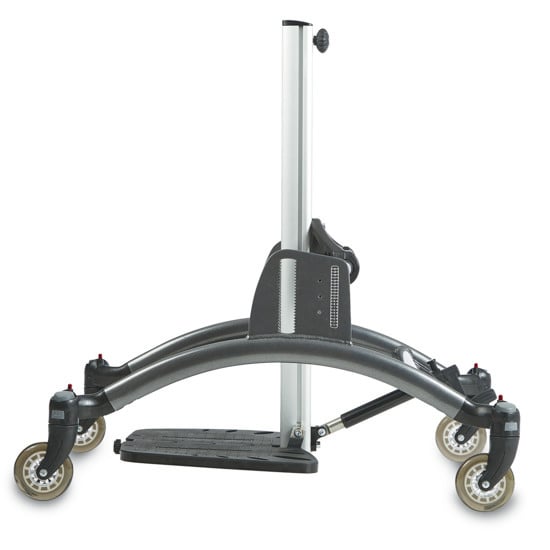

Size 3: Anthracite grey

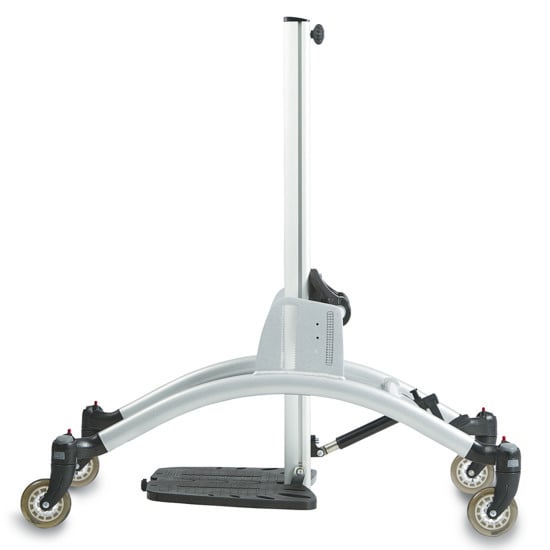

Size 4: Silver

Two choices of castors are available

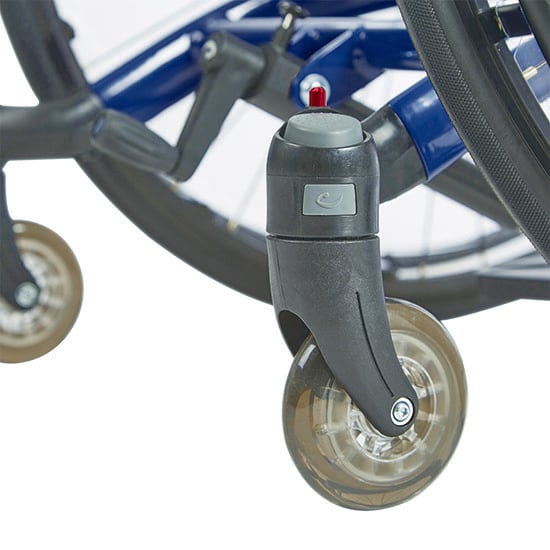

Castors with brakes

Castors with no brakes

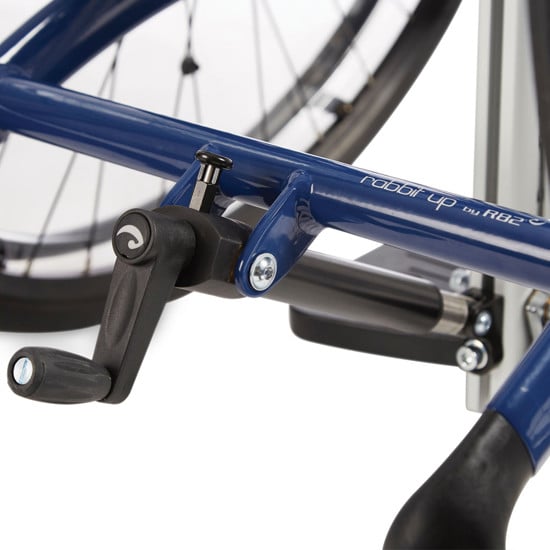

Two choices of angle adjustment are available

Fixed positions

Size 2: Blue

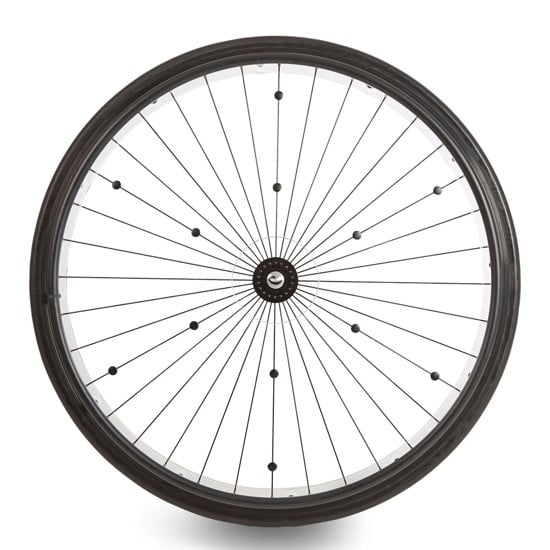

Available in 22”, 24”, 26”, 29”, 32”, 36”

Two choices of pushrims are available

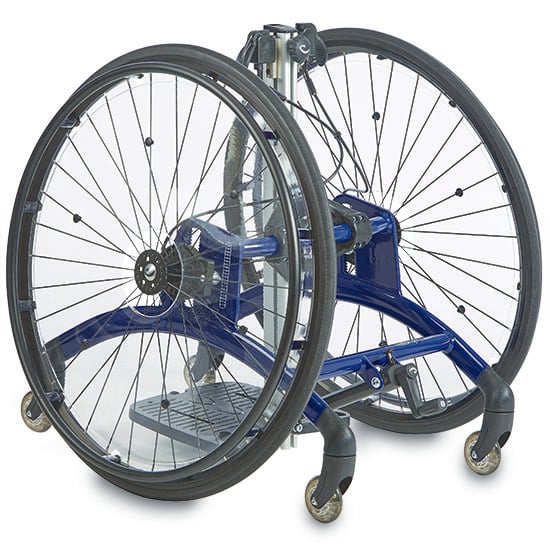

Open pushrims

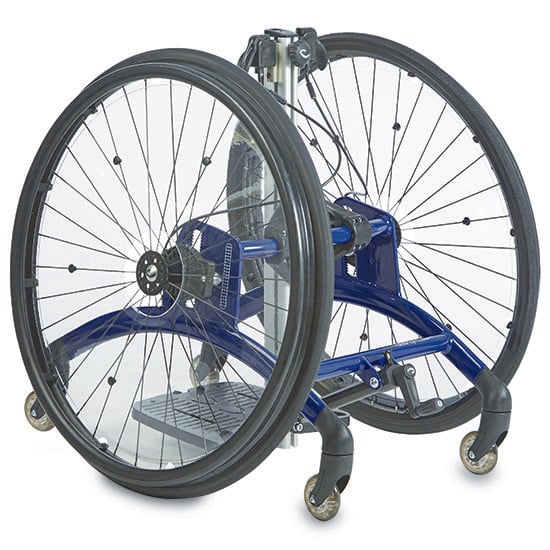

Closed pushrims
