Convaid Rodeo

Pediatric tilt-in-space buggy that is convenient, lightweight and folds compactly.

The Convaid Rodeo is a tilt-in-space buggy that provides 12.7 cm of seat depth extension through its seat depth growth feature. With 2 frame options available (with and without seating), it accommodates aftermarket and extensive seating needs.

Convaid Rodeo’s Cordura upholstery comes in a wide selection of colors and is removable and fully washable. The Convaid Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability. Available in 4 width sizes for users that weigh up to 77 kilograms. Made in the USA.

Features

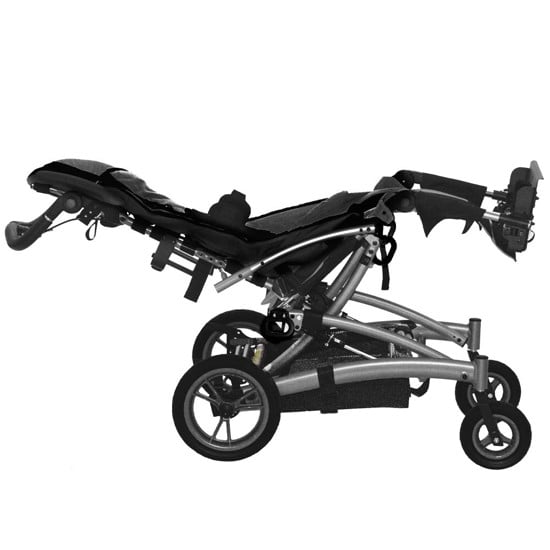

Tilt

5° to 45° of Adjustable Tilt

Provides pressure relief and upper body support.
Accommodates adaptive and aftermarket seating.

Lightweight & compact folding

The folding mechanism allows the whole chair, including seating, to fold into a tight which fits in the trunk of almost every car.
Adjustable seat depth extends chair life for a growing child.

Tension Adjustable Back Upholstery

Allows for individual adjustment to the Lumbar and Thoracic sections of the back.
Transit Anchors

Seat zippers for seat inserts

Allows for additional seat padding and support.

Variants and details

Size 12
Size 14
Size 16
Item number 902689 902691 903134
Folded height (mm) 430 460 460
Folded length (mm) 860 860 1015
Folded width (mm) 585 635 685
Foot plate angle (°) -40 -40 -40
Headrest extension (mm) 200 200 200
Overall height (mm) 1090 1120 1140
Overall length (mm) 890 890 915
Overall width (mm) 585 635 685
Push handle adjustments (mm) 880-1290 890-1320 930-1360

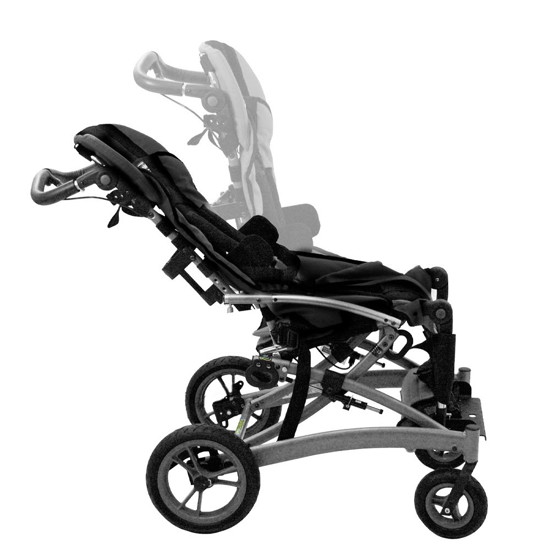

Recline adjustment (°) 90° or 110° 90° or 110° 90° or 110°
Seat back height (mm) 560 610 635
Seat depth (mm) 230-360 280-4100 330-460
Seat to flipped individual angle adjustable footplate (mm) 115-235 110-280 185-340
Seat to flipped one piece angle adjustable footplate (mm) 130-285 180-340 235-390
Seat to floor (mm) 530 560 560
Seat to individual angle adjustable footplate (mm) 180-330 240-395 305-460
Seat to one piece angle adjustable footplate (mm) 230-360 280-410 305-460
Seat width (mm) 305 355 405
Shoulder strap height (mm) 380-530 410-560 460-610
Tilt in space tilt angle (°) 5° - 45° 5° - 45° 5° - 45°
Total weight (kg) 15 17 18
Weight capacity (kg) 34 45.5 77
Weight seat unit (kg) 15 17 18

Options

Cordura is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.

Cherry Red

Pink

Royal Blue

Purple

Black
