Molift Mover 300

When a high safe working load is needed

High capacity in a low total weight
With its high hoisting capacity of 300 kg (660 lbs), Molift Mover 300 is the ideal solution for hospitals and care facilities with bariatric clients who have frequent and everyday moving and handling needs. With a total weight of only 39.3 kg (90 lbs) the Molift Mover 300 is the lightest in its category. The unique construction and wheel positioning provides excellent manoeuvrability.

Excellent hoisting range
Molift Mover 300 hoists easily from the floor, reaching down to 37 cm (15”) at the lowest. Excellent maximum hoisting height at 177 cm (70.1”) provides good free hoisting space and the possibility for gait training. The hoist is also equipped with an environmentally friendly NiMh-battery.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance, and enables analysis of the lift's use.

Features

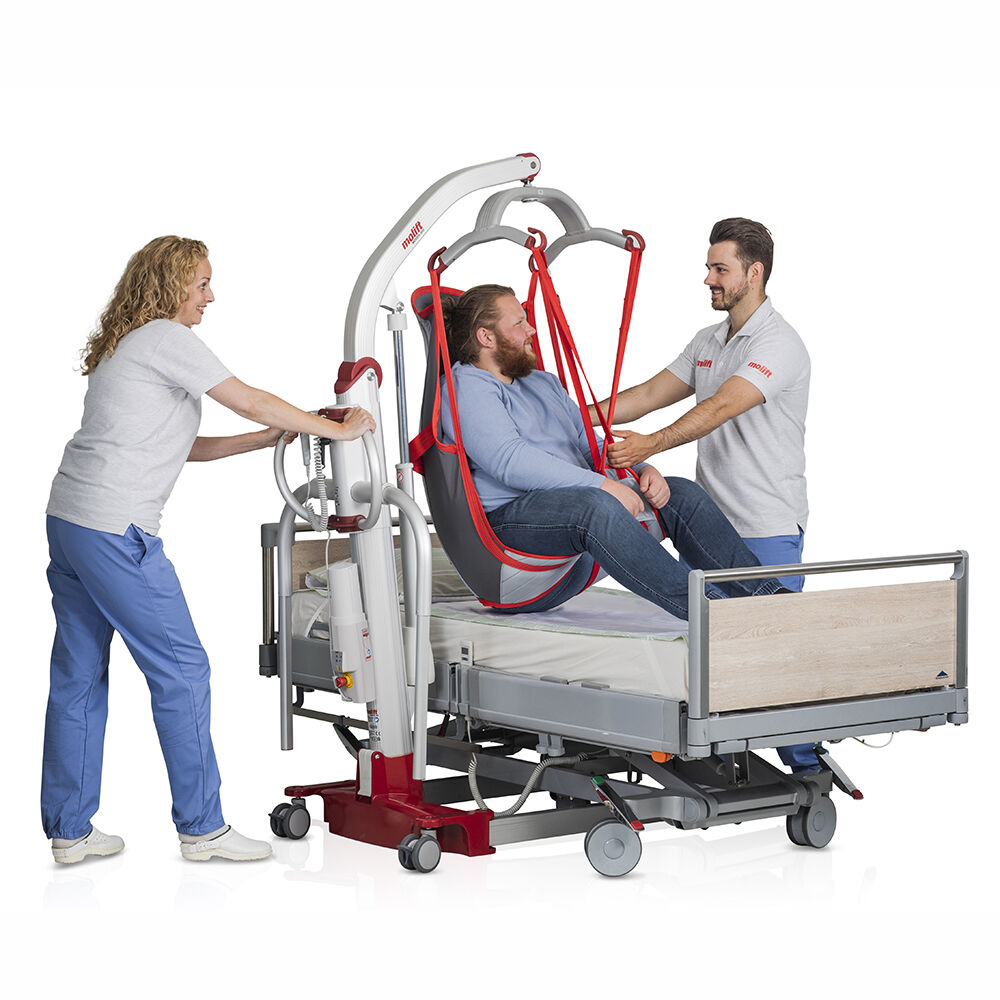

Ideal for plus size users

An ideal solution for hospitals and care facilities, when frequent, everyday moving and handling are needed.

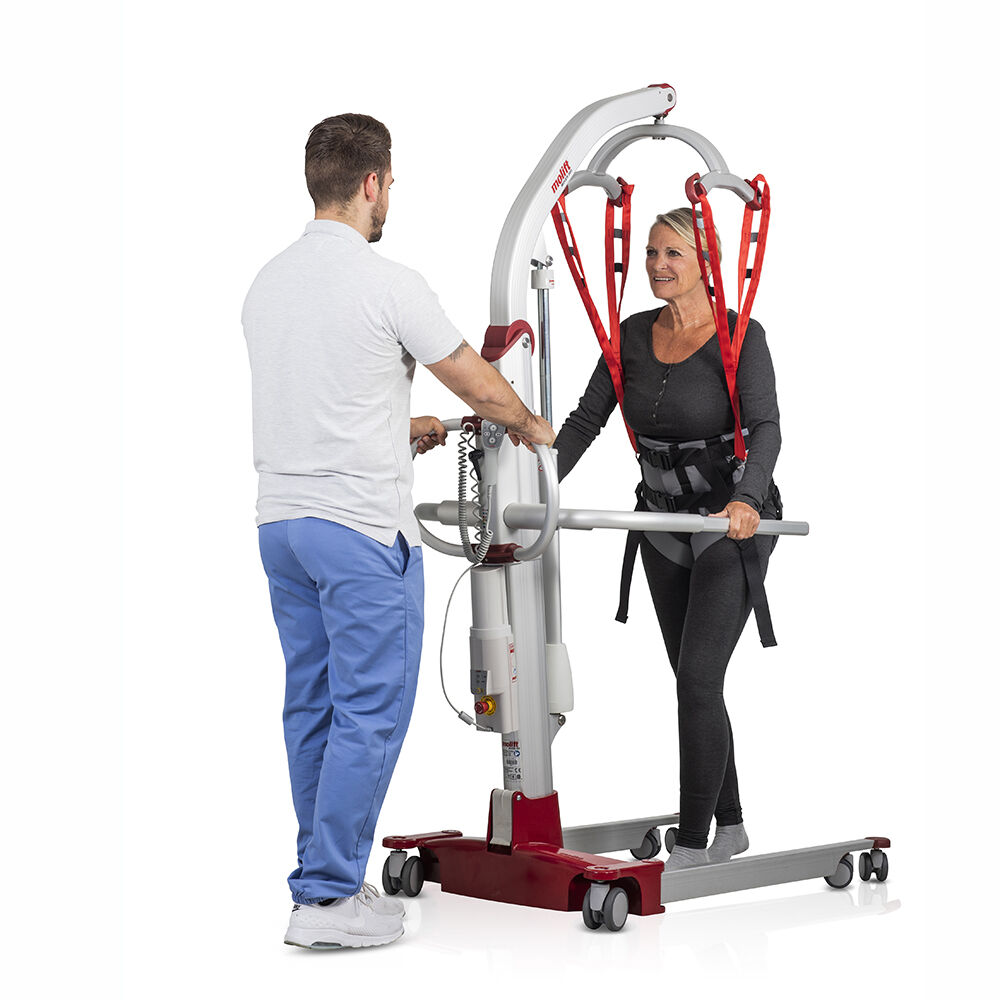

Excellent for gait training

Thanks to excellent lifting height, Mover 300 works optimally for gait training.

Unique patented Quick release

Molift Mover has a standard 4-point sling bar with a quick release function which makes it easy to change to other sling bars in different sizes.

Alternative sling bar options

The hoist can be used with both a 2-point and 4-point sling bar. The sling bars are available in many variants and can easily be replaced without tools.

Variants and details

Specifications for all variants
Battery charge time (hours)	3	Rated performance	50 hoists at: 75 kg and 500 mm
Hoisting height max (mm)	1775	Safe working load (SWL) (kg)	300
Hoisting height min (mm)	375	Service software	Molift Service Tool
Hoisting interval (mm)	1420	Width chassis, legs inner (mm)	550
Hoisting speed 75 kg (mm/sec)	27	Width chassis, legs open inner (mm)	1065
Length (mm)	1285	Width chassis, outer (mm)	690
Material	Aluminium, steel

	Low base chassis, excl. sling bar	Standard excl. sling bar	Standard with support arms
Item number	M15051	M15050	M15150
Battery	NiMH 26.4 V-2.6 Ah	NiMh 26,4 V-2,6 Ah	NiMh 26,4 V-2,6 Ah
Leg height (mm)	105	115	115
Total weight (kg)	37.6	37.6	42

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
