R82 Crocodile

The Crocodile is a walking aid for children and youngsters with disabilities, who need supplementary assistance with their daily walking.

The Crocodile walker aims for harmony, balance and rhythm. Placed behind the child, the frame allows freedom of movement and facilitates walking in the upright position. The adjustable handles can be individually adapted to a position conveniently close to the child’s body providing maximum support and stability.

The Crocodile is light, easy to dismantle and safe and easy to use. Crocodile can be used just as effectively by a child who needs little support or by a child needing a fully supported upright gait trainer with all the accessories added.

The Crocodile is available in four sizes and suitable for a large group of children and youngsters. Not all children are alike - that is why it is important to use the measuring chart to find the correct size.

Features


Height adjustable top frame

Easy to adjust the height without using any tools.
Allows you to grow in width as well as in height. Positioning the grips close to the body gives better support and a better walking position.

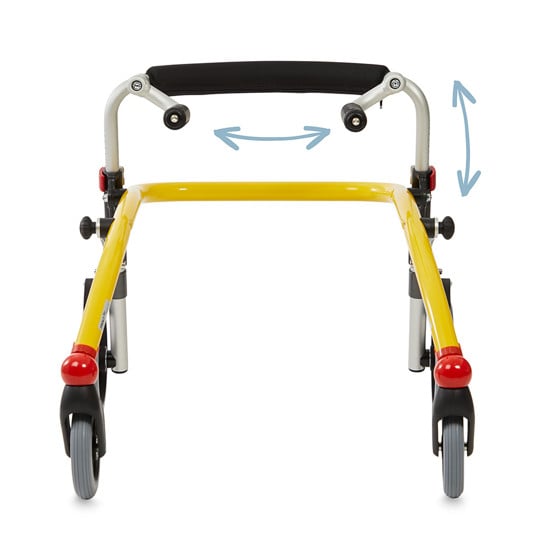

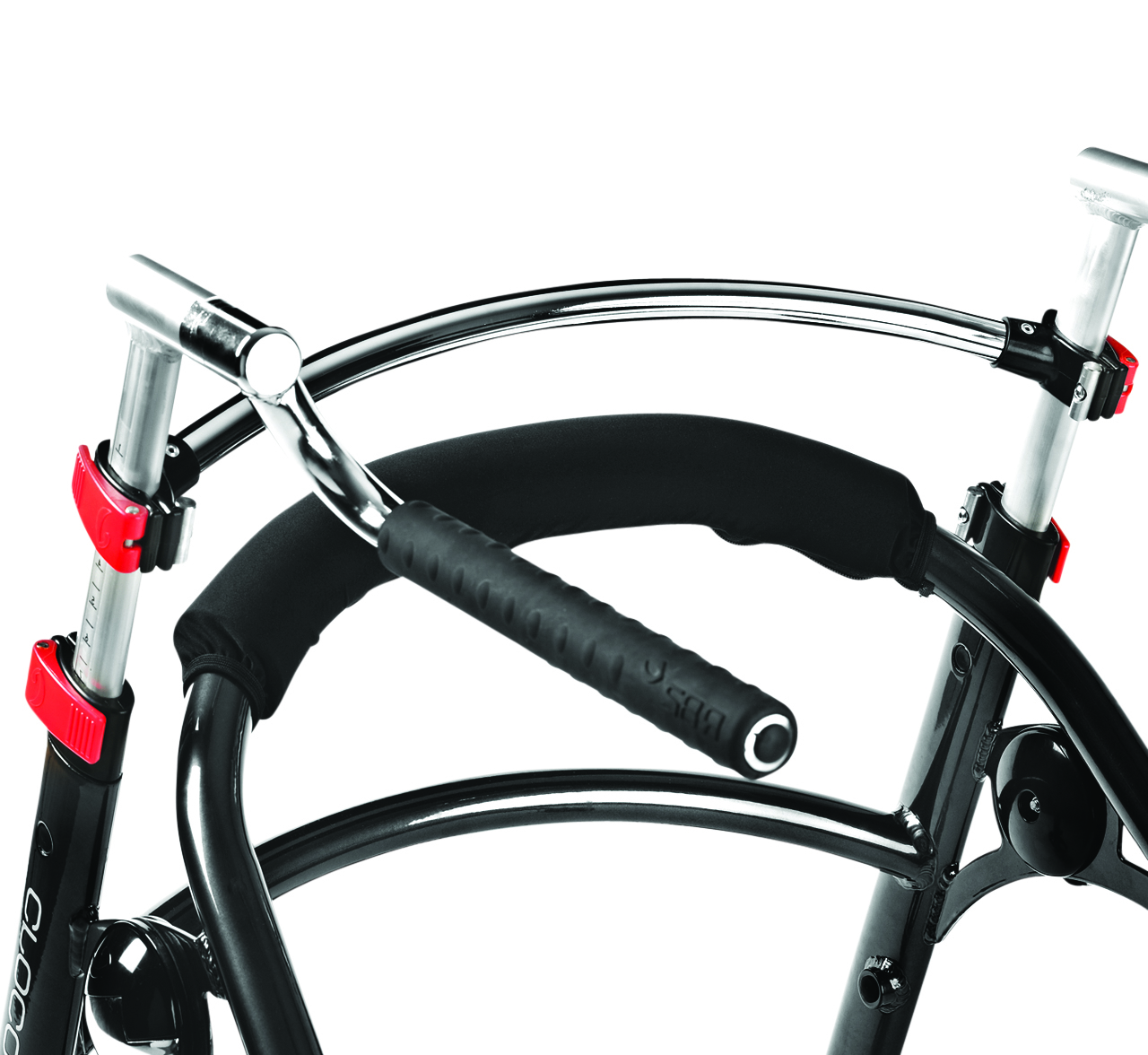

Multi-adjustable handles

Allows the Crocodile to grow in width as well as in height. Positioning the handles close to the body gives better support and a better walking position.
Keep the unit from rolling backwards. It is very easy to lock/unlock once walking skills improve. The anti-reverse wheel stops are used for children with less balance and control.

On/off anti-reverse wheel stops

Keeping the Crocodile from rolling backwards. It is very easy to lock/unlock the function.

Variants and details

Size 0
Size 1
Size 2
Size 3
Item number 86800 86801 86802 86803
Brake grip distance (mm) 74 74 74 74
Folded height (mm) 300 310 270 290
Folded length (mm) 650 720 860 1000
Height from floor to handles (mm) 300-610 420-715 550-840 750–1045
Large castor (mm) W=30/ D=200 W=30/ D=200 W=30/ D=200 W=30/ D=200
Length (mm) 640 720 840 870
Mass device (kg) 6 7 7 12
Max user height (mm) 1050 1150 1500 1800
Maximum rated load (kg) 38 39 54 94
Maximum user mass (kg) 30 30 45 80
Minimum turning radius (mm) 482.6 501.7 558.8 1143
Overall width (mm) 580 630 690 690
Small castor (mm) W=28/D=140 W=28/D=140 W=28/D=140 W=28/D=140
Static stability downhill (°) 15 15 15 15
Static stability sideways (°) 4.5 4.5 4.5 4.5
Static stability uphill (°) 7 7 7 7
Turning width (mm) 1440 1600 1900 2000
Width between handles (mm) 100-250 190-350 240-420 330-480

Options

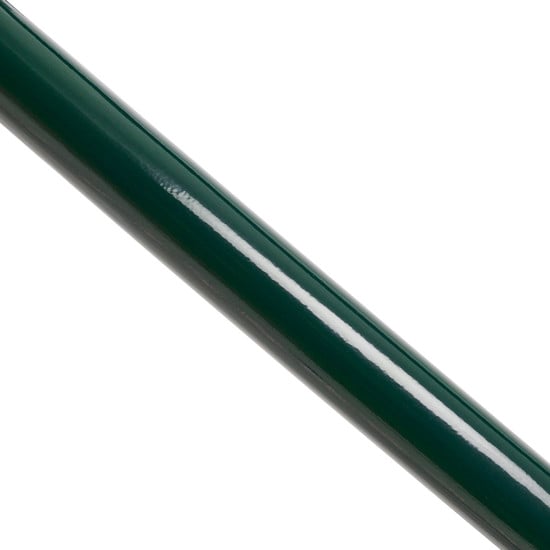

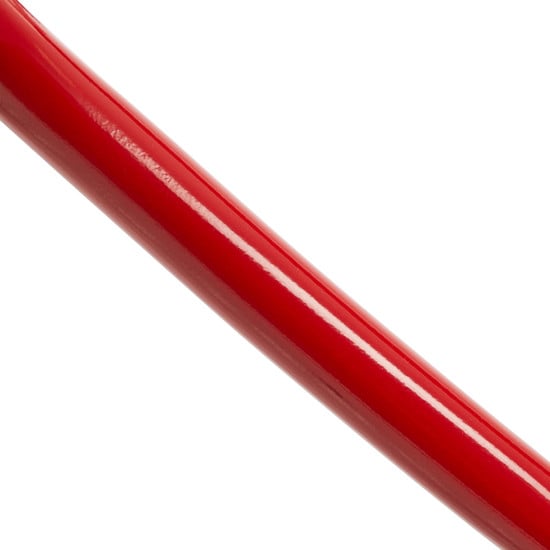

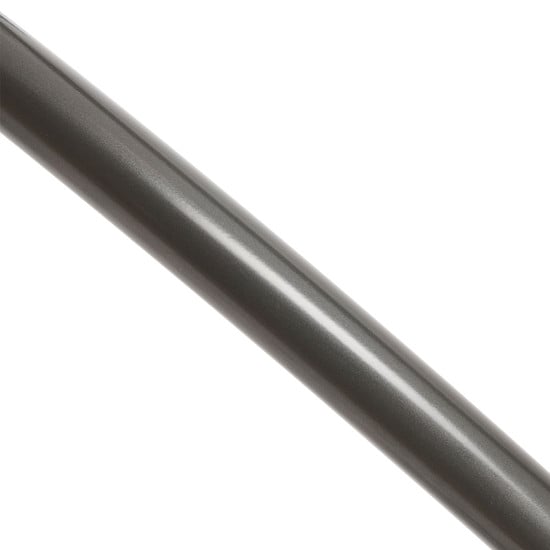

Available in different colours.

Yellow for size 1

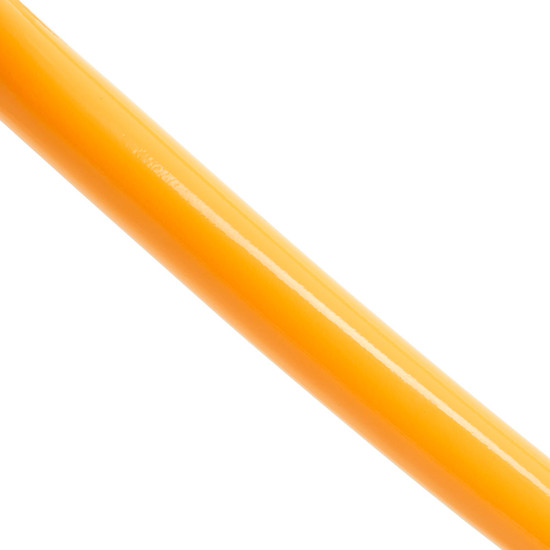

Orange for size 2

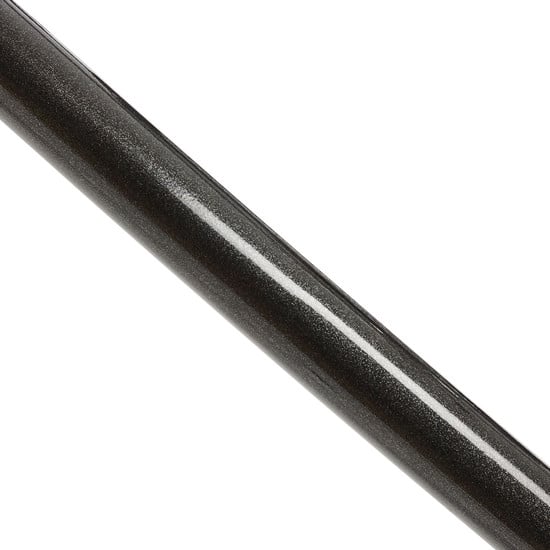

Metallic black for size 2

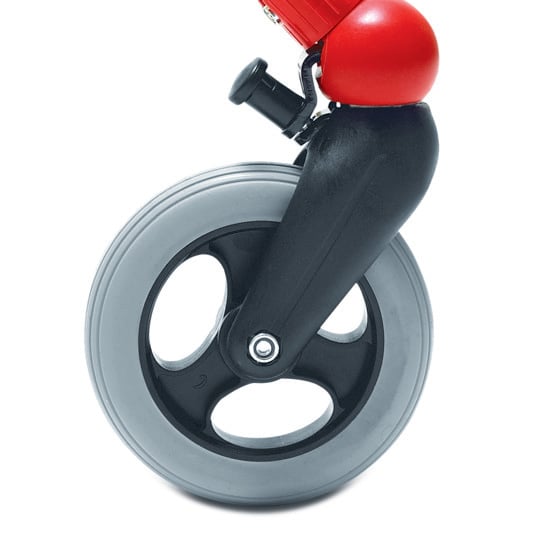

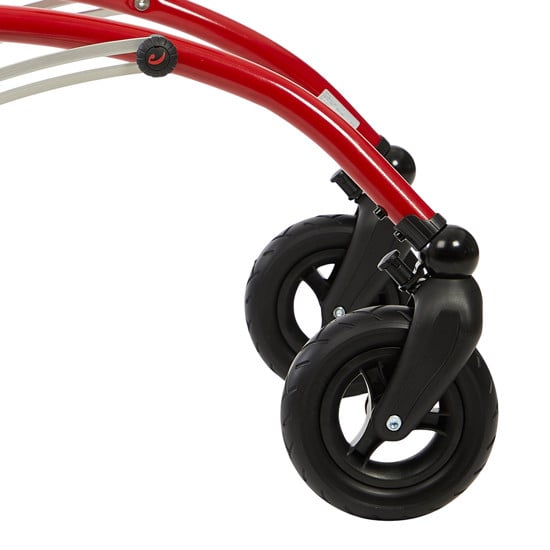

Front wheels with directional stabilizer

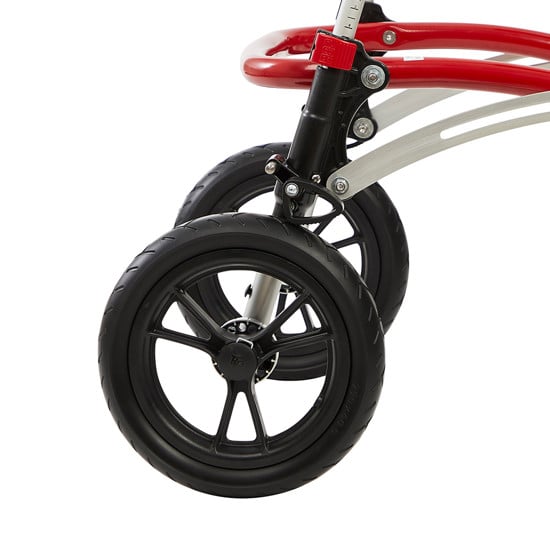

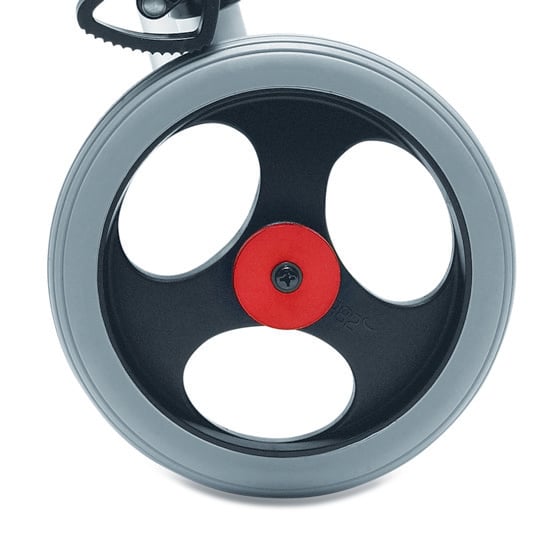

Tension adjustable back wheels

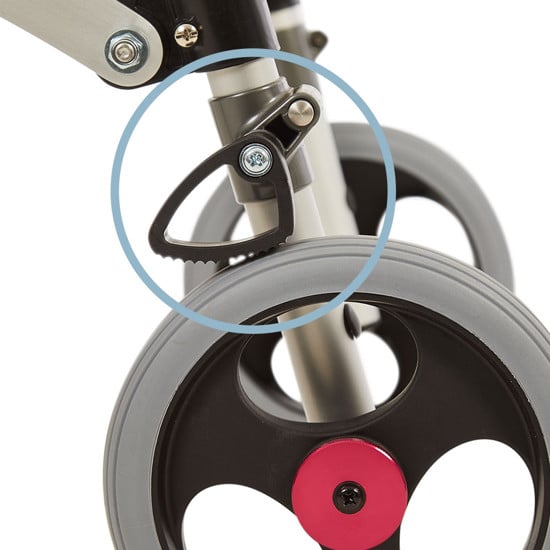

The unique on/off anti-reverse wheel stops are very easy to lock and unlock.

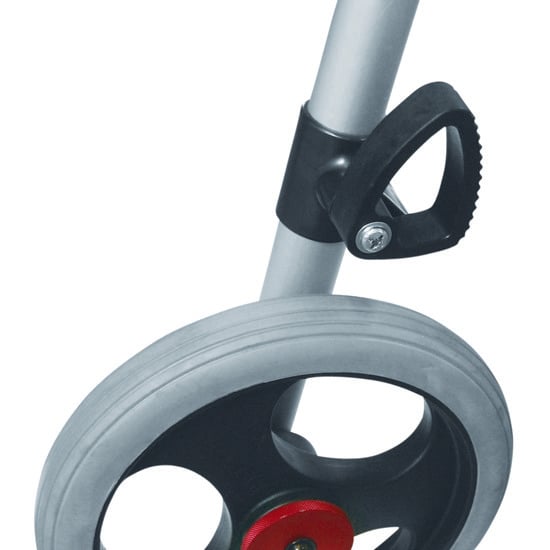

Unlocked

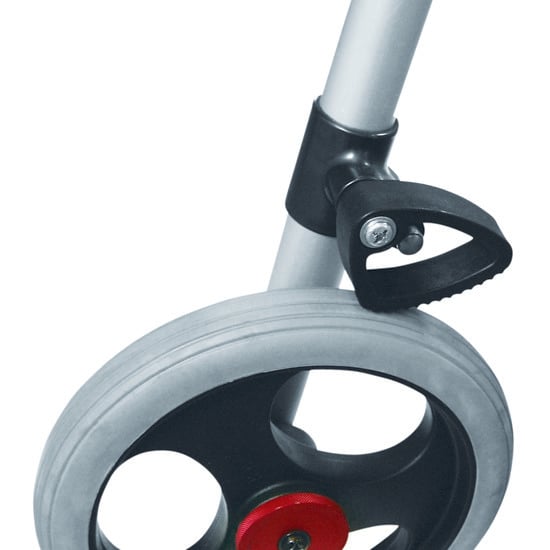

Locked

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
