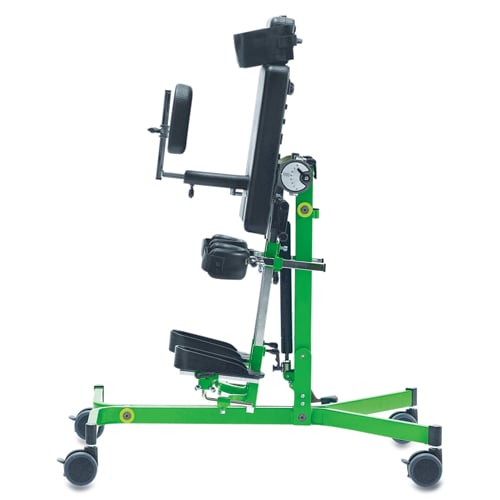

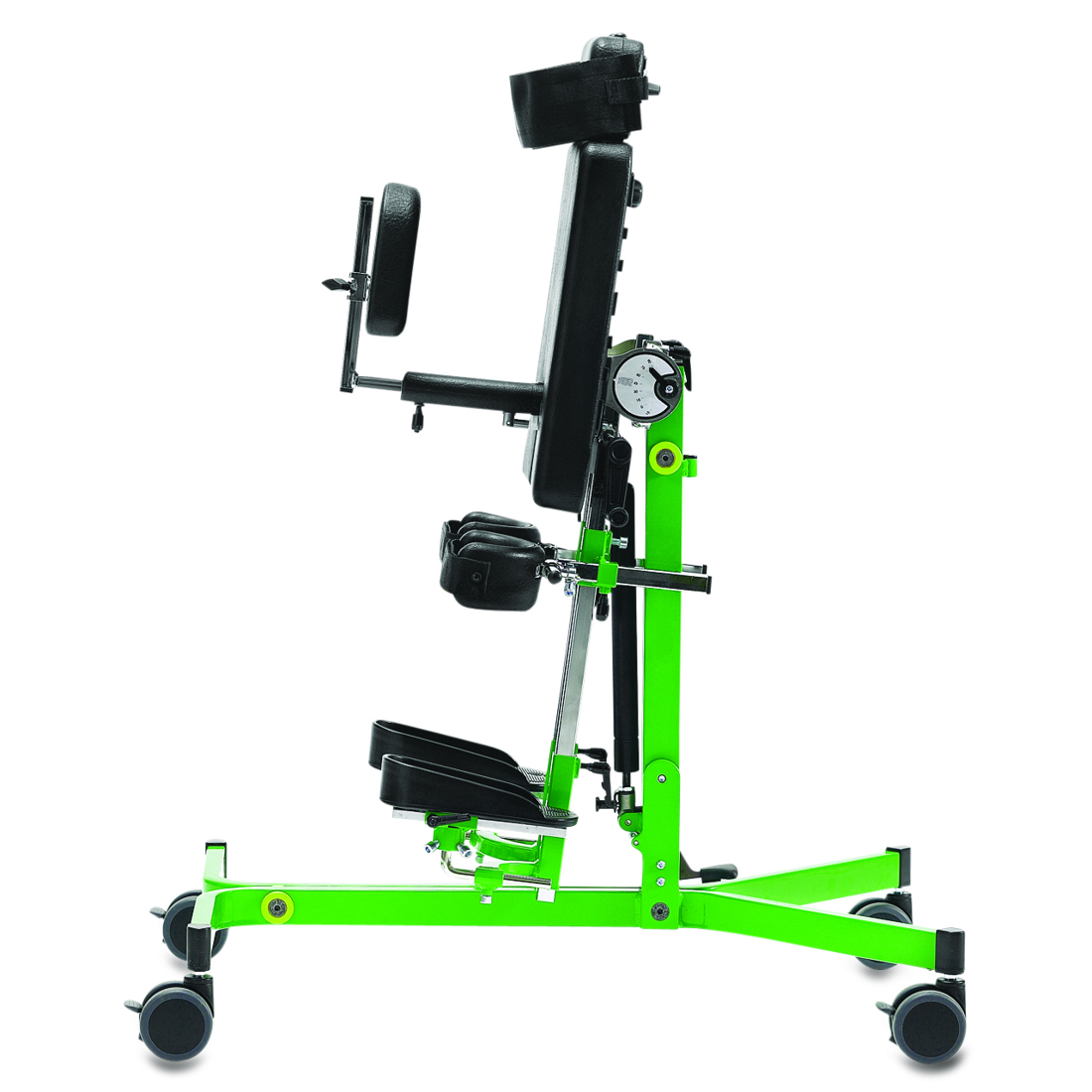

R82 Gazelle PS

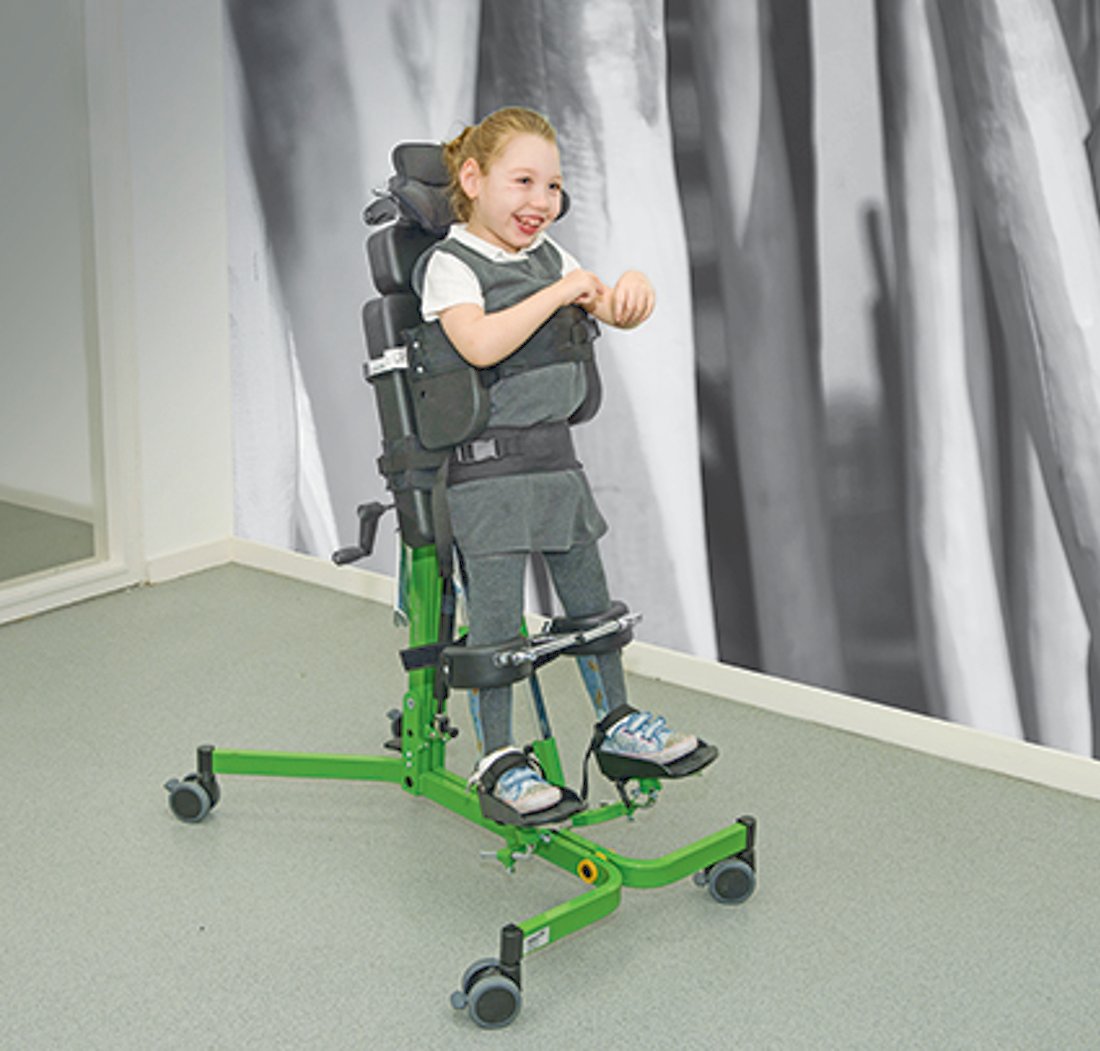

The Gazelle PS is a standing frame that supports a prone, upright, or supine standing position.
The standing frame offers up to 30 degrees of hip abduction in each leg. Research suggest that regular standing with hip extension and abduction might have a positive impact hip development by preventing hip migration in children with cerebral palsy.
The Gazelle PS is available in three sizes and suitable for children from approximately 700 mm (27 1/2“) to 1650 mm (65“). The max. user mass is 80 kg (176 lb).
Manual leg abduction
Multi-adjustable foot supports
Variants and details
|Size 1, 17,5 cm foot plates||Size 2||Size 3|
|Angle board (°)||90-(-15)||90-(-15)||90-(-15)|
|Mass device (kg)||20||22||24|
|Maximum rated load (kg)||62||85||106|
|Maximum user mass (kg)||40||60||80|
|Overall height, horizontal (mm)||760||800||900|
|Overall width (mm)||480||580||650|
|User height: floor to axil (mm)||450-950||600-1050||700-1250|
Delivered in different colours for size 1, 2 and 3.
Yellow for size 1
The tilt angle can vary from child to child. Tilt angle from 90° to -15°.
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
