R82 Multi Frame

The Multi Frame is an innovative, lightweight and highly manoeuvrable wheelchair base

It is designed to accept both the Panda Futura and x:panda but also other manufacturers seating that is constructed in a similar fashion and meets the current standards. Simple to operate tilt in space with the minimum of moving parts make this frame an easy choice for users to select. The Multi Frame complies with ISO 7176-19, transporting users in motor vehicles.

Features

R82 Multi Frame

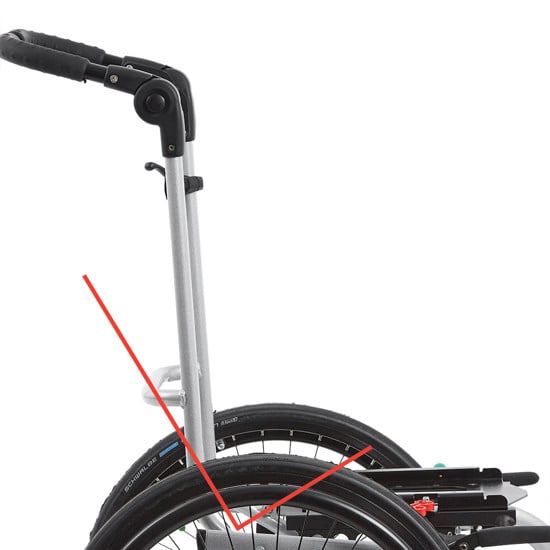

Tilt in space

Simple to operate tilt in space with the minimum of moving parts.
R82 Multi Frame

Seats

Mount a Panda Futura or x:panda seat on the Multi Frame.
R82 Multi Frame

Adapter

Prepared for seats and backs from other manufacturer.
R82 Multi Frame

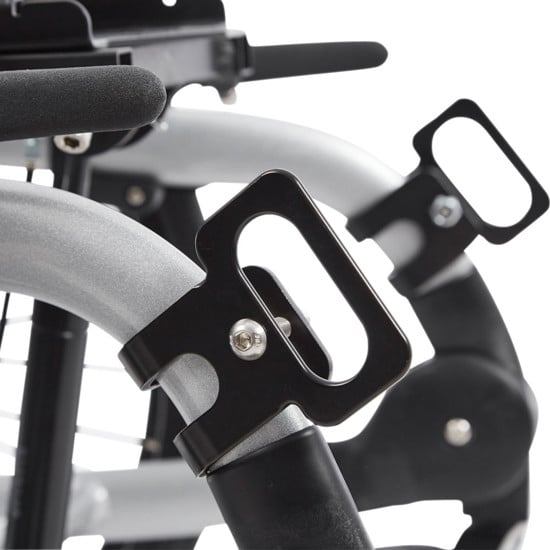

Safe transportation in vehicles

The Multi Frame complies with ISO 7176-19, transporting users in motor vehicles.The Multi Frame can be used with seat units that complies with ISO 16840-4.

Variants and details

Size 1
Size 2
Size 3
Item number 9711xxxx0 9721xxxx0 9731xxxx0
Back width, inside (mm) 245 295 345
Folded height with 12 1/2" back wheels (mm) 470 470 470
Folded height with 22" back wheels (mm) 560 560 560
Folded height without back wheels - Mid position (mm) 400 400 400
Folded length with 12 1/2" back wheels (mm) 730 730 730
Folded length with 22" back wheels (mm) 850 850 850
Folded length with 22" wheels (mm) 850 850 850
Footrest to adaptor plate (mm) 50-340 50-340 50-340
Hand brace length (mm) 225 225 225
Handrim diameter (mm) 480 480 480
Inside width (mm) 340 390 440
Length - with 12½" wheels (mm) 640 640 690
Length - with 22" wheels (mm) 750 750 800
Mass device with 12.5" wheels and solid front wheels (kg) 13 13 13
Mass device with 22" air wheels and air front wheels (kg) 14 14 14
Max load (kg) 100 100 100
Max load at transportation (kg) 100 100 100
Maximum rated load (kg) 115 115 115
Overall height, push brace 15° (mm) 915 915 915
Overall height, push brace 30° (mm) 850 850 850
Overall width 22" wheels & drumbrake (mm) 430 480 530
Overall width with 12.5" wheels (mm) 590 640 690
Overall width with 22" wheels (mm) 590 640 690
Seat plane angle (°) 0 - 30, 35, 40 0 - 30, 35, 40 0 - 30, 35, 40
Seat surface height at front edge (mm) 395, 425, 455 395, 425, 455 395, 425, 455
Width between 22" wheels with drum brake (mm) 430 480 530
Width between 22" wheels without drum brake (mm) 440 490 540

Options

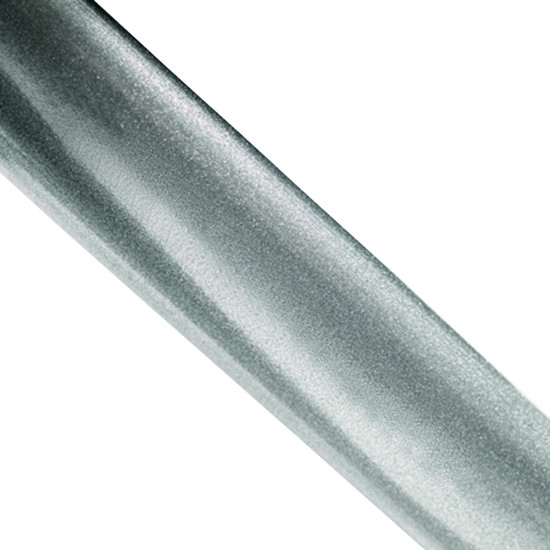

Available in 1 colour.

Silver

Silver

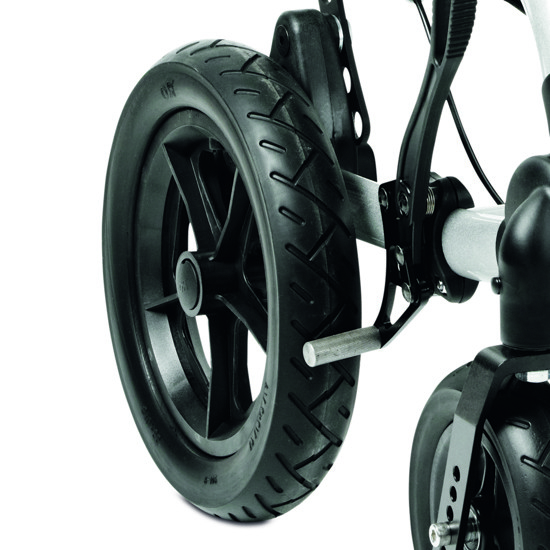

Available with different rear wheel sizes

12½” solid incl wheel brake

12½” solid incl wheel brake

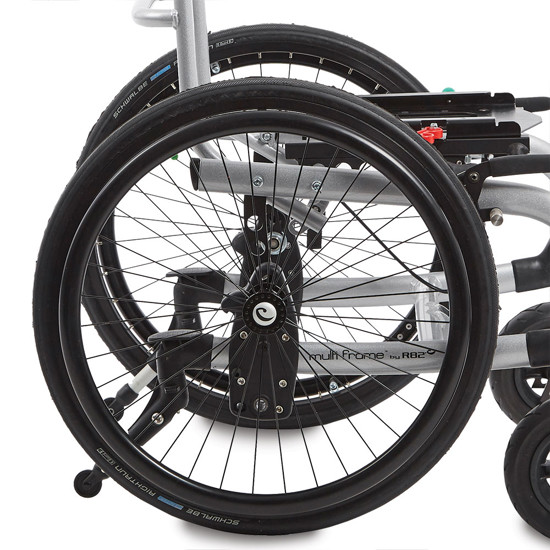

22” solid incl. wheel brake

22” solid incl. wheel brake

12½” air incl. wheel brake

12½” air incl. wheel brake

22” air incl. wheel brake

22” air incl. wheel brake

Choose from the different combinations of brakes.

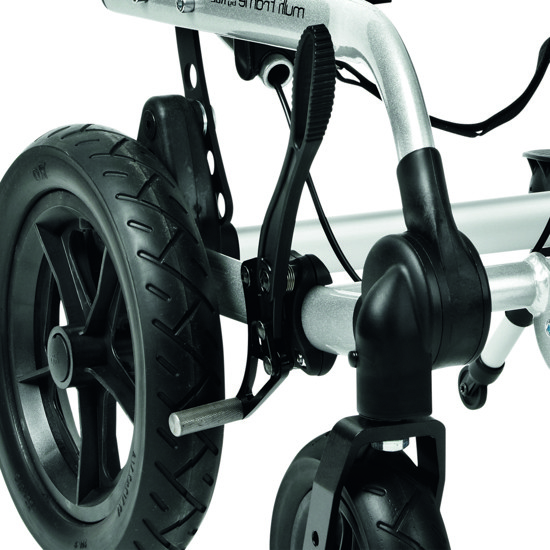

Wheel brake, standard

Wheel brake, standard

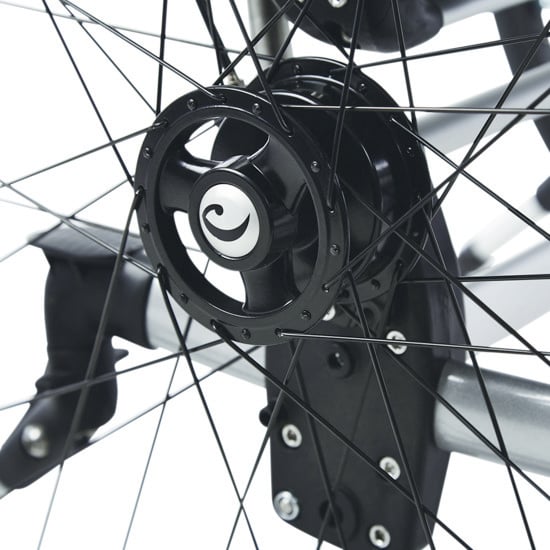

Drum brake for 12½"

Drum brake for 12½"

Drum brake for 22"

Drum brake for 22"

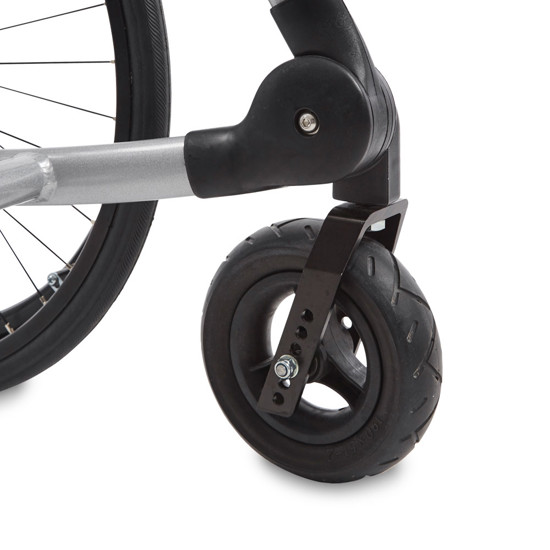

Available with different front wheel options.

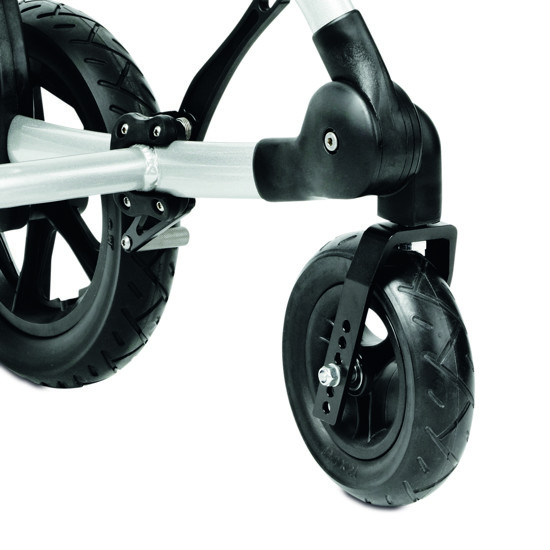

7” air grey or black

7” air grey or black

7” solid grey or black

7” solid grey or black

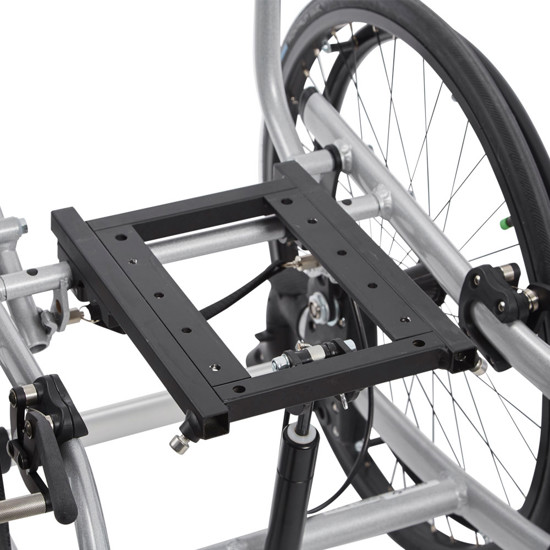

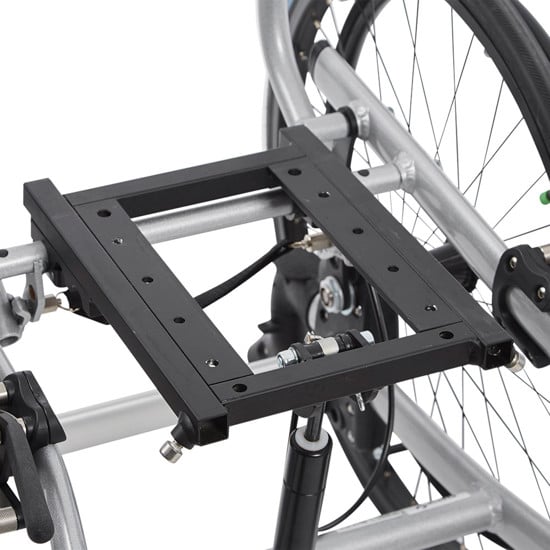

No interface is needed when the seat is bolted directly on the frame.

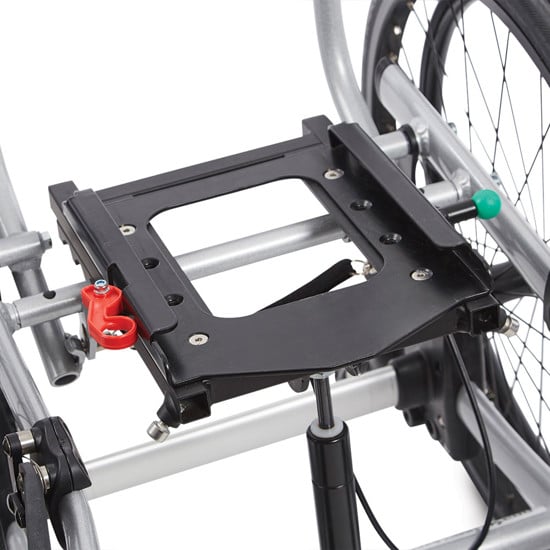

Seat plate

Seat plate
