R82 Combi Frame:x
Designed to fit each child’s seating needs, this wheelchair frame promotes comfort, stability and active involvement throughout the day. It helps children move through indoor and outdoor activities with confidence, while reducing effort for caregivers and supporting greater independence.
R82 Combi Frame:x
Empowering daily participation and ease
The Combi Frame:x empowers daily participation by offering a versatile base that adapts to both indoor and outdoor environments. Designed to support individual seating needs, it accepts various seats to ensure optimal positioning. The frame's intuitive design benefits both the child and caregiver, featuring simple adjustments that make daily routines easier. By providing a stable yet flexible foundation, the frame enhances mobility and encourages active engagement in everyday life.
Features
-
Features
Compatible with different seat and back systems
The Combi Frame:x can be equipped with different back systems and cushions
-
Features
Centre of gravity and tilt in space
The Combi Frame:x centre of gravity is self-centring. The seating unit can be tilted from horizontal to 40 degrees
-
Features
Fixed mounting or interface
Various seats can be mounted directly onto the Combi Frame:x. Alternatively the seats can be mounted into an interface. The frame is used for a variety of seating units like the Panda Futura and x:panda from R82
-
Features
Safe transportation in vehicles
The Combi Frame:x complies with the international transit wheelchair standard ISO 7176-19. The Combi Frame:x can be used with seat units that comply with ISO 16840-4
Variants and details
| Size 1 | Size 2 | Size 3 | Size 4 | |
|---|---|---|---|---|
| Item number | 31981xxxx0xxx | 982xxxx0xxx | 983xxxx0xxx | 984xxxx0xxx |
| Back angle (°) | 0-30 | 0-30 | 0-30 | 0-30 |
| Back height (mm) | 430 | 470 | 570 | 670 |
| Base plate (width x depth) (mm) | 220x250 | 270x300 | 320x350 | 370x400 |
| Folded height (mm) | 550 | 550 | 550 | 550 |
| Folded length (mm) | 800 | 800 | 840 | 940 |
| Footrest to adaptor plate (mm) | 100-250 | 100-250 | 180-330 | 180-330 |
| Mass device (kg) | 22 | 23 | 24 | 27 |
| Mass device, without rear wheels (kg) | 19 | 20 | 21 | 24 |
| Max load (kg) | 100 | 100 | 100 | 100 |
| Max load at transportation (kg) | 100 | 100 | 100 | 100 |
| Maximum rated load (kg) | 124 | 125 | 126 | 129 |
| Minimum turning radius (mm) | 600 | 600 | 600 | 600 |
| Overall height (mm) | 900 | 940 | 1040 | 1140 |
| Overall length (mm) | 830 | 830 | 830 | 830 |
| Overall width (mm) | 580 | 630 | 680 | 730 |
| Seat plane angle (°) | 0-40 | 0-40 | 0-40 | 0-40 |
| Seat surface height at front edge (mm) | 430, 460, 490 | 430, 460, 490 | 430, 460, 490 | 430, 460, 490 |
| Static stability downhill (°) | 9 | 9 | 9 | 9 |
| Static stability sideways (°) | 9 | 9 | 9 | 9 |
| Static stability uphill (°) | 9 | 9 | 9 | 9 |
| Width between wheels (mm) | 440 | 490 | 540 | 610 |
| Width, base plate (mm) | 220 | 270 | 320 | 370 |
Accessories
Documents
Videos

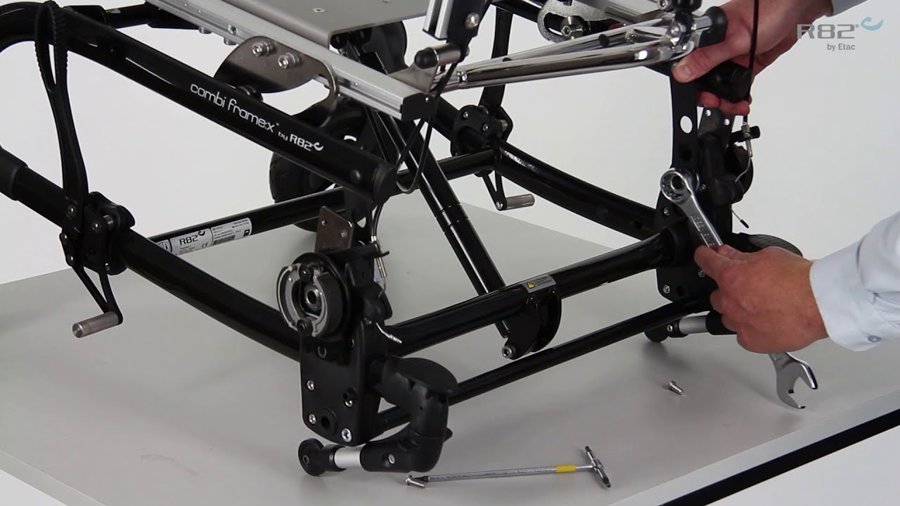

Changing seat plane height
Drum brake adjustment
Seat Mounting and Back Adjustment
