R82 x:panda

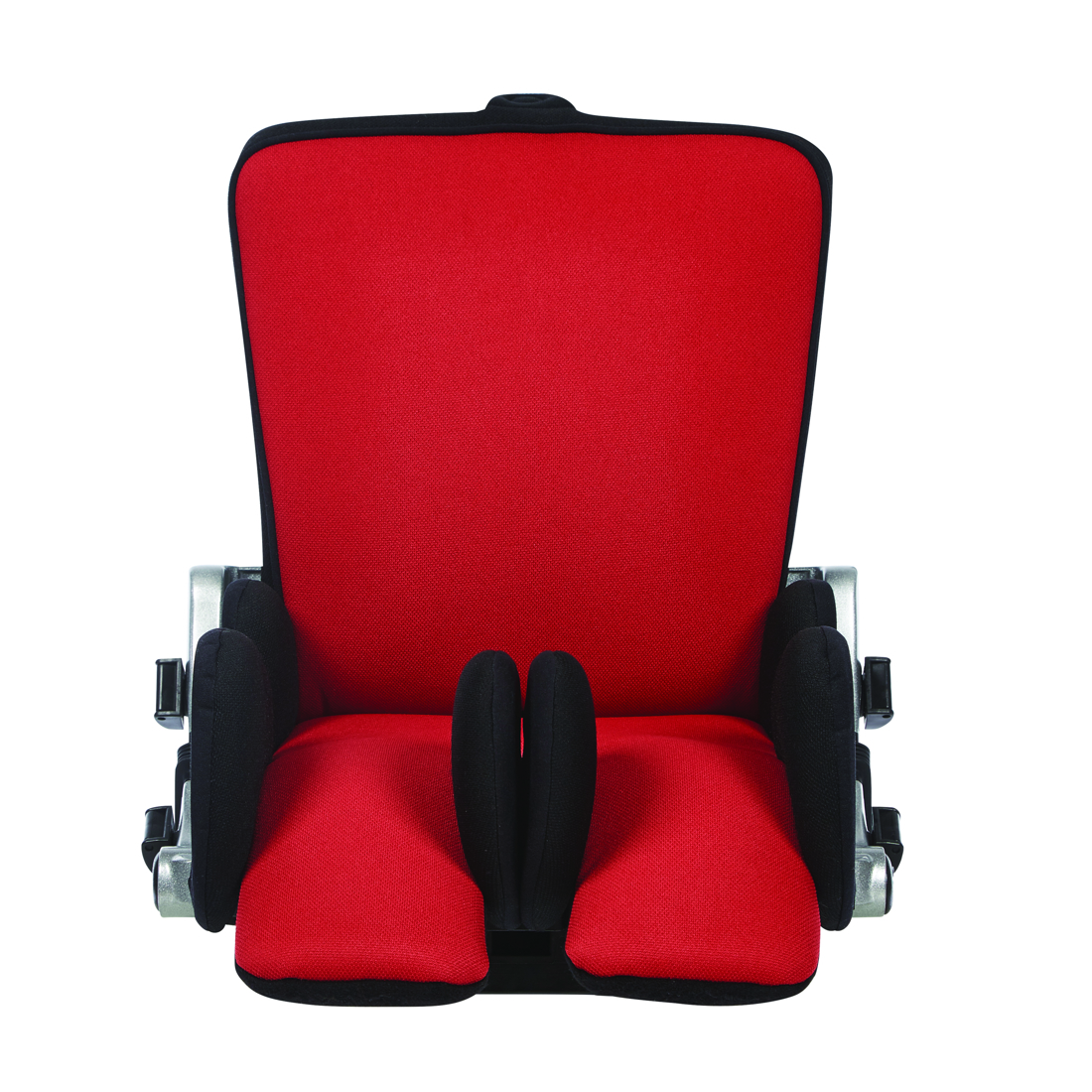

The x:panda is a multi-adjustable dynamic seat, developed to establish an ideal seating position for children and youngsters living with a disability.
x:panda is a multi-adjustable dynamic seat, delivered in 4 different sizes - each seat with up to 12 cm in seat width and up to 20 cm of depth adjustment coupled with sliding back growth.
The back is dynamic, making it possible for the child to extend and push back against relatively light resistance and then regain the desired sitting position. The back is lockable which could be preferred in feeding situations and required when being used in transportation. The back can also be angled to make it possible to seat the child with either an open or closed hip angle.
The x:panda seat complies with ISO 16840-4
-
x:panda video
See instruction on how to assemble the multi-adjustable dynamic seat x:panda.
Features
-
Features
Dynamic back
The x:panda has a unique dynamic back that absorbs the energy of extension and returns the child to upright sitting without compromising pelvic positioning
-
Features
Multi-adjustable
Overlap in sizing means that the starting option always offers the maximum growth potential coupled with individual leg positioning
-
Features
Growth
Individual growth in width, depth and back height to extend the life of the seat and accommodate the greatest range of sizes.
-
Features
Dynamic back recline
The point for rotation (recline of the back) is close to the axis of the hips which means that the back support maintains the correct position and minimizes shear
Standard specifications
| Size 1 | Size 2 | Size 3 | Size 4 | |
|---|---|---|---|---|
| Item number | 891011x-01 | 891012x-01 | 891013x-01 | 891014x-01 |
| Abduction angle each leg, size 1 in smallest position (°) | 0 - 8 | - | - | - |
| Abduction angle, each leg (°) | 0 - 15 | 0 - 15 | 0 - 15 | 0 - 15 |
| Armrest to seat distance (inch) | 4-6.5 | 4-6.5 | 4-6.5 | 4-6.5 |
| Back width, top of backrest (inch) | - | 11 | 13 | - |
| Backrest angle (°) | (-5) - 30 | (-5) - 30 | (-5) - 30 | (-5) - 30 |
| Backrest height (inch) | 10.5-14.5 | 12.5-16.5 | 13.75-18.5 | 19.75-28 |
| Effective seat depth (inch) | 6.25-10.25 | 8.5-13 | 10.25 -15.25 | 15.25-20.75 |
| Front location of arm rest structure (inch) | 5.5 | 5.5 | 7 | 13 |
| Mass device (lbs) | 14.3 | 18.7 | 24.3 | 28.5 |
| Maximum rated load (lbs) | 84.7 | 89.2 | 160.9 | 209.4 |
| Maximum user height (inch) | 41,25 | 50,5 | 56,25 | 70,75 |
| Maximum user mass (lbs) | 66.1 | 66.1 | 132.2 | 176.3 |
| Maximum user mass in transportation (lbs) | 66.1 | 66.1 | 132.2 | 176.3 |
| Minimum user height (inch) | 25,5 | 33,5 | 39,5 | 54,75 |
| Width thighs (inch) | 2.75, 3.5, 4.25 | 4, 4.75, 5.5 | 4.75, 5.75, 6.75 | 5, 7.5, 9.75 |
Washing instructions
The product is CE marked
Options
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to mount a table

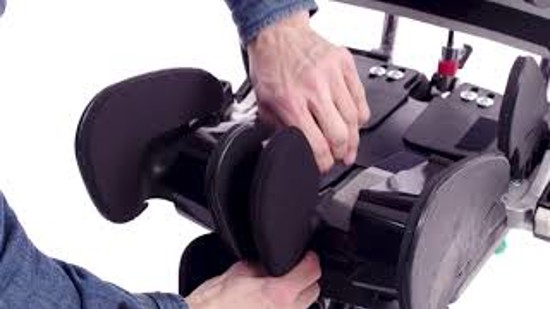

How to assemble the x:panda
