Convaid EZ Rider

The lightweight, compact folding wheelchair offers upright seating with a 10° fixed seat angle and is perfect for active youngsters.

The Convaid EZ Rider is a popular upright pediatric wheelchair that is best-in-class, convenient, lightweight, and compact folding. The EZ Rider is made to order to meet each individual requirement. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides 5 years of growth capability through its seat depth extension system.

The EZ Rider comes in either Textilene or Cordura upholstery that is removable, washable, and comes in a wide selection of colors. The Convaid EZ Rider is easy to fold for maximal portability, available in sizes 12, 14, 16, and 18 for up to 250-lbs. It comes with a transit option that meets WC19 transport safety standards. It is attractive, highly durable comes with a lifetime guarantee, and is made in the USA.

Features

back zippers

Upholstery with built-in back zippers

The added back zippers are a convenient feature to add padding for back support.
Zippered seat pockets in seat and back Cordura upholstery for foam inserts.

Upholstery with built-in seat zippers

Allows for foam inserts for additional padding and support.
Tension Adjustable Back

Tension adjustable back upholstery

Provides contoured positioning.
Self Tensio

Self-Tensio®

Built in self-tensioning seating system increases sitting tolerance.

Standard specifications

EZ12
EZ14
EZ16
EZ18
Convaid item number 900860 900301 900996 900351
Folded height (inch) 17.5 18 17 15.5
Folded length (inch) 44.5 46 48 45.5
Folded width (inch) 14 13.5 14 14.5
Footrest to seat distance (inch) 3-20 3-21 3-22 3-22

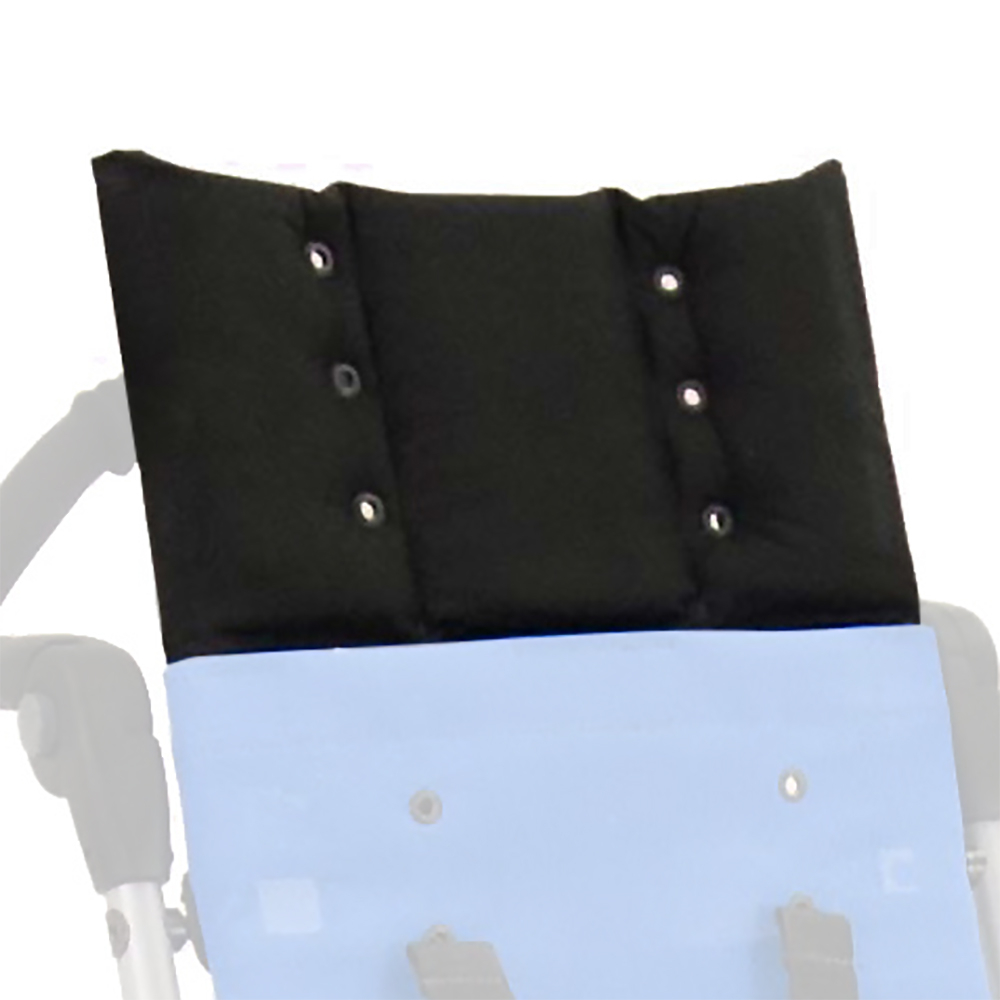

Headrest extension (inch) 8 8 8 10
Overall height (inch) 38 38,5 40 37
Overall length (inch) 36 37.5 43.5 48
Overall width (inch) 21.5 23 26 26
Push handle adjustments (inch) 29.5-46.5 29-47 28-45 -
Seat back height (inch) 21C 24C 26C 27C
Seat depth (inch) 9-14 11-16 12-17 14.5-19.5
Seat to floor (inch) 19 20 20 21,5
Seat width (inch) 12 14 16 18
Shoulder strap height (inch) 17-20 14-20 15-21 16-22
Tilt in space tilt angle (°) 10 10 10 10
Total weight (lbs) 25 30 30 29
Weight capacity (lbs) 75 100 170 250
Weight capacity transit (lbs) 66 100 170 170

Options

Convertible frame

The Convertible offers removable Mag Rear wheels, which allow independent mobility.

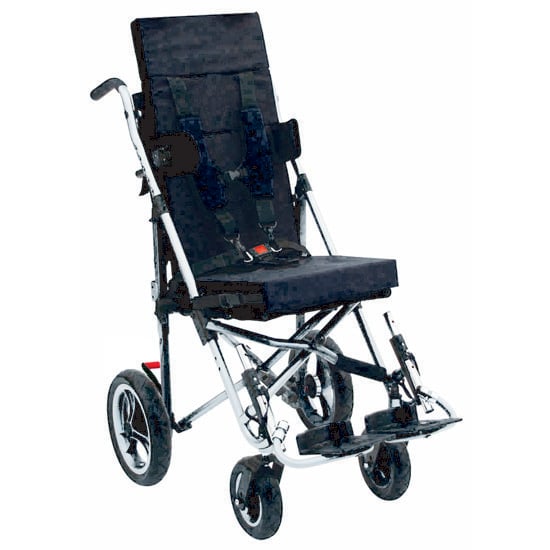

Planar frame

Solid seat & back provides in-depth seating & therapeutic positioning.

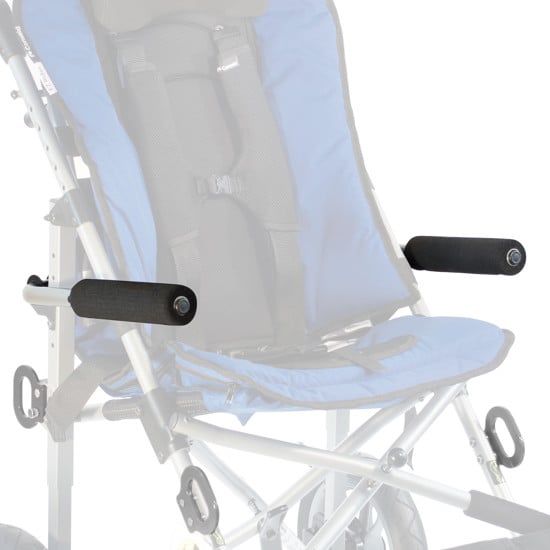

Height adjustable flip-up armrest

Provide upper extremity support and positioning. Armrests “flip-up” out of the way for easy access into chair.

EZ Rider Frame Size 18

One-piece, height-adjustable push handle

Standard

Two-piece push handle

Option

Choice of Cordura or Textilene upholstery.

Cordura upholstery

Heavy-duty Cordura upholstery is available.

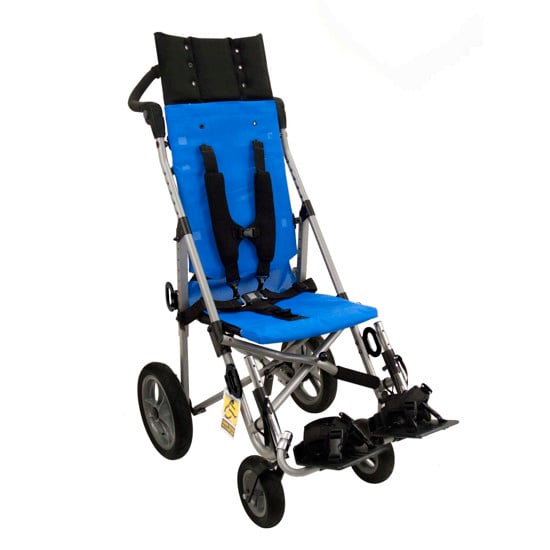

Textilene Upholstery

Heavy-duty Textilene upholstery is available.

Cordura is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.

Cherry Red

Princess Pink

Apple Green

Forest Green

Aqua Blue

Royal Blue

Sassy Purple

Chocolate Brown

Panther Black

Wild Raspberry

Teal Green

Navy Blue

Violet Purple

7.5” X 2” Front pneumatic tires

Only offered on model sizes 10-16.

8” X 2” Front solid ribbed tires

Only offered on model size 18.

8” X 2” Front pneumatic ribbed tires

Only offered on model size 18.

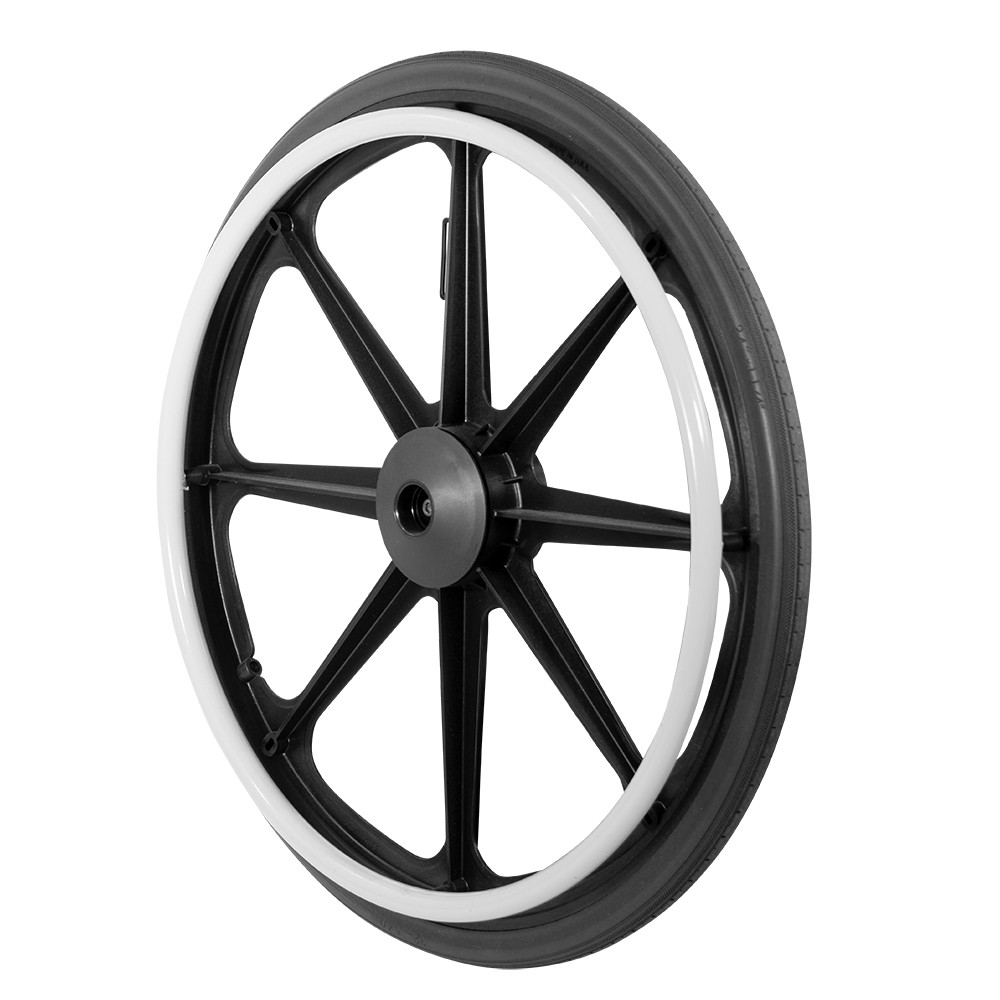

20", 22", 24" Mag rear solid tires

Only offered with a Convertible frame.

12.5” X 2” Rear solid knobby tires

Only offered on model sizes 10-16.

12.5” X 2” Rear pneumatic knobby tires

Only offered on model size 18.

12.5” X 2” Rear pneumatic knobby tires

Only offered on model sizes 10-16.

12.5" x 2" Rear solid knobby

Only offered on model size 18.

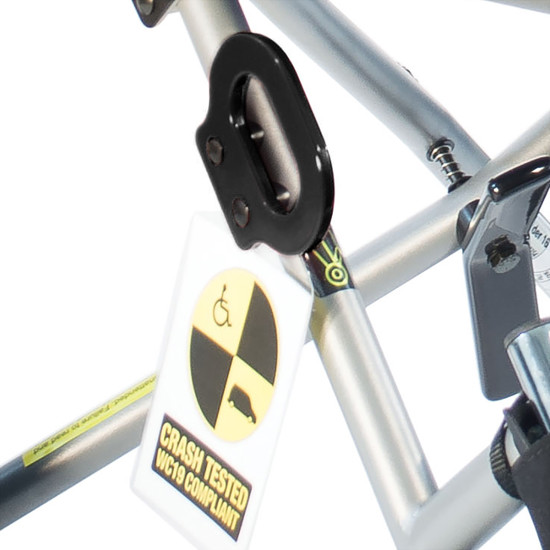

Transit ready frame

Meets or exceeds WC19/ISO 7176-19 safety standards for safe transportation.

Transit lap belt

The crash-tested (SAE J2249) transit lap belt provides additional occupant safety when riding in a bus or van. The belt connects to the bus anchored shoulder restraint harness and is used in addition to the pelvic positioning belt.

Upper extremity support surface (foam tray)

Crash tested

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
