Convaid Rodeo

The leader in tilt-in-space, compact-folding, lightweight, and durable positioning systems, the Rodeo is perfect for someone who needs more involved positioning and support.

The Convaid Rodeo is a popular pediatric tilt-in-space wheelchair that is best-in-class, convenient, lightweight and folds compactly. The Rodeo provides up to 45° of adjustable tilt that offers pressure relief and upper body support. This tilt-in-space Convaid is fully customizable to meet user’s specific therapeutic needs and provides 5 years of growth capability through its seat depth feature. With 2 frame options available (with and without seating), the Rodeo is able to accommodate aftermarket and extensive seating needs.

Rodeo’s Cordura upholstery comes in a wide selection of colors and is removable and fully washable. The Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability, available in sizes 10, 12, 14, and 16 for up to 170-lbs. It comes with a transit option that meets WC19 transport safety standards. It is attractive, highly durable, provides therapeutic necessities, comes with a lifetime guarantee and is made in the USA.

Discover

Features

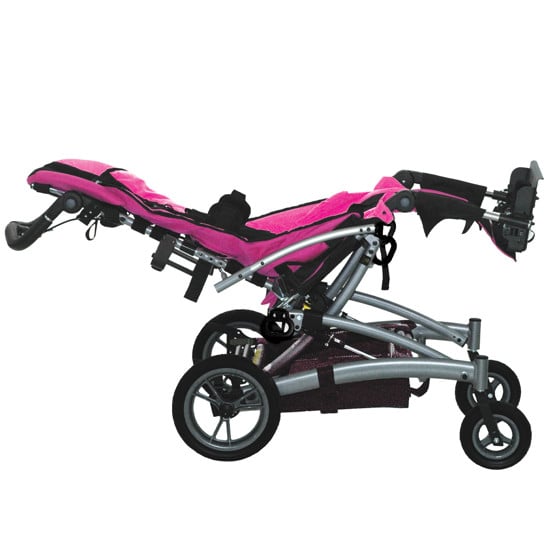

Tilt

5° to 45° of adjustable tilt

Provides pressure relief and upper body support.
Accommodates adaptive and aftermarket seating.

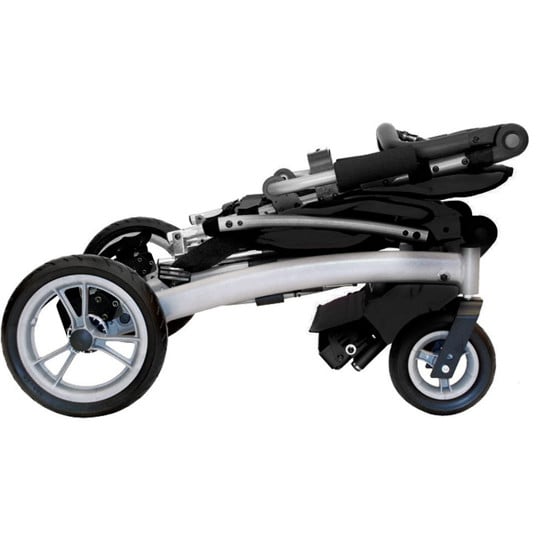

Lightweight & compact folding

The folding mechanism allows the whole chair, including seating, to fold into a tight which fits in the trunk of almost every car.
Adjustable seat depth extends chair life for a growing child.

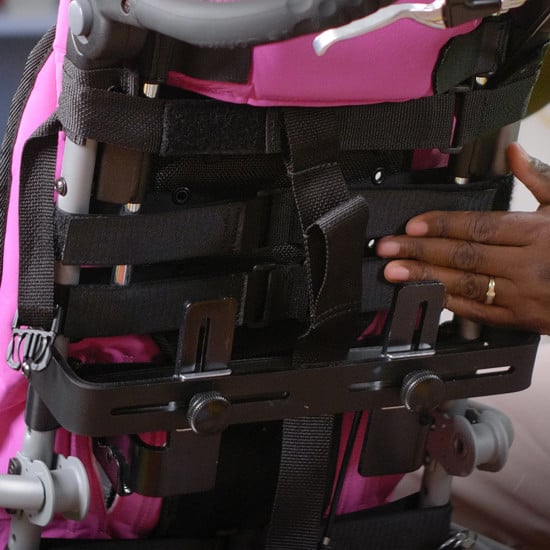

Tension adjustable back upholstery

Adjustable back straps allow for individual adjustment to the Lumber and Thoracic sections for the back.

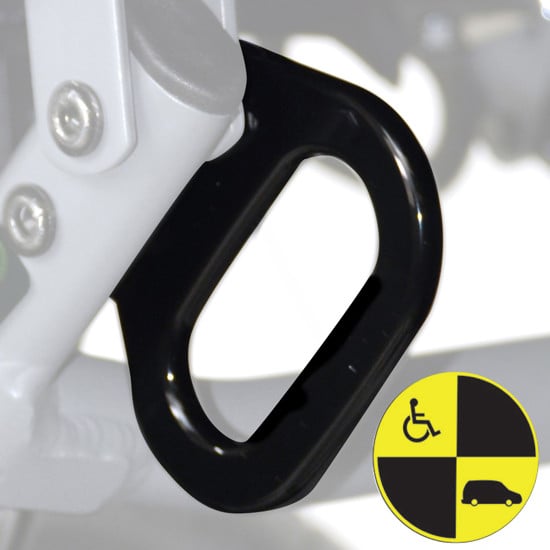

Transit Anchors

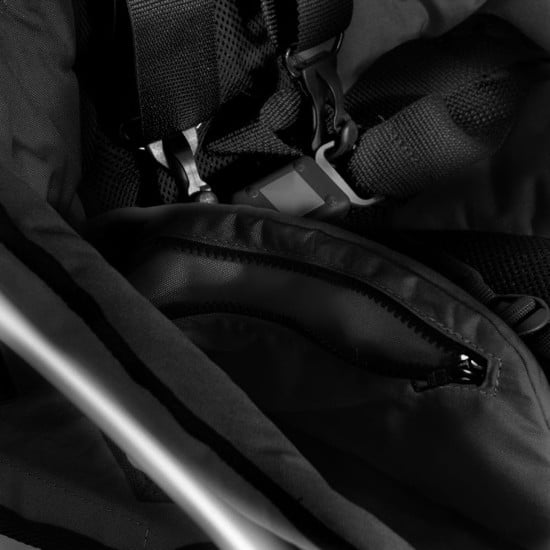

Zippered pockets in upholstery

Allows for additional seat padding and support.

Standard specifications

RD10
RD12
RD14
RD16
Convaid item number 904340 902689 902691 903134
Folded height (inch) 17.5 17 18 18
Folded length (inch) 33.5 34 34 40
Folded width (inch) 21 23 25 27
Foot plate angle (°) -40 -40 -40 -40
Headrest extension (inch) 6 8 8 8
Overall height (inch) 43 43 44 45
Overall length (inch) 30.5 35 35 36
Overall width (inch) 21 23 25 27
Push handle adjustments (inch) 32-48.5 34.5-51 35-52 36-53.5
Recline adjustment (°) 90° or 110° 90° or 110° 90° or 110° 90° or 110°
Seat back height (inch) 21 22 24 25
Seat depth (inch) 7-12 09-14 11-16 13-18
Seat to flipped individual angle adjustable footplate (inch) 4.5-9.25 4.5-9.25 4.25-11 7.25-13.25
Seat to flipped one piece angle adjustable footplate (inch) 5.25-11.25 5.25-11.25 7.25-13.25 9.25-15.25
Seat to floor (inch) 20 21 22 22
Seat to individual angle adjustable footplate (inch) 7-13 07-13 9.5-15.5 12-18
Seat to one piece angle adjustable footplate (inch) 9-14 09-14 11-16 13-18
Seat width (inch) 10 12 14 16
Shoulder strap height (inch) 13-19 15-21 16-22 18-24
Tilt in space tilt angle (°) 5° - 45° 5° - 45° 5° - 45° 5° - 45°
Total weight (lbs) 29 33 37 39
Weight capacity (lbs) 75 75 100 170
Weight seat unit (lbs) 29 33 37 39

Options

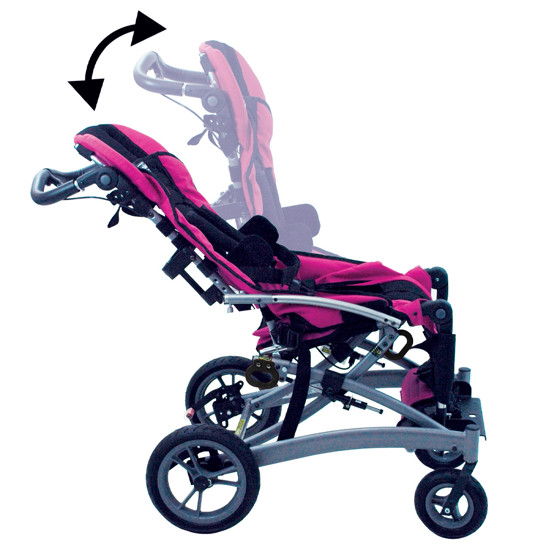

Adjustable 90° or 110° recline

Opens the seat-to-back angle to provide postural relief.

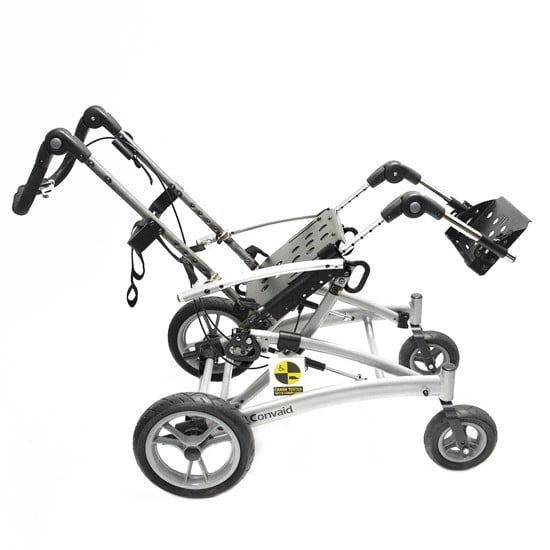

Rodeo without seating frame

Accommodates adaptive and aftermarket seating.

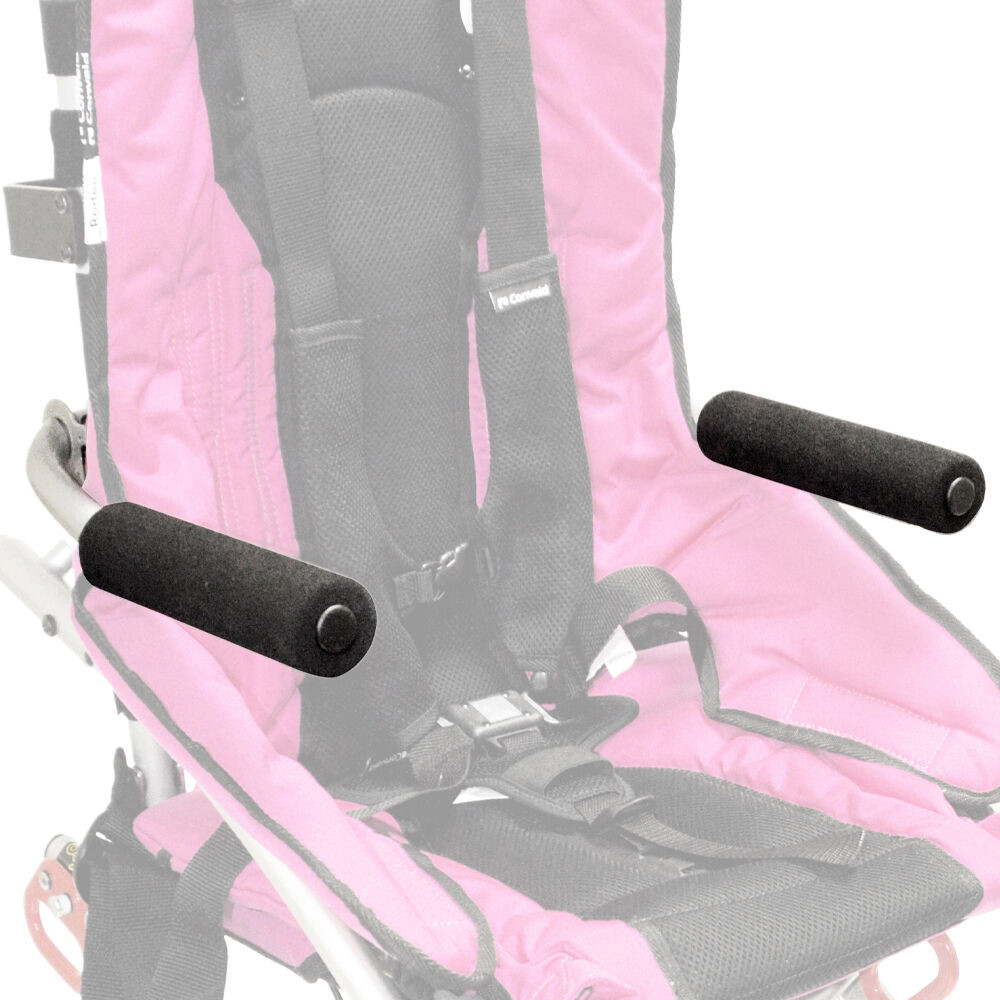

Height adjustable flip-up armrest

Armrests “flip-up” out of the way for easy access into the chair.

Solid side panels

Side panels provide additional upper body positioning and support and provide additional security to prevent the child from leaning out the sides of the seat.

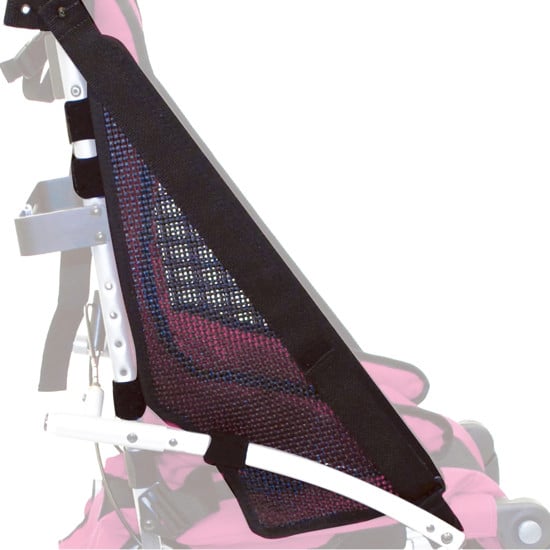

Mesh side panels

Side panels provide additional upper body positioning and support and provides additional security to prevent the child from leaning out the sides of the seat. Mesh fabric allows for increased airflow and circulation.

Cordura is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.

Cherry Red

Princess Pink

Apple Green

Forest Green

Aqua Blue

Royal Blue

Sassy Purple

Chocolate Brown

Panther Black

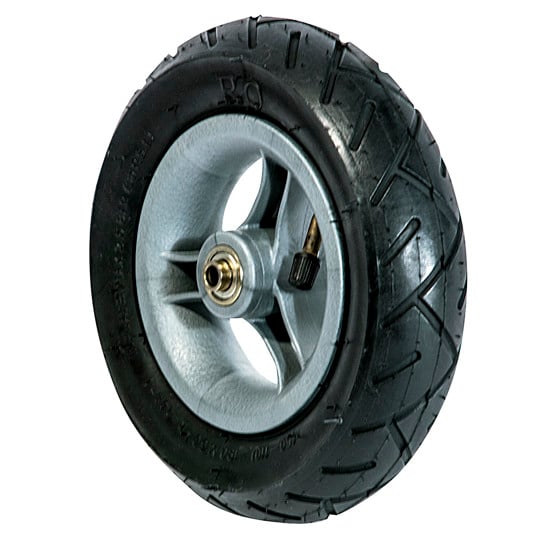

7.5” X 2” Front pneumatic tires

Only offered on model sizes 10-16.

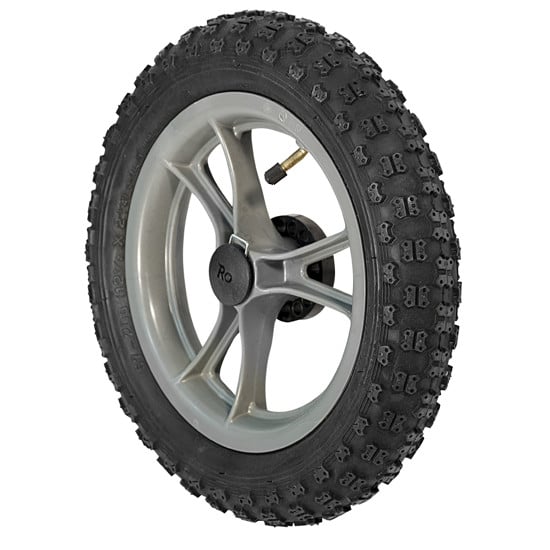

12.5” X 2” Rear pneumatic knobby tires

Only offered on model sizes 10-16.

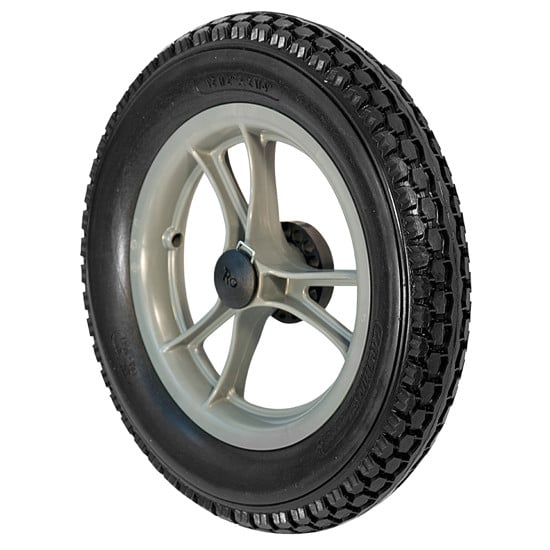

12.5” X 2” Rear solid knobby tires

Only offered on model sizes 10-16.

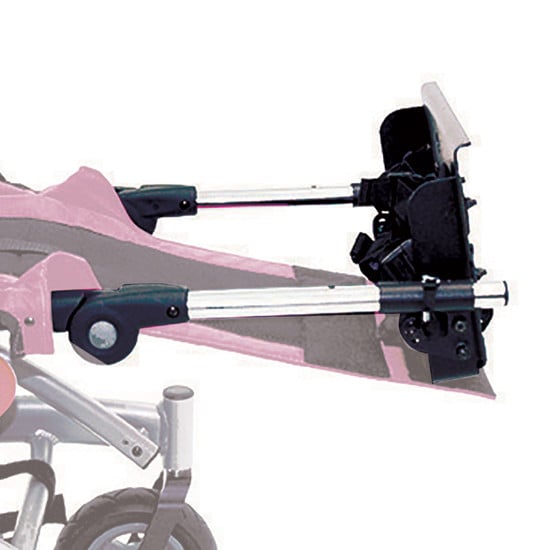

Elevating legrest

Standard

2" Legrest extension

Option

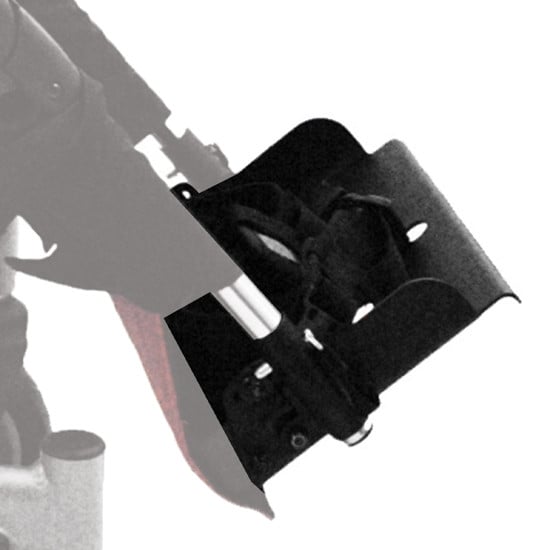

One-piece height adjustable footplate

Standard

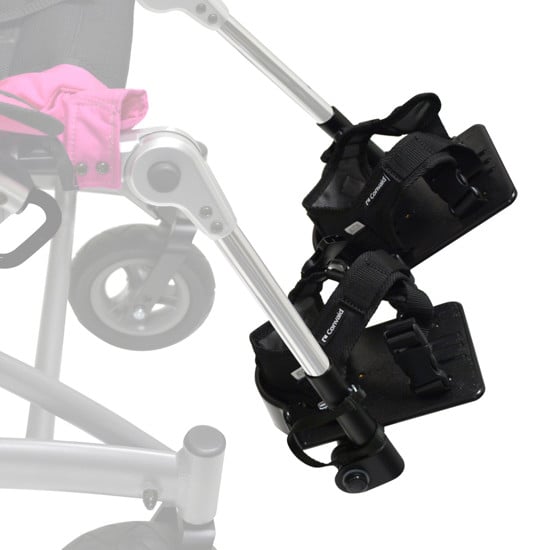

Individual angle adjustable footplates

Option

Transit ready frame

Meets or exceeds WC19/ISO7176-19 safety standards for safe transportation in a bus or van.

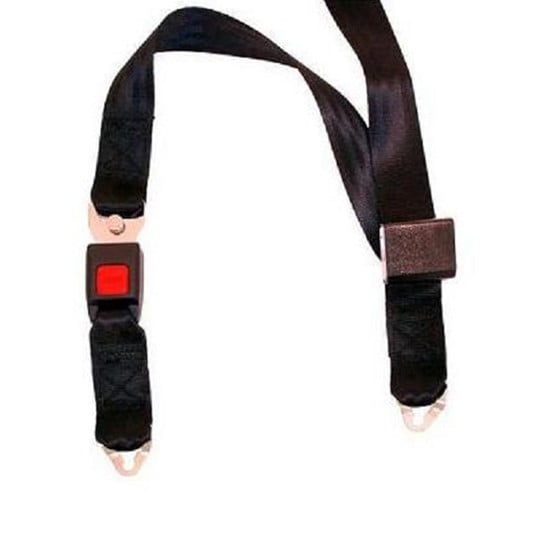

Transit lap belt

The crash-tested (SAE J2249) transit lap belt provides additional occupant safety when riding in a bus or van. The belt connects to the bus anchored shoulder restraint harness and is used in addition to the pelvic positioning belt.

Upper extremity support surface (foam tray)

Crash tested

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
