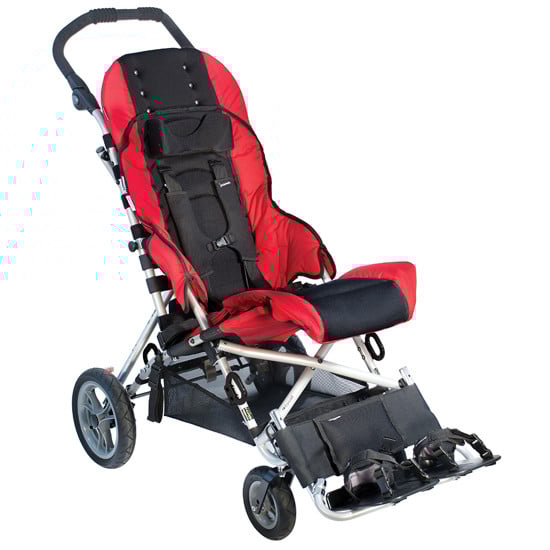

Convaid Cruiser
The Cruiser wheelchair features 30° of fixed tilt for improved postural control, 5 years of growth, and self-tensioning seating.
The Convaid Cruiser is a popular 30° fixed-tilt pediatric wheelchair with best-in-class, convenient, lightweight, and compact folding. The Cruiser is made to order to meet each requirement. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides 5 years of growth capability through its seat depth extension system.
The Cruiser comes in either Textilene or Cordura upholstery that is removable, washable, and comes in a wide selection of colors. The Convaid Cruiser is easy to fold for maximal portability, available in sizes 10, 12, 14, 16, and 18 for up to 250-lbs. It comes with a transit option that meets WC19 transport safety standards. It is attractive, highly durable, provides positioning options, comes with a lifetime guarantee, and is made in the USA.
Discover
Cruiser video
Features

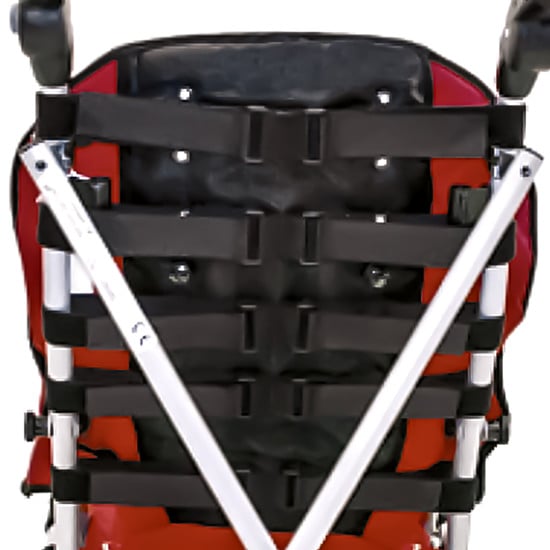

Tension adjustable back upholstery

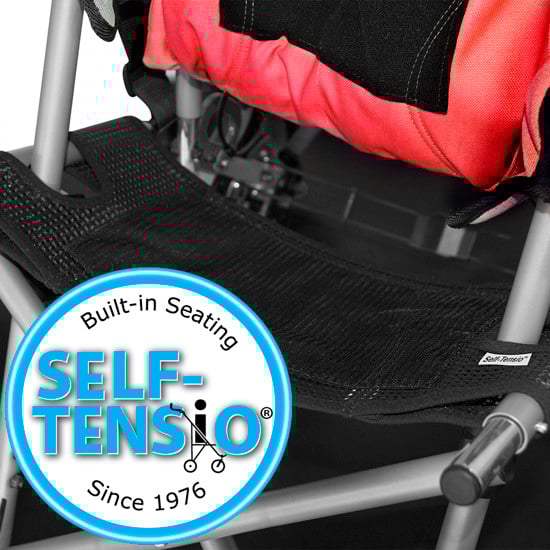

Self-Tensio®
One-piece, height-adjustable push handle

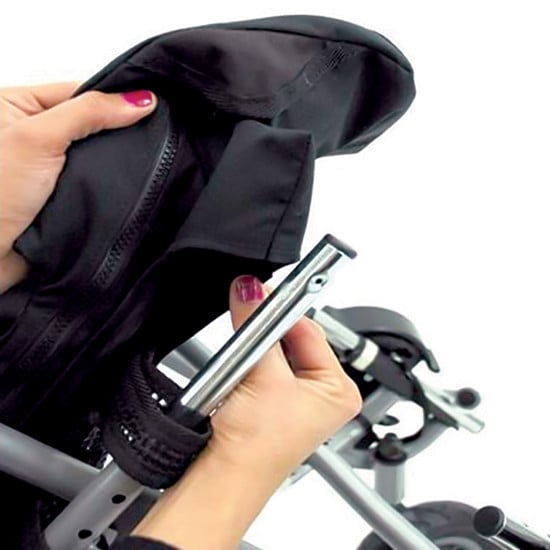

Tool-less seat depth adjustment
Standard specifications
| CX14 | CX10 | CX12 | CX16 | CX18 | |
|---|---|---|---|---|---|
| Folded height (inch) | 17 | 17 | 17 | 17 | 17 |
| Folded length (inch) | 47 | 47 | 48 | 53 | 50 |
| Folded width (inch) | 16 | 15 | 15 | 16 | 15 |
| Foot plate angle (°) | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 |
| Footrest to seat distance (inch) | 4-22 | 5-21 | 5-25 | 4-22 | 4-23 |
| Overall height (inch) | 37 | 37 | 38 | 40 | 38 |
| Overall length (inch) | 49 | 48 | 44 | 52 | 55 |
| Overall width (inch) | 25.5 | 22 | 23.5 | 27.5 | 28.5 |
| Push handle adjustments (inch) | 28-45 | 28-43 | 29-46 | 31-48 | - |
| Seat back height (inch) | 25C/23T | 21C/20T | 22C/20T | 27C/24T | 25C/25T |
| Seat depth (inch) | 10-15 | 6-11 | 8-13 | 11-16 | 14-21 |
| Seat to floor (inch) | 21 | 23 | 25 | 23 | 26 |
| Seat to footplate (inch) | 4-22 | 5-21 | 5-25 | 4-22 | 8-23 |
| Seat width (inch) | 14 | 10 | 12 | 16 | 18 |
| Shoulder strap height (inch) | 15-23 | 11 - 19 | 12 - 20 | 17-25 | 16-22 |
| Tilt in space tilt angle (°) | 30 | 30 | 30 | 30 | 30 |
| Total weight (lbs) | 28 | 27 | 27 | 32 | 30 |
| Weight capacity (lbs) | 100 | 75 | 75 | 170 | 250 |
| Weight capacity transit (lbs) | 100 | 66 | 66 | 170 | 170 |
Washing instructions
Options
Frame options

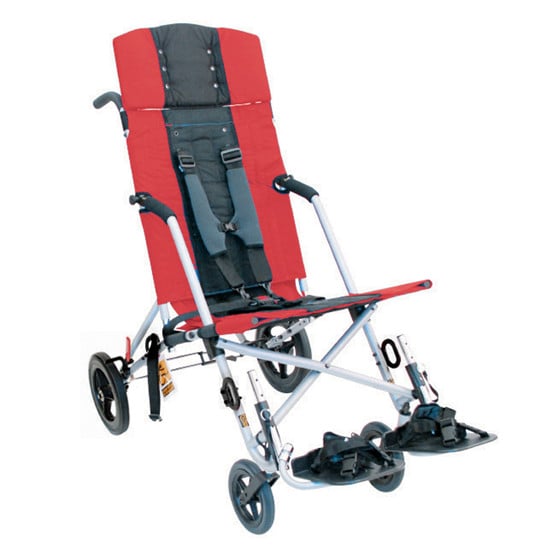

Cruiser Frame Size 18

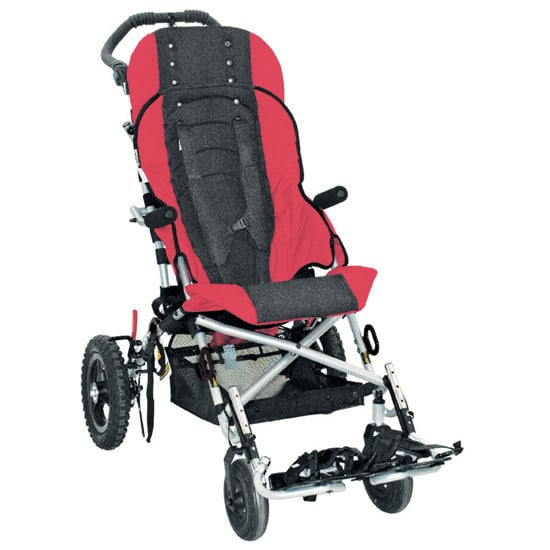

Cruiser Scout frame

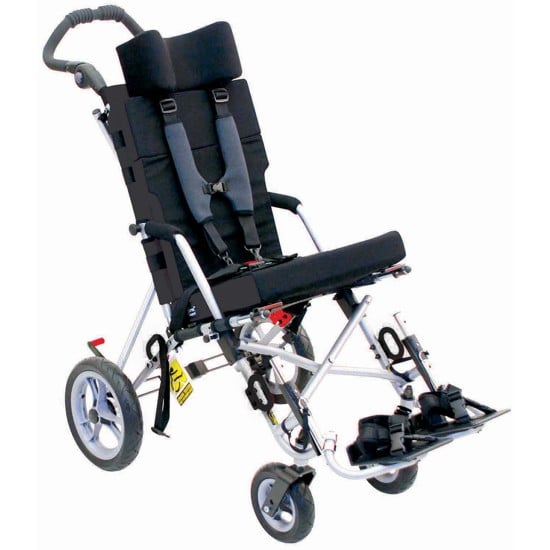

Cruiser Planar frame
Anatomic back
Push handle options

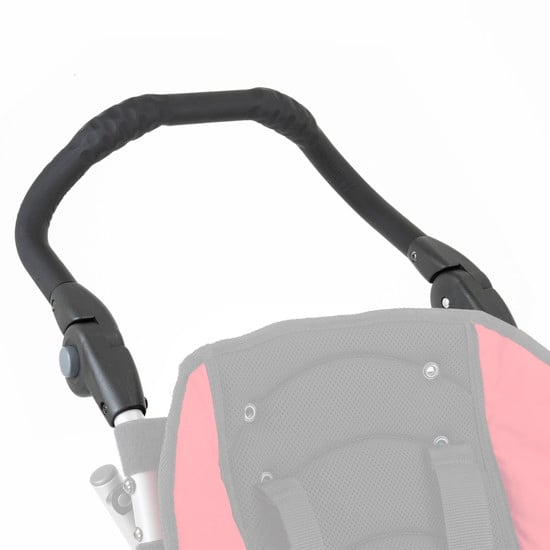

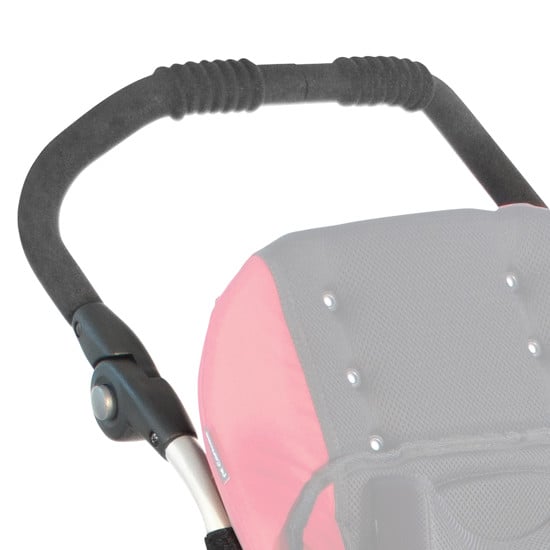

One-piece, height adjustable push handle

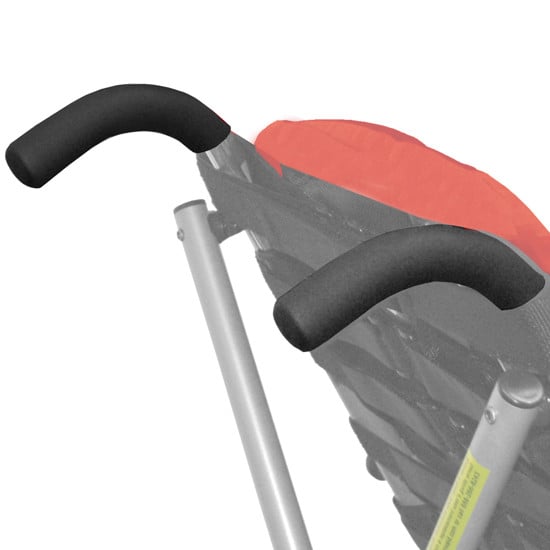

Two-piece push handle
Upholstery fabric options
Choice of Cordura or Textilene upholstery.
Cordura Upholstery

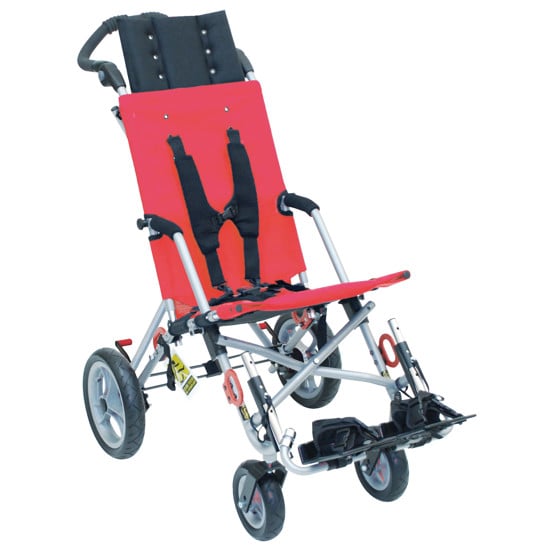

Textilene Upholstery
Textilene upholstery colors
Wild Raspberry
Teal Green
Navy Blue
Violet Purple
Cordura upholstery colors
Cordura is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.
Cherry Red
Princess Pink
Apple Green
Forest Green
Aqua Blue
Royal Blue
Sassy Purple
Chocolate Brown
Panther Black
Front Tires
7.5” X 2” Front pneumatic tires

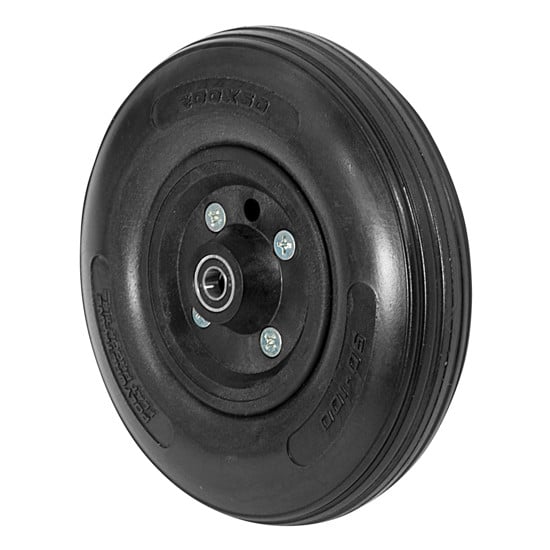

8” X 2” Front solid ribbed tires

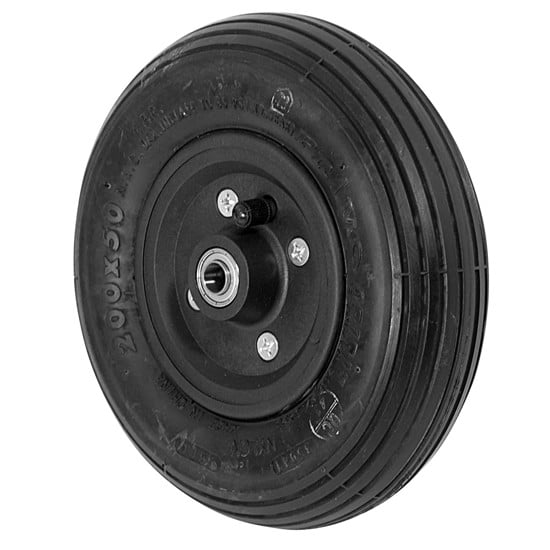

8” X 2” Front pneumatic ribbed tires
Rear tires

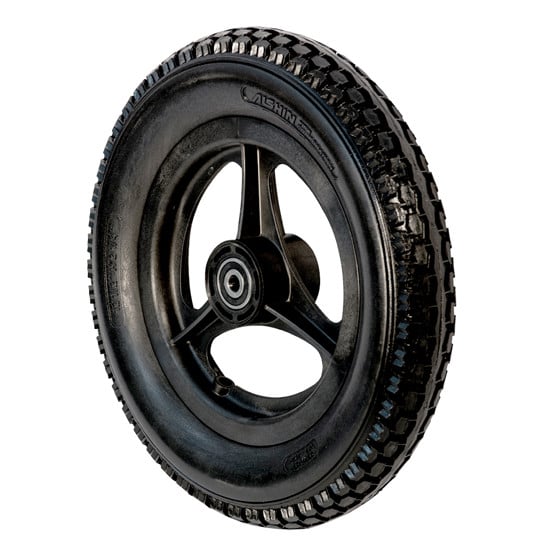

12.5” X 2” Rear solid knobby tires
12.5” X 2” Rear pneumatic knobby tires
12.5” X 2” Rear pneumatic knobby tires
12.5" x 2" Rear solid knobby
Transit options

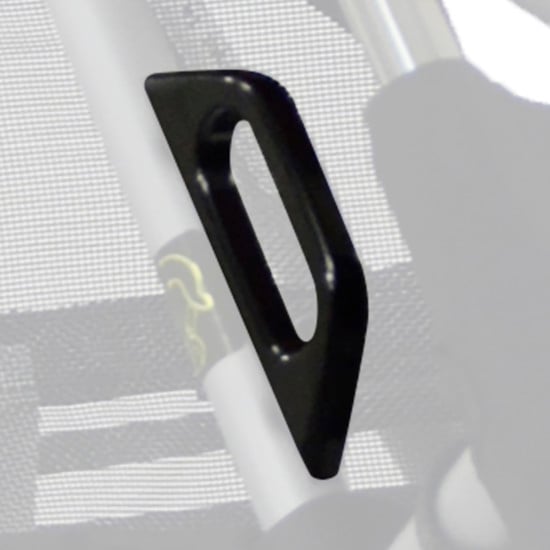

Transit ready frame
Transit lap belt

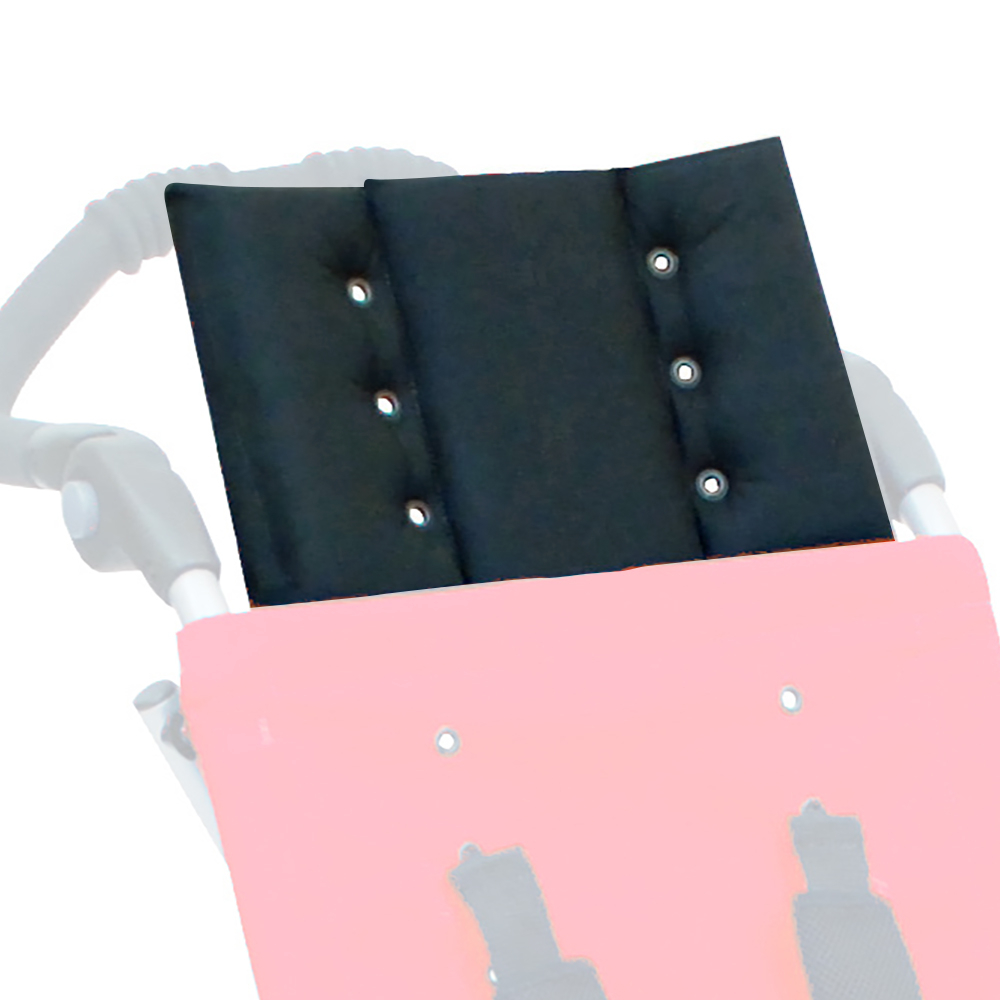

Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust push handle height
How to adjust back tension
Self tensio design explained
