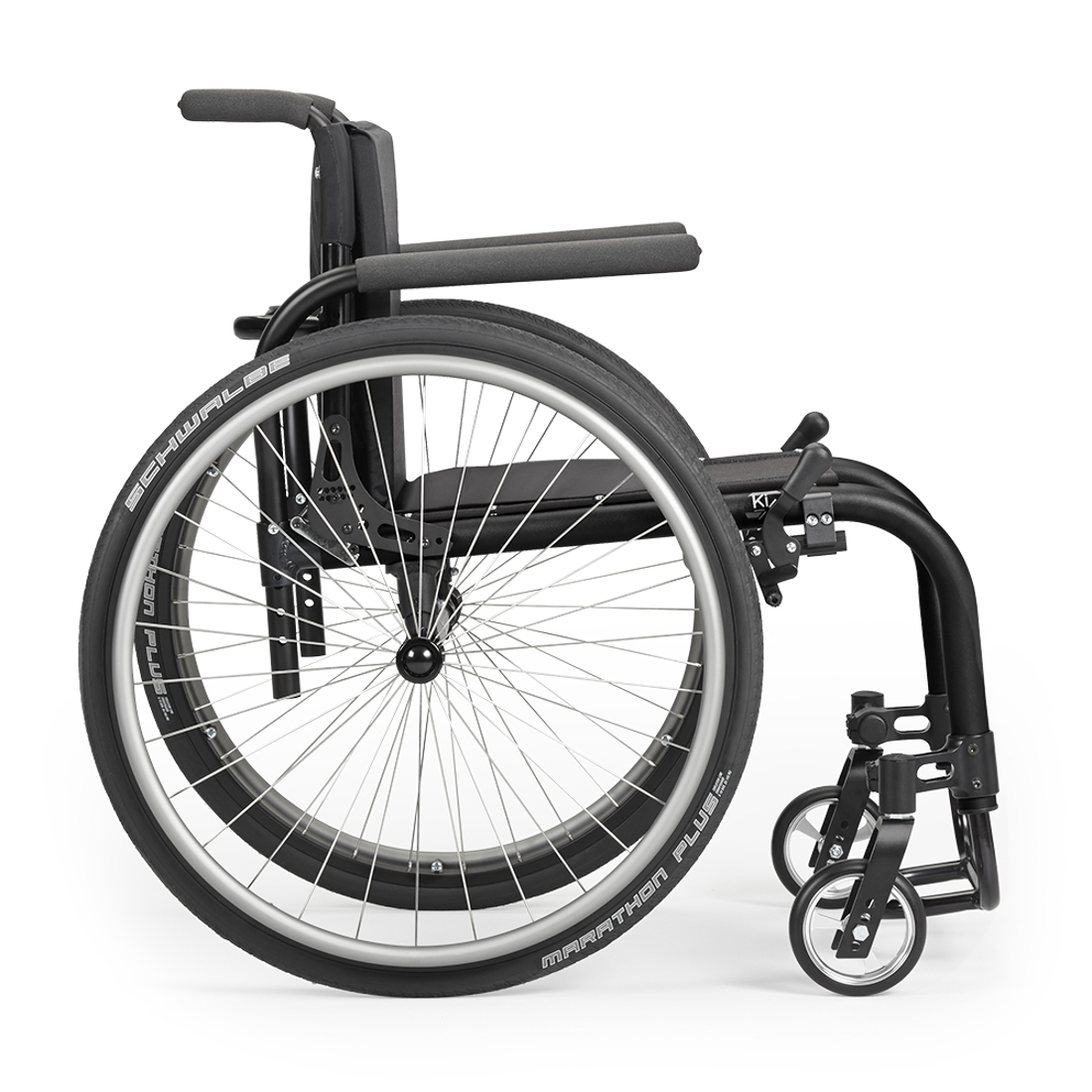

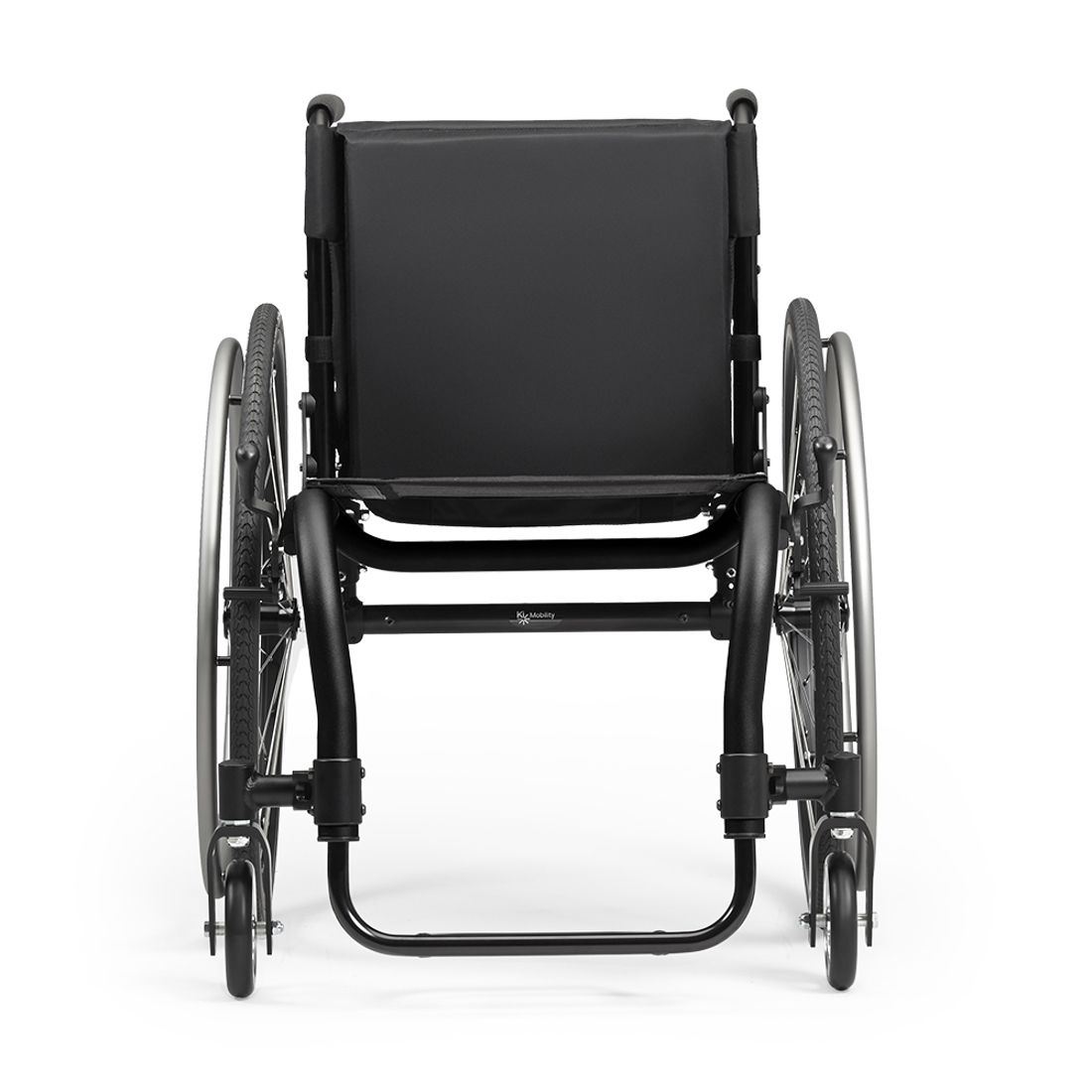

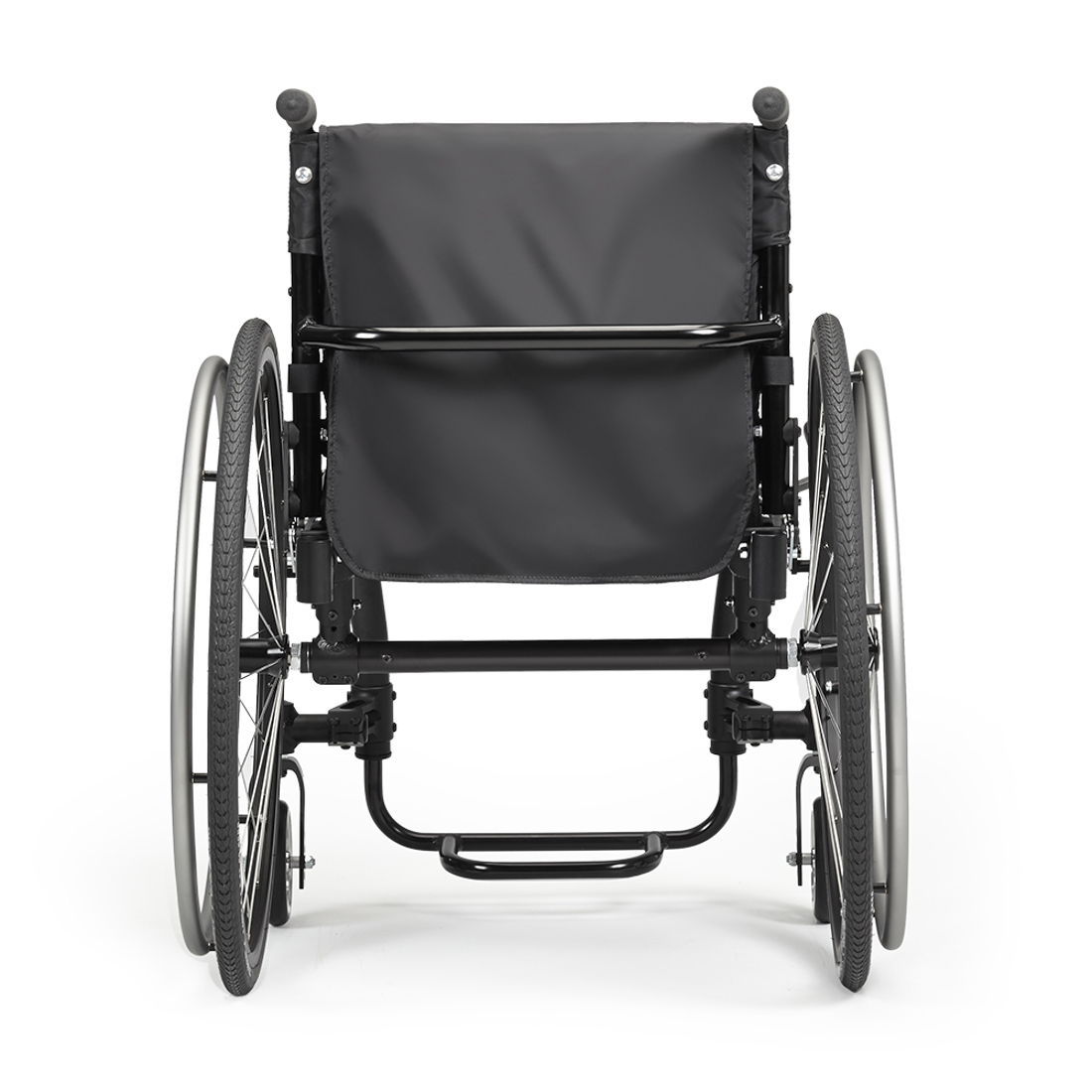

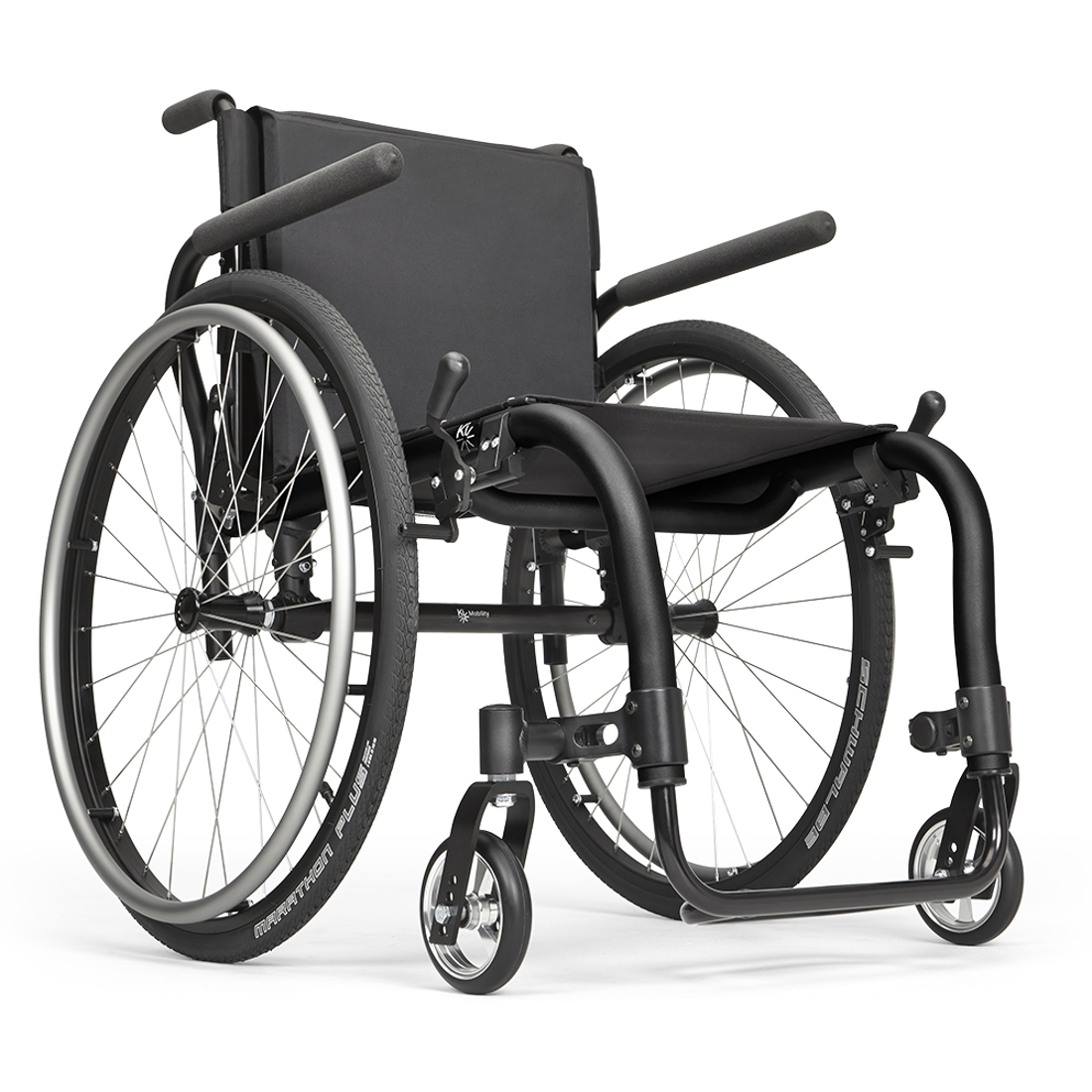

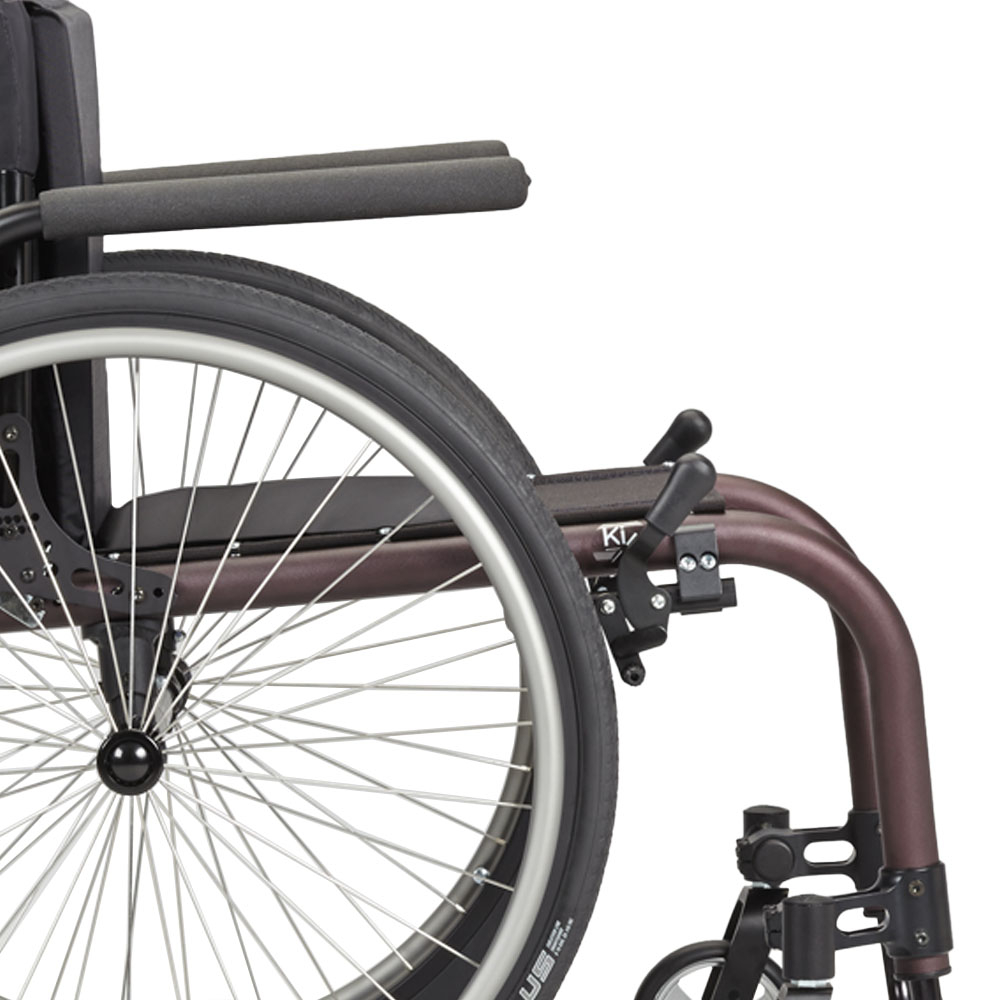

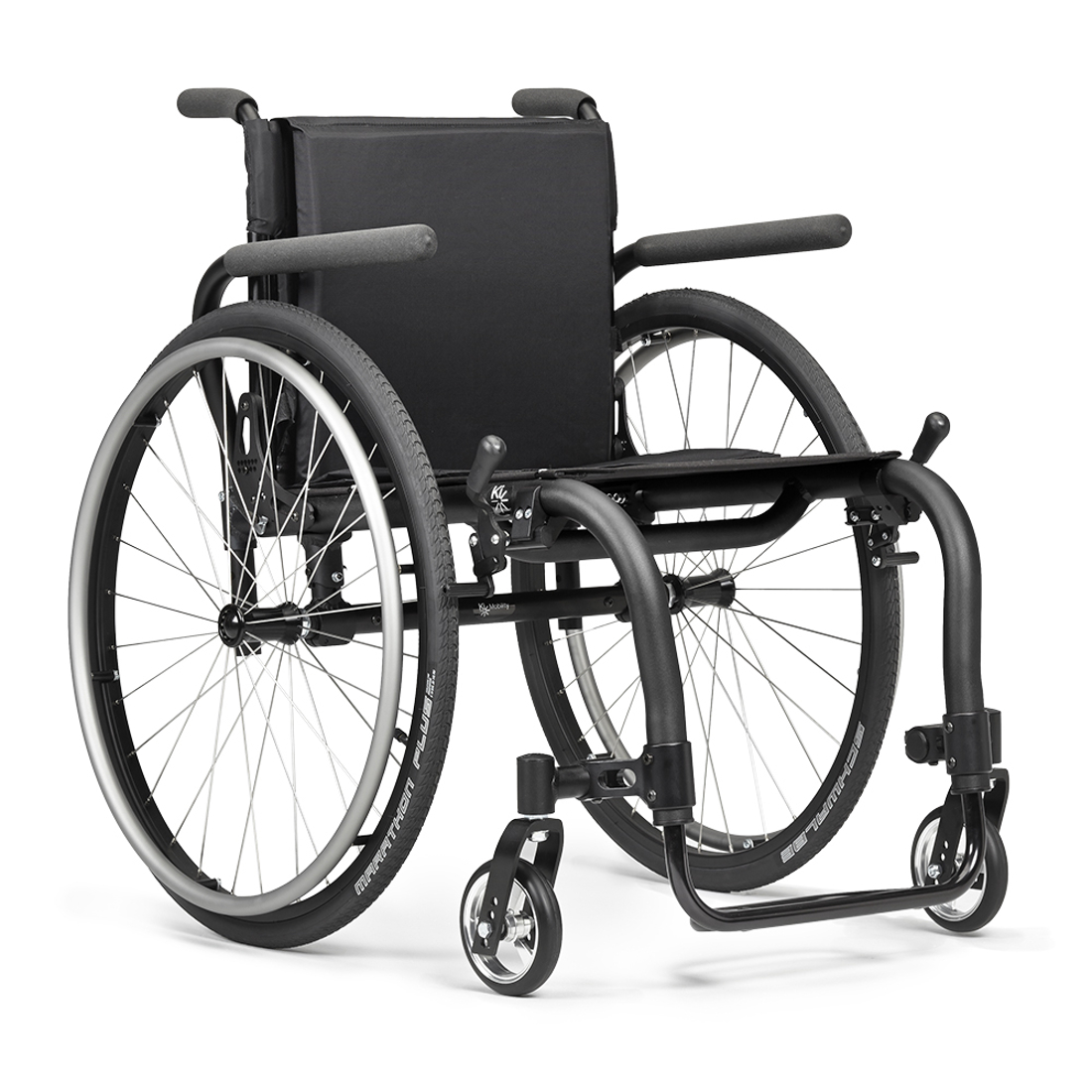

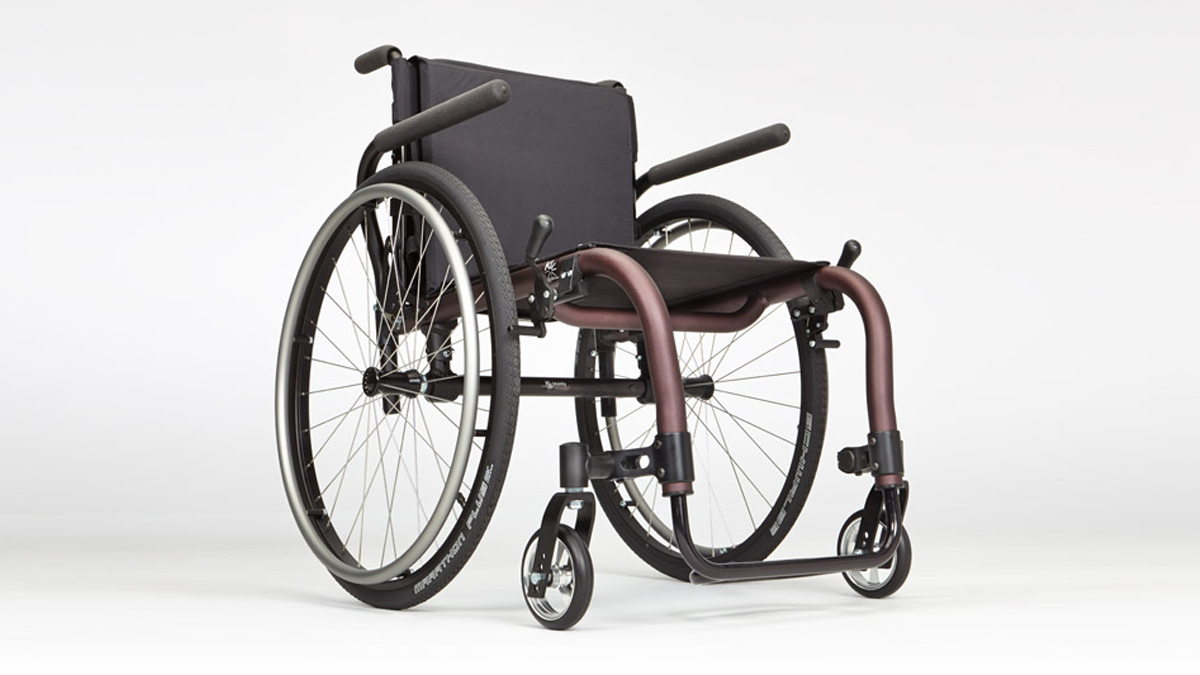

Ki Rogue ALX
The ultra-light rigid frame on the Rogue ALX provides a sleek look with a stiffer, more responsive ride.
The best low-cost ultra-light rigid frame wheelchair.
Rogue ALX is sleek, ultra-light weight and provide a rigid responsive ride all at an incredible price. Rogue ALX's construction takes a back seat to no one with an 5.1 kg transport weight and a 20% stiffer and more responsive ride than chairs costing thousands more. With Ki Mobility you don't have to sacrifice quality, design or options to get a great product at an affordable price.
Features

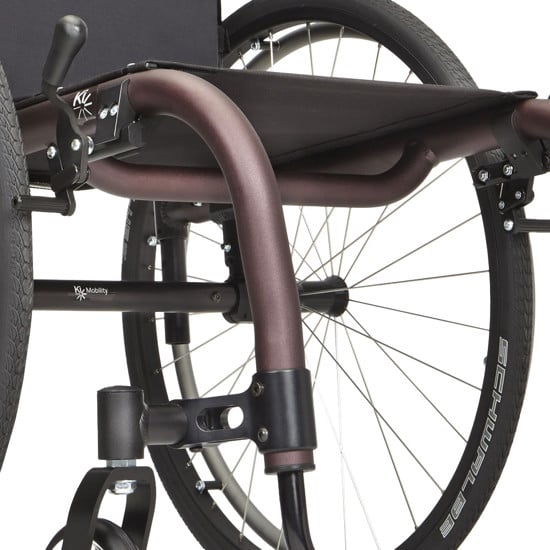

7000 3.6 cm Aluminum Tubing
The signature frame construction of our rigid chairs is like nothing else you will see in the market today. You will not feel anything else like it either, because it is 20% stiffer and stronger than other aluminum rigid frames on the market. The lightweight ultra-stiff 7000 series 3.6 cm tubing is the ideal combination of vibration dampening and rigidity.

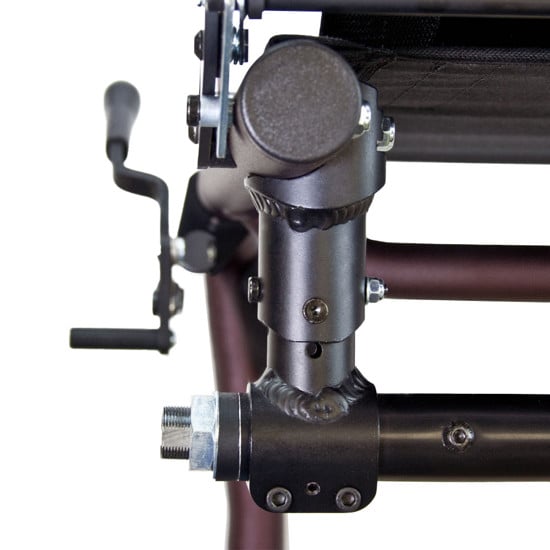

Crescent CG System
Hidden inside your Rogue ALX, the simple yet ingenious Crescent CG system keeps the side frame free of excess hardware, while providing infinite adjustability. It is this infinite adjustability that allows you to position the CG anywhere along the side frame without worrying about interference with the backrest hardware or aftermarket seating system. Comfort just got easier.

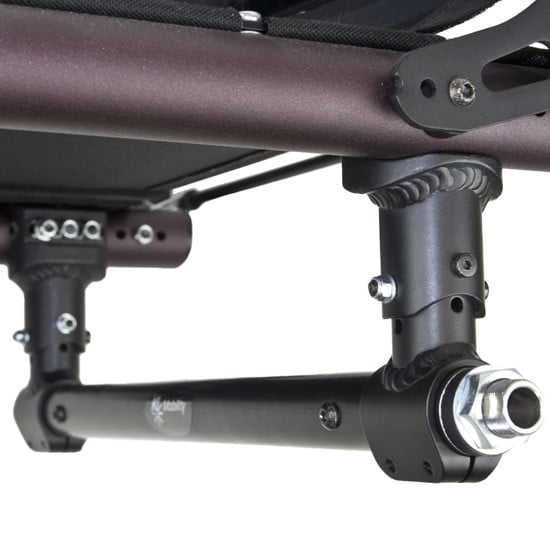

Tubular Component System
TCS provides individual seat height setting without the clutter of extra metal and hardware. Seat heights are adjustable up and down in 0.6 cm increments. This gives you a sleek, clean chair. Also, by using the tubular components we greatly increase the lateral stiffness of the chair resulting in a stiffer, more responsive ride.

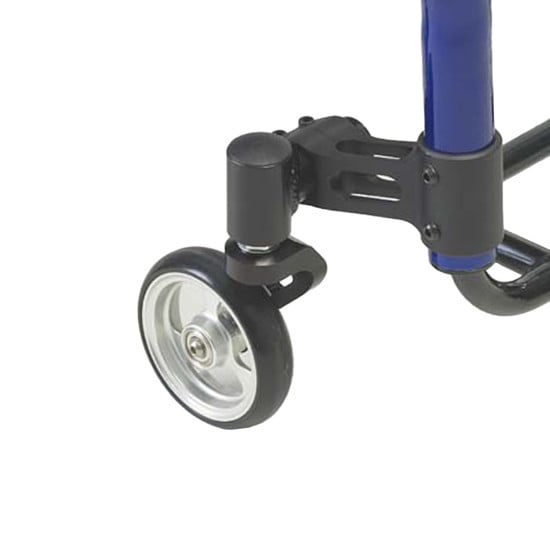

Machined Caster Housings
The distinctive front caster housing design is made from precision machined aluminum, providing a unique visual symmetry that catches the eye and is incredibly strong. The design aids in the responsiveness and durability of the ride, which you will feel with every push forward.
Variants and details
| Camber angle (°) | Front seat height (mm) | Rear seat height (mm) | Seat depth (mm) | Seat width (mm) | Transport weight (kg) | Tubing Size (mm) | Weight (kg) | Weight capacity (kg) | Weight Capacity Heavy Duty (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| ALX | 0°, 2°, 4°, 6°, 8° | 340 - 600 | 340 - 520 | 360 - 510 | 360 - 560 | 5.08 | 3.5 | 8.6 | 113 | 158 |
Calculation for Transport Weight based on: 406.4 x 406.4 mm Standard Length Frame, Adjustable Height Back 304.8 mm, 101.6 mm Poly Casters, Tubular Open Footplate and Standard Upholstery. Rear Wheels Removed.
Options
Frame Options

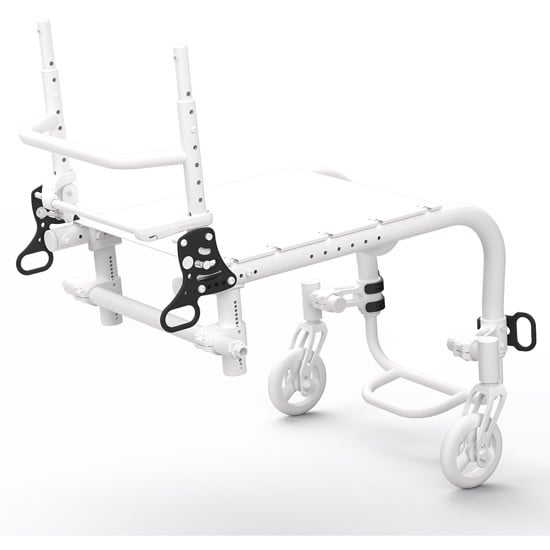

Transit
Provides securement points so the chair can be used as a seat in a motor vehicle when used in accordance with the User Instruction Manual.

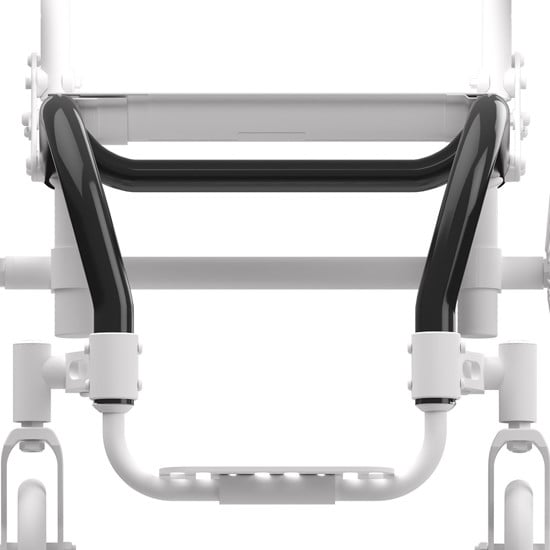

Taper
Customize your front end to the right size for you. Footrest tapers availabe in 0-2.5 cm depending on frame width and bend.

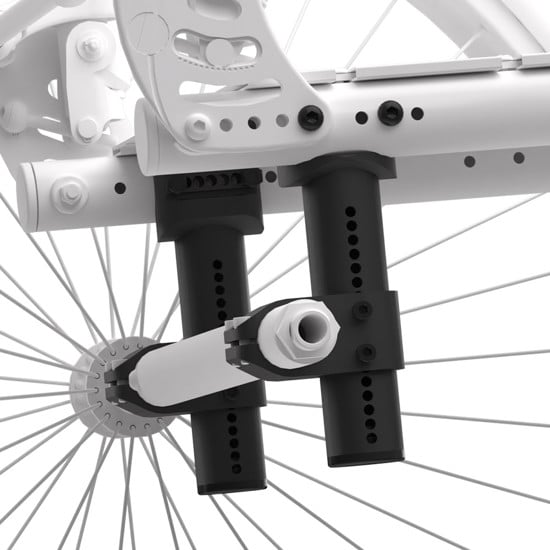

Mx Tower
This camber mounting system adjusts the rear seat height up or down 1.27 cm in 0.6 cm increments and infinitely for centre of gravity.

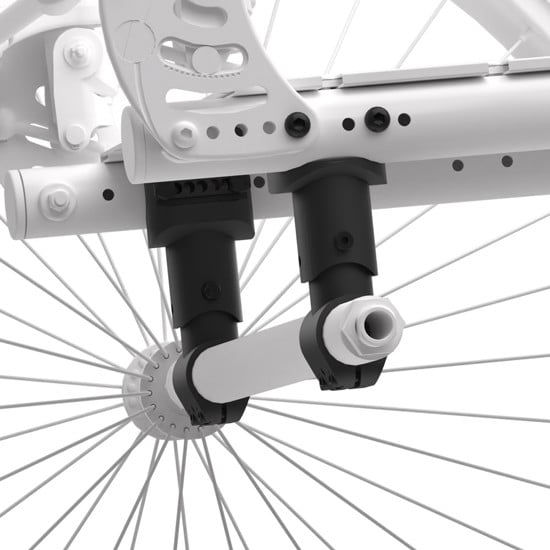

Std Rogue ALX Tower
Standard Tower allows rear seat height adjustment up or down in 0.65 cm increments. 2.54 cm adjustment available; 1.27 in lowest end of range.
Back supports
Standard Push Handle
The back cane is vertical to the frame with a 90 degree bend at the top for a push handle.

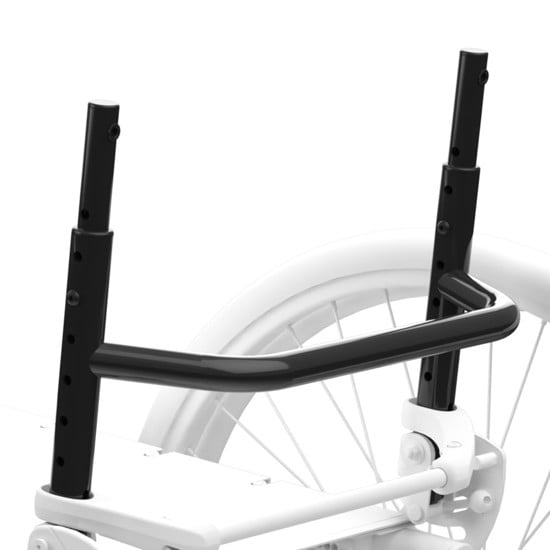

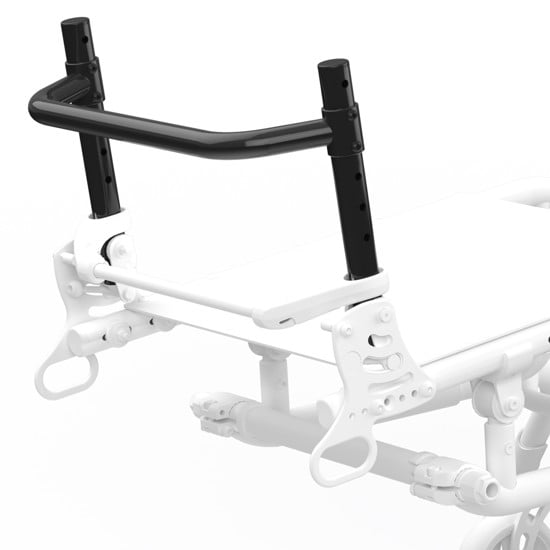

Adjustable Height Rigidizer Bar
Allows you to reposition the rigidizer bar.

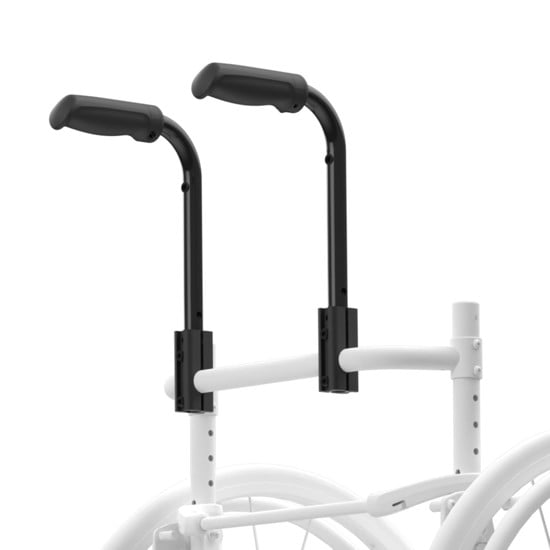

Bolt-On Push Handle
Stroller handle is behind the back frame and fixed to a desired height.

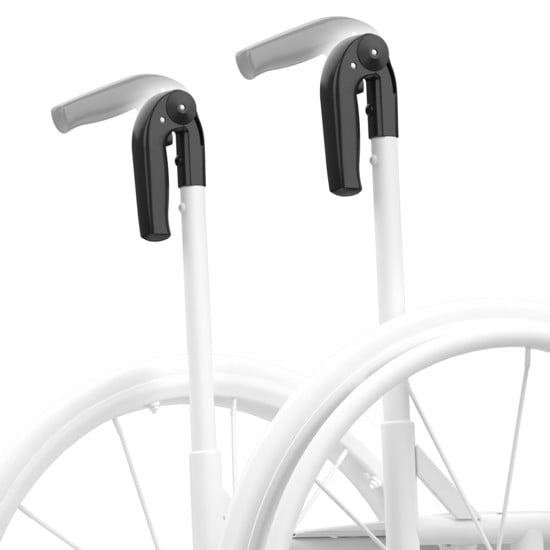

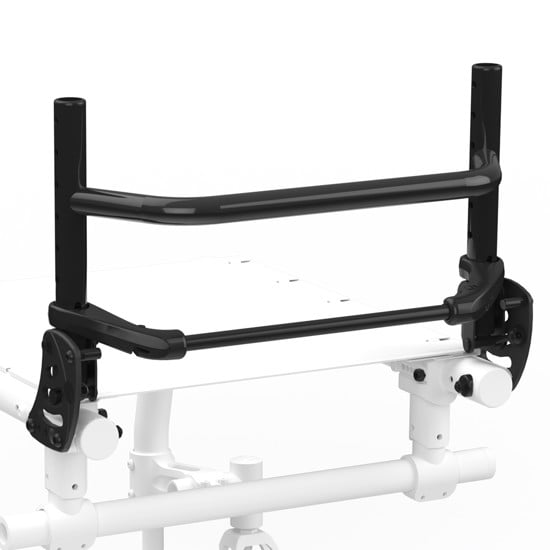

Fold Down Push Handle
Sleek, ergonomic push handles that are there when you need them and can be easily folded down when you don't.

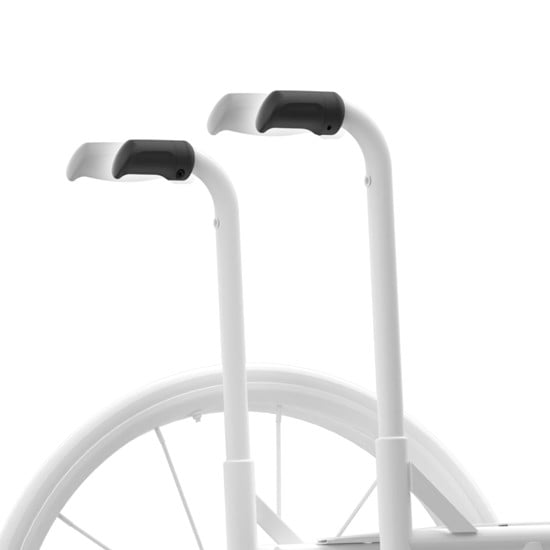

Low Profile Push Handle
5 cm shorter than our standard push handle. The ergonomic push handle grip has a sleek design with a more positive and comfortable hold.
Upholstery

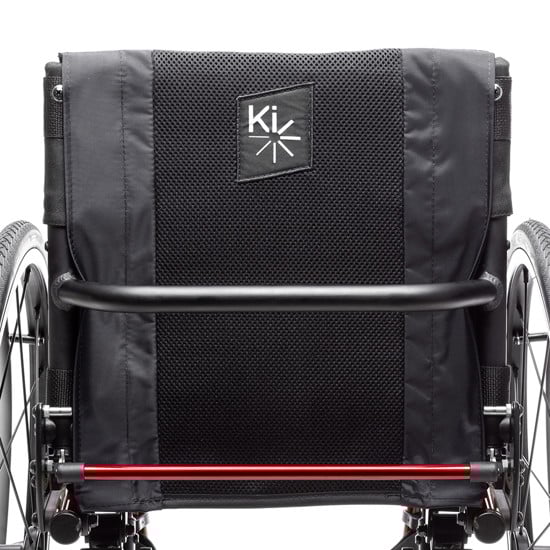

Air Mesh Breathable Cover
A breathable back upholstery cover improves airflow. Available on both standard Velcro adjustable and tension adjustable upholstery.
The anti-pilling fabric along the sides improves durability and helps protect from wear when in contact with abrasive surfaces such as Velcro.

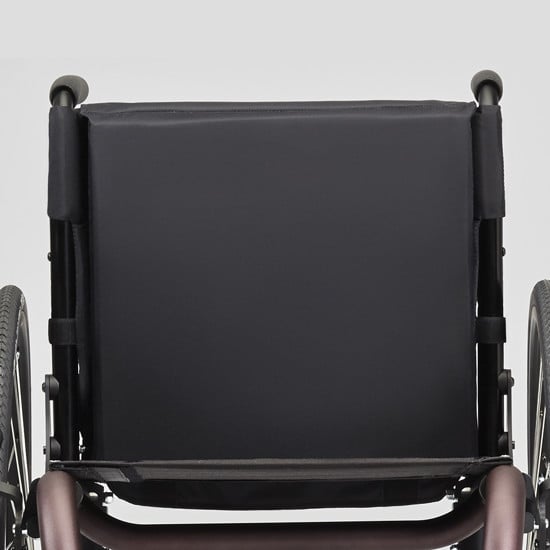

Padded Velcro Adjustable Back Upholstery
Uses 2.5 cm poly foam with a nylon parapak cloth cover. Very comfortable and shear resistant.

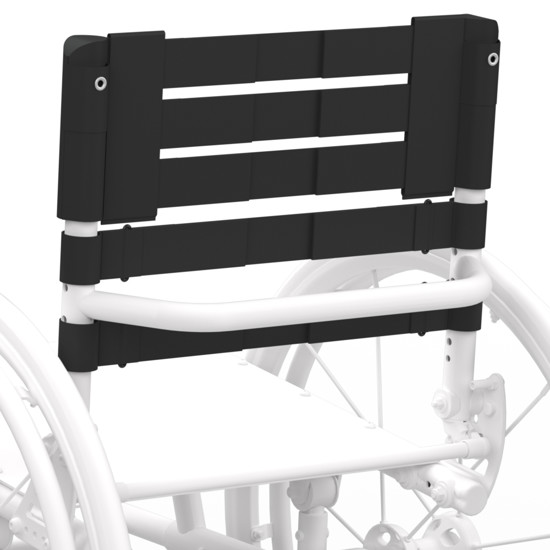

Tension Adjustable
Adjustable straps allow independent support for the pelvis and trunk, improving postural control and alignment.
Armrests
Height Adjustable T-Arm
The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 21.5 cm-34.2 cm".
Height Adjustable T-Arm Low
The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 19.05 cm-29.21 cm.
Height Adjustable T-Arm Tall
The tall version offers ample surface area above a cushion to provide proper coverage of the client’s body and ensures the transfer tube is easily accessible. Panel and armrest height is increased by 6.35 cm.
Overall height adjustment range of 27.94 - 38.1 cm.
Swing Away Armrests
Easy to swing away. Easy to remove. The cantilevered arms help to keep your chair light yet provide a solid hold for transfers and weight shifts.

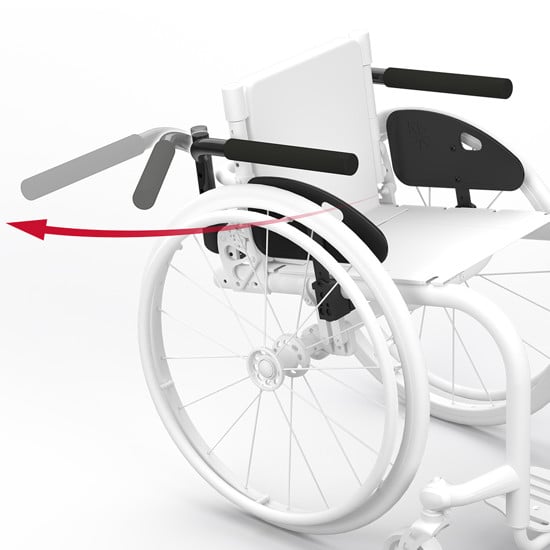

Swing Away Armrests with Side Guard
This package includes standard Swing Away Arms with the direct mount Side Guard panels in one selection.

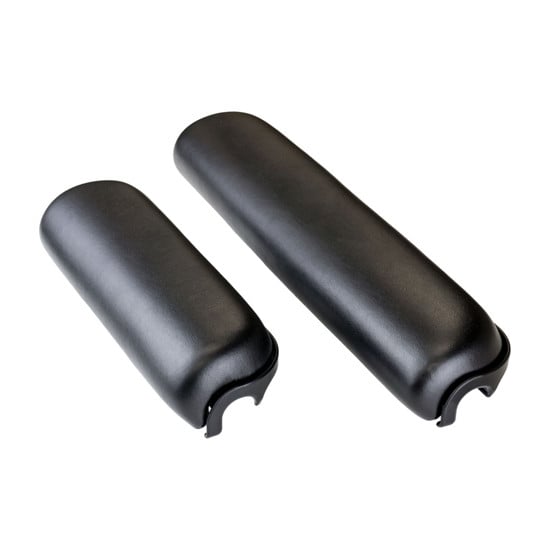

Waterfall Armpads
A generously padded waterfall design providing additional comfort and protection. Desk length: 22.8 cm.

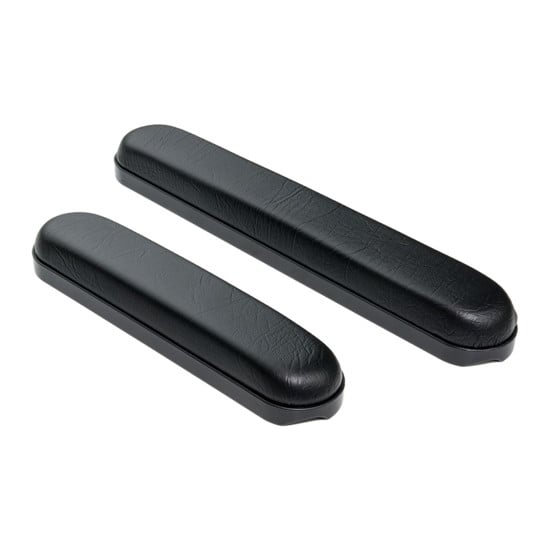

Standard Armpads
Padded and textured armrest pad available in both full and desk lengths.
Foot supports
Wheels

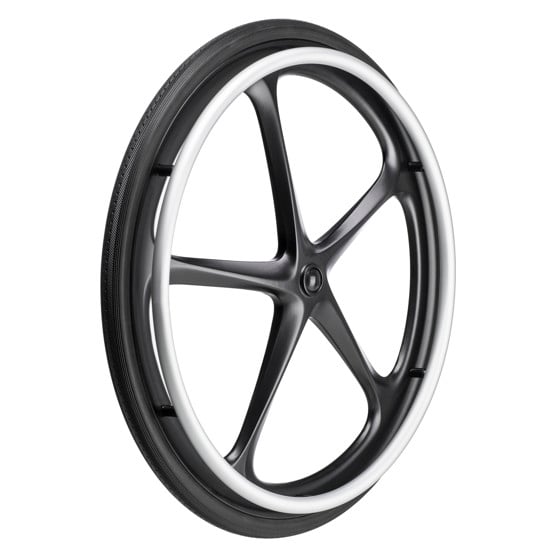

Mag
Made of a high-quality magnesium alloy, our Maxx Mag wheel design is lighter and more rigid than other mag wheels on the market.
Save up to one inch of overall chair width creating better manoeuvrability in doorways and tight spaces.

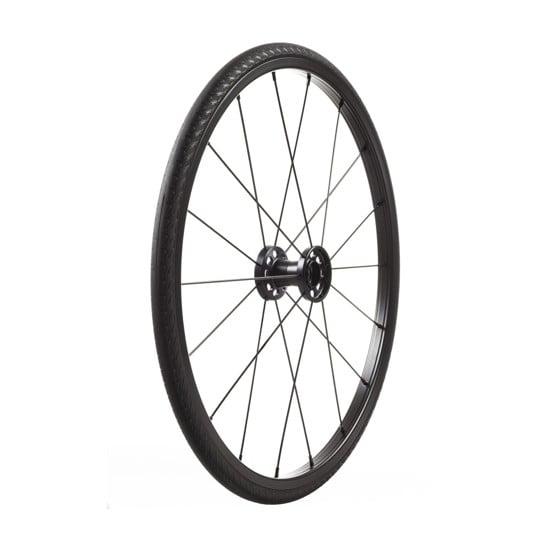

Maxx Spoke
The Maxx Spoke high flange hub and eighteen radial spoke design provides increased rigidity and responsiveness. High-quality material construction with a durable black satin finish gives you a look and feel that is anything but standard.

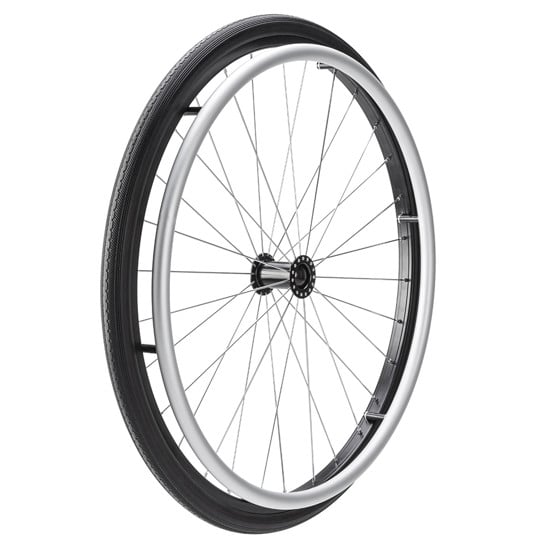

Spoke
The Ki standard spoke wheel uses a very high quality machined lightweight aluminum hub and 30 stainless steel radial straight pull spokes for increased stiffness.

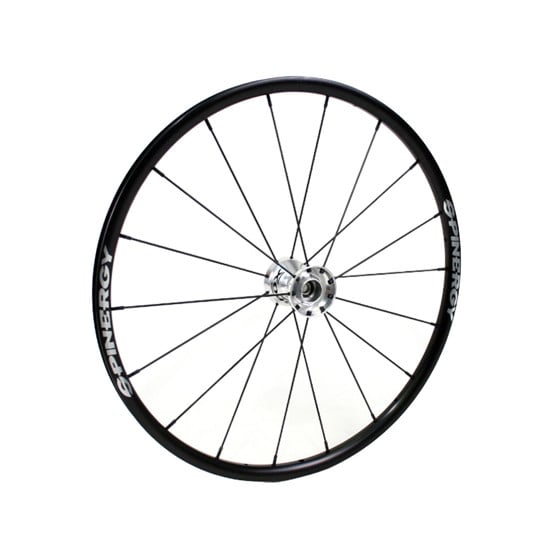

Spinergy Spox
The name to trust in performance wheels. Extremely reliable and comfortable for your everyday needs.
Tires
Pneumatic
This standard air tire is more forgiving when going over obstacles and off curbs or stairs.

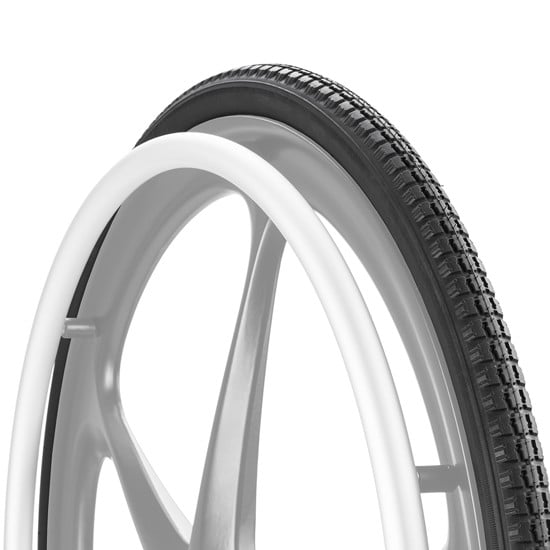

Pneumatic with Airless Insert
Low density foam is inserted into a pneumatic tire. Low maintenance - no air, no flat tires! (3.5 cm)

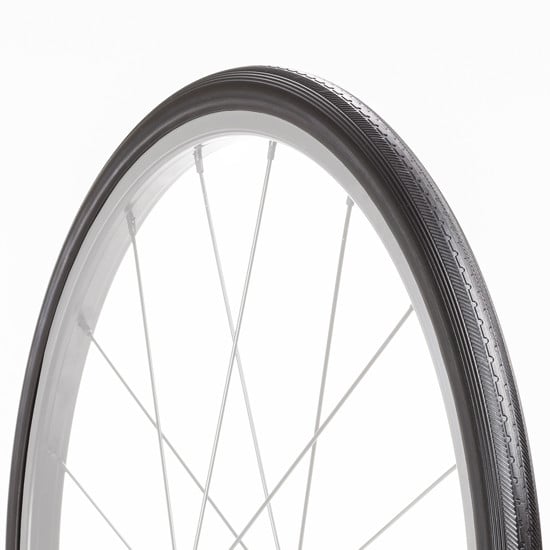

Full Profile Poly
Corded to prevent it from rolling off the wheel. Provides a softer ride than other low cost "over-molded" tires. (3.5 cm)

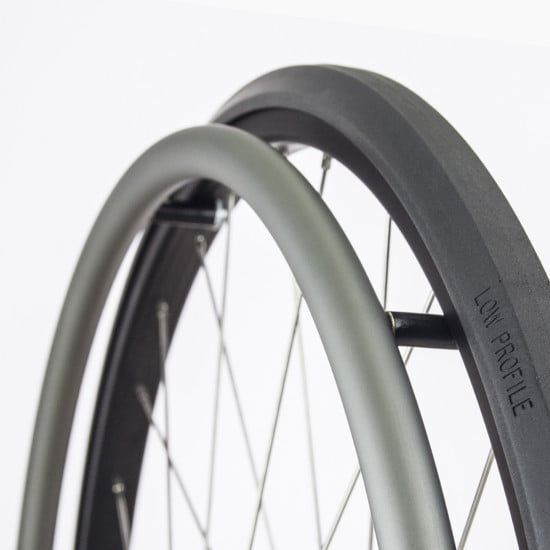

Low Profile Poly
A softer ride than low cost "over-molded" tires. Corded to prevent it from rolling off the wheel. (2.5 cm)

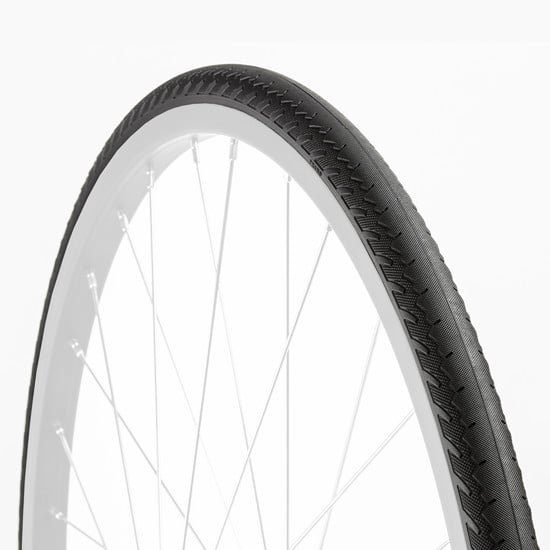

Sentinel Solid
The Sentinel Solid 2.5 cm tire is a new durable, lightweight solid PU tire option. Offering improved ride quality with decreased rolling resistance. This tire is now available on 20", 22" and 24" wheels. (2.5 cm)

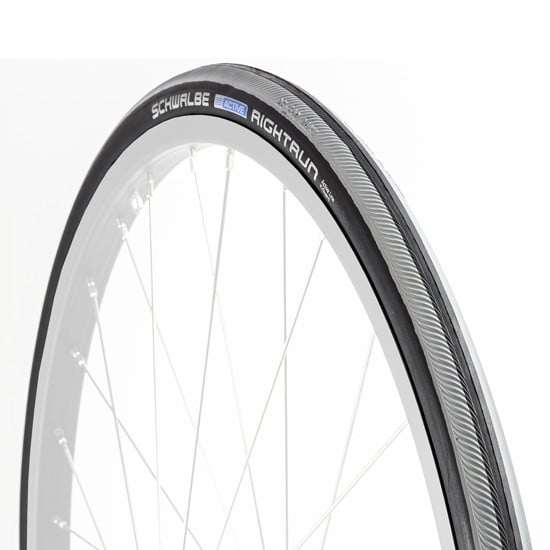

High Pressure
High pressure, puncture resistant performance tire. 50 kg of pressure. High pressure tires have minimal rolling resistance. (2.5 cm)
Depending on size of wheel, tire brand and color may vary. Please contact customer service for details.

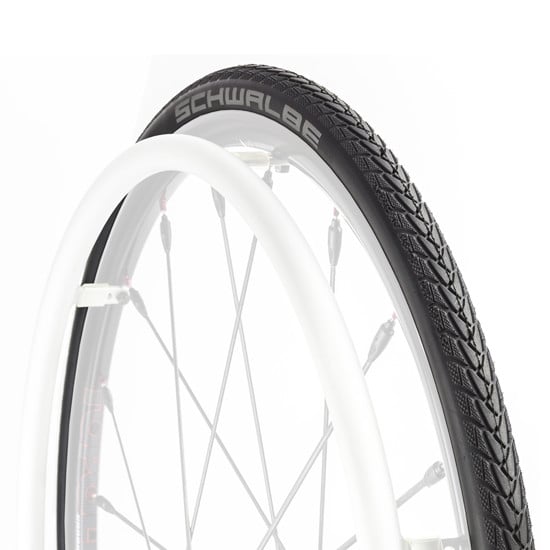

Schwalbe Marathon Plus Evolution
Top of the class in performance and durability. Non-marking black tire. Has a thin line of gel inside to seal punctures and keep you running. (2.5 cm)

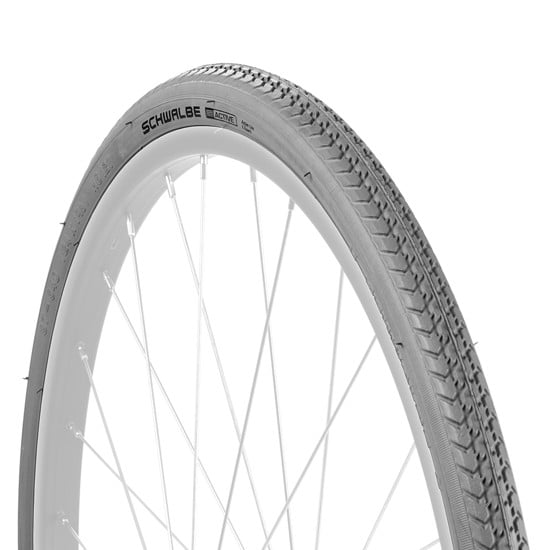

Schwalbe HS 127
Smooth rolling grey tire with Schwalbes K-Guard puncture protection. (3.5 cm)

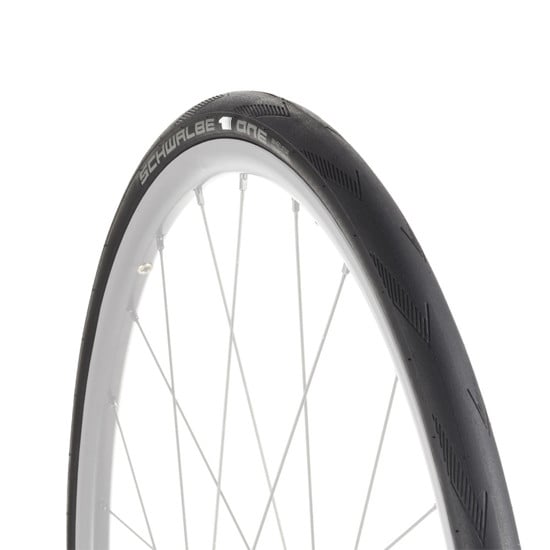

Schwalbe One
A new tread design, improved compound and quality workmanship set a new benchmark in terms of quality and performance. This fast, reliable and lightweight tire also features great puncture protection with the Schwalbe V-Guard. (2.5 cm)
Handrims

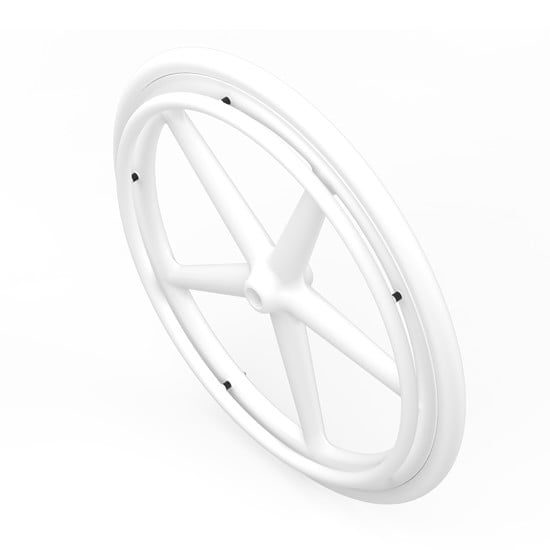

Close Mount Handrims
Handrim is mounted closer to wheel rim, reducing overall chair width by approximately 1.9 cm.

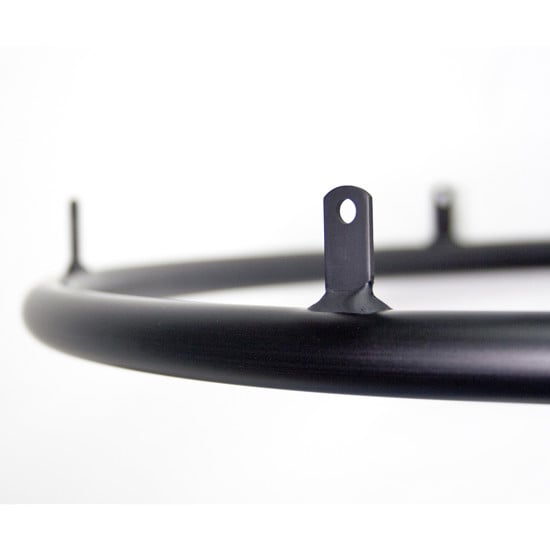

Superlight Aluminum Anodized
Made of thinner and stronger aluminum to save weight. Saves almost 0.5 kg per chair.

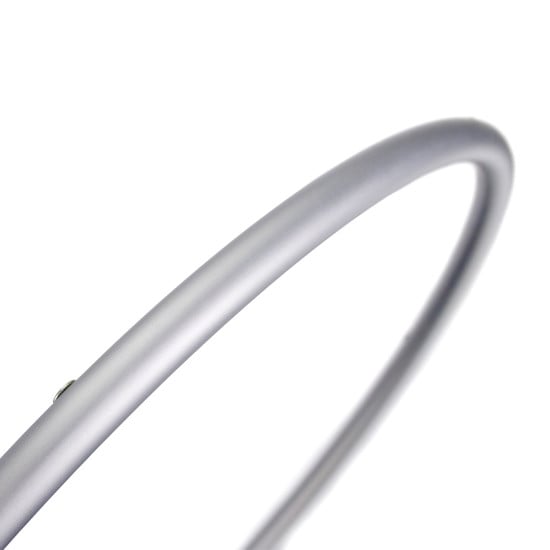

Aluminum Anodized
Aluminum is lighter than steel, stronger than plastic, and won't rust. Comes standard with a hard anodized finish on 24", 25", and 26" spoke wheels.

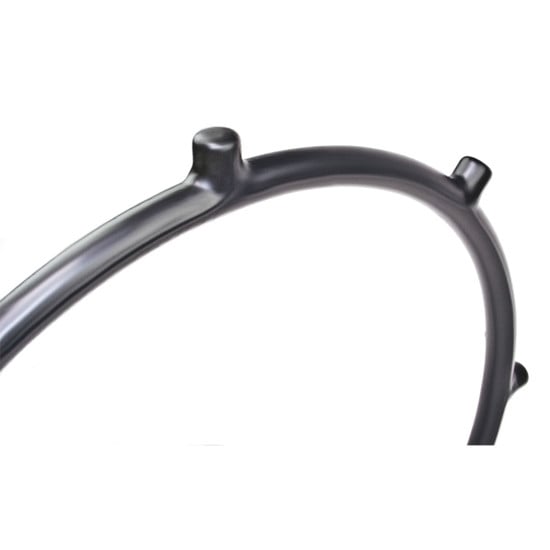

Projection
8 vertical projections, each 1 cm, are plastic coated for individuals with limited grip strength. Available only with full profile tires. Available only with 22"-26" Spoke wheel sizes or Mag wheels.

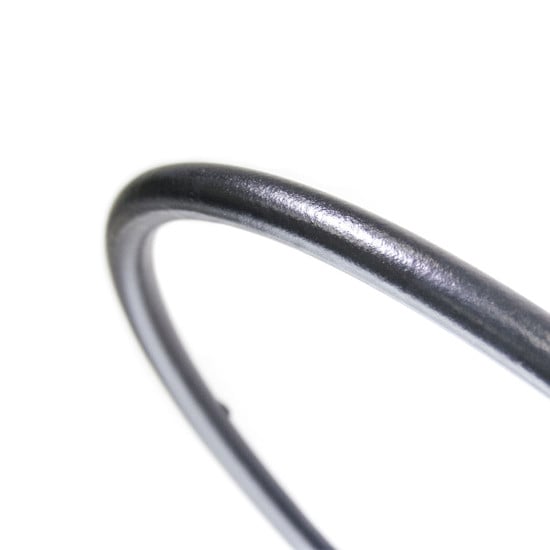

Plastic Coated
Peel resistant poly coating creates a tacky surface for users with limited hand dexterity. The poly coat will not continue to peel from cuts and nicks caused by everyday use.

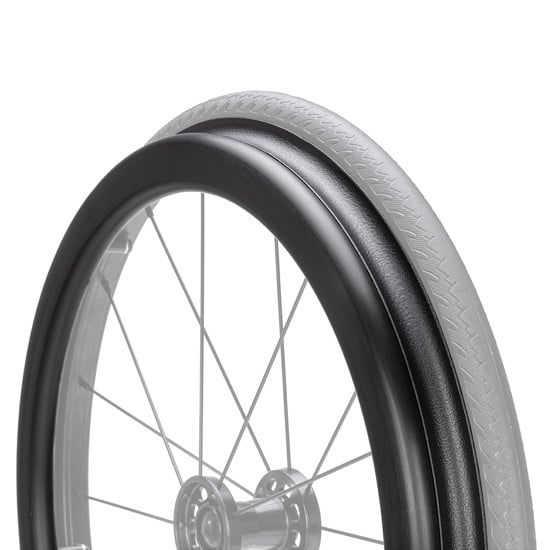

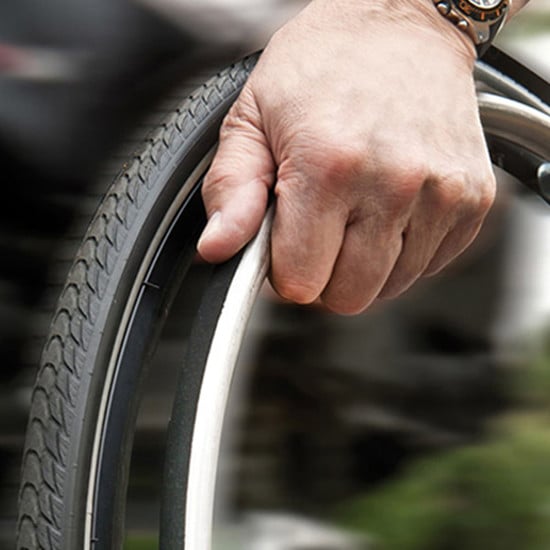

Ergo Standard Regular Grip
The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.
Ergo Standard Extra Grip
The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

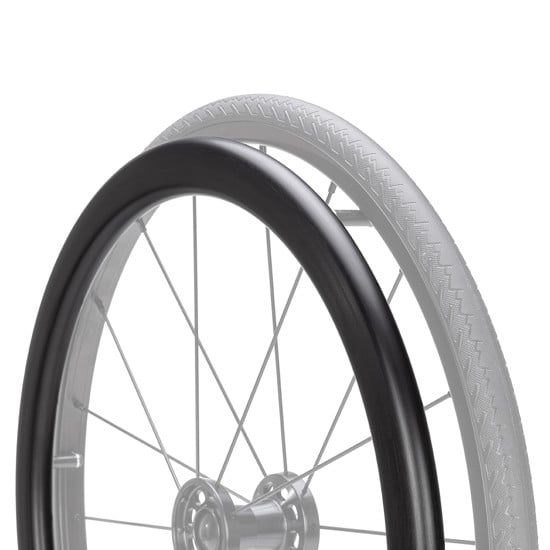

Ergo Standard Omit Grip
The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

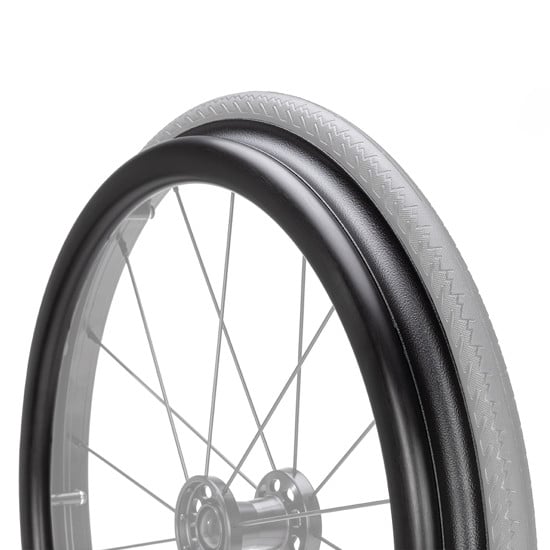

Ergo Lite Regular Grip
The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

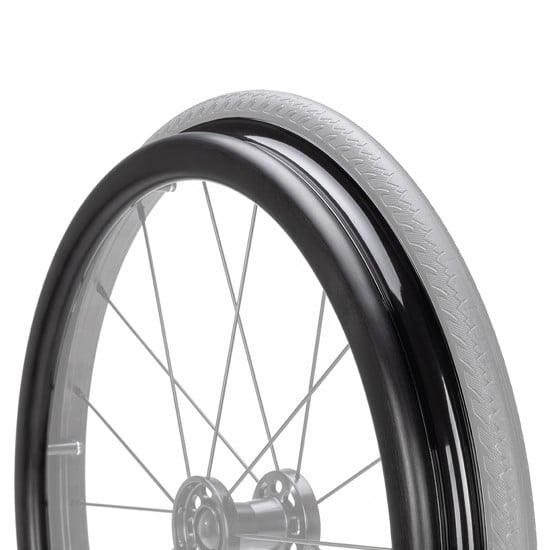

Ergo Lite Extra Grip
The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

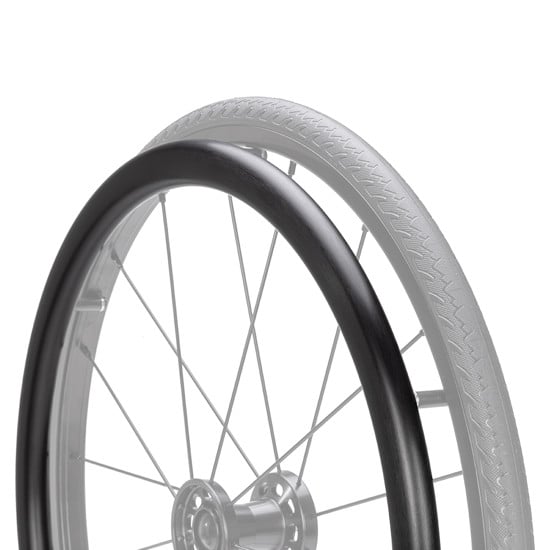

Ergo Lite Omit Grip
The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.
Wheel Locks

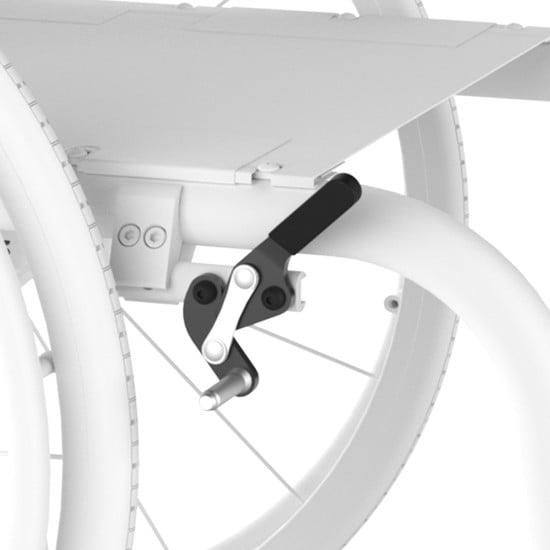

Push to Lock Flush Mount
After engagement the lever is flush to the seat. Lever moves out of the way for people who perform lateral seat transfers.

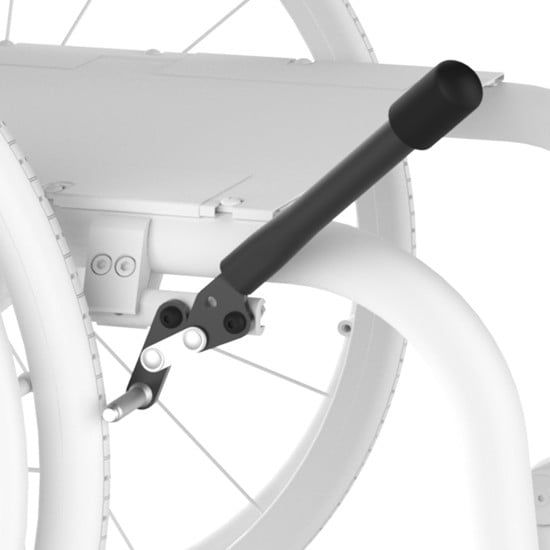

Pull or Push with Extensions
For people with limited strength, this design requires very little effort to engage. Removable 15 cm foldable extension increases leverage.

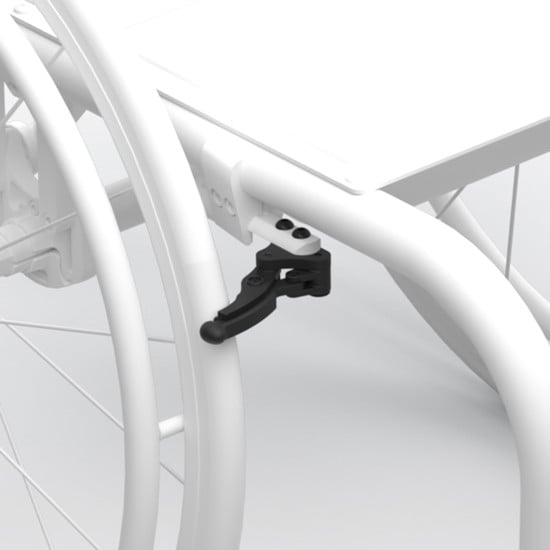

Low Profile Scissor Lock
Low profile and easy to engage with a sleek and ergonomic design.

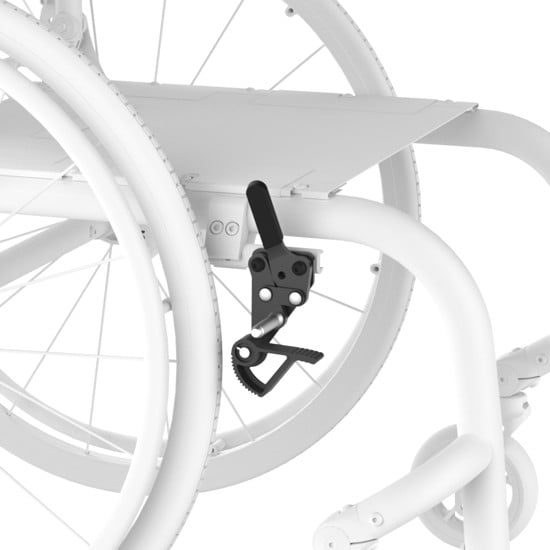

Grade Aids
Grade aids prevent your wheel from rolling backwards when you push up a hill.
Underseat Scissor Lock
A traditional scissor lock, the levers are under the seat and pulled forward to engage the lock.
Axles

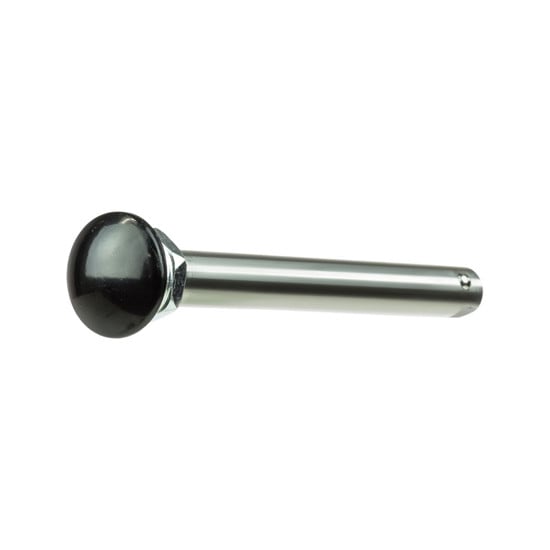

Quick Release Axle
Standard axle with a quick release button for easy wheel removal.

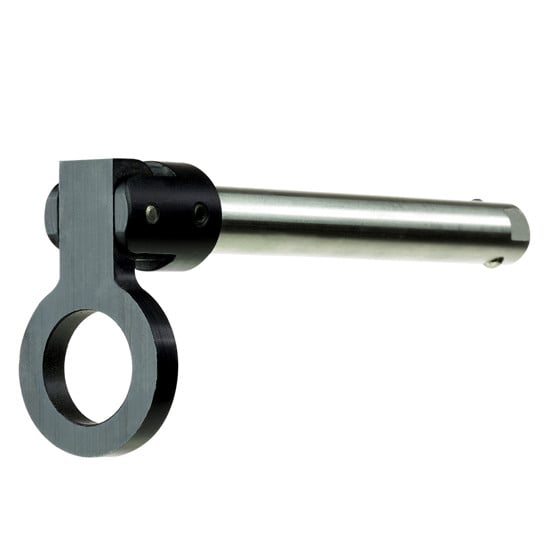

Quad Quick Release Axle
The flip lever on the quad quick release requires very minimal hand strength for greater independence.
Casters

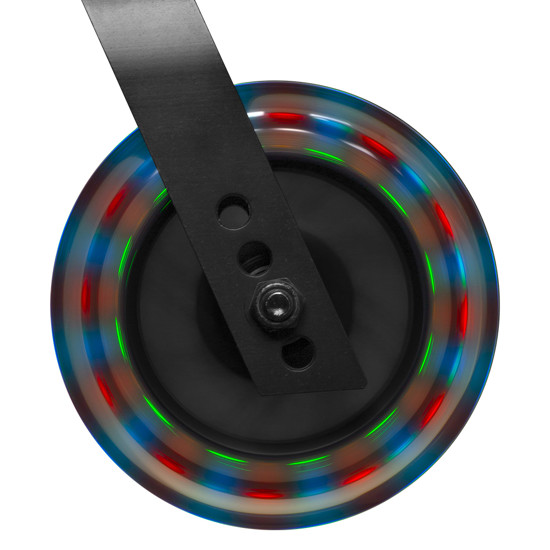

1.9 cm Lighted Rollerblade
Similar than the standard micro caster. Add some pizazz to your chair! Available in 7.62 - 12.7 cm.

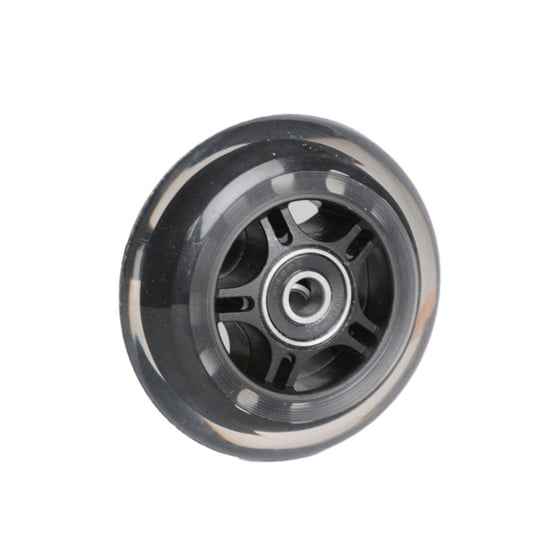

1.9 cm Rollerblade
Available in 7.6 and 10 cm.

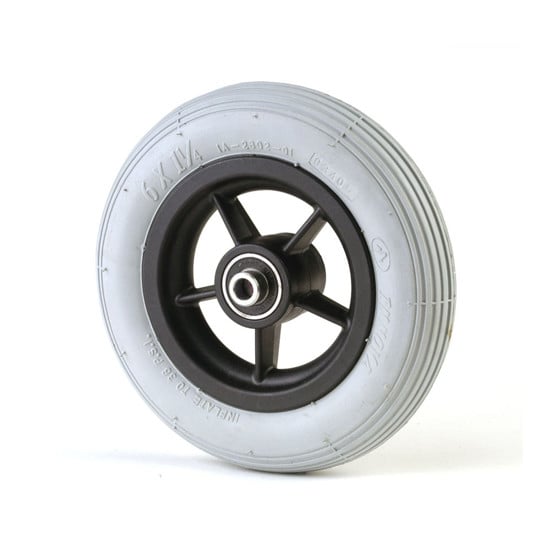

Pneumatic
A low-cost way to get a great and comfortable ride. You just need to add air from time to time. Available in 6" and 8".

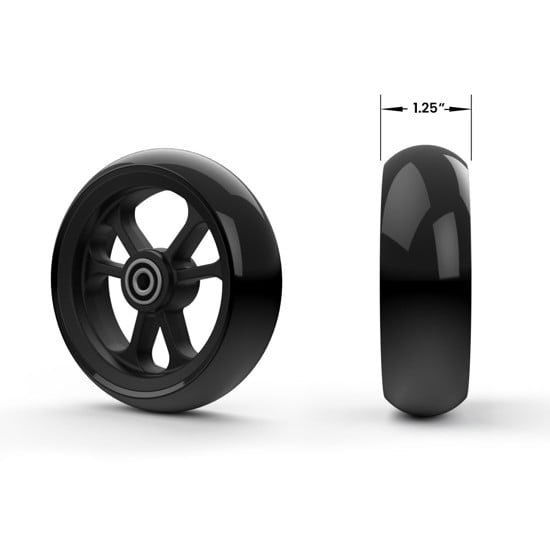

2.5 cm Poly
The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 4", 5", 6", 7" and 8".
3.8 cm Poly
The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 10 - 15 cm.

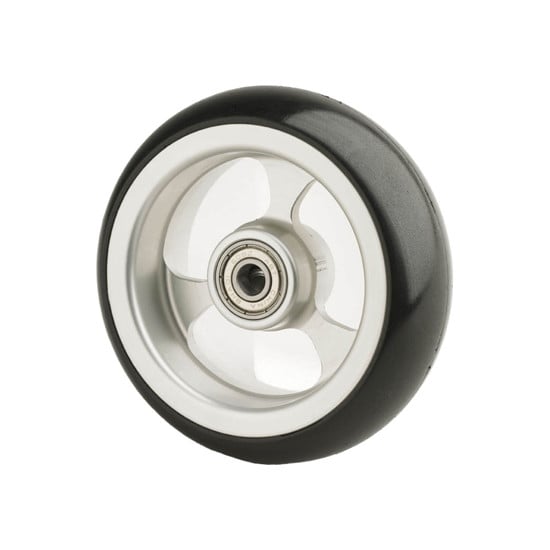

2.5 cm Poly Aluminum
Uses a 3-spoke aluminum hub for added strength and styling. Available in 10 and 12.7 cm.

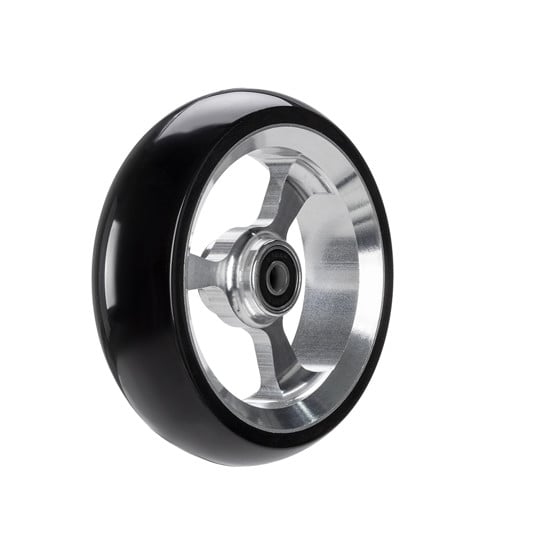

Soft Roll Aluminum
3-Spoke ultralight aluminum hubs, highly resistant, with improved mobility. Available in 3", 4", 5" and 6".

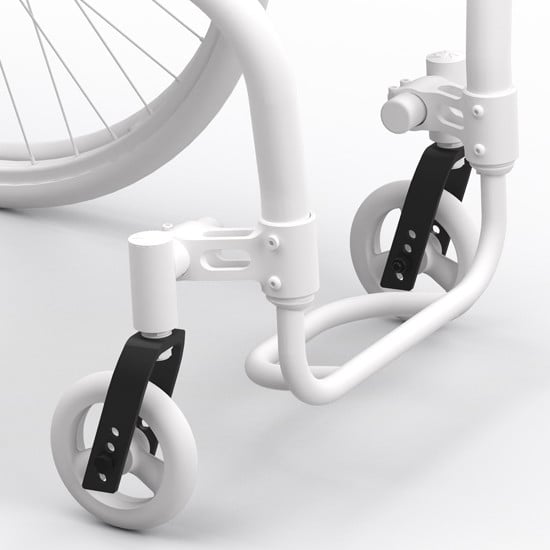

Forks

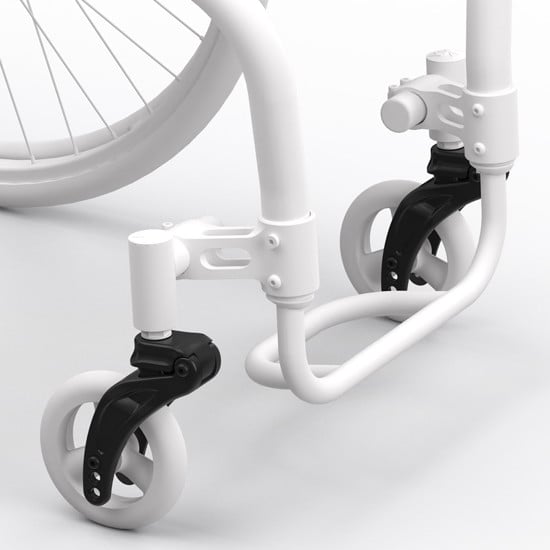

Frog Legs II Suspension System
Constructed from a Carbon composite material which results in a 30% weight reduction over the standard Ultra Sport Fork results in a much smoother ride! This new shock absorbing fork option from Frog Legs is rated up to 136.1 kg.

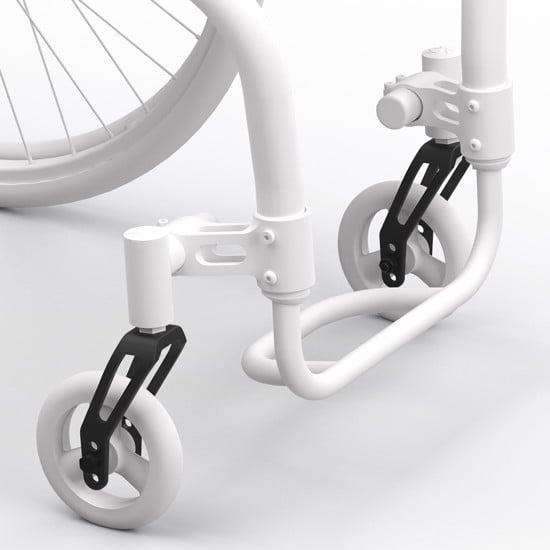

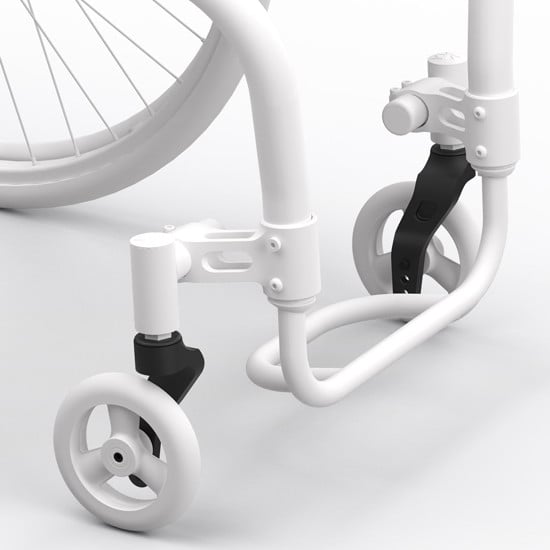

Single Sided Fork
A stylish treatment. With only a single side of material, you have a unique design. Available on 7.6 - 12.7 cm casters.
Anti-Tippers

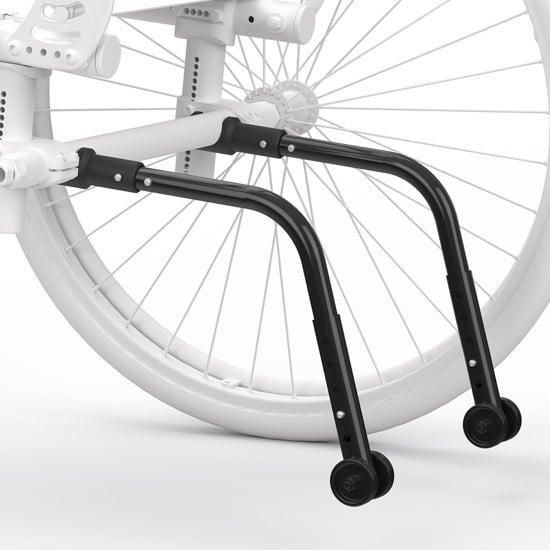

Rigid Anti Tips
Pelvic Positioning Belts

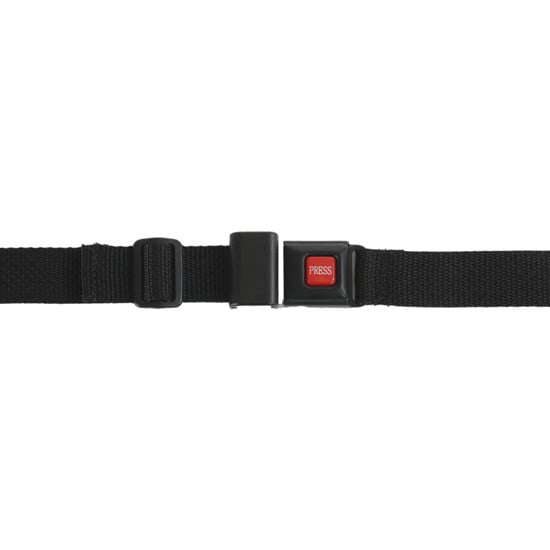

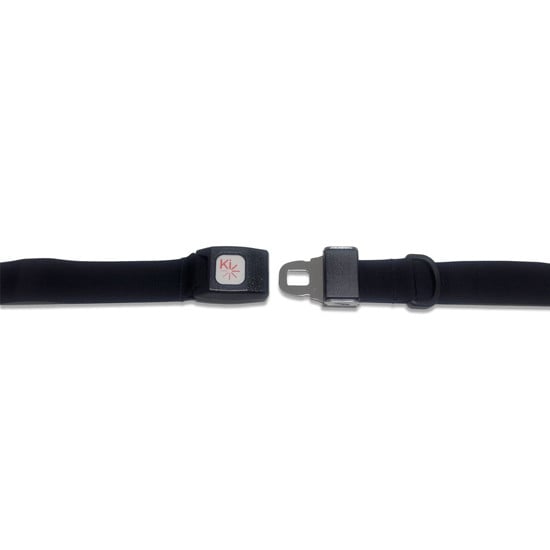

2.5 cm Auto Buckle
Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value.

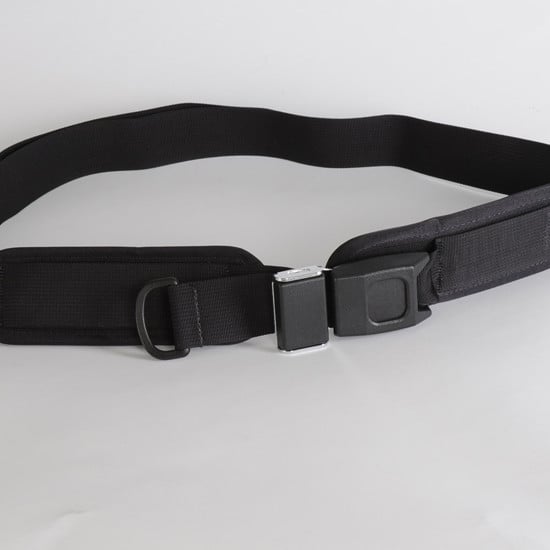

2.5 cm Padded Auto Buckle
This belt has a wide 4 cm pad for riders who may need additional padding.
*Image is only representative and actual product may vary slightly
3.8 cm Auto Buckle
Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value.
*Image is only representative and actual product may vary slightly
3.8 cm Padded Auto Buckle
This belt has a wide 5.7 cm pad for riders who may need additional padding.
*Image is only representative and actual product may vary slightly

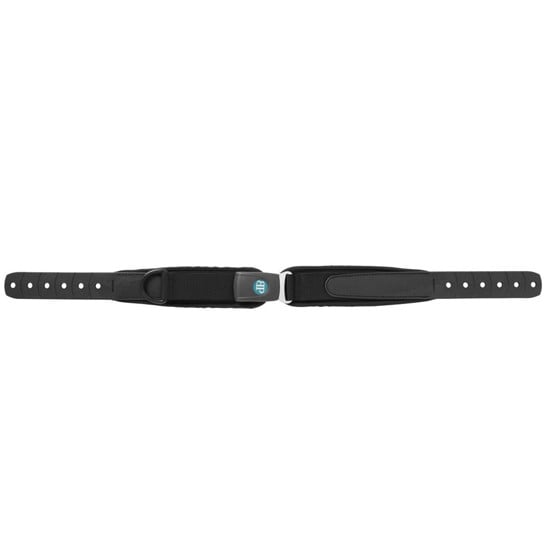

BodyPoint Evoflex Pelvic Stabilizer
Stays where you need it. Provides stability and flexibility. Versatile and easy to use. Stiffened end straps keep belt from twisting. Sized for users 15 kg to 130 kg. Available in Extra Small, Medium and Large.

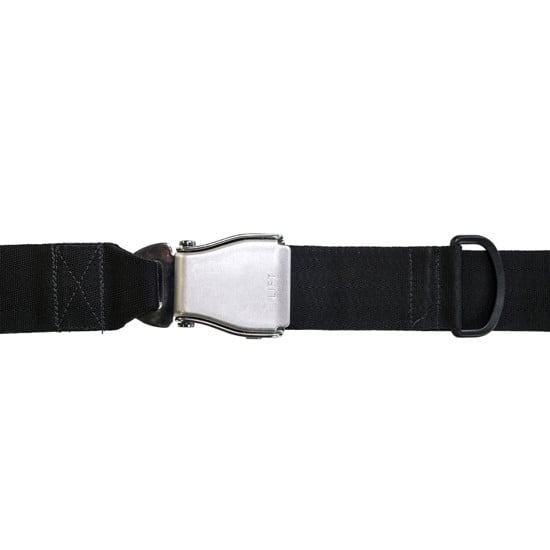

5 cm Airline Buckle
This belt uses an airline style buckle that can add a degree of security. It uses a wider 5 cm belt.

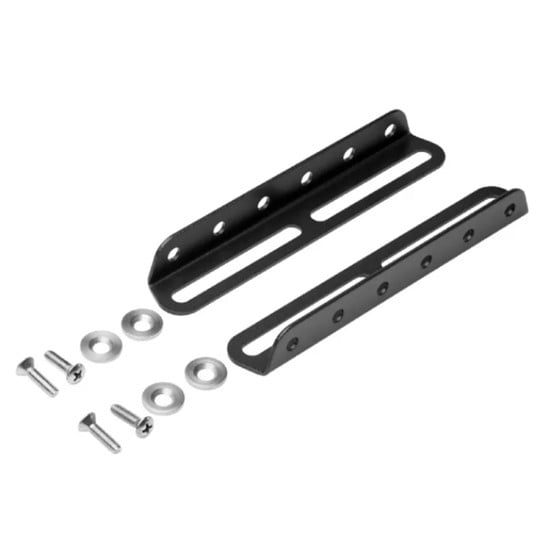

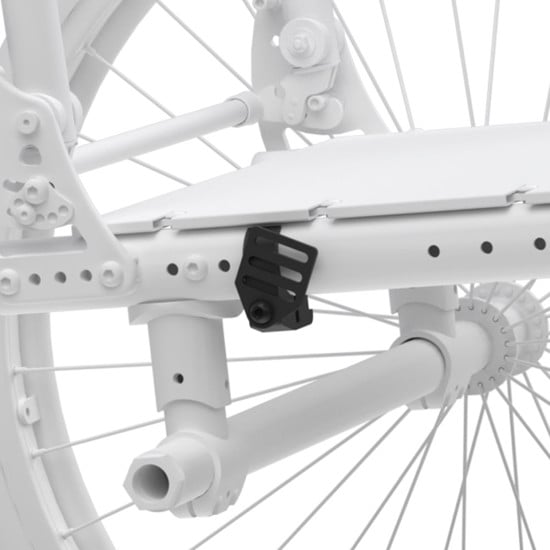

Bodypoint Belt Mounting Kit
Mounting hardware for the BodyPoint Pelvic Stabilizer.
Gloss Finish Colours
Black
Blue Skies
Bubblegum Pink
Candy Blue
Candy Purple
Candy Red
Copper
Granny Smith
Metallic Orange
Yellow
Silver
Matte Finish Colours
Military Green
Emerald Green
Charcoal Gray
Iridescent Burgundy
Iridescent Navy
Retro Red
Royal Blue
Shadow Black
Smooth White
Accessories
Aluminum Straight
When a little more support is needed, this is a great option. These easily removable side guards are lightweight and attractive, and help keep road grime away from the rider.
Comes standard in a matte black finish or for added personalization can be painted to match any frame color.
Aluminum Adjustable Fender with Foam Pad
Add a sleek look to your chair with the Aluminum Adjustable Fender Side Guards. Easy to adjust for the perfect position, this Aluminum design has a padded insert that adds a layer of comfort and protection. This option comes in Black Matte or can be painted to match your frame for added style and protection from the road.
Carbon Fiber Adjustable Fender
Add a sleek look with the Carbon Fiber Adjustable Fender Side Guards. Easy to adjust for the perfect position, this Carbon Fiber design keeps the chair ultra-lightweight while adding style and protection from the road.
Luggage Carrier
A lightweight yet extremely durable design featuring a two part grip inlay with a 55 lb weight capacity to keep luggage in place. Each kit comes with clamps for both frame and footrest tubes to allow for optimal positioning no matter what your chair configuration is.

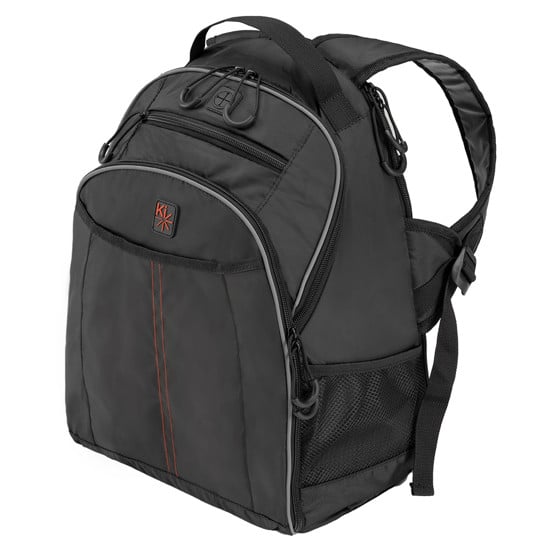

Ki Mobility Backpack
Designed by experts to offer you the most accessible, functional and secure travel storage option. A total of 7 storage compartments. Additional 4 cm depth accommodates a zippered padded storage pocket to hold a laptop or tablet.

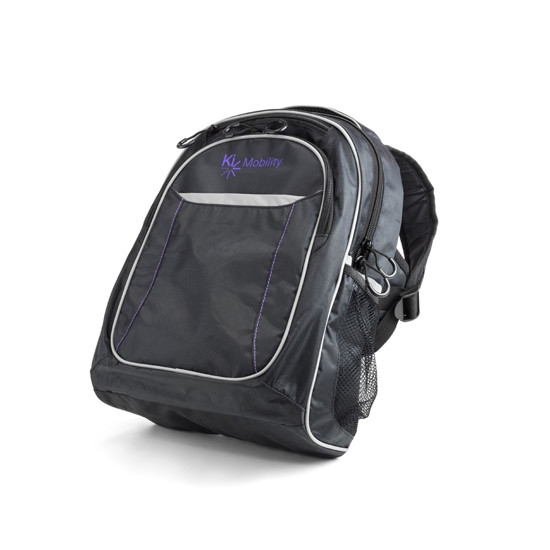

Ki Mobility Pediatric Backpack
Stylish, functional and accessible backpack for use on chairs down to 22.86 cm wide! This smaller size features additional reflective piping details so it’s a little more noticeable at night, padded protective pocket, 2 water bottle holders, 5 compartments and adjustable straps.

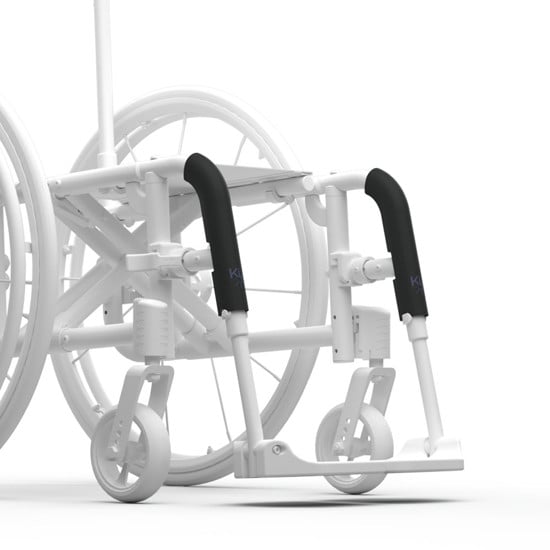

Black Neoprene Impact Guards
Sometimes the chair gets "banged" around. These cool neoprene impact guards take some of that force and help keep your chair a little safer.

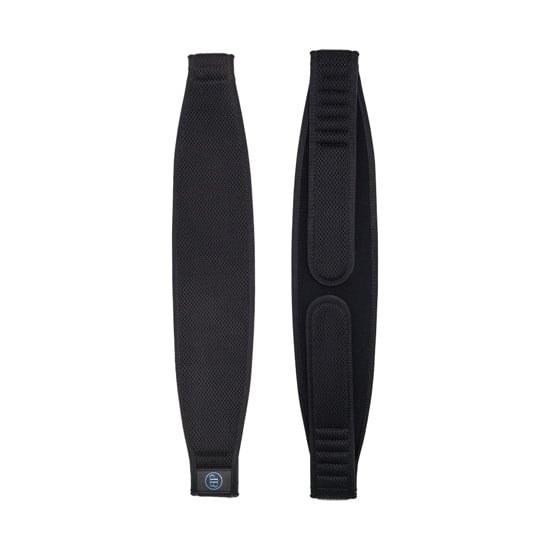

Bodypoint Aeromesh Calf Strap
Provides comfortable support, keeping feet safely on the footplates. Retains its shape for the best pressure distribution and durability.

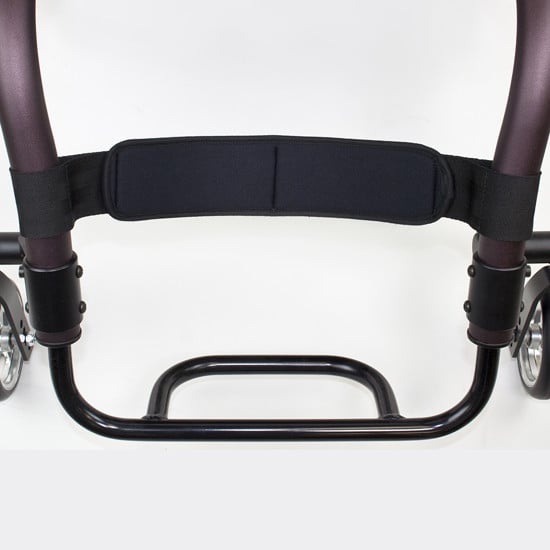

Padded Velcro Adjustable Calf Strap
This calf strap supports a soft and durable 10 cm-wide neoprene pad.

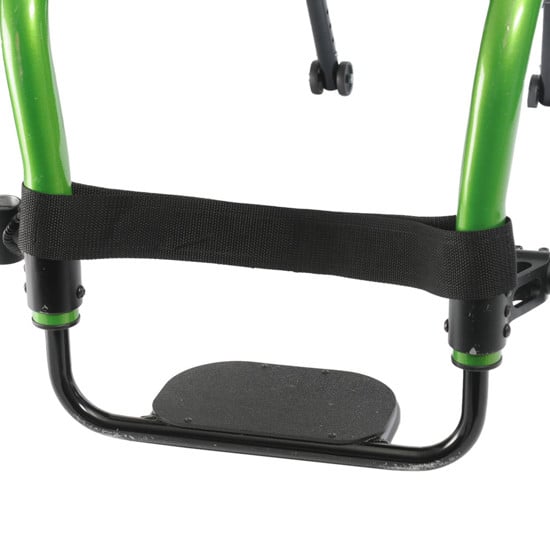

Velcro Adjustable Calf Strap
The strap sits behind the calf. You can adjust the length to support the lower leg.
Composite Side Guards
Lightweight and attractive, these easily removable side guards help keep road grime away from the rider. Plastic sideguard is height adjustable 35.5 cm-50.8 cm. Pediatric version is height adjustable 25.4 cm-35.5 cm.

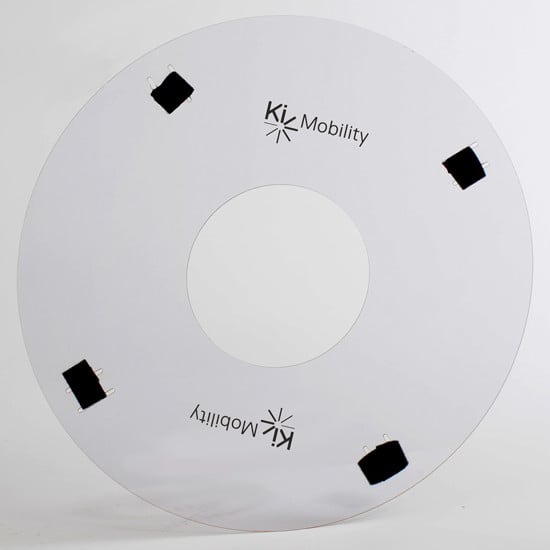

Spoke Guards
Black or white acrylic protects fingers from getting caught in the spokes and looks sleek.

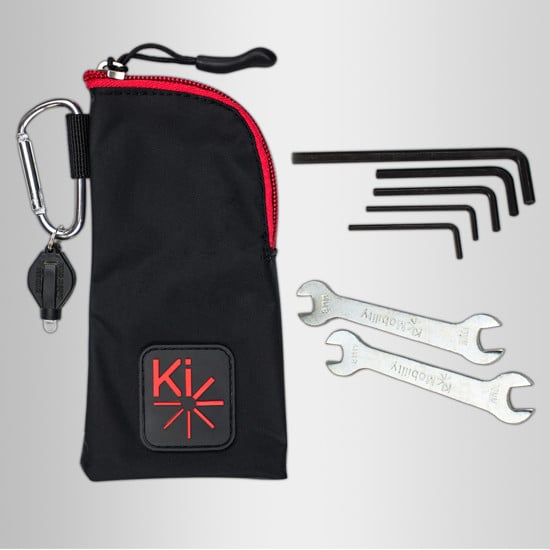

Tool Kit
Custom designed kit includes 7 simple tools necessary to make any adjustments on your Ki chair, a convenient LED light and carabineer clip for easy attachment.
Tools included: 2x M3 Allen, 2x M4 Allen, 1x M5 Allen, 2x 8mm/10mm Combo Wrench
Under Chair Carrier and Removable Bag
Looking for a more discreet way to transport your personal items? Use the Under Seat Bag (31.7 cm W x 10 cm H x 20 cm D). The under seat carrier also includes a detachable pouch (24 cm x 17.7cm).

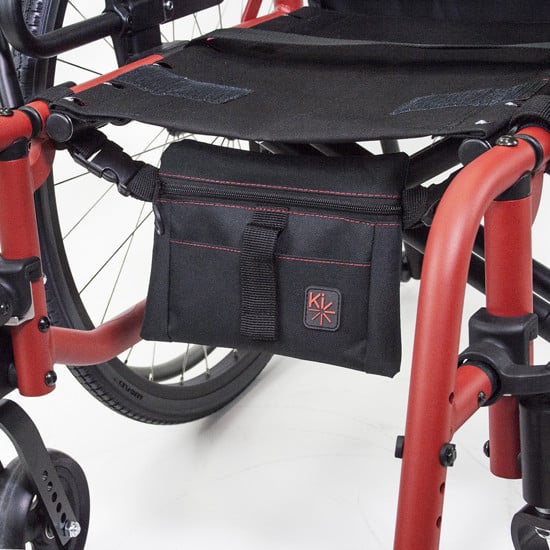

Removable Under Chair Pouch
Carry your everyday necessities in the 21.59 cm x 16.51 cm removable under chair pouch.
Rigid Cane and Crutch Holder
Positionable cup to accept most cane and crutch tips.
