R82 Meerkat

The Meerkat is a dynamic standing frame designed to support an upright standing position for children with varying needs.

As a standing aid, the Meerkat features a centre column that can be positioned either in front of or behind the child, providing ample space for movement and exploration. One of the key benefits of the Meerkat is its modular design, allowing for quick and easy adjustments to meet the individual needs of each user. The Meerkat's modular accessories can be easily clicked on and off, providing optimal flexibility and adaptability.

Additionally, the Meerkat is specifically designed to facilitate learning through movement. A rocker can be easily mounted under the base plate and positioning is supported while encouraging movement and exploration.

Available in three sizes, the Meerkat is suitable for children ranging from approximately 700 mm to 1800 mm in height. With a maximum user weight capacity of 90 kg, the Meerkat is a suitable and durable standing frame suitable for a range of users.

In summary, the R82 Meerkat is a versatile and flexible standing frame suitable for children with varying needs. Its modular design, combined with its ability to facilitate movement and learning, make it a valuable addition to any therapy or home environment.

Discover

Features

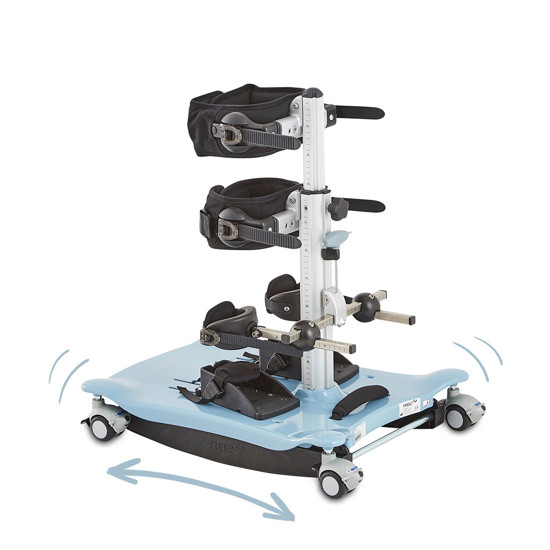

Dynamic standing

The child’s freedom of movement is encouraged with minimal support, pure product design and the innovative rocker.

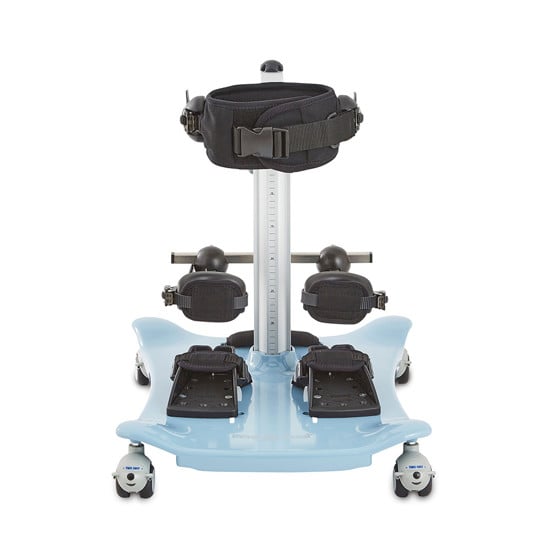

Simple and intuitive

All supports are intuitively easy to use and adjust, making life easier for parents and carers. The low entrance height ensures easy transfer.

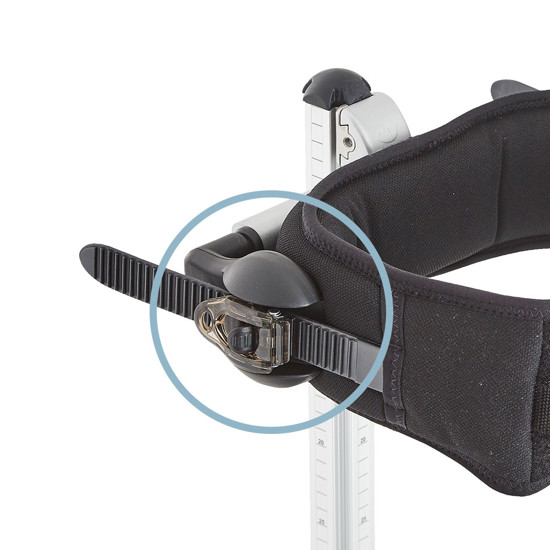

Easy adjustments

The ratchet system offers quick and secure adjustment in small increments and without any tools required.

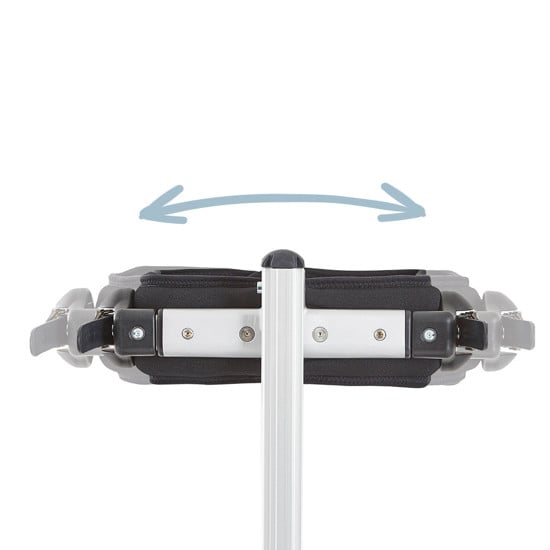

Growth adjustable accessories

Growth opportunity and increased reuse possibilities.

Variants and details

	Size 1	Size 2	Size 3
Item number	870011-x	870022	870023
Length (mm)	595	800	800
Mass device (kg)	9	15.25	15.75
Maximum rated load (kg)	31	82.25	107.75
Maximum user height (mm)	1050	1350	1800
Maximum user mass (kg)	20	65	90
Overall height (mm)	375-750	500-1000	650-1300
Overall length (mm)	640	860	860
Overall width (mm)	525	780	780
Static stability downhill (°)	10	10	10
Static stability sideways (°)	10	10	10
Static stability uphill (°)	10	10	10
User height: floor to axil (mm)	400-750	720-1000	840-1300
Width (mm)	445	670	670

Options

Base plate colour

Available in 3 colours.

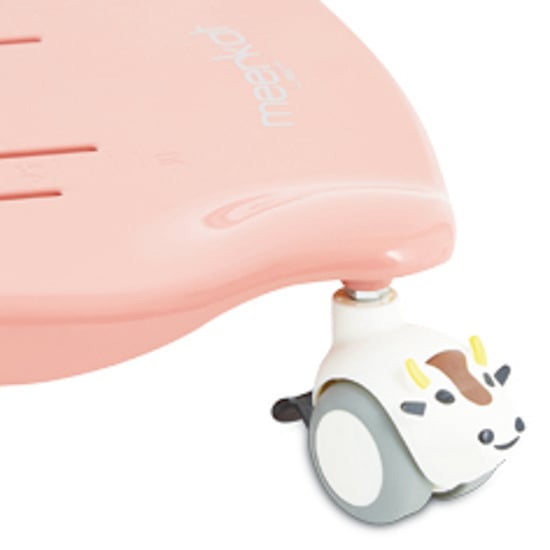

Strawberry ice base plate with cow castors

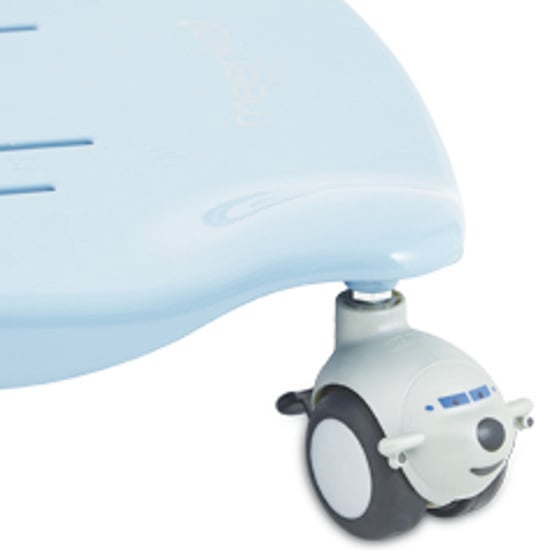

Pastel blue base plate with airplane castors

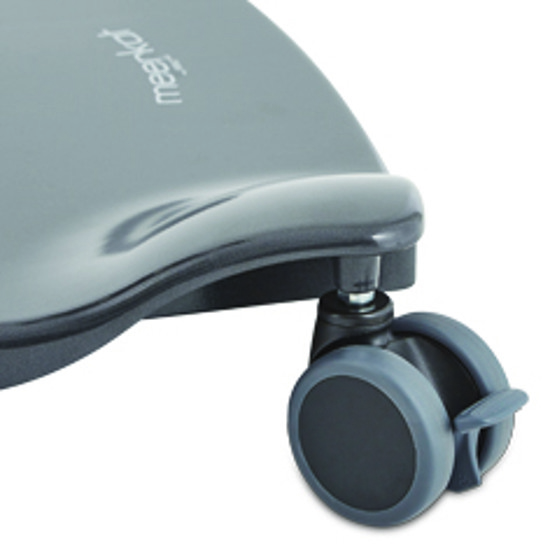

Anthracite base plate with standard castors

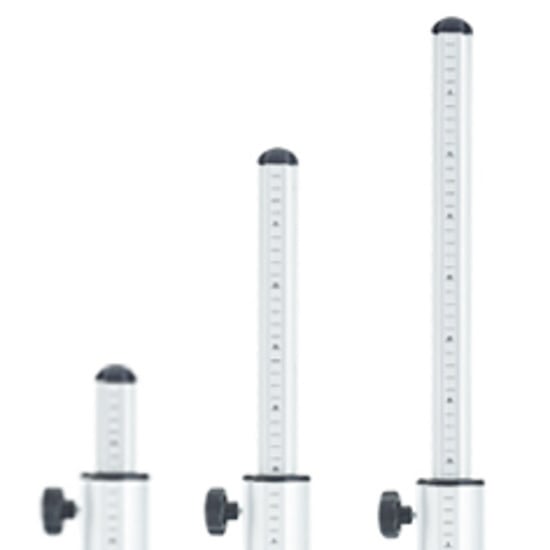

Meerkat coloumn

The Meerkat column includes built in growth.

Built in growth

Accessories

10 results found

Rocker

It enables the child to move forward/backwards in a rocking motion. Easy to mount under the base plate – also with a child standing in the frame.

Fixations and brackets

Daily adjustment kit

An option if you prefer handles instead of screws = easy tool-free adjustment. Applicable on knee supports. Two handles in a bag.

Leg and foot supports

Sandals

Can be fixed or adjusted using an allen key at the back of the sandal – also with a child in the frame.

Leg and foot supports

Knee supports

Adjustable in width, height and depth. Easy adjustments with the ratchet system. Available in 3 sizes

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
