R82 Multi Frame:x
Smooth mobility for daily freedom
The Multi Frame:x is designed to provide extraordinary stability and smooth mobility for larger seat units. It offers a secure foundation for daily freedom. By allowing precise adjustments to the centre of gravity, the frame ensures effortless manoeuvring in both indoor and outdoor environments. The thoughtful design prioritises caregiver ergonomics with easily accessible handles for tilt and recline, making daily transitions smoother. It creates a reliable base that supports the child’s need for individual seating while facilitating active participation in everyday life.
-
Multi Frame:x video
Meet Hayla and see her in the Multi Frame:x and x:panda seat.
Features
-
Features
Seats for Multi Frame:x
Multi Frame:x is the perfect choice of wheelchair base for large seat units like the x:panda shape 3 and x:panda 4 from R82
-
Features
User-friendly adjustability
The tilt-in-space and back recline functions are operated from the push brace ensuring optimum working conditions. Stepless recline of the push handle makes it possible to adapt the height to any carer
-
Features
Seat height adjustment
Positioning the user as close to the floor as possible ensures a much easier transfer
-
Features
Tested and approved

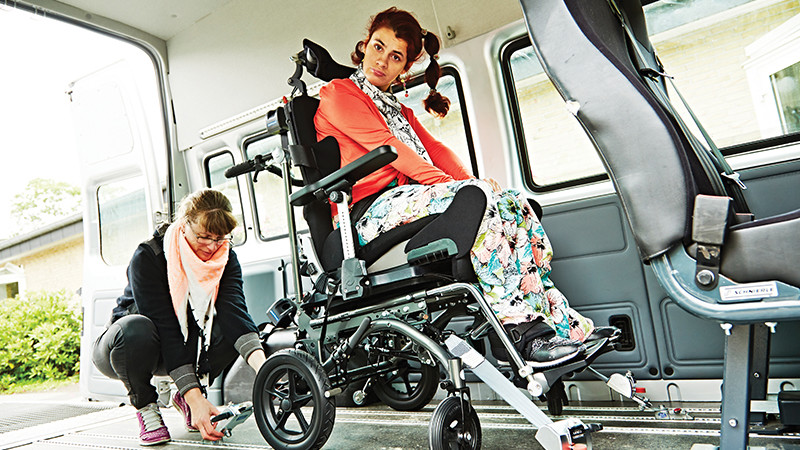

The Multi Frame:x complies with ISO 7176-19, transporting users in motor vehicles. The Multi Frame:x can be used with seat units that comply with ISO 16840-4
Variants and details
| Size 3 | |
|---|---|
| Item number | 963xxxxxxx |
| Back angle (°) | 0 - 30 |
| Back height (mm) | 570 |
| Base plate (width x depth) (mm) | 215x405 |
| Folded length (mm) | 840 |
| Footrest to adaptor plate (mm) | 260-430 |
| Handrim diameter (mm) | 480 |
| Length (mm) | 840 |
| Mass device (kg) | 20 |
| Max load (kg) | 100 |
| Max load at transportation (kg) | 100 |
| Maximum rated load (kg) | 122 |
| Overall height (mm) | 980 |
| Overall width (mm) | 660 |
| Seat plane angle (°) | (-5) - 30 |
| Seat surface height at front edge (mm) | 410, 435, 460 |
| Static stability downhill (°) | 10 |
| Static stability sideways (°) | 10 |
| Static stability uphill (°) | 10 |
| Width between wheels (mm) | 535 |
Options
Rear wheels
Available with different rear wheel sizes
12½” air
20" air
22" air
24" air
12½” solid
20" solid
22" solid
24" solid
Brakes
Choose from the different combinations of brakes
Drum brake
Wheel brake
Front wheels
Available with different front wheel sizes
6” Solid
7” solid
7” air
Back recline
Operated from the push brace. 30° angle range
Seat height adjustment
The Multi Frame:x can be ordered with three different seat height settings. Positioning the user as close to the floor as possible ensures a much easier transfer. With the low positioning there is no problem pushing the chair under e.g. the dining table, giving the user the opportunity to join in everyday activities
Height adjustment standard (410 mm above floor)
Height adjustment +25 mm (435 above floor)
Height adjustment +50 mm (460 mm above floor)
Tilt in space
Operated from the push brace. Angels from 5° to 30°
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
Drum brake adjustment
