R82 High-low:x Frame
The High-low:x Frame is a stable base with a user friendly height adjustment from floor to table height.
The High-low:x Frame is available either as an indoor frame with small lockable castors or as an outdoor frame with large wheels and foot brake.
The frames are available with either gas, power or hydraulic height adjustment. The frames accomodate various seats, e.g. the x:panda seats from R82.
The High-low:x Frame is available in three sizes as indoor version and in two sizes as outdoor version. The High-low:x Frame max load is 100 kg.
Variants and details
| Indoor frame, gas, size 1 | Indoor frame, power, size 1 | Indoor frame, gas, size 2 | Indoor frame, power, size 2 | Indoor frame, hydraulic, size 2 | Indoor frame, power, size 3 | Outdoor frame, gas, size 1 | Outdoor frame, gas, size 2 | Outdoor frame, power, size 1 | Outdoor frame, power, size 2 | Outdoor frame, hydraulic, size 2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Item number | 8911603-02 | 8911603-02EL | 8911605-02 | 8911605-02EL | 8911606-02 | 8911607-02EL | 8911613-02 | 8911615-02 | 8911613-02EL | 8911615-02EL | 8911616-02 |
| Footrest to adaptor plate (mm) | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 | 50-290 |
| Length (mm) | 690 | 690 | 780 | 780 | 780 | 780 | 1110 | 960 | 1110 | 960 | 1110 |
| Mass device (kg) | 12.5 | 13 | 14 | 16.5 | 16.5 | 17 | 20.5 | 18 | 20.5 | 17.5 | 20 |
| Max load (kg) | 60 | 60 | 60 | 60 | 60 | 100 | 60 | 60 | 60 | 60 | 60 |
| Max load at transportation (kg) | - | - | - | - | - | - | 43 | 43 | 43 | 43 | 43 |
| Maximum rated load (kg) | 74.5 | 75 | 76 | 78.5 | 78.5 | 119 | 82.5 | 80 | 82.5 | 79.5 | 80 |
| Overall width (mm) | 560 | 560 | 620 | 620 | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
| Seat plane angle (°) | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 |
| Seat surface height at front edge (mm) | 190-615 | 170-600 | 240-615 | 255-600 | 215-560 | 260-550 | 430-590 | 260-700 | 330-640 | 260-700 | 330-640 |
Options
Sizes
The indoor frame is available in 3 sizes - the outdoor frame is available in 2 sizes.
Size 1 indoor frame with power
Size 2 indoor frame with power
Size 3 indoor frame with power
Recommended seats
x:panda
Stingray
Height adjustment
Gas
Hydraulic
Power

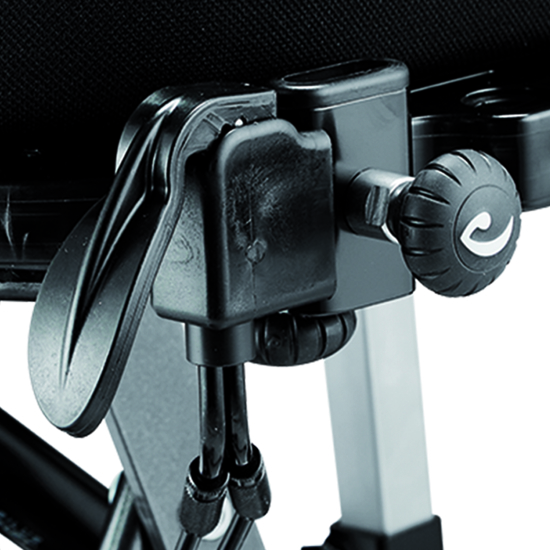

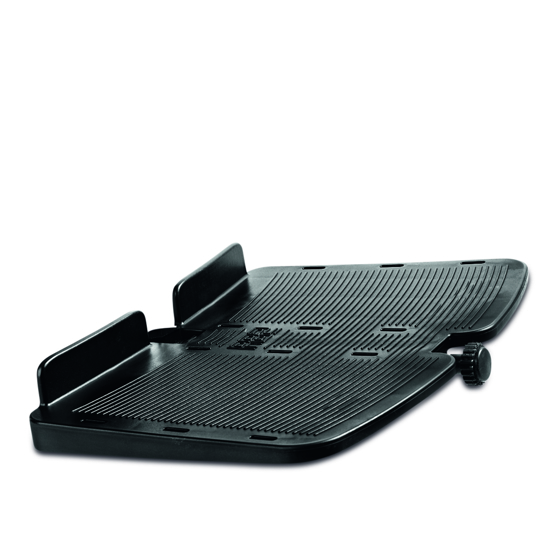

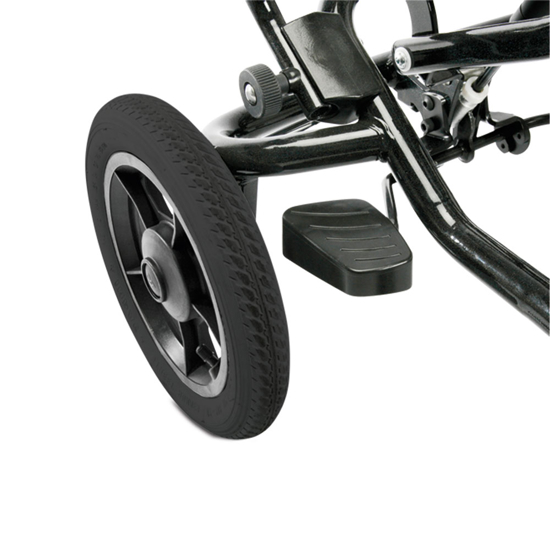

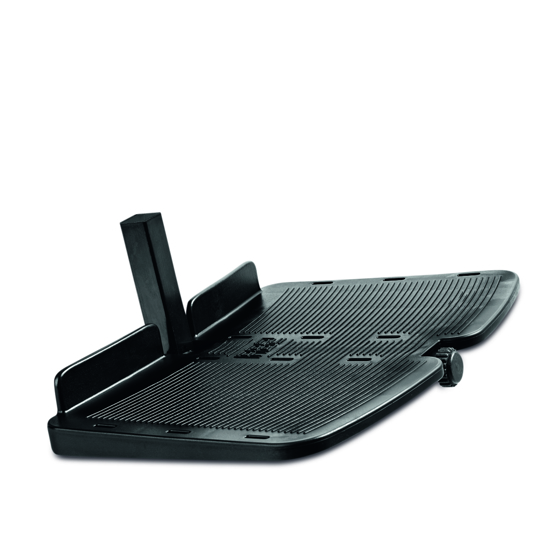

Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
