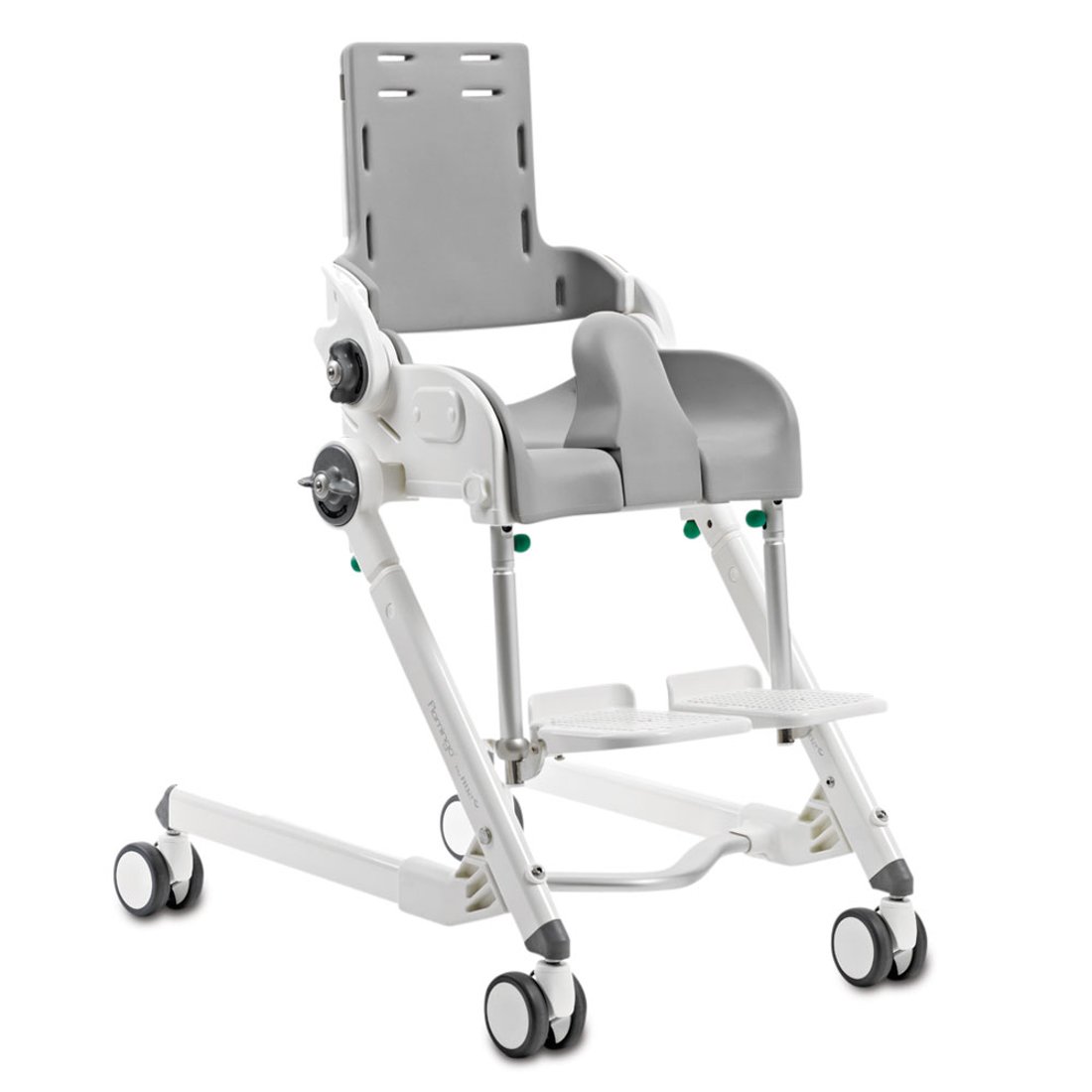

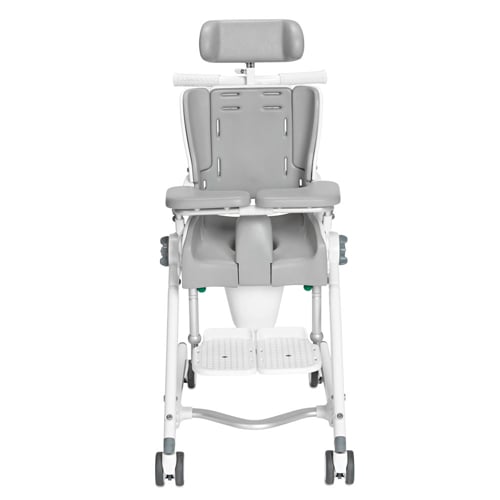

R82 Flamingo

The Flamingo is a toilet/bathing chair. It is available in 4 sizes and is suitable for children and young adults.

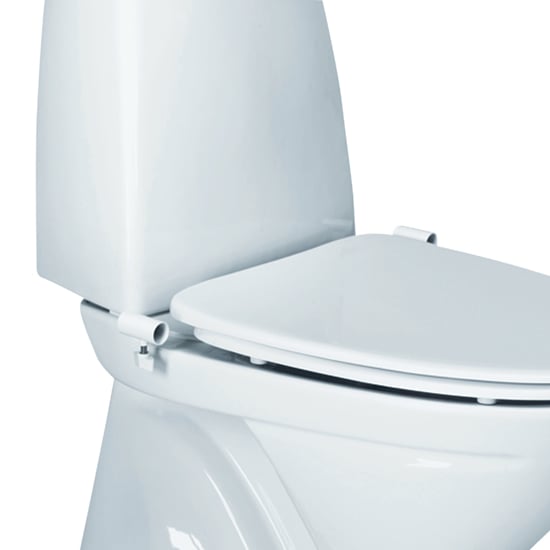

The seat can be tilted and the back can be angled. The Flamingo can therefore assist children with special needs with their seating posture. The Flamingo is easy to clean and facilitates personal hygiene. It is adjustable in height and it can be placed over the toilet or can be used with a pan.

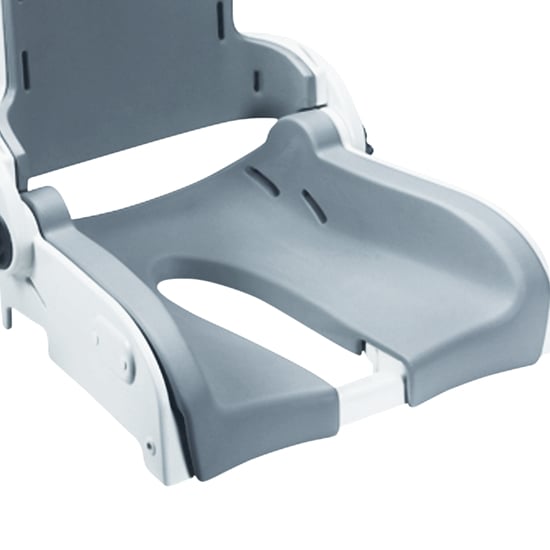

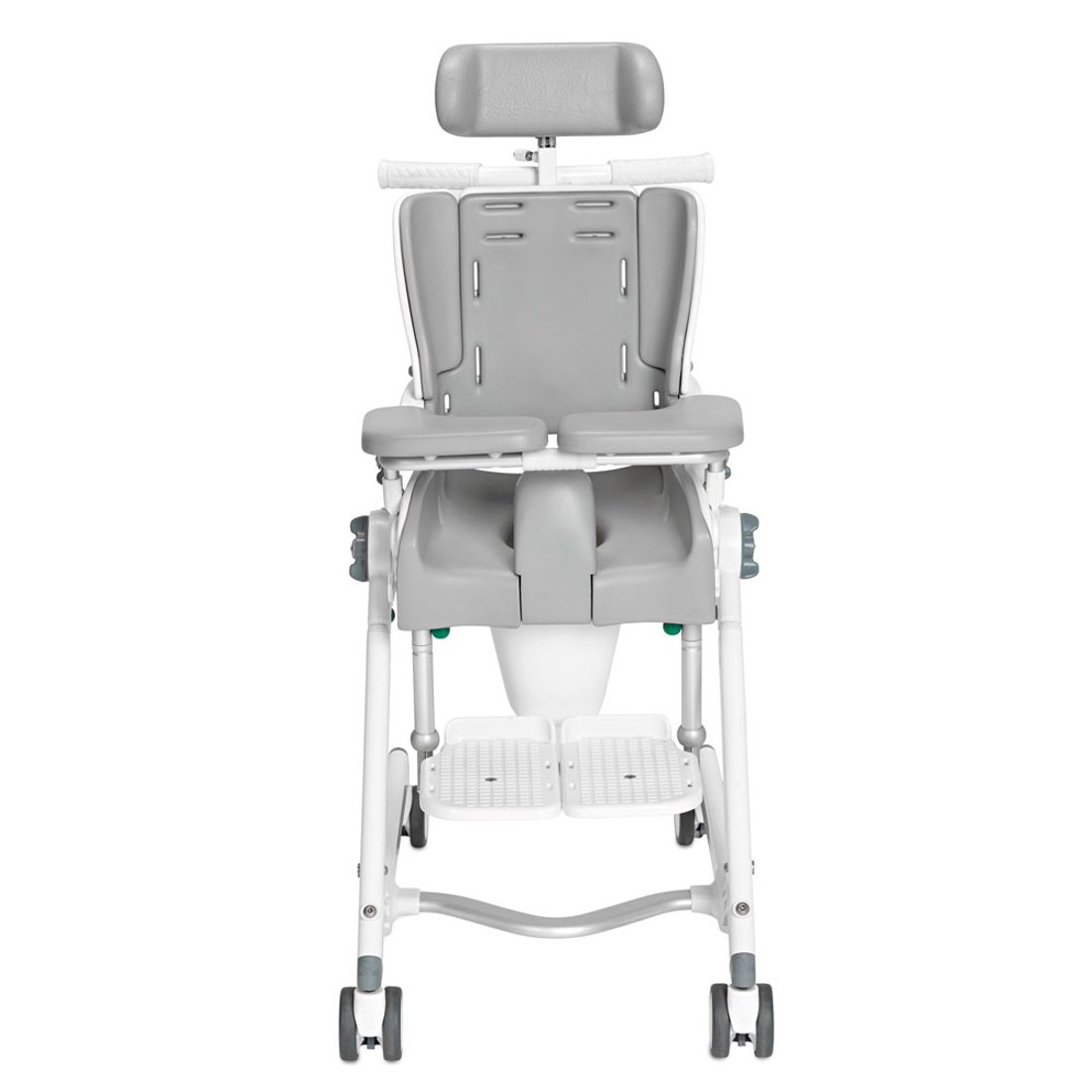

As standard the Flamingo seat is delivered with a narrow open backrest. For more support for the trunk either swing-away side supports can be mounted or sides with PU inlay, which surround and support the shoulders can be used.

Standard specifications

Flamingo size 1
Flamingo Size 2
Flamingo Size 3
Flamingo Size 4
Flamingo seat size 1
Flamingo seat size 2
Flamingo seat size 3
Flamingo seat size 4
Item number 880001-xxx 880002-xxx 880003-xxx 880004-xxx 880101 880102 880103 880104
Back width, top of backrest (inch) 7.75 8.75 10.25 11 - - - -
Backrest angle (°) 30 30 30 30 - - - -
Backrest height (inch) 13.75 15 16.5 18.5 - - - -
Effective seat depth (inch) 9.75 11.5 13.75 15.75 - - - -
Folded height, frame (inch) 8 8 8 8 - - - -
Folded length, frame (inch) 29 29 29 29 - - - -
Frame length (inch) 26 26 26 26 - - - -
Leg to seat surface angle (°) 90-60 90-60 90-60 90-60 - - - -
Length (inch) - - - - 10.25 12.5 14.25 16.75
Lower leg length (inch) 7-10.25 9.75-13.75 11.75-15.75 11.75-15.75 - - - -
Mass device (lbs) 24.2 28.6 30.8 33 5.5 6.5 8.8 9.9
Max load (lbs) 105.8 143.3 167.5 191.8 - - - -
Maximum rated load (lbs) - - - - 87 121.2 145.5 168.6
Maximum user mass (lbs) 77.1 110.2 132.2 154.3 77.1 110.2 132.2 154.3
Maximum user weight (lbs) 77.1 110.2 132.2 154.3 - - - -
Overall height (inch) 33.75 35 36.5 37.5 - - - -
Overall width (inch) 17.25 18 19.75 21.25 - - - -
Seat plane angle (°) (-15)-35 (-15)-35 (-15)-35 (-15)-35 - - - -
Seat surface height at front edge (inch) 19.75-23.5 19.75-23.5 19.75-23.5 19.75-23.5 - - - -

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
