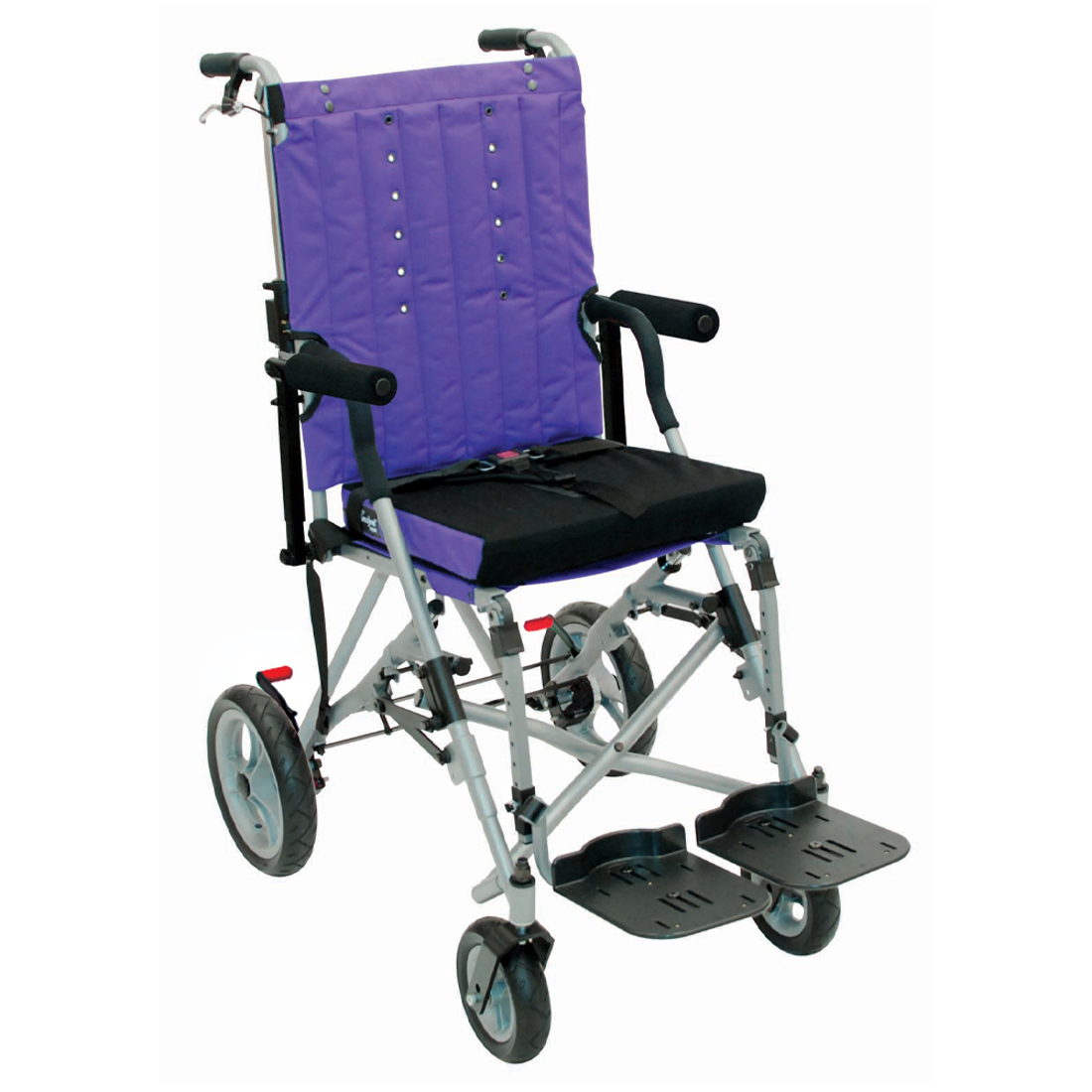

Convaid Safari

The Safari includes an extended range of tilt for feeding, stabilizing; an adjustable recline; and a flat planar seat.

The Convaid Safari Tilt Transit Wheelchair has earned an HCPCS code of E1232 because they have been classified as Tilt-in-Space, pediatric, compact-folding wheelchairs. Simple adjustments to the Safari Wheelchair allow you to extend the life of the chair for your growing child, teen, or young adult. The Convaid Safari Tilt has several options available – Recline opens the seat-to-back angle, Anatomic back provides extra back and lumbar support.

Features

Convaid Safari

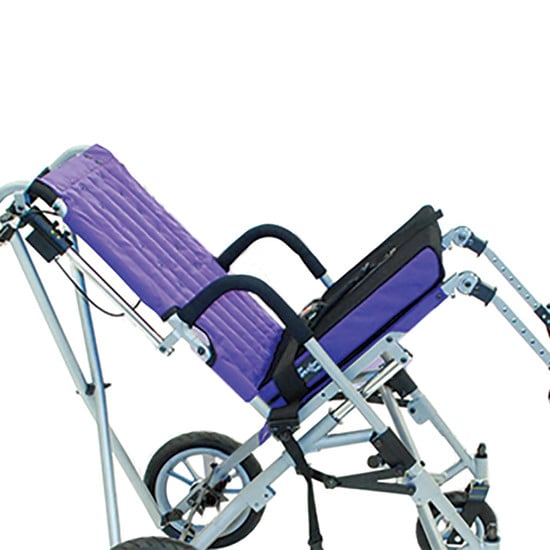

5° to 45° of adjustable tilt

Provides pressure relief and upper body support.
Convaid Safari

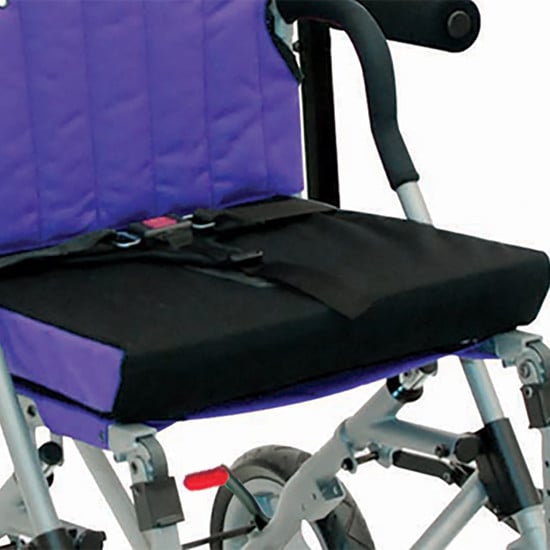

Support cushion

Promotes stability and posture control for comfort and positioning.
Convaid Safari

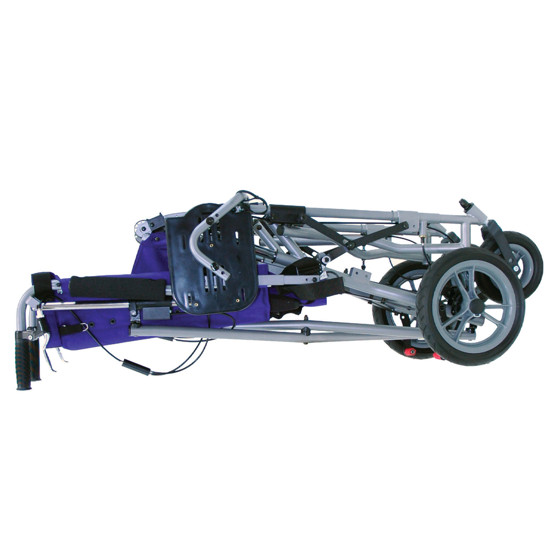

Compact folding

Folds compactly for easy transport and storage.
Transit

Transit ready frame (option)

Adheres to WC19 safety standards for safe transportation.

Standard specifications

SFT12
SFT14
SFT16
SFT18
Convaid item number 900493 901104 900526 902432
Folded height (inch) 14.5 14 14 14
Folded length (inch) 48 50 51 51.5
Folded width (inch) 16.5 14.8 16.3 15
Footrest to seat distance (inch) 11-13 11-13 12.5-14.5 10-16

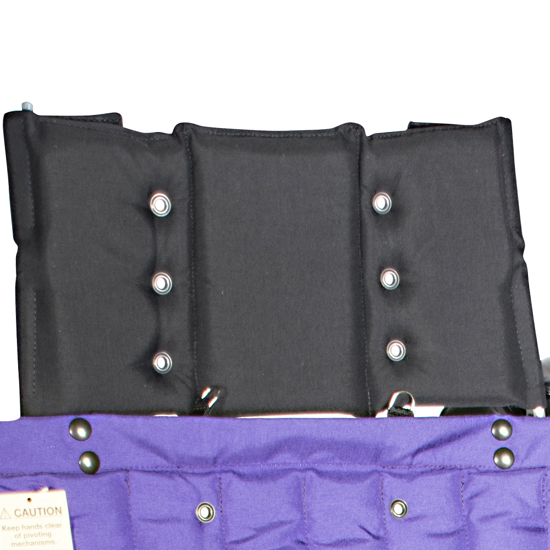

Headrest extension (inch) 8 8 8 8
Overall height (inch) 44.5 45.5 45.5 44.5
Overall length (inch) 36.5 39 42.5 41.5
Overall width (inch) 21.5 24.3 25.5 26
Recline adjustment (°) 3°, 22°, 45° 1°, 19°, 40° 1°, 19°, 40° -
Seat back height (inch) 23 22 22 21.5
Seat depth (inch) 9-14 11-16 13-18 15-20
Seat to back angle (°) 90° - 95° 90° - 95° 90° - 95° 90° - 95°
Seat to floor (inch) 23.5 26 26 23
Seat width (inch) 12 14 16 18
Shoulder strap height (inch) 8.5-20 9.5-19.5 10-20 12.5-18.5
Tilt in space tilt angle (°) 5° - 45° 5° - 45° 5° - 45° 5° - 45°
Total weight (lbs) 34 37 41 45
Weight capacity (lbs) 75 100 170 250
Weight capacity transit (lbs) 66 100 170 170

Options

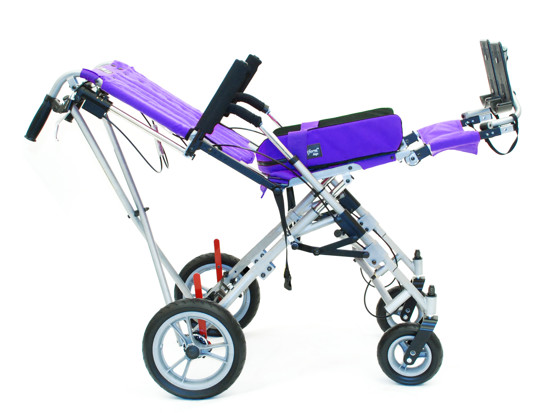

90°-135° of adjustable recline

Opens the seat-to-back angle from 90° up to 135° to provide postural relief.

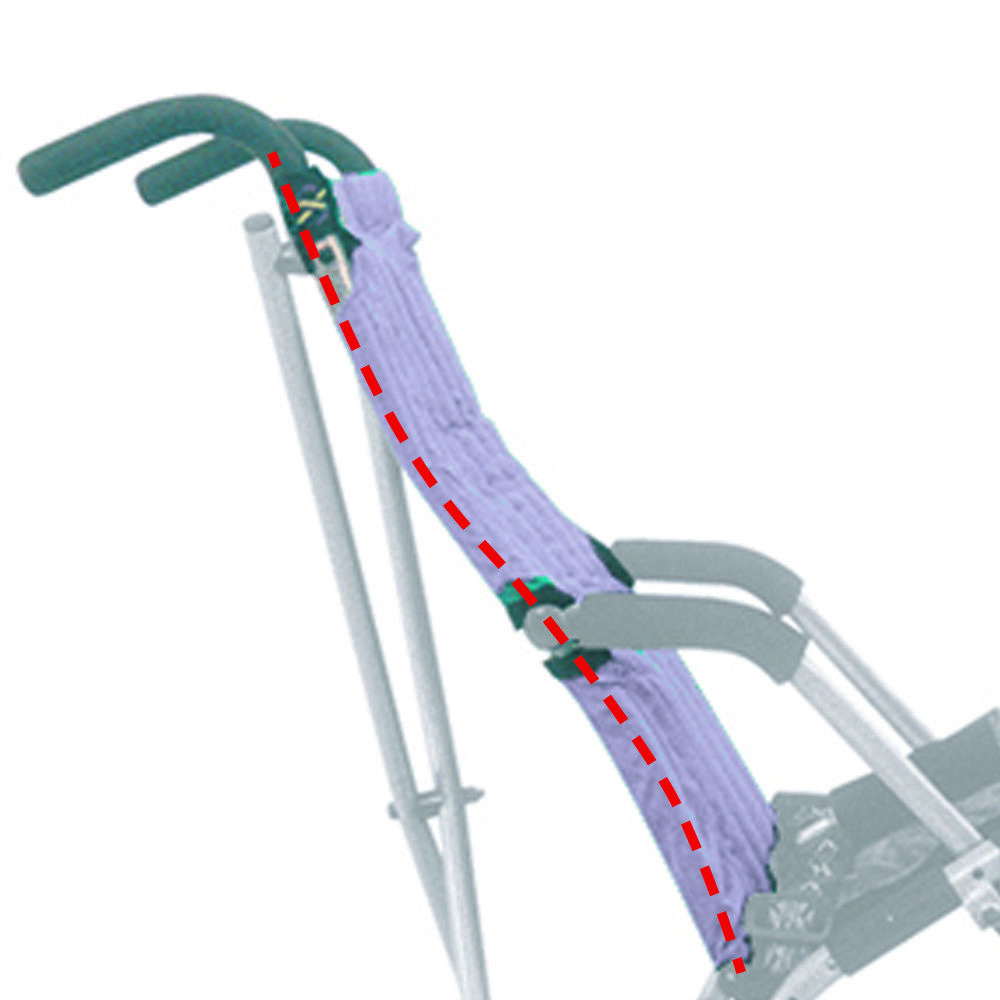

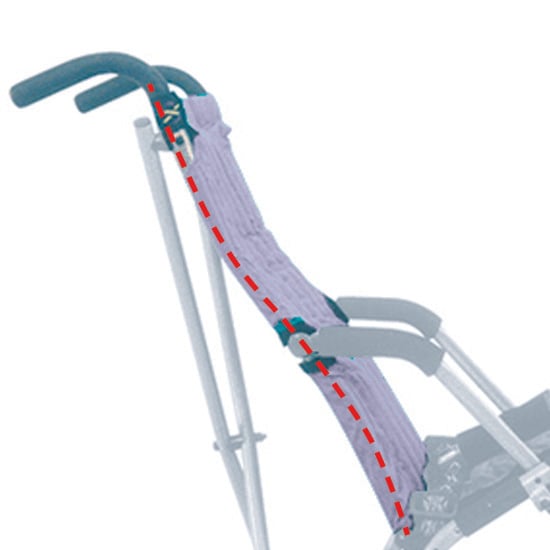

Anatomic back

Provides increased lumbar support which helps stabilize the upper torso, neck, and head to assist the development of righting reflexes.

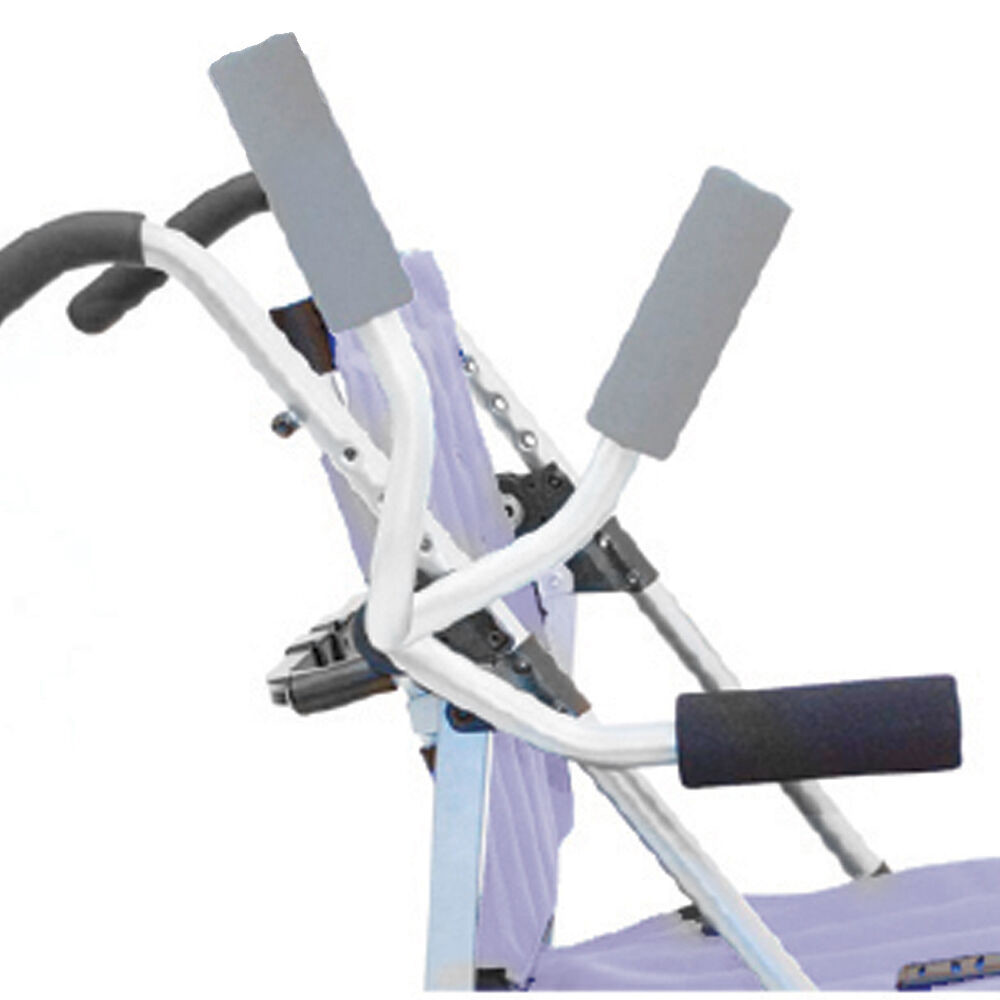

Height adjustable flip-up armrest

Armrests “flip-up” out of the way for easy access into the chair.

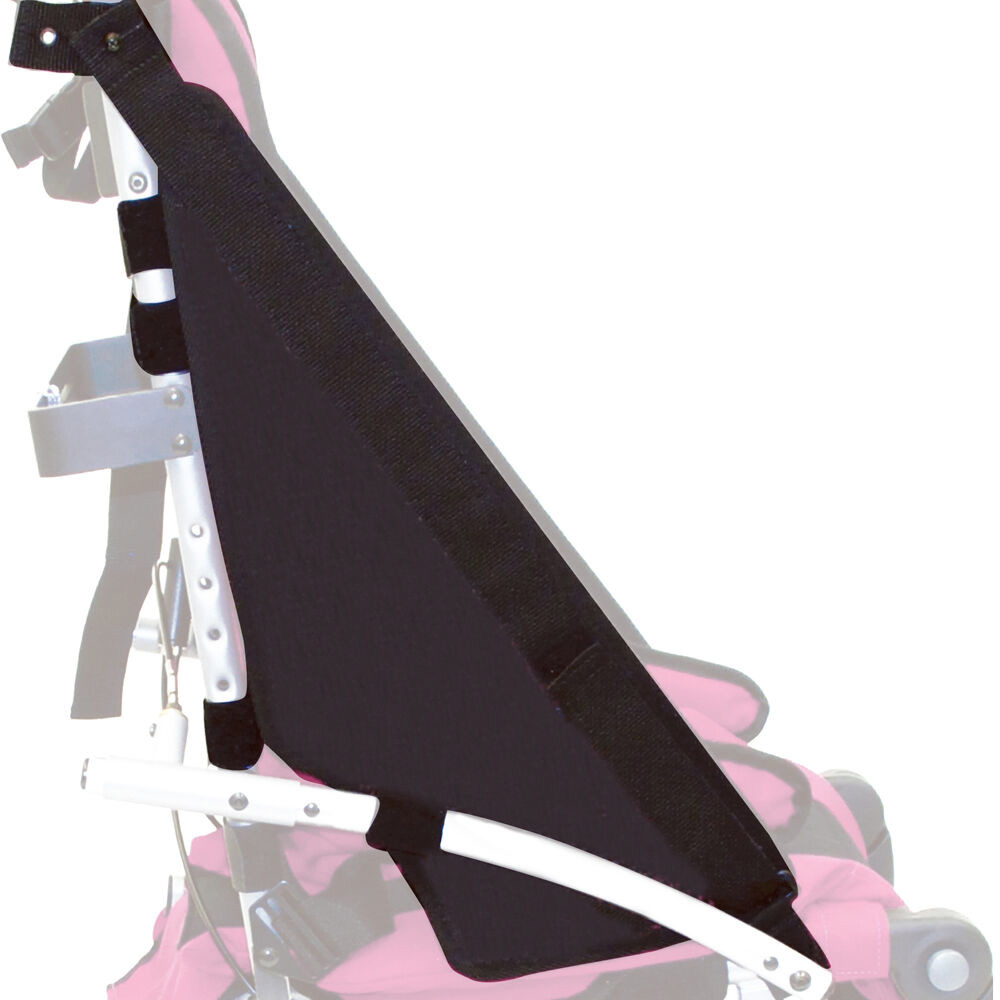

Solid side panels

Provide additional security to prevent the child from leaning out the sides of the seat.

Cordura is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.

Cherry Red

Princess Pink

Apple Green

Forest Green

Aqua Blue

Royal Blue

Sassy Purple

Chocolate Brown

Panther Black

7.5” X 2” Front pneumatic tires

Only offered on model sizes 10-16.

12.5” X 2” Rear pneumatic knobby tires

Only offered on model sizes 10-16.

12.5” X 2” Rear solid knobby tires

Only offered on model sizes 10-16.

Transit ready frame

Meets or exceeds WC19/ISO7176-19 safety standards for safe transportation in a bus or van.

Transit lap belt

The crash-tested (SAE J2249) transit lap belt provides additional occupant safety when riding in a bus or van. The belt connects to the bus anchored shoulder restraint harness and is used in addition to the pelvic positioning belt.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
