Catalyst 5

A high-performance, ultra-lightweight folding wheelchair, Catalyst is designed for a range of users, from active to those with more involved needs.

The Catalyst 5 has since redefined the ultra-lightweight folding market by raising the bar in weight, performance, durability and functionality. Weighing in at 10.4 kg and constructed from ultra-lightweight 7000 series aluminum, the Catalyst 5 is arguably the best choice in high-performance folding wheelchairs. With our largest selection of options to help you customize and configure your chair, the Catalyst 5 makes daily life easier, no matter what the day brings.

Features

There is a Catalyst Difference

While every model in the Catalyst family has a different axle plate with adjustment capabilities unique to each, they all take advantage of the same innovative design features that set them apart from other frames in the market. From the patented frame design constructed from 7000 series aluminum to the dual interlocking cross braces with a power x-hinge, there truly is a "Catalyst Difference".

Universal Axle Plate

The Universal Axle Plate does it all. Achieve seat-to-floor heights in 1/2" increments and adjust CG over a 3" range. With a more rigid design than its competitors, Catalyst 5 offers the best performing ride in its class.

300 lbs Standard Weight Capacity

Light is great but lighter AND stronger is better. Catalyst 5 has a mere transport weight of 12.8 lbs* and a standard weight of 20.8 lbs. Did we mention it has a 300 lbs standard weight capacity? That makes Catalyst 5 the lightest AND strongest folding wheelchair in the K0005 category.

Front Frame Styles

The lightweight easy-to-use patented hangers now offer multiple hanger release options to further optimize chair setup for the client or caregiver. Did we mention, it's the ONLY hanger with a lifetime warranty!

Variants and details

	Bottom Frame Tubing Size (mm)	Camber angle (°)	Center of Gravity Adjustment Increments (mm)	Center of Gravity Adjustment Range (mm)	Front seat height (mm)	Rear seat height (mm)	Seat depth (mm)	Seat width (mm)	Top Frame Tubing Size (mm)	Transit Approved	Transport weight (kg)	Weight (kg)	Weight capacity (kg)	Weight Capacity Heavy Duty (kg)
Catalyst 5	28.6	0°, 2°, 4°	6.4	12.7 - 76.2	342.9 - 533.4	292.1 - 495.3	355.6 - 508	355.6 - 558.8	25.4	Yes	5.8	10.4	136	158

Options

Frame Options

Depth Adjustable Frame

This rear frame option includes depth adjustability, a fold-down back and up to 32° of angle adjustability.

Seating System Cross Braces

Special cross braces and seat hook supports free up space on the side frame for easy seating system adaptability.

Fixed Front Frame

A stronger and lighter frame design, favored by people who do not need swing away hangers, but still need to fold up their chair.

Super Low Swing Away

Similar to the standard swing away frame, it lowers the overall seat height by 1.5". Ideal for foot propellers. Allows the use of swing away footrests.

Swing Away Frame

The classic front frame design constructed from 7000 series aluminum and with a lifetime warranty. Allows the use of swing away footrests.

Transit

Provides securement points so the chair can be used as a seat in a motor vehicle when used in accordance with the User Instruction Manual.

Titanium Frame Option

Does every ounce matter? Upgrade to a Ti3AL/2.5V Titanium frame to get the lightest CAT 5 frame possible.

Aluminum Cross Brace

The Dual Interlocking Cross Brace design creates a frame that locks together to minimize the unwanted movement, or "front to back" racking, while redistributing loads onto components that can better manage forces.

Removable Aluminum Seat Pan Transit Approved

Removable aluminum seat pan. WC-19 Transit Approved.

Removable Aluminum Seat Pan

Removable Aluminum Seat Pan.

Titanium Cross Brace

The Dual Interlocking Cross Brace design is available in Ti3AL/2.5V, creating the lightest weight package with all the benefits of the dual cross brace design.

Backrest Options

Half Folding Backrest

Easily fold the back canes down for a more compact package. Height adjustable with multiple push handle options and tension adjustable back upholstery.

Reclining Backrest

Innovative Reclining Back design incorporates an automatic locking feature into the gas spring for a smooth, positive recline motion. Recline angle ranges from 0°-65°. Comes standard with Removable and Adjustable Stroller Handle.

8° Bend Back Posts with Push Handle

The back cane is vertical to the frame for 9", then bends away at an 8° angle before ending with a 90° bend for a push handle. This opens up the back slightly and might be considered a more comfortable seating position.

Straight Back Posts with Push Handle

The back cane is vertical to the frame with a 90° bend at the top for a push handle.

Straight Back Post without Push Handle

The back cane is vertical to the frame, ending at the exact height you choose. The push handle has been removed to create more freedom for shoulder rotation.

Folding Handle Rigidizer Bar

Provides rigidity to back canes while still allowing the chair to fold.

Angle Adjustable Back Posts

12° of angle adjustability, in 3° increments.

Stroller Handle Back Post

Available with the Depth Adjustable Rear Frame offering height adjustment and several push handle options.

Removable Stroller Handle Extension

A handle that plugs into the back cane to provide a more ergonomic position of the hands Removable and reversible while adding rigidity.

Dynamic Back

Shock absorbing back frame reduces stresses on the frame from high tone riders.

Height Adjustable Straight with Push Handle Back

Available with the Depth Adjustable Rear Frame offering height adjustment and several push handle options.

Sleek, ergomoic push handles that are there when you need them and can be easily folded down when you don't.

Low Profile Push Handle

2" shorter than our standard push handle. The ergonomic push handle grip has a sleek design with a more positive and comfortable hold.

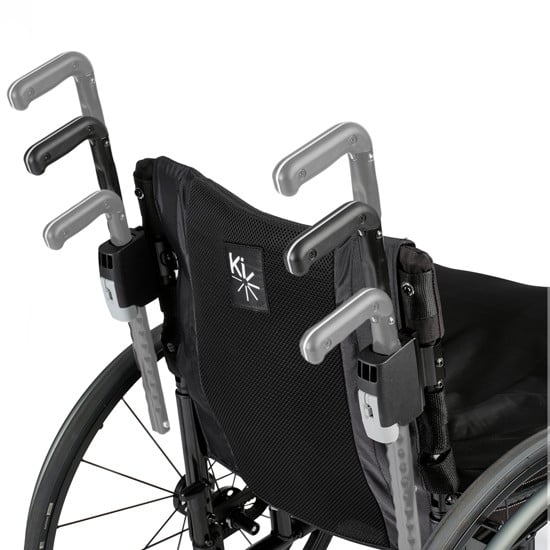

Caregiver Adjustable Height Stroller Handles

Achieve the most ergonomic position for the push handles with this height adjustable option. Provides 25.4 - 33 cm of height adjustment within an 8° push handle.

Hanger Options

Front Mount Hanger

With 3.5" knee-to-heel capability in 0.5" increments. Available in 70°, 80°, and 90° versions.

Extension Tube Hangers

The most intuitive hanger on the market allows you to attach and detach from any angle or position. Available in 60°, 70°, and 80° versions.

Pro ELR

Pro ELR has an adjustable pivot location (range of 2 inches) to promote proper knee placement and an adjustable calf pad for personalized fit from client to client.

Pediatric Pro ELR

Patented adjustable pivot location to promote proper knee placement and an adjustable calf pad for personalized fit.

Classic Hanger Release

Ergonomic hanger release design for easy actuation.

4-Way Hanger Release - Inline

Mount in 4 different positions with ONE bolt! 4-Way Inline position provides best optimization for caregivers.

4-Way Hanger Release - Out

Mount in 4 different positions with ONE bolt! 4-Way Out provides best optimization for clients.

Residual Limb Support

Just as easy to operate as our patented swing away hangers using the same swing in/out design. An incredible amount of adjustment within the system allows you to achieve the exact position and angle your client needs. Pad Sizes: 5"x8", 7"x10", 9"x10", 9"x14", 11"x10", 11"x14". Cover Options: Smooth. Wipeable yet breathable; Breathable Air Mesh.

Upholstery

Air Mesh Breathable Cover

A breathable back upholstery cover improves airflow. Available on both standard Velcro adjustable and tension adjustable upholstery. The anti-pilling fabric along the sides improves durability and helps protect from wear when in contact with abrasive surfaces such as Velcro.

Standard Back Upholstery

Uses 1" poly foam with a nylon parapak cloth cover. Very comfortable and shear resistant.

Tension Adjustable

Adjustable straps allow independent support for the pelvis and trunk, improving postural control and alignment.

Armrests

Height Adjustable Flip Back T-Arm

New strong, light-weight design! The markets favorite T-Arm now flips back! This easily retrofittable Height Adjustable Flip Back T-Arm arm reduces interference on the back canes for less restriction with aftermarket seating. Also available in Tall option.

Height Adjustable Flip Back T-Arm Tall

This easily retrofittable, lightweight design reduces interference on the back canes for less restriction with aftermarket seating. The tall version offers ample surface area above a cushion to provide proper coverage of the client’s body and ensures the transfer tube is easily accessible. Panel and armrest height is increased by 2.5”. Overall height adjustment range of 11"-15”.

Height Adjustable T-Arm

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 8.5"-13.5".

Height Adjustable T-Arm Tall

This easily retrofittable, lightweight design is easy to release and adjust in height. The tall version offers ample surface area above a cushion to provide proper coverage of the client’s body and ensures the transfer tube is easily accessible. Panel and armrest height is increased by 2.5”. Overall height adjustment range of 11"-15”.

Height Adjustable T-Arm Low

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 7.5"-11.5".

Angle Adjustable Locking Extendable Flip Up

This Angle Adjustable Locking Extendable Flip Up armrest is the ONLY cantilever armrest approved to 400 lbs! It locks into position by a spring loaded latch while extending up to 4" in 1" increments and 7 angle adjustments in 5° increments from -5° to 25°. Available with standard and foam pads in desk or full lengths.

Flip Back

This 2-post arm design offers solid support. It flips back out of the way, but keeps the arm on the chair and readily accessible. Easy release armrest.

Swing Away Armrests

Easy to swing away. Easy to remove. The cantilevered arms help to keep your chair light yet provide a solid hold for transfers and weight shifts.

Swing Away Armrests with Side Guards

This new arm package includes standard Swing Away Arms with the direct mount Side Guard panels.

Waterfall Armpads

A generously padded waterfall design providing additional comfort and protection. Desk length: 22.8 cm.

Standard Armpads

Padded and textured armrest pad available in both full and desk lengths.

Foam Grip

Available only with Angle Adjustable Locking Extendable Flip Up Armrest. Foam grip armrest pad available in both full and desk lengths.

Footplates

Composite

Made from a fiberglass filled nylon composite, these footplates are lightweight and tough, making them hard to bend or break.

Composite Angle Adjustable

Sleek design, easy to operate and fully adjustable. The Composite Angle Adjustable footplate makes adjustments fast and easy. Includes adjustments of the angle as well as fore and aft positioning of the footplate. Available with extension mount footrest hangers.

Aluminum Angle Adjustable

Infinite adjustability for more accurate placement of the foot. Aluminum plates have slots for ankle straps and multiple attaching holes.

Aluminum Locking Multi-Angle Adjustable

Infinite adjustment in multiple axes to accommodate difficult positioning requirements such as inversion, eversion, plantar, and dorsi- flexion. Optimizes support, pressure distribution and postural alignment.

One Piece Flip Up Angle Adjustable

Solid, angle adjustable, aluminum footplate provides an excellent surface for your feet and increases rigidity at the front.

Heel Loops

Cradles the foot and helps keep it on the footplate.

Wheels

Mag

Made of a high-quality magnesium alloy, our Maxx Mag wheel design is lighter and more rigid than other mag wheels on the market. Save up to one inch of overall chair width creating better manoeuvrability in doorways and tight spaces.

Colored Mag

Our 5-spoke composite wheel, now available with color options in 20” and 22” sizes, is 20% lighter than the competition and maintenance free. Colors available are Pink, Blue, White and Fluorescent Red.

Maxx with Drum Brake

This hybrid wheel features a hub design with straight pull radial spokes on the outside flange, like most high-end wheelchair wheels. The inside flange has a 2 cross spoke pattern to handle the torque resulting from stopping a larger wheel by the relatively small hub.

Maxx Spoke

The Maxx Spoke high flange hub and eighteen radial spoke design provides increased rigidity and responsiveness. High-quality material construction with a durable black satin finish gives you a look and feel that is anything but standard.

Superlight Spoke

As light as any wheel on the market, this wheel is stiff and very high performance.

Spoke with One Arm Drive

Quick release One Arm Drive system available with 20", 22" and 24" spoke wheels. Available with or without camber for better handrim access and ease of propulsion. For the drive handrim choose from standard aluminum anodized or poly coated.

Spinergy LX

Spinergy's Light Extreme (LX). With 12 high-strength spokes, the wheel is ultra-strong and stiff for maximum performance while offering a very cool and minimal look.

Spinergy Spox

The name to trust in performance wheels. Extremely reliable and comfortable for your everyday needs.

Rear Frame - Camber

Available in 0°, 2°, or 4°.

Tires

Pneumatic

This standard air tire is more forgiving when going over obstacles and off curbs or stairs.

Pneumatic with Airless Insert

Low density foam is inserted into a pneumatic tire. Low maintenance - no air, no flat tires! (3.5 cm)

Full Profile Poly

Corded to prevent it from rolling off the wheel. Provides a softer ride than other low cost "over-molded" tires. (3.5 cm)

Low Profile Poly

A softer ride than low cost "over-molded" tires. Corded to prevent it from rolling off the wheel. (2.5 cm)

Sentinel Solid

The Sentinel Solid 2.5 cm tire is a new durable, lightweight solid PU tire option. Offering improved ride quality with decreased rolling resistance. This tire is now available on 20", 22" and 24" wheels. (2.5 cm)

High Pressure

High pressure, puncture resistant performance tire. 50 kg of pressure. High pressure tires have minimal rolling resistance. (2.5 cm) Depending on size of wheel, tire brand and color may vary. Please contact customer service for details.

Schwalbe Marathon Plus Evolution

Top of the class in performance and durability. Non-marking black tire. Has a thin line of gel inside to seal punctures and keep you running. (2.5 cm)

Schwalbe HS 127

Smooth rolling grey tire with Schwalbes K-Guard puncture protection. (3.5 cm)

Schwalbe One

A new tread design, improved compound and quality workmanship set a new benchmark in terms of quality and performance. This fast, reliable and lightweight tire also features great puncture protection with the Schwalbe V-Guard. (2.5 cm)

Handrims

Close Mount Handrims

Handrim is mounted closer to wheel rim, reducing overall chair width by approximately 1.9 cm.

Superlight Aluminum Anodized

Made of thinner and stronger aluminum to save weight. Saves almost 0.5 kg per chair.

Aluminum Anodized

Aluminum is lighter than steel, stronger than plastic, and won't rust. Comes standard with a hard anodized finish on 24", 25", and 26" spoke wheels.

Projection

8 vertical projections, each 1 cm, are plastic coated for individuals with limited grip strength. Available only with full profile tires. Available only with 22"-26" Spoke wheel sizes or Mag wheels.

Plastic Coated

Peel resistant poly coating creates a tacky surface for users with limited hand dexterity. The poly coat will not continue to peel from cuts and nicks caused by everyday use.

Ergo Standard Regular Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Standard Extra Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Standard Omit Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

Ergo Lite Regular Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Lite Extra Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Lite Omit Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

Wheel Locks

Drum Brake

Acts as a true brake allowing the chair to be slowed as opposed to just locking the wheel.

Hemi Wheel Lock

Hemi Wheel Lock provides a single lever that will operate both wheel locks. Can be ordered set up for Right or Left hand operation, a wheel lock extension handle is included in the price.

Push to Lock Flush Mount

After engagement the lever is flush to the seat. Lever moves out of the way for people who perform lateral seat transfers.

Pull or Push to Lock

After engagement the lever is at 45°. Lever is easily reachable.

Pull or Push with Extensions

For people with limited strength, this design requires very little effort to engage. Removable 6" foldable extension increases leverage.

Low Profile Scissor Lock

Low profile and easy to engage with a sleek and ergonomic design.

Grade Aids

Grade aids prevent your wheel from rolling backwards when you push up a hill.

Axles and Axle Plates

Universal Axle Plate

Amputee Axle Plate

The amputee axle plate moves the CG far rearward, increasing wheelchair stability.

Quick Release Axle

Standard axle with a quick release button for easy wheel removal.

Quad Quick Release Axle

The flip lever on the quad quick release requires very minimal hand strength for greater independence.

Casters

1.9 cm Rollerblade

Available in 7.6 and 10 cm.

1.9 cm Lighted Rollerblade

Similar than the standard micro caster. Add some pizazz to your chair! Available in 7.62 - 12.7 cm.

Pneumatic

A low-cost way to get a great and comfortable ride. You just need to add air from time to time. Available in 6" and 8".

2" Pneumatic with Foam Insert

A low cost way to get a great and comfortable ride. These casters have a foam insert so no air is needed. Available in 8".

2.5 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 4", 5", 6", 7" and 8".

3.8 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 10 - 15 cm.

2.5 cm Poly Aluminum

Uses a 3-spoke aluminum hub for added strength and styling. Available in 10 and 12.7 cm.

Soft Roll Aluminum

3-Spoke ultralight aluminum hubs, highly resistant, with improved mobility. Available in 3", 4", 5" and 6".

6"x2" Poly

This tire is quite firm with a subtle radius so that it is easy to push on hard surfaces and gives you great flotation on soft or uneven ground.

Caster housing

Performance Caster Housing

A Low cost, on-chair option that allows you the ability to achieve up to 88.9 mm of dump!

Standard Caster Housing

Angle adjustable and allows for forward or rearward mount positions in order to optimize chair configuration, minimize wheelbase and accommodate changes to caster, seat heights, etc.

Forks

Frog Legs Suspension Fork

Reduce vibration, prevent pitching. Ultra shock absorbing. Not available with Heavy Duty option.

Frog Legs II Suspension System

Constructed from a Carbon composite material which results in a 30% weight reduction over the standard Ultra Sport Fork results in a much smoother ride! This new shock absorbing fork option from Frog Legs is rated up to 300 lbs.

Caster Pin Locks

When engaged, the pin locks prevent casters from rolling during transfers.

Standard Fork

Available in multiple sizes for optimal front seat height adjustment as it relates caster and stem selections.

Anti-Tippers

Catalyst Rear Anti-Tip

Under any wheel configuration these anti-tips can be positioned for safety without interfering with the caregiver. Locates off the axle assembly.

Swing-In Anti-Tip

Swing-In Anti-Tips swing in under the frame so they are there when you need them and gone when you don't. Available in pairs, Left or Right mounting options.

Pelvic Positioning Belts

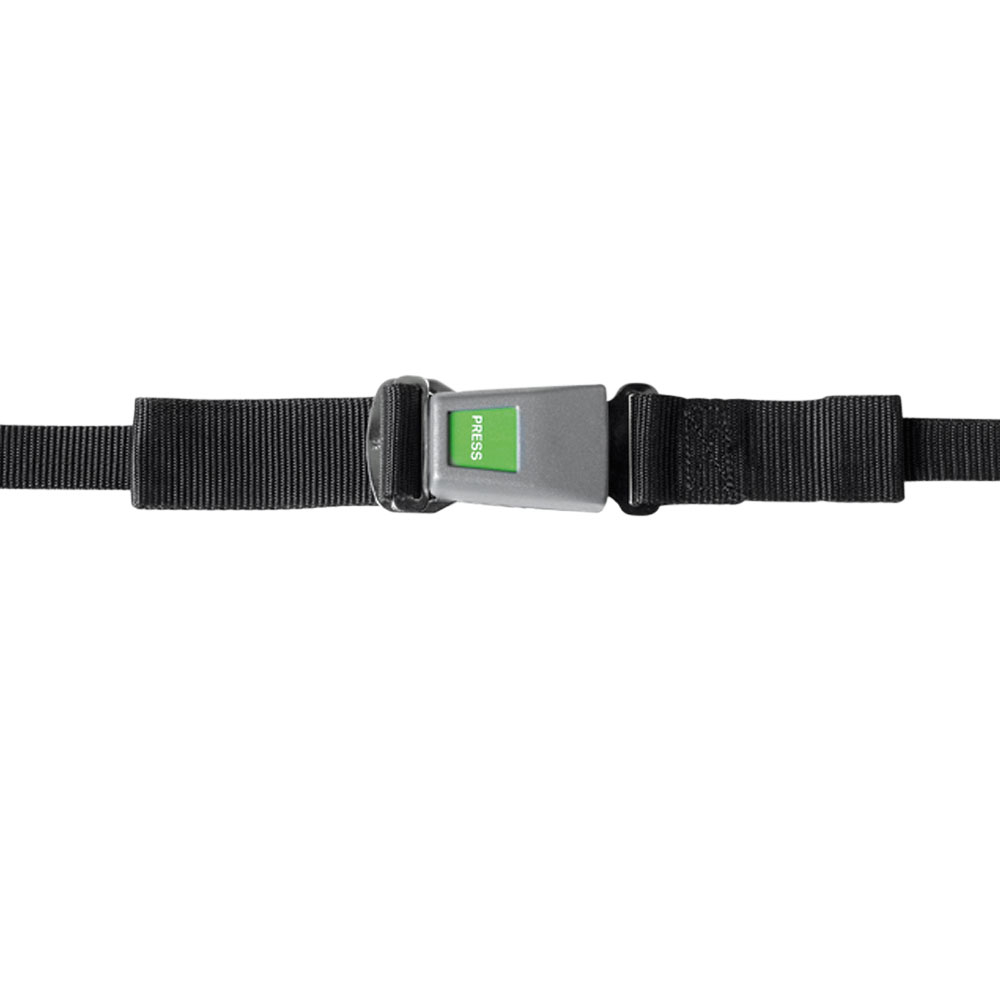

3.8 cm Auto Buckle

Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value. *Image is only representative and actual product may vary slightly

3.8 cm Padded Auto Buckle

This belt has a wide 5.7 cm pad for riders who may need additional padding. *Image is only representative and actual product may vary slightly

5 cm Airline Buckle

This belt uses an airline style buckle that can add a degree of security. It uses a wider 5 cm belt.

BodyPoint Evoflex Pelvic Stabilizer

Stays where you need it. Provides stability and flexibility. Versatile and easy to use. Stiffened end straps keep belt from twisting. Sized for users 15 kg to 130 kg. Available in Extra Small, Medium and Large.

Bodypoint Belt Mounting Kit

Mounting hardware for the Bodypoint Pelvic Stabilizer.
