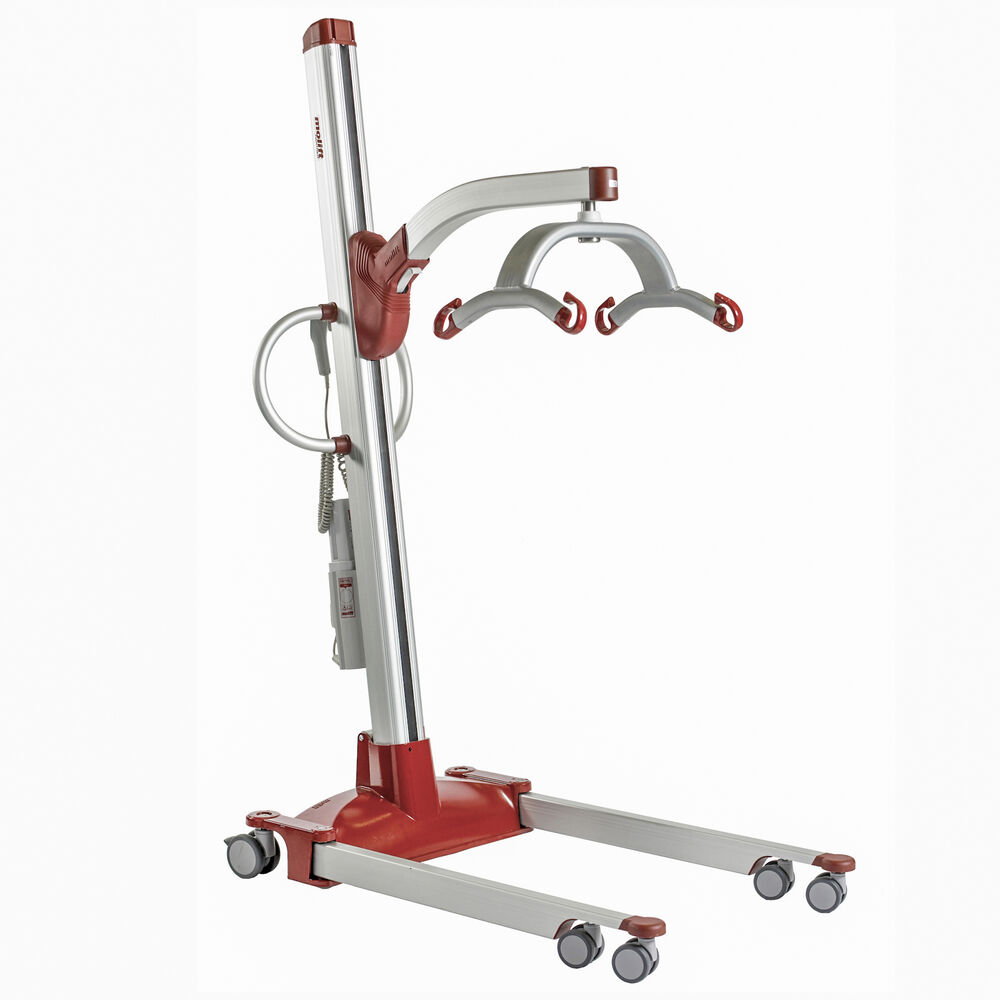

Molift Partner 255

With vertical hoisting pattern for excellent stability

Molift Partner 255 provides an ideal solution for complex hoisting situations in acute and critical care areas in both hospitals and care facilities. With an excellent hoisting range: 37–179 cm (14.5–70.4”) the Molift Partner 255 allows easy hoisting from the floor as well as high surfaces. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column.

Stability, manoeuvrability and hoisting capacity
With a total weight of 42.5 kg (94 lbs) Molift Partner 255 is one of the lightest in its category. Combined with excellent construction design and wheel solution it becomes very easy to manoeuvre with a safe working load of 255 kg (562 lbs).

Equipped with environmentally friendly NiMh-battery.


High safe working load

High safe working load

Molift Partner 255 has a safe working load of 255 kg (562 lbs).
A safe and stable position

A safe and stable position

The vertical hoisting pattern keeps the user at an equidistant length from the column during the entire hoist, creating a safe and stable position.
Ensures a comfortable and spacious hoisting position. Combined with the vertical hoisting pattern it creates a safe and stable transfer.

Spacious hoisting positioning

The 4-point sling bar ensures a comfortable and spacious hoisting position and a stable transfer.

Variants and details

Specifications for all variants
Battery NiMh 26,4 V-2,6 Ah Material Aluminium, steel
Battery charge time (hours) 3 Maximum user weight (kg) 255
Hoisting height max (mm) 1680 Rated performance 50 hoists at: 75 kg and 500 mm<br/>
Hoisting height min (mm) 390 Service software Included
Hoisting interval (mm) 1290 Width chassis, legs open inner (mm) 1065
Hoisting speed 75 kg (mm/sec) 30 Width chassis, outer (mm) 690
Length (mm) 1285
Low base
With Support arms

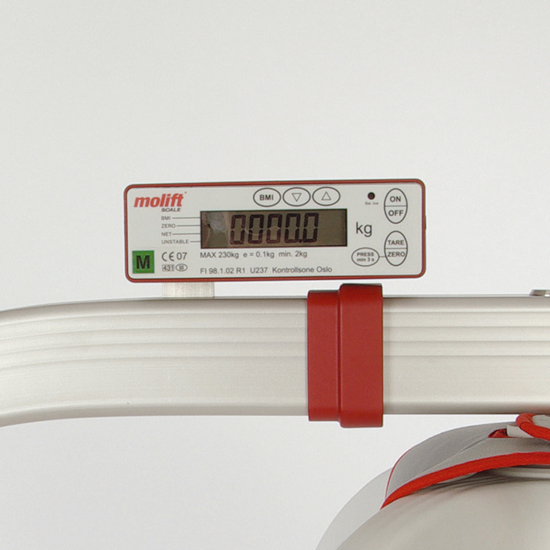

Standard with scale
Low base with scale
With Support arms and scale
Item number M13000 M13050 M13100 M13001 M13051 M13101
Leg height (mm) 115 60 115 115 60 115
Weight (kg) 42,5 45 50 42,5 45 50


Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
