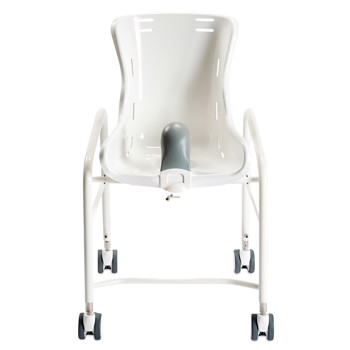

R82 Swan
The Swan is a stable and simple toilet and bathing chair suitable for children and youngsters.
The Swan comes in 6 different sizes and is suitable for children and youngsters.The shell supports the trunk and shoulders and gives the user good trunk stability. The frame is height adjustable which is important for the carer to be able to use easily. Tilt in space comes as standard.
Features

Tilt in space
Tilts 20° for the child’s comfort and positioning.

Anatomical shape
The Swan has a carefully designed shape that follows the user's contours for improved stability and comfort shape.

Height adjustable
The stainless steel legs adjust to accommodate most toilets.

Holder for pan
For use when away from the toilet. A commode pan helps to create a flexible and convenient toileting solution.
Variants and details
Swan Size 2 | Swan Size 3 | Swan Size 4 | Swan Size 5 | Swan Size 6 | Swan Size 7 | |
---|---|---|---|---|---|---|
Item number | 87002 | 87003 | 87044 | 87045 | 87046 | 87047 |
Aperture W x D (mm) | 105x155 | 120 x195 | 125x190 | 155x250 | 155x325 | 155x310 |
Back width, bottom of backrest (mm) | 240 | 255 | 280 | 310 | 355 | 430 |
Back width, top of backrest (mm) | 225 | 250 | 310 | 390 | 460 | 490 |
Backrest height (mm) | 380 | 420 | 400 | 480 | 570 | 570 |
Effective seat depth (mm) | 270 | 325 | 325 | 380 | 460 | 460 |
Effective seat width (mm) | 200 | 230 | 250 | 300 | 340 | 410 |
Length with wheels (mm) | 460 | 570 | 570 | 570 | 620 | 620 |
Length without wheels (mm) | 390 | 500 | 500 | 500 | 550 | 550 |
Mass device (kg) | 8 | 8.5 | 9.5 | 9.5 | 10.5 | 11.5 |
Maximum rated load (kg) | 40 | 70.5 | 81.5 | 91.5 | 102.5 | 123.5 |
Maximum user mass (kg) | 30 | 60 | 70 | 80 | 90 | 110 |
Minimum turning diameter (mm) | 1420 | 1600 | 1600 | 1560 | 1880 | 1880 |
Overall height with wheels (mm) | 680-840 | 710-870 | 780-940 | 790-950 | 860-1020 | 860-1020 |
Overall height without wheels (mm) | 590-750 | 620-780 | 690-850 | 700-860 | 770-930 | 770-930 |
Overall width without wheels (mm) | 460 | 500 | 500 | 500 | 540 | 620 |
Overall width, with wheels (mm) | 495 | 535 | 535 | 535 | 575 | 655 |
Required width of right angled corridor (mm) | 710 | 800 | 800 | 780 | 940 | 940 |
Seat plane angle (°) | 18 | 18 | 20 | 20 | 22 | 27 |
Seat surface height at front edge, with wheels (mm) | 370-530 | 480-640 | 480-640 | 480-640 | 480-640 | 480-640 |
Seat surface height at front edge, without wheels (mm) | 280-440 | 390-550 | 390-550 | 390-550 | 390-550 | 390-550 |
Seat width front (mm) | 300 | 340 | 360 | 380 | 430 | 480 |
Options
Castors
Size 2-3 is delivered without castors. Size 4-7 is delivered with castors.

Without castors (size 2+3)

With castors (size 4+5+6+7)
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
