R82 Multi Frame:x
Built for stability and comfort, this wheelchair base helps children move confidently through daily activities. It supports secure, comfortable positioning and reduces strain for caregivers, promoting inclusion and smoother everyday routines.
R82 Multi Frame:x
Smooth mobility for daily freedom
The Multi Frame:x is designed to provide extraordinary stability and smooth mobility for larger seat units. It offers a secure foundation for daily freedom. By allowing precise adjustments to the centre of gravity, the frame ensures effortless manoeuvring in both indoor and outdoor environments. The thoughtful design prioritises caregiver ergonomics with easily accessible handles for tilt and recline, making daily transitions smoother. It creates a reliable base that supports the child’s need for individual seating while facilitating active participation in everyday life.
Features
-
Features
Seats for Multi Frame:x
Multi Frame:x is the perfect choice of wheelchair base for large seat units like the x:panda shape 3 and x:panda 4 from R82
-
Features
User-friendly adjustability
The tilt-in-space and back recline functions are operated from the push brace ensuring optimum working conditions. Stepless recline of the push handle makes it possible to adapt the height to any carer
-
Features
Seat height adjustment
Positioning the user as close to the floor as possible ensures a much easier transfer
-
Features
Tested and approved
The Multi Frame:x complies with ISO 7176-19, transporting users in motor vehicles. The Multi Frame:x can be used with seat units that comply with ISO 16840-4
Variants and details
| Size 3 | |
|---|---|
| Item number | 963xxxxxxx |
| Back angle (°) | 0 - 30 |
| Back height (mm) | 570 |
| Base plate (width x depth) (mm) | 215x405 |
| Folded length (mm) | 840 |
| Footrest to adaptor plate (mm) | 260-430 |
| Handrim diameter (mm) | 480 |
| Length (mm) | 840 |
| Mass device (kg) | 20 |
| Max load (kg) | 100 |
| Max load at transportation (kg) | 100 |
| Maximum rated load (kg) | 122 |
| Overall height (mm) | 980 |
| Overall width (mm) | 660 |
| Seat plane angle (°) | (-5) - 30 |
| Seat surface height at front edge (mm) | 410, 435, 460 |
| Static stability downhill (°) | 10 |
| Static stability sideways (°) | 10 |
| Static stability uphill (°) | 10 |
| Width between wheels (mm) | 535 |
Options
Accessories
Documents
Videos

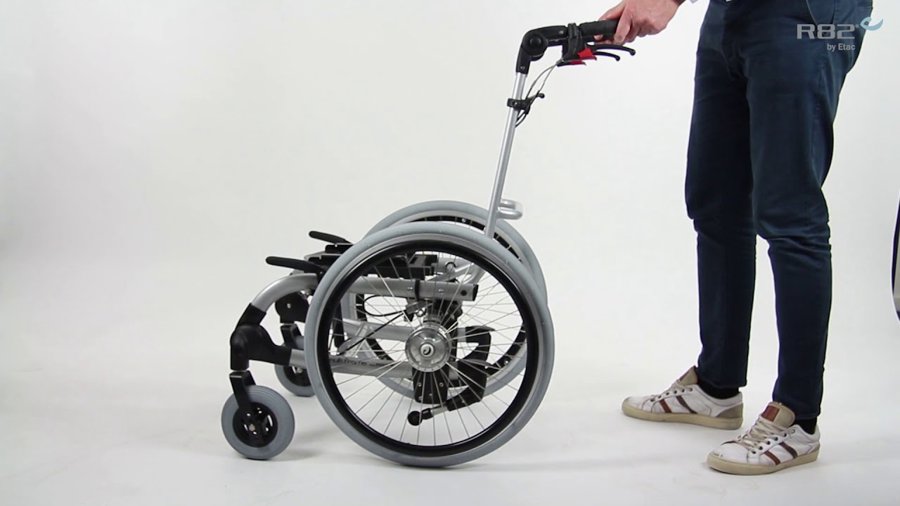

Drum brake adjustment
