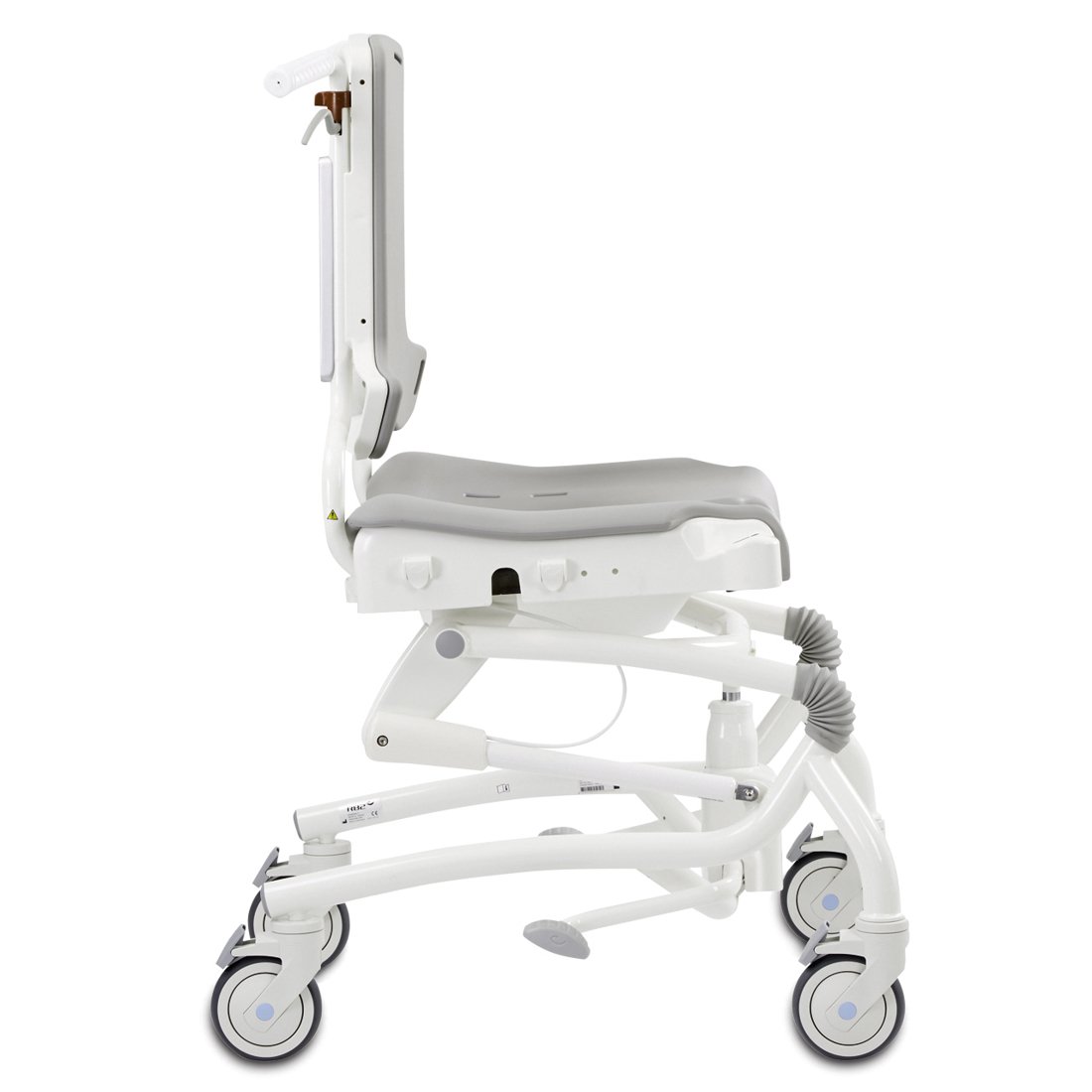

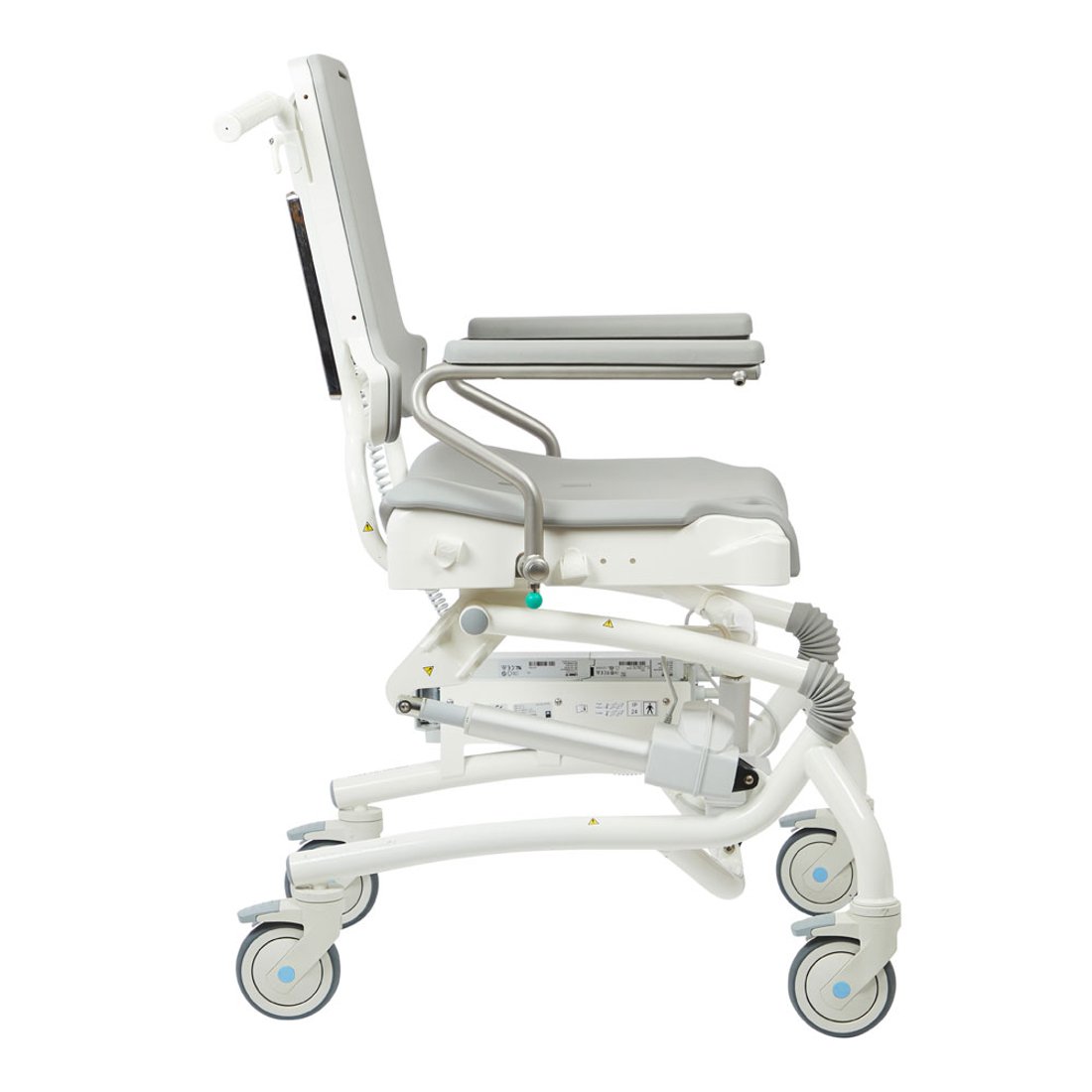

The Heron is a state of the art toilet and bathing chair.
The simple design and clean appearance features multiple functionalities that improve both the user and caregiver experience. It sets new standards for users with special needs for positioning. The seat is ergonomically correct, meaning it can be tilted and the back reclined without any disadvantage for the user. Clever design means that during recline, the anatomical pivot point at the axis of the hips is maintained. This provides the user more comfort when seated.
The Heron can be used freestanding with a pan, directly over the toilet or as a bathing chair in the shower. The smooth height, tilt and recline functions ensure optimum working conditions for the carer. To maintain safety, the Heron is equipped with four lockable casters.
Washable at 85°C in a washing machine designed for medical devices. Remember to remove all accessories, unplug all cables and make sure to dismount the control box, battery and remote control before machine washing.
Hydraulic or power version
Perfect working conditions
Variants and details
|Back width, top of backrest (mm)||290||290|
|Backrest angle (°)||(-10)-30||(-10)-30|
|Backrest height (mm)||555-625||555-625|
|Effective seat depth (mm)||450||450|
|Effective seat width (mm)||550||550|
|Lower leg length (mm)||400-560||400-560|
|Mass device (kg)||28||31|
|Maximum rated load (kg)||130||163|
|Maximum user mass (kg)||100||130|
|Minimum turning diameter (mm)||900||900|
|Overall height (mm)||1080-1350||1130-1350|
|Overall width (mm)||670||670|
|Seat plane angle (°)||(-5)-25||(-5)-25|
|Seat surface height at front edge (mm)||510-780||560-780|
|Static stability downhill (°)||10||10|
|Static stability sideways (°)||5||5|
|Static stability uphill (°)||10||10|
The Heron can be used over a toilet, freestanding with a pan, as a bathing chair in the shower and reclined over the bath tub for e.g. during hair wash.
Over the toilet
Reclined over the bath tub
In the shower
Back recline adjustment
Use the easily accessible handle to recline the back.
Handle for back recline adjustment
Seat angle adjustment
Use the easily accessible handle or hand-set to perform the seat angle adjustment.
Handle for seat angle adjustment for hydraulic version
Remote for seat angle adjustment for power version
Use the foot pedal or remote to height adjust the chair.
Foot pedal for height adjustment for hydraulic version
Remote for height adjustment for power version

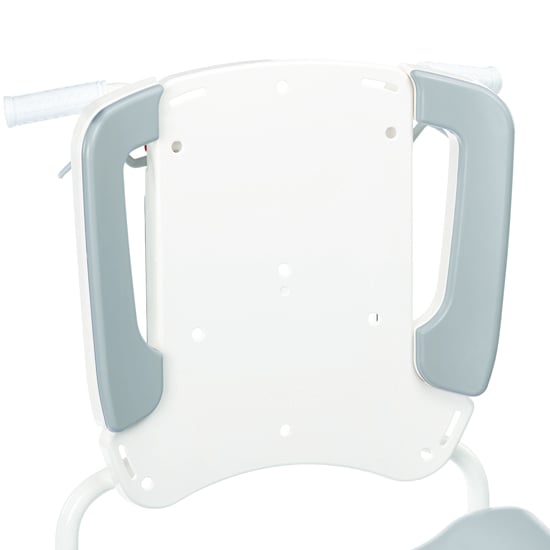

Hip support spacer blocks
