Convaid Rodeo
The Convaid Rodeo buggy offers up to 45° adjustable tilt and provides pressure relief and upper body support.
The Convaid Rodeo is a tilt--in--space buggy that provides 12.7 cm of seat depth extension through its seat depth growth feature. With 2 frame options available (with and without seating), it accommodates aftermarket and extensive seating needs.
Convaid Rodeo’s Cordura upholstery comes in a wide selection of colours and is removable and fully washable. The Convaid Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability. Available in 4 width sizes for users that weigh up to 77 kilograms. Made in the USA.
Discover

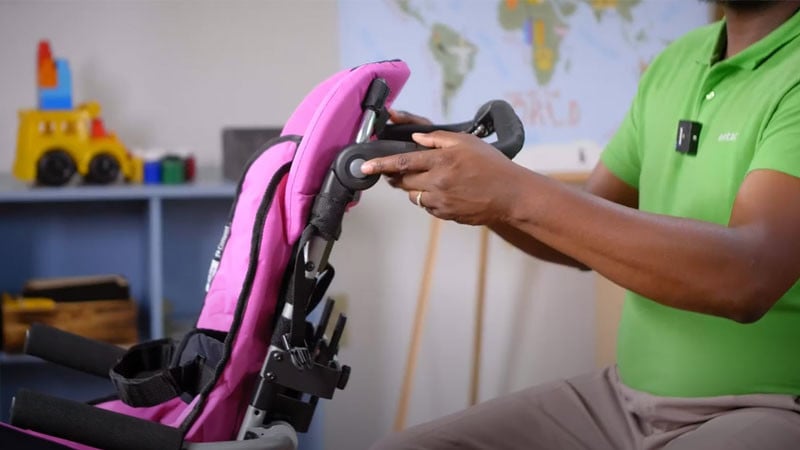

Rodeo video - product demonstration
Rodeo video
Features
5° to 45° of adjustable tilt
Lightweight & compact folding
Tension adjustable back upholstery
Zippered pockets in upholstery
Variants and details
| RD12 | RD14 | RD16 | |
|---|---|---|---|
| Folded height (mm) | 430 | 460 | 460 |
| Folded length (mm) | 860 | 860 | 1015 |
| Folded width (mm) | 585 | 635 | 685 |
| Foot plate angle (°) | -40 | -40 | -40 |
| Headrest extension (mm) | 200 | 200 | 200 |
| Overall height (mm) | 1090 | 1120 | 1140 |
| Overall length (mm) | 890 | 890 | 915 |
| Overall width (mm) | 585 | 635 | 685 |
| Push handle adjustments (mm) | 880-1290 | 890-1320 | 930-1360 |
| Recline adjustment (°) | 90° or 110° | 90° or 110° | 90° or 110° |
| Seat back height (mm) | 560 | 610 | 635 |
| Seat depth (mm) | 230-360 | 280-410 | 330-460 |
| Seat to flipped individual angle adjustable footplate (mm) | 115-235 | 110-280 | 185-340 |
| Seat to flipped one piece angle adjustable footplate (mm) | 130-285 | 180-340 | 235-390 |
| Seat to floor (mm) | 530 | 560 | 560 |
| Seat to individual angle adjustable footplate (mm) | 180-330 | 240-395 | 305-460 |
| Seat to one piece angle adjustable footplate (mm) | 230-360 | 280-410 | 305-460 |
| Seat width (mm) | 305 | 355 | 405 |
| Shoulder strap height (mm) | 380-530 | 410-560 | 460-610 |
| Tilt in space tilt angle (°) | 5° - 45° | 5° - 45° | 5° - 45° |
| Total weight (kg) | 15 | 17 | 18 |
| Weight capacity (kg) | 34 | 45.5 | 77 |
| Weight seat unit (kg) | 15 | 17 | 18 |
Options
Frame options
Adjustable 90° or 110° recline
Rodeo without seating frame
Height adjustable flip-up armrest
Tyre options
7.5” X 2” Front air tyres
Footplate options
One-piece height adjustable footplate
Transit options
Transit ready frame
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
