R82 Manatee

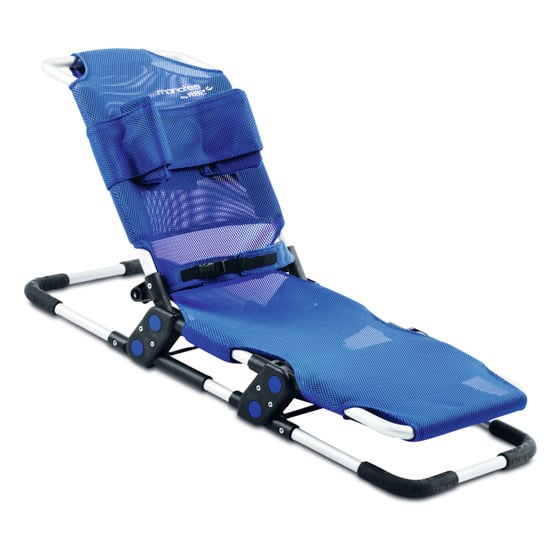

The Manatee is constructed to provide both the user and caregiver with a good bathing experience.

The bathing chair is designed to place the user in a sitting or supine position. The depth of the seat can be adjusted, allowing the bathing chair to "grow" with the child and provides many years of use. The adjustments and accessories are logically positioned, affording the carer better working conditions. The Manatee is very lightweight and can easily be folded for storage or transportation.

The Manatee is a bathing chair suitable for children from the age of 1 year. Not all children are alike - that is why it is important to use the measuring chart to find the correct size for your child.

Features

Provides depth adjustment for growth

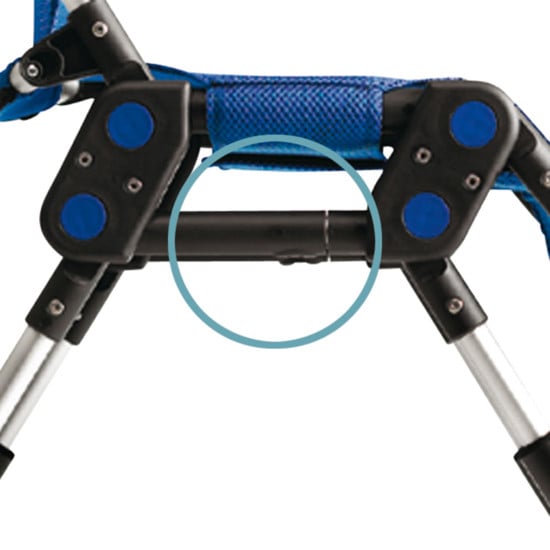

Depth adjustable seat

Provides depth adjustment for growth.
Allow adjustments of the back and of the lower leg support with a simple pull of a strap or push of a button

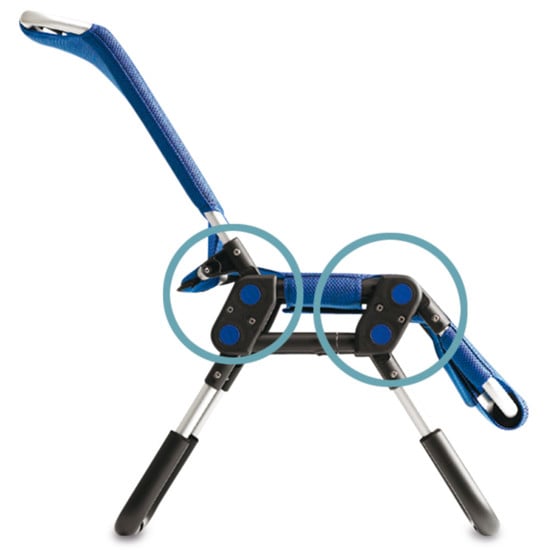

Adjustable back and leg rests

Allows adjustments of the back and of the lower leg support with a simple pull of a strap or push of a button.
Provides support and comfort for bathing children. Cushions can be used for head or torso support

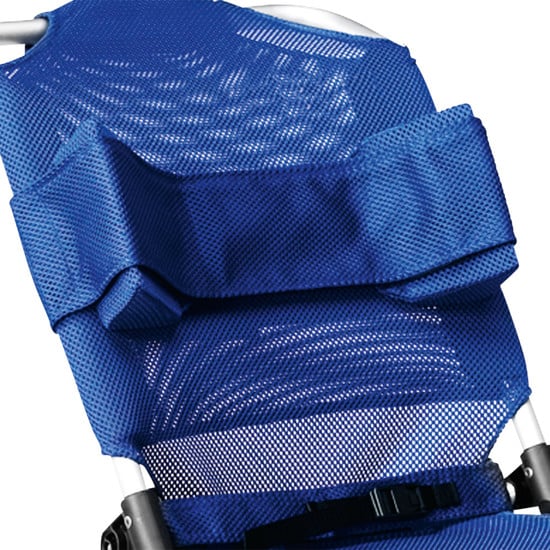

Head cushion/lateral support

Provides support and comfort for bathing children. Cushions can be used for head or torso support.
Supports the child safely in the Manatee

Adjustable waist strap

Supports the child safely in the Manatee.

Standard specifications

Size 0
Size 1
Size 2
Size 3
Backrest height (inch) 17 17 22.75 25.25
Effective seat depth (inch) 8.75-9.75 11.75-14.5 15.25-18 15.75-18.5
Folded height (inch) 5 5 5 5
Folded length (inch) 40.5-43.25 43-46 53.5-56.25 56.75-59.5
Lower leg length (inch) 11 11 13.75 13.75
Mass device (lbs) 12.1 12.1 13.2 15.4
Maximum rated load (lbs) 126.7 126.7 182.9 185.1
Maximum user mass (lbs) 110.2 110.2 165.3 165.3
Maximum user weight (lbs) 110.2 110.2 165.3 165.3
Overall width (inch) 16.5 16.5 16.5 19.25
Seat surface height at front edge (inch) 5.5-17 5.5-17 5.5-17 5.5-17

Options

The Manatee is available in two different colors. Size 0 is only available with blue cover.

Red

Blue

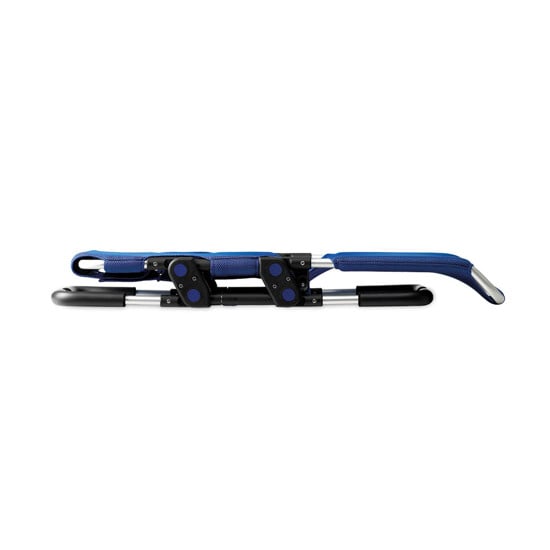

The Manatee can be lowered to within 5” of bottom of the bath. It is lightweight and it folds flat for storage. also the seat can be placed directly into an ordinary bath tub

It is lightweight and it folds flat for storage. The seat can also be placed directly into an ordinary bath tub

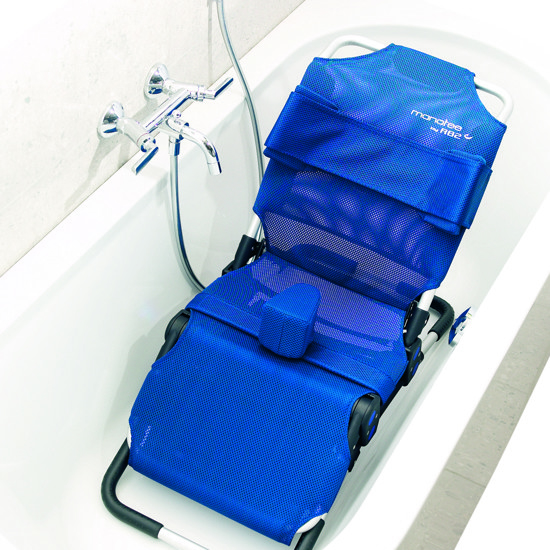

The seat can be placed directly into an odinary bath tub

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
