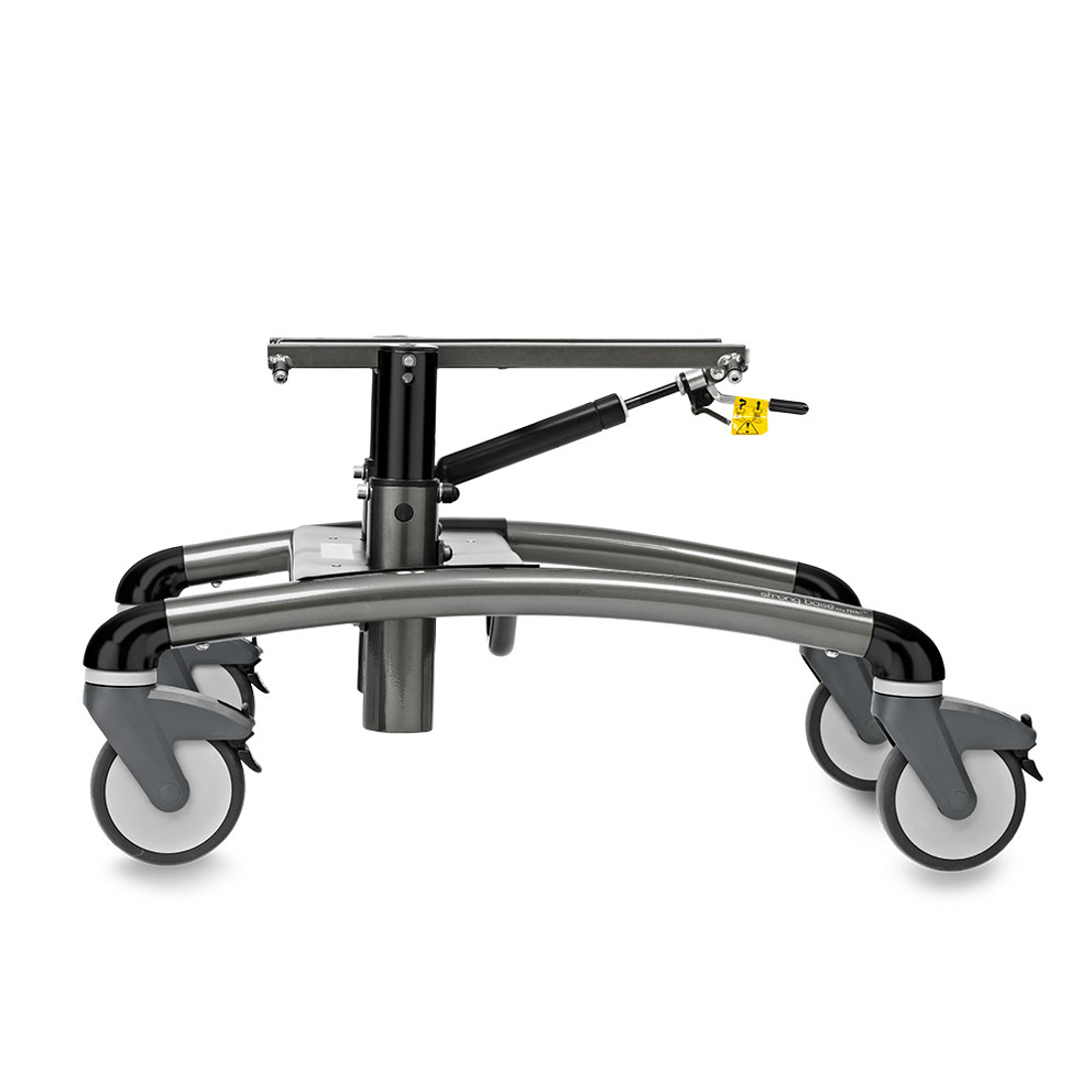

R82 Strong Base

The Strong Base is a simple, stable and strong base for large seat units such as the Panda Futura 5 and the x:panda 4 from R82.

Seat units are mounted either directly onto the Strong Base or by means of an interface making it easy to switch between frames. The Strong Base is equipped with four smooth running castors which makes it easy to move the frame around, either unaided or with help from an assistant. The Strong Base comes in one size and in two versions, with either manual or spindle height adjustment. Max. load on the Strong Base is 264 lbs.

Features

R82 Strong Base

Easy to maneuver

The smooth running castors make it very easy to move the Strong Base around. All four castors are equipped with directional stabilizers and brakes.
R82 Strong Base

Height adjustment

The Strong Base has either manual or spindle height adjustment. The manual base adjust from 11¾” to 21½” in height - the spindle base adjust from 11¾” to 20” in height.
R82 Strong Base

Tilt in space

The tilt in space function helps obtain varied seating positions. Simply angle the complete unit into desired position. Tilt in space from -10 to +25°.
R82 Strong Base

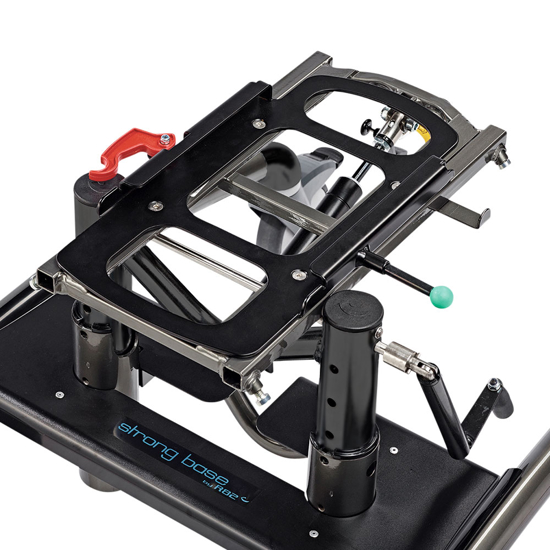

Fixed mounting or interface

Various seats can be mounted directly onto the Strong Base. Alternatively the seats can be mounted by means of an interface.

Standard specifications

Manual
Spindle
Item number 89508-1M 89508-1S
Footrest to adaptor plate (inch) 6,25-13,75 6,25-13,75
Length (inch) 27.25 27.25
Length with pushbar (inch) 32.75 32.75
Mass device (lbs) 30.8 34.1
Max load (lbs) 264.5 264.5
Maximum rated load (lbs) 299.8 303.1
Overall height (inch) 11,75-21,75 11,75-21,75
Overall height, push brace (inch) 11,75-21,75 31,25-39,5
Overall length (inch) 32.75 32.75
Overall width (inch) 23.5 23.5
Seat plane angle (°) (-10) - 25 (-10) - 25
Total mass (lbs) 30.8 34.1

Options

We recommend Panda Futura seat size 5 or x:panda seat size 4 on the Strong Base frame.

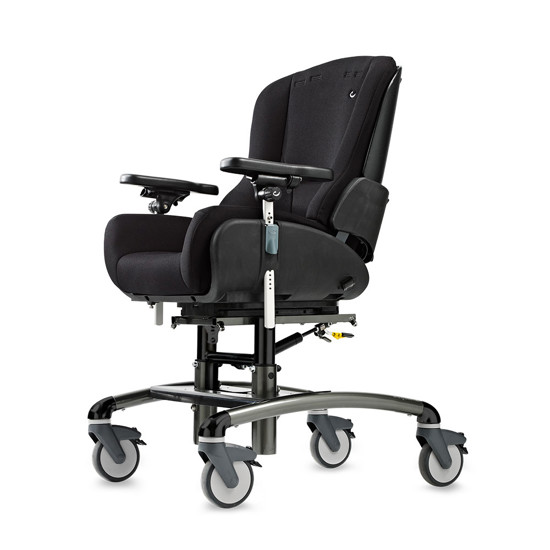

Panda 5 seat on a Strong base

Panda 5 seat on a Strong base

x:panda 4 seat on strong base

x:panda 4 seat on strong base

The frames are available as either manual or spindle height adjustment.

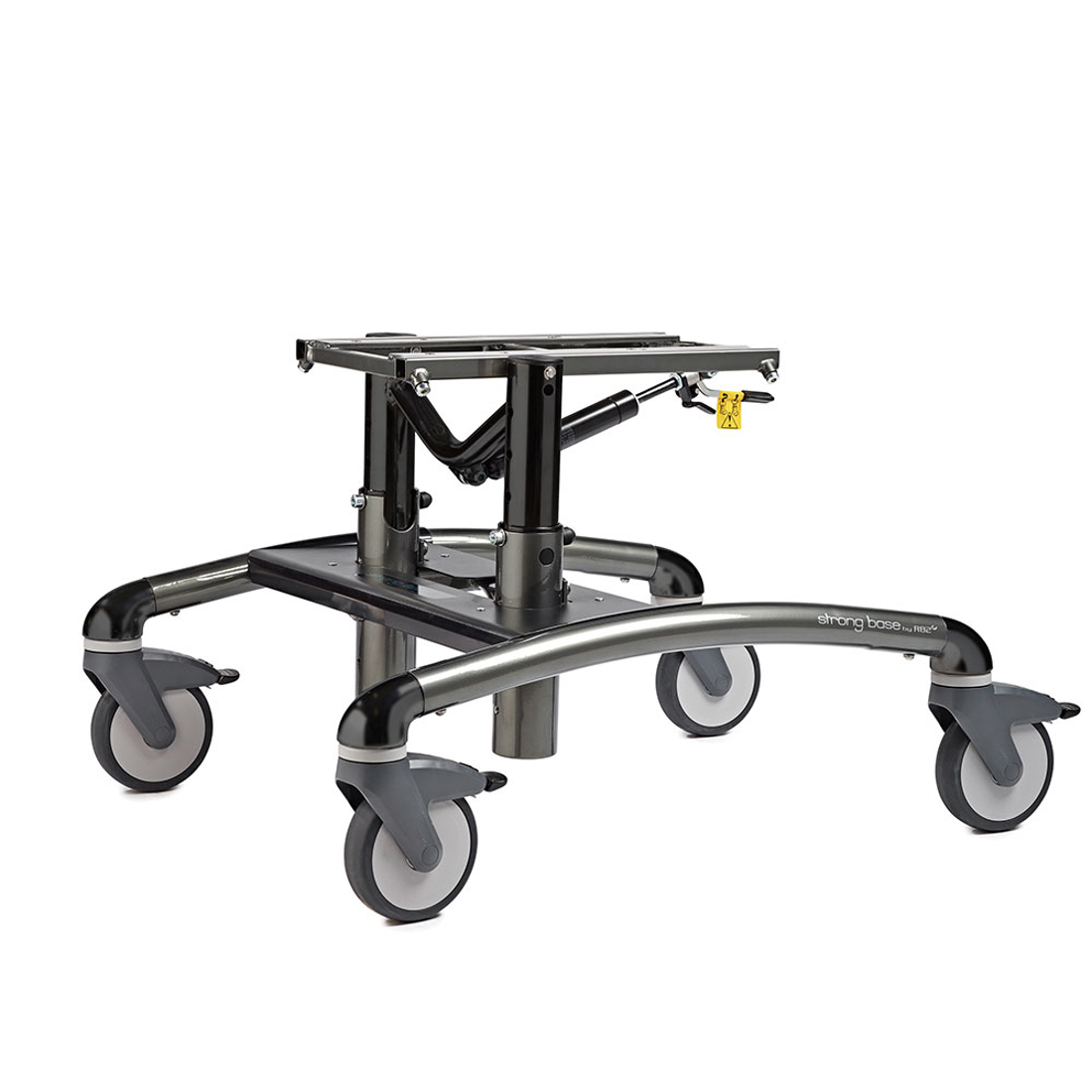

Manual

Manual

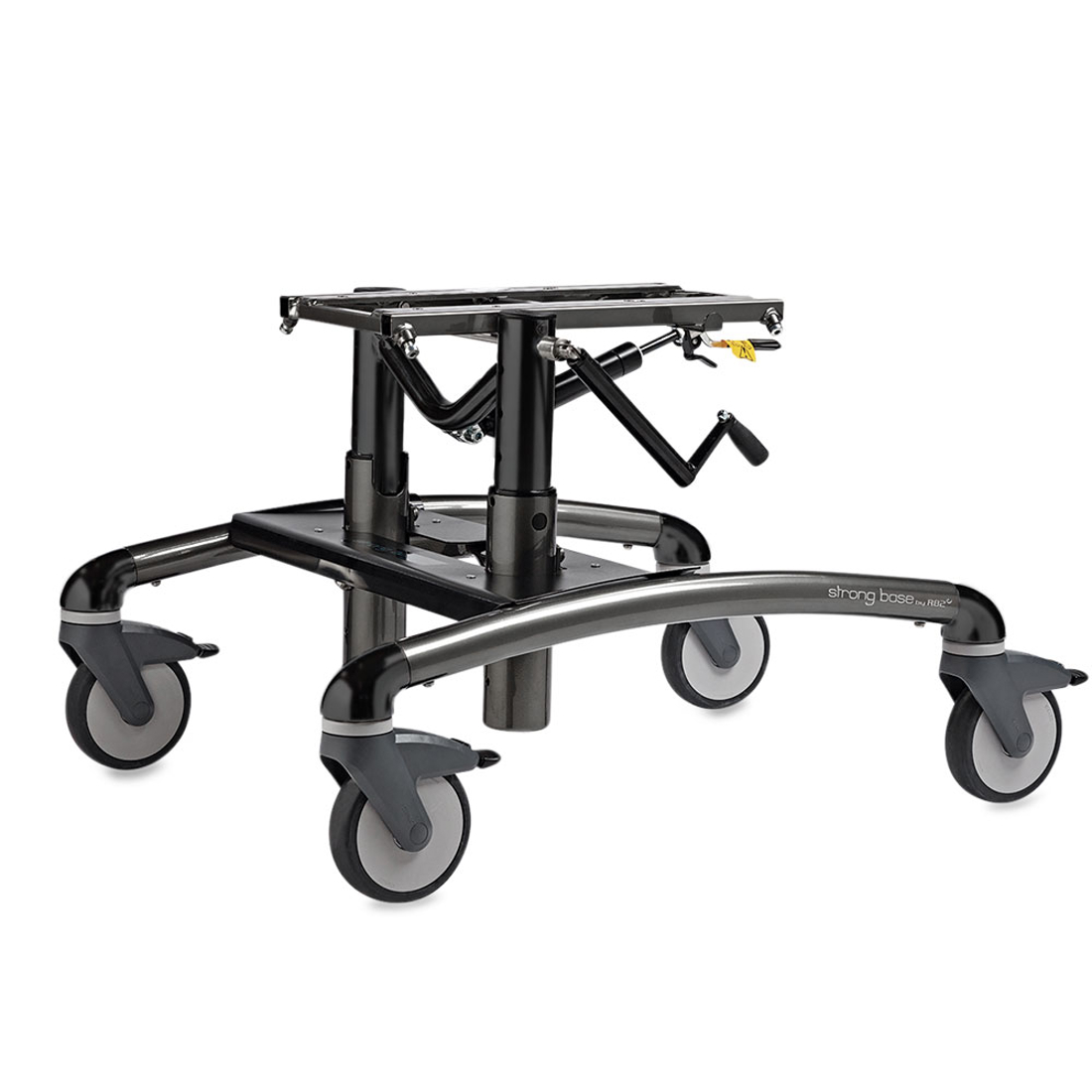

Spindle

Spindle
