R82 High-low Frame

The High-low Frame is a stable base with a user friendly height adjustment from floor to table height.

The High-low Frame is available either as an indoor frame with small lockable castors or as an outdoor frame with large wheels and foot brake.

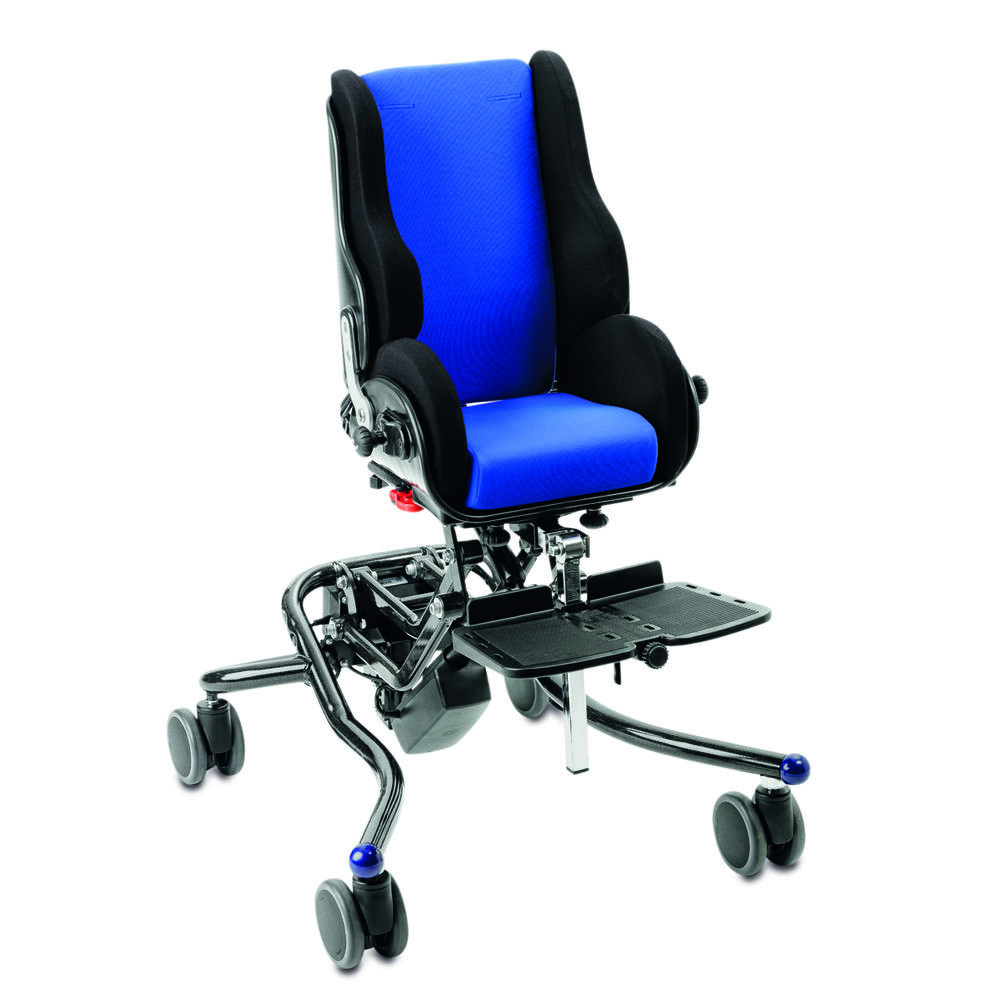

The frames are available with either gas or power height adjustment. The frames accommodate various seats, e.g. the Panda Futura seats from R82.

The High-low Frame is available in one size. The High-low Frame max load is 60 kg.

Features

The High-low Frame, outdoor, complies with the international transit wheelchair standard ISO 7176-19. The High-low Frame, outdoor, can be used with seat units that comply with ISO 16840-4

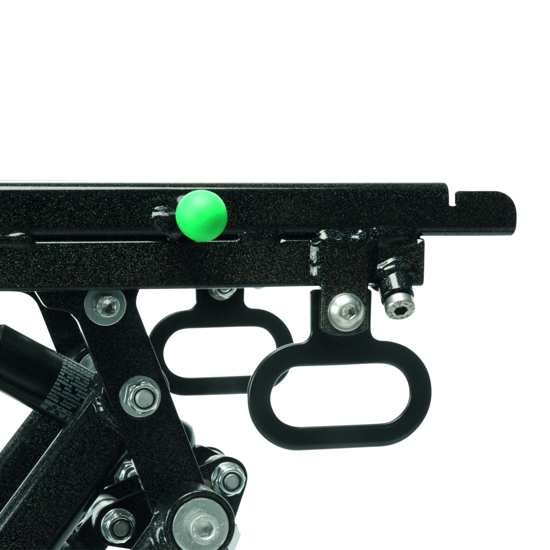

Safe transportation in vehicles

The High-low Frame, outdoor, complies with the international transit wheelchair standard ISO 7176-19. The High-low Frame, outdoor, can be used with seat units that comply with ISO 16840-4

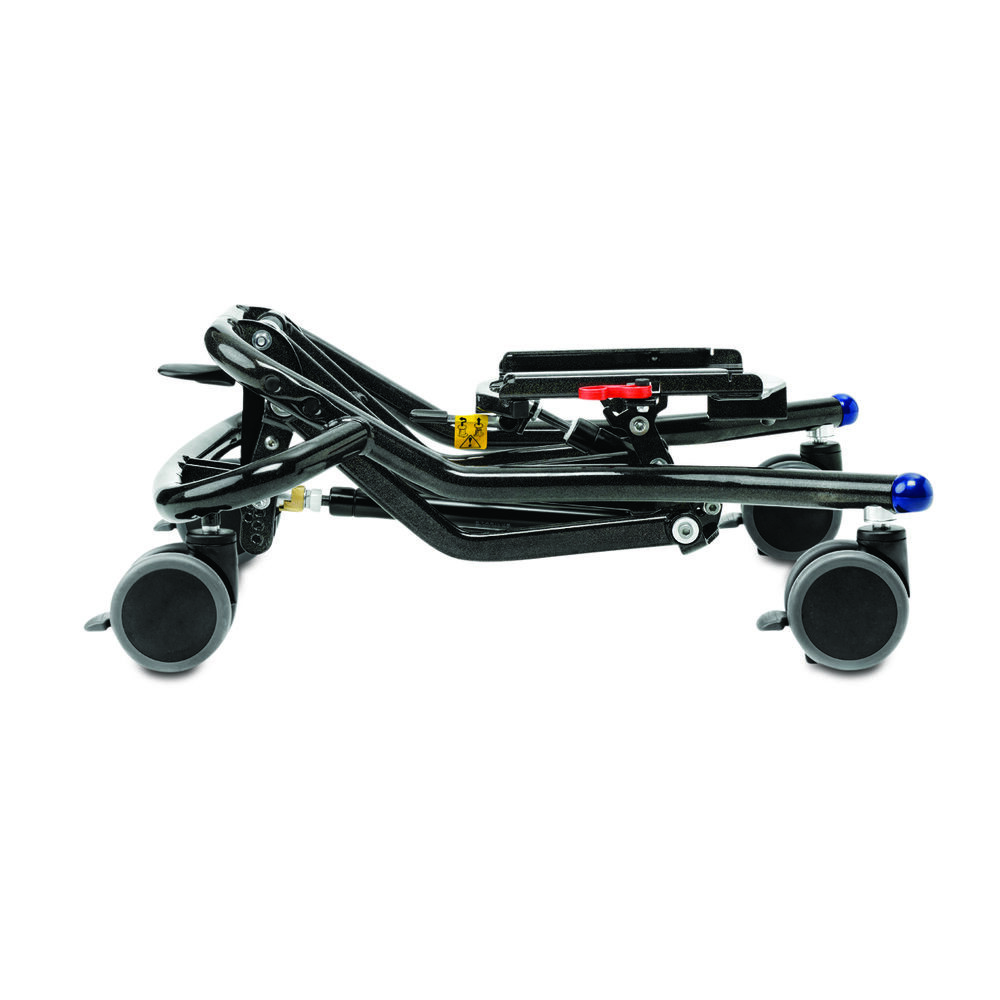

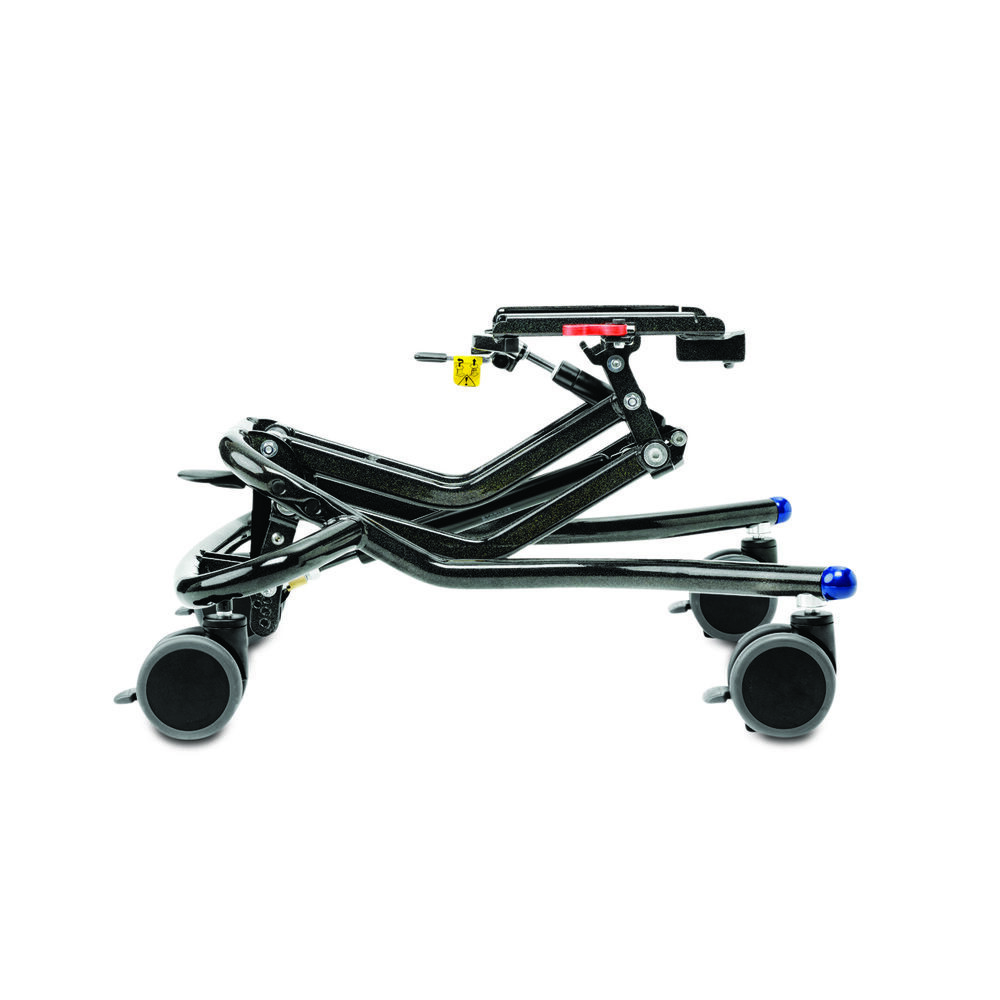

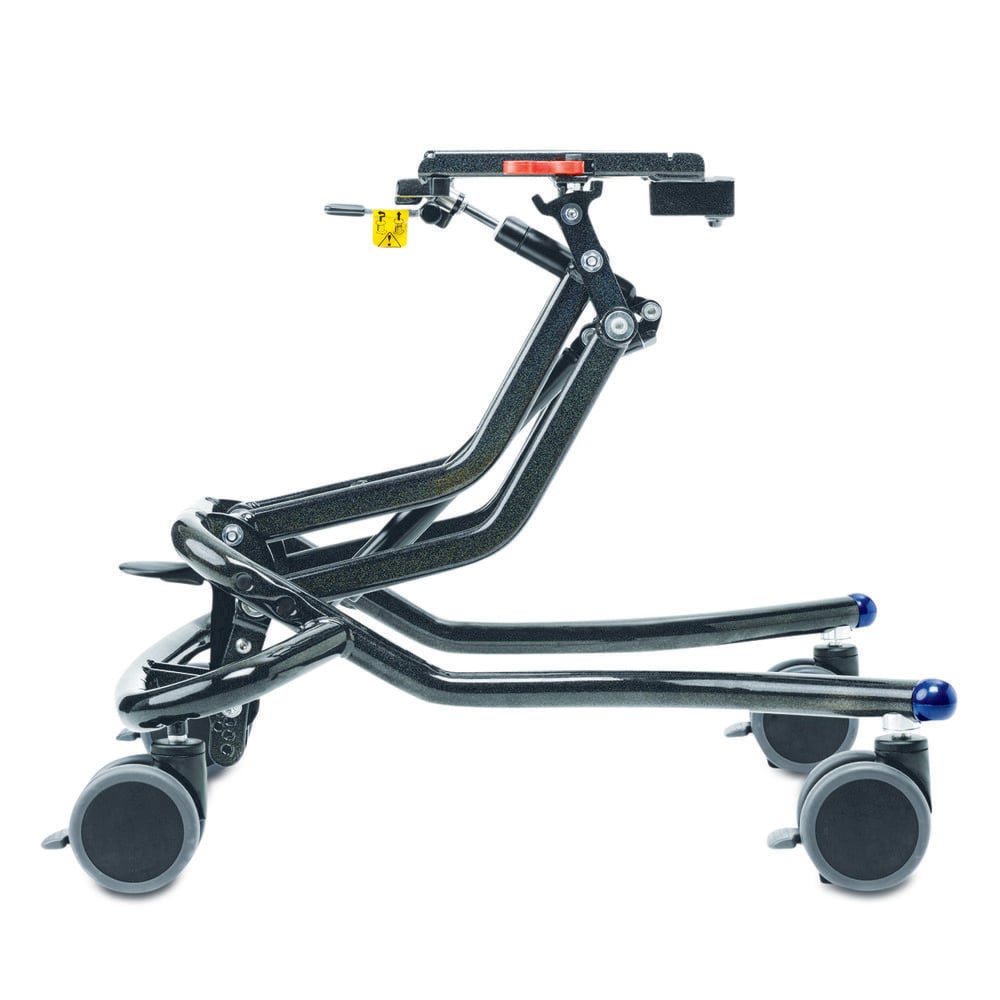

The height is adjustable from floor to table height. The frames are available with either gas or power height adjustment

Height adjustment

The height is adjustable from floor to table height. The frames are available with either gas or power height adjustment
Various seats can be mounted on the High-low Frame by means of an interface

Interface

Various seats can be mounted on the High-low Frame by means of an interface
The seat base has an angle range of 40° which helps obtain varied seating positions. The base can be set to angle from 0° to 30° or from -10° to 20°

Angling of seat base

The seat base has an angle range of 40° which helps obtain varied seating positions. The base can be set to angle from 0° to 30° or from -10° to 20°

Standard specifications

Indoor frame with gas
Indoor frame with power
Outdoor frame with gas
Outdoor frame with power
Item number 89505-03 89505-03EL 89516-03 89516-03EL
Footrest to adaptor plate (inch) 2-11.5 2-11.5 2-11.5 2-11.5
Length (inch) 27.25 27.25 37.75 37.75
Mass device (lbs) 27.1 28.2 38.5 39.6
Max load (lbs) 132.25 132.25 132.25 132.25
Max load at transportation (lbs) - - 94.75 94.75
Maximum rated load (lbs) 163.8 164.9 175.2 176.3
Overall width (inch) 22 22 24.5 24.5
Seat plane angle (°) (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30
Seat surface height at front edge (inch) 6.75-23.5 6.75-23.5 10.25-27.5 10.25-27.5

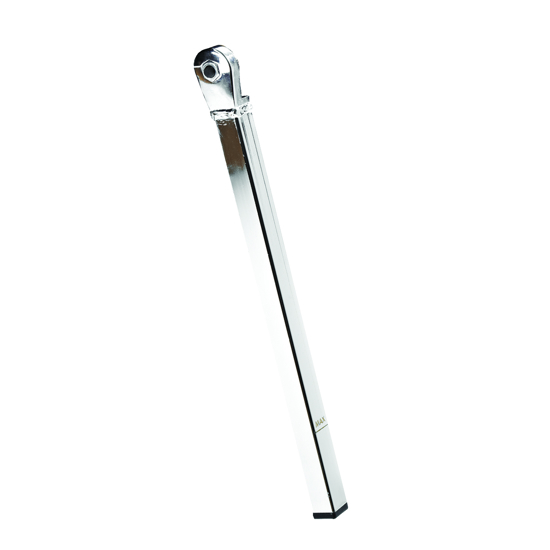

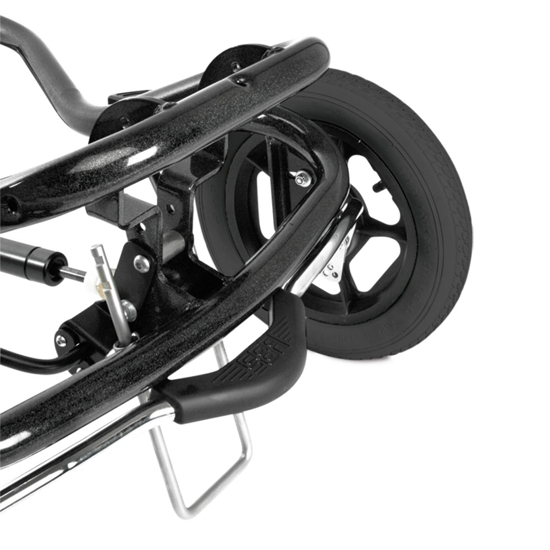

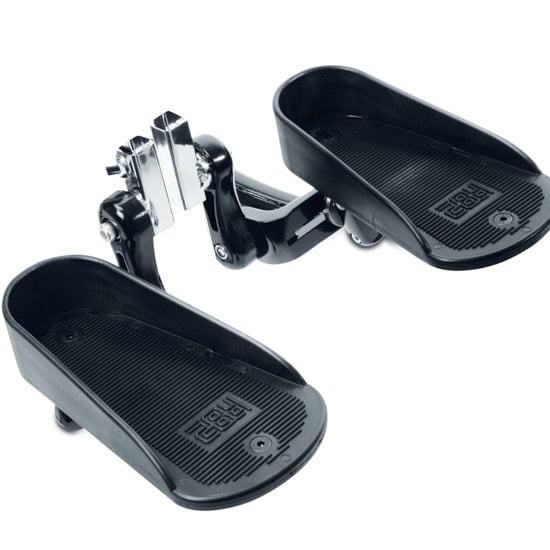

Options

The height is adjustable from floor to table height

Panda Futura: We recommend seat size 1-4 on the High-low frame
