Molift Air 500

For comfortable and dignified care of plus-size users (SWL 1100 lbs)

Molift Air 500 is a ceiling lift for plus-size users up to 500 kg. It is designed to eliminate strenuous manual lifting, create a better working environment for carers, and provide dignified care for the users. The outstanding lifting capacity and user-friendly design make this lift an essential aid in healthcare.

Maximum comfort and ease of use
The Molift Air 500 combines ease of use for staff, with maximum comfort and dignified care for users. Smooth rail transitions and gentle starts and stops ensure the most comfortable and effective lifts and transfers for users while ensuring that they feel secure and supported at every stage.

When less time and effort are required for lifting and moving users, carers’ capacity for better, more personal care is freed up. As a result, the quality of care provided improves, while staff injuries, sick days and turnover lessen.

Low product lifecycle costs
The Molift Air 500 features an attractive design and carefully chosen materials. The solution is built around a single motor unit and a single strap, which makes the unit very compact and blends perfectly into the environment. The lift has also been engineered for maximum durability and low lifetime service costs, making it a good investment for any care environment.

Together with the Molift Rail system and slings, the Molift Air 500 solves most daily lifting situations in healthcare and other patient handling environments. It’s a complete solution for all healthcare segments.


Molift Air 500

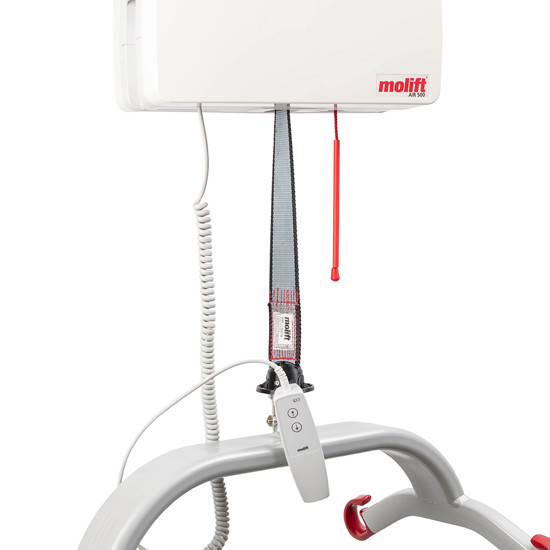

A large lifting interval

Molift Air 500 has a 118-inch lifting strap as standard. The increased length means that lifting from the floor is possible. The Molift 4-point sling bar gives greater headroom for the user.
Molift Air 500

Outstanding lifting capacity

Air 500 has a lift capacity (SWL) of 1100 lbs. The size and weight of the lift make it very easy to use for the carer, during different transfer situations.
Molift Air 500

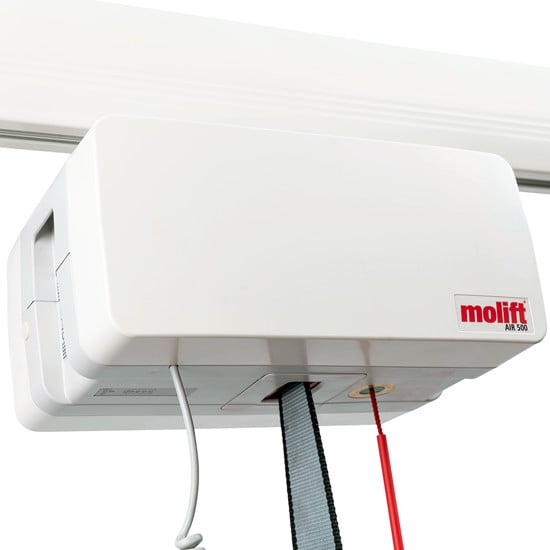

Single motor unit for 1,100 lbs

The single motor unit is compact and blends perfectly into the environment. A single strap solution is intuitive and easy to use.
Molift Air 500

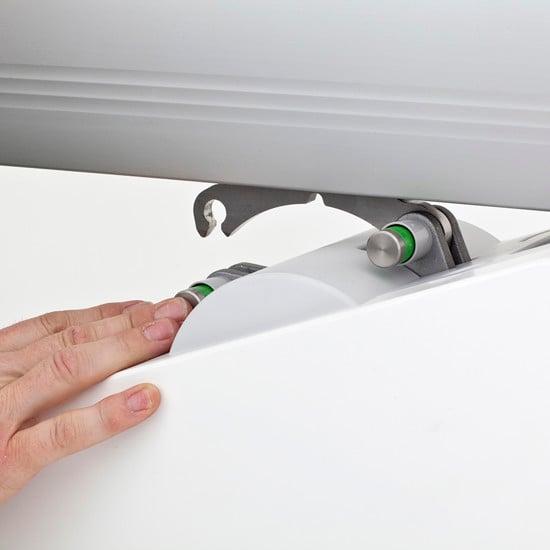

Quick-release device for trolley

Molift Air 500 is easy to handle during installation and servicing due to its clever, quick and safe release function. With a simple grip, the lift is connected to/disconnected from its trolley with a simple grip.

Standard specifications

Molift Air 500
Item number M26500
Battery 12 V SLA 2.9 Ah
Battery charge time (hours) 6
Battery charger 100-240 V AC, 50-60 Hz
Height (inch) 7.5
Length (inch) 14
Lifting interval (inch) 118
Lifting speed 165 lbs (inch/sec) 2.36
Material Aluminum, Plastic, Steel
Maximum user weight (lbs) 1100
Protection class IP24
Weight (lbs) 31
Width (inch) 10
