R82 Swan

The Swan is a stable and simple toilet and bathing chair suitable for children and youngsters.

The seat is a smooth shell, which makes it easy to clean. The frame and castors are stainless steel and with rust-proofed surfaces. The shell supports the trunk and shoulders and gives the user good trunk stability. The frame is height adjustable which is important for the carer to be able to use easily and tilt in space comes as standard.

The Swan comes in 6 different sizes and two versions. Size 2 - 3 include a built-in pommel. Size 4 - 7 includes a removable splash guard.

Features

Tilts 20° for the child’s comfort and positioning

Tilt in space

Tilts 20° for the child’s comfort and positioning.
The Swan has a carefully designed shape that follows the user's contours for improved stability and comfort shape

Anatomical shape

The Swan has a perfect anatomical shape.
The stainless steel legs adjust to accommodate most toilets

Height adjustable

The stainless steel legs adjust to accommodate most toilets.
For use of pan inside or outside the bathroom

Holder for pan

For use when away from the toilet. A commode pan helps to create a flexible and convenient toileting solution.

Standard specifications

Size 2
Size 3
Size 4
Size 5
Size 6
Size 7
Item number 87002 87003 87044 87045 87046 87047
Aperture W x D (inch) 4.25x6 4,75x7,75 5x7,5 6x9,75 6x12,75 6x12
Back width, bottom of backrest (inch) 9.5 10 11 12 13.75 16.75
Back width, top of backrest (inch) 8.75 9.75 12 15.25 18 19
Backrest height (inch) 15 15.75 16.5 19 22.5 22.5
Effective seat depth (inch) 10,5 12,75 12,75 14,75 18 18
Length, with wheels (inch) 18 22 22 22 24.25 24.25
Length, without wheels (inch) 15.25 19.5 19.5 19.5 21.5 21.5
Mass device (lbs) 17.5 18.75 21 21 23.25 25.25
Maximum rated load (lbs) 88.1 155.4 179.6 201.7 225.9 272.2
Maximum user mass (lbs) 66.25 132.25 154.25 176.25 198.5 242.5
Maximum user weight (lbs) 66.25 132.25 154.25 176.25 198.5 242.5
Minimum turning diameter (inch) 56 63 63 61.5 74 74
Overall height with wheels (inch) 26.75-33 28-34.25 30.25-37 31-37.5 33.25-40.25 33.25-40.25
Overall height without wheels (inch) 23.25-29.5 24.5-30.25 27.25-33.5 27.5-33.75 30.25-36.5 30.25-36.5
Overall width without wheels (inch) 18 19.75 19.75 19.75 21.25 24.5
Overall width, with wheels (inch) 19.5 21 21 21 22.75 25.75
Required width of right angled corridor (inch) 28 31.5 31.5 30.75 37 37
Seat plane angle (°) 18 18 20 20 22 27
Seat surface height at front edge, with wheels (inch) 14,5-20,5 18,75-25 18,75-25 18,75-25 18,75-25 18,75-25
Seat surface height at front edge, without wheels (inch) 11-17 15,25-21,5 15,25-21,5 15,25-21,5 15,25-21,5 15,25-21,5
Seat width front (inch) 11,75 13,25 14 14,75 16,75 18,5

Options

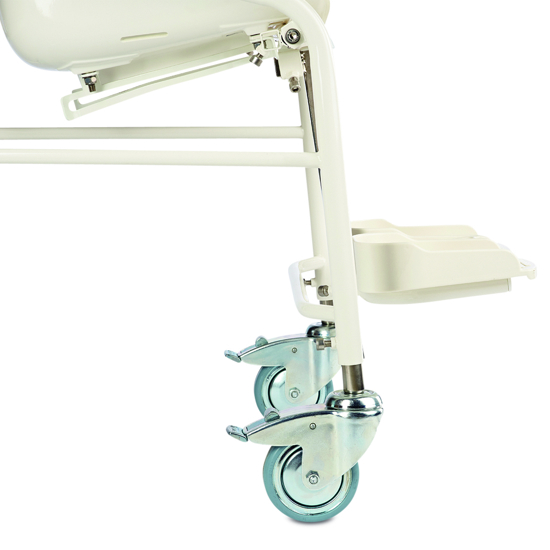

Size 2-3 is delivered without castors. Size 4-7 is delivered with castors.

Without castors (size 2+3)

With castors (size 4+5+6+7)

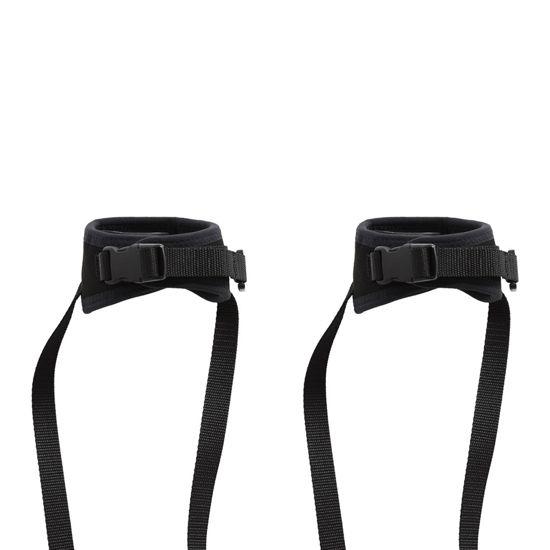

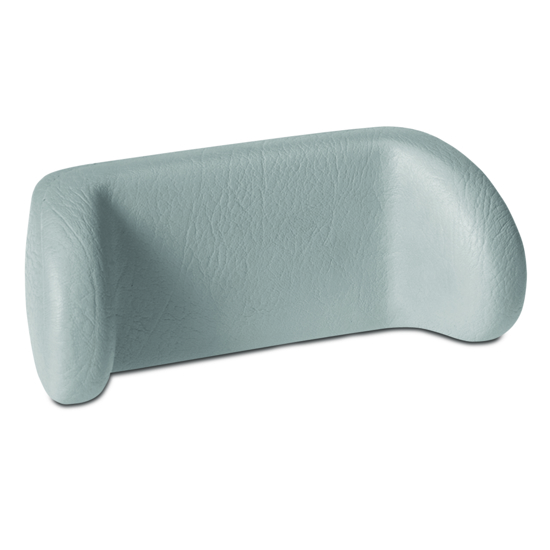

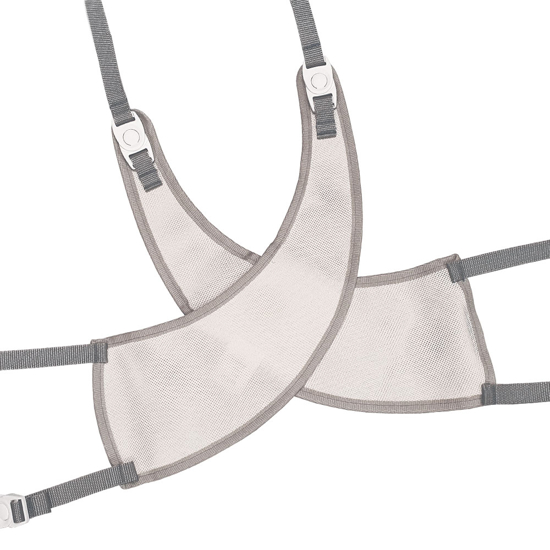

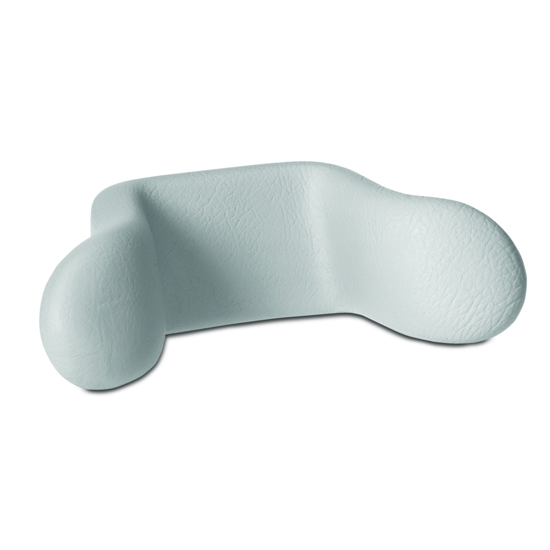

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
