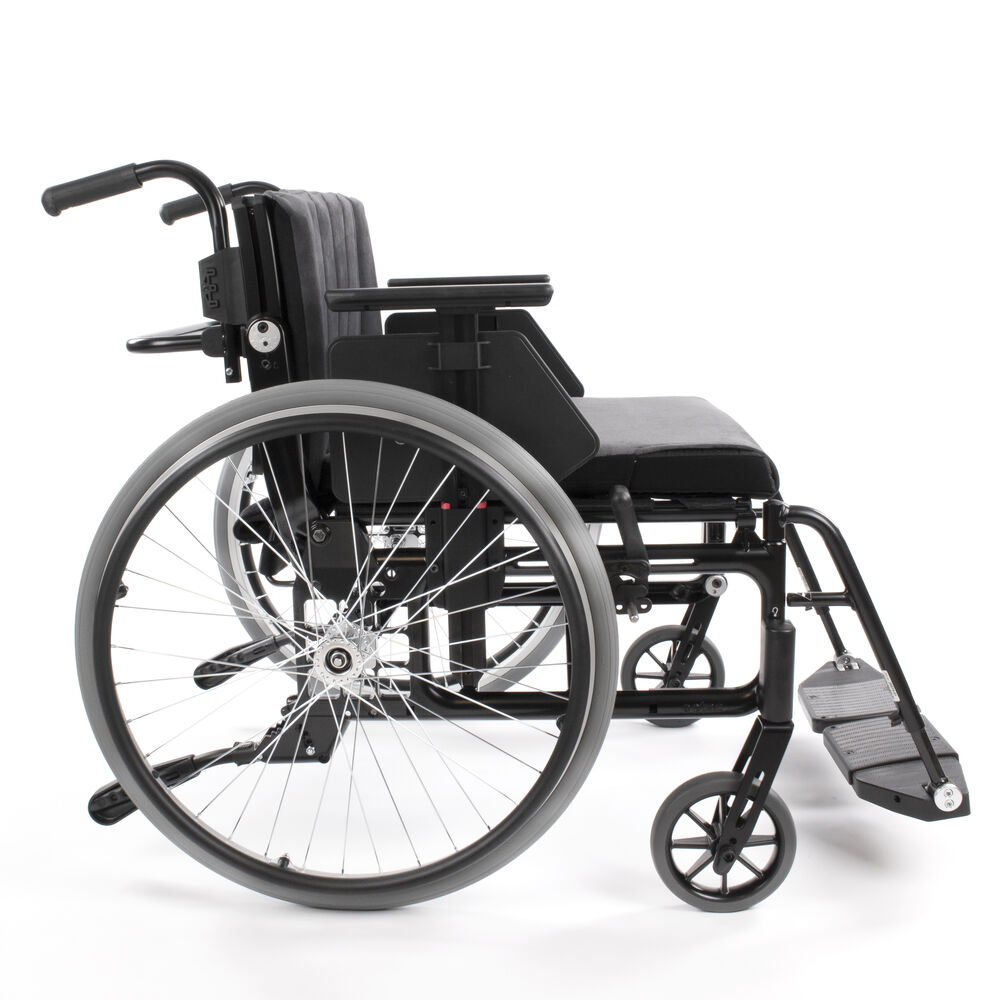

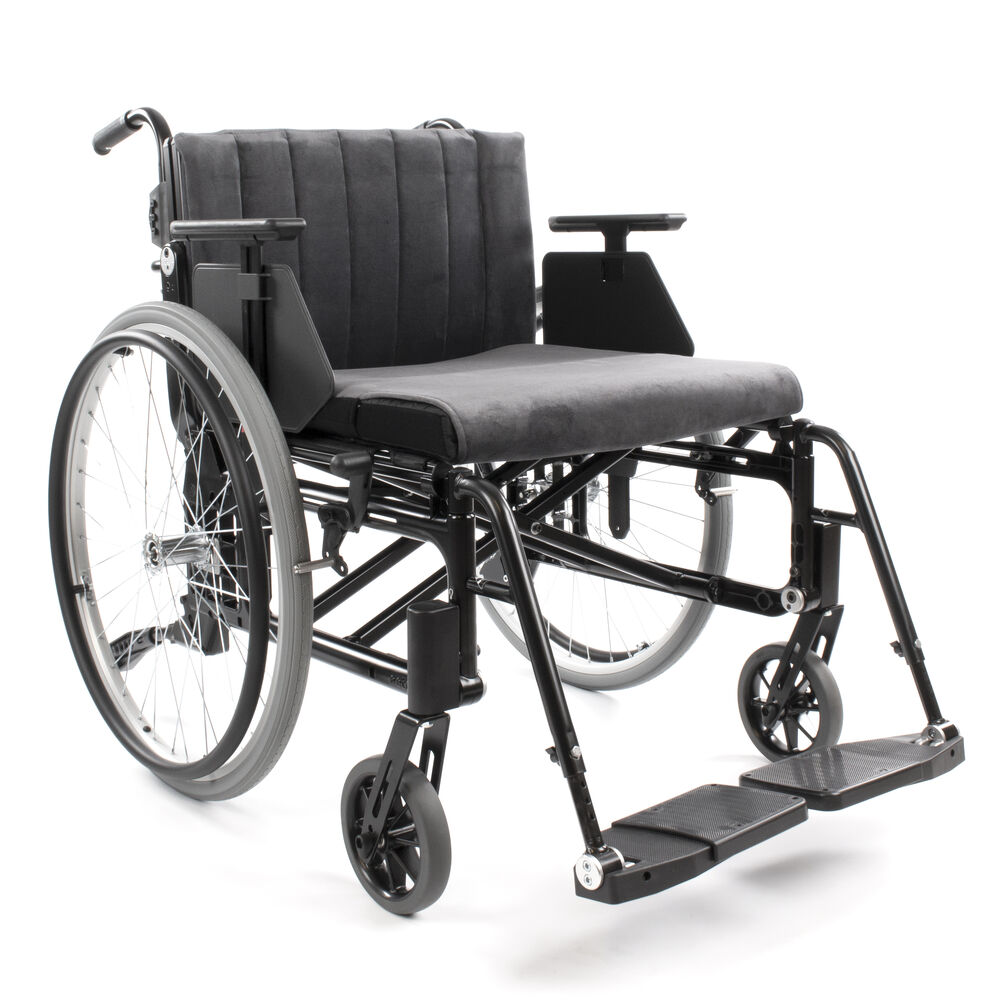

Etac Cross 5 XL wheelchair
Combines maximum comfort with optimum functionality.
The best seating and propulsion
The combination of an adequate seat width and the unique 3A back support adjustments enable a voluminous user sufficient space for the trunk.
Powerful and elegant
Cross 5 XL wheelchair has the same conditions for seat comfort and mobility as Cross 5. The multi adjustable 3A back support can be set to provide extra space at rear and enabling perfect trunk balance. The shape is fine-tuned with the tension adjustable back straps. Also Cross 5 XL responds rapidly while propelling and turning thanks to the chassis' unique stability.
36 + 2 rear wheel positions
3A Back Support
Double cross brace
Extra low seat height
Variants and details
|Item number||Seat depth (mm)||Seat width (mm)||Total width (mm)||Weight (kg)||Weight with attendant brakes (kg)||Width with attendant brakes (mm)|
|47.5 cm short||13123111||360-420 +70*||475||685||15,9||17.5||695|
|47.5 cm long||13123112||420-480 +70*||475||685||16,1||17.7||695|
|50 cm short||13123113||360-420 +70*||500||710||16||17.6||720|
|50 cm long||13123114||420-480 +70*||500||710||16,2||17.8||720|
|52.5 cm short||13123115||360-420 +70*||525||735||16,1||17.7||745|
|52.5 cm long||13123116||420-480 +70*||525||735||16,3||17.9||745|
|55 cm short||13123117||360-420 +70*||550||760||16,3||17.9||770|
|55 cm long||13123118||420-480 +70*||550||760||16,5||18.1||770|
|57.5 cm short||13123119||360-420 +70*||575||785||16,4||18||795|
|57.5 cm long||13123120||420-480 +70*||575||785||16,6||18.2||795|
|60 cm short||13123121||360-420 +70*||600||810||16,5||18.1||820|
|60 cm long||13123122||420-480 +70*||600||810||16,7||18.3||820|
Front seat height: 34-56.5 cm Rear seat height: 34-53 cm Back support height: 32–45 cm with standard back support 3A. Back support 3A high: 38—51 cm. Transport width: 32 cm *Seat depth: Measured with 3A triangular back Weight: With solid tires and stainless handrim +1.3 kg. Maximun user weight Cross 5 XL: 160 kg Weights and dimensions given are for a chair with 24" rear wheels with quick-release hubs, massive tire, stainless handrims, leg supports, foot supports, heel straps, cross brace, brakes, arm supports, 6½" castors with medium forks. The measurements given may vary by +- 2%.
Head support, plush

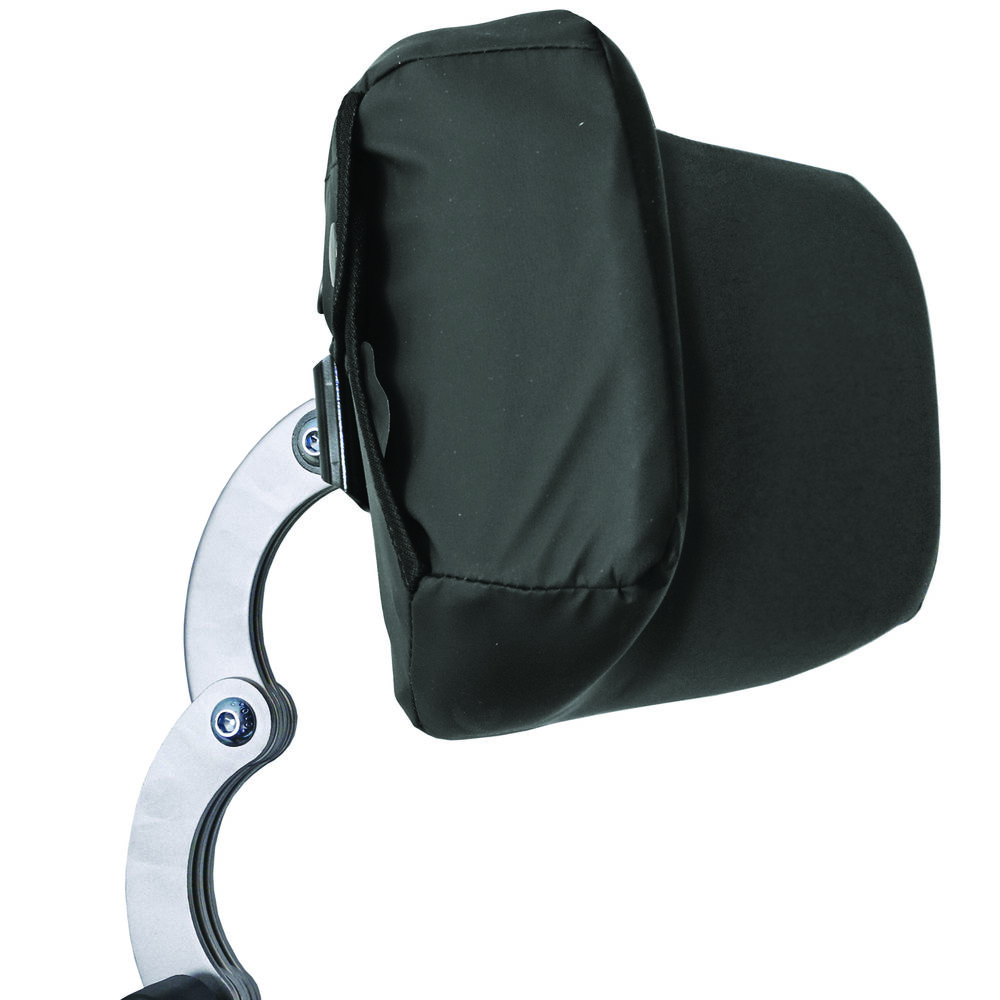

Head Support traditional, Hygiene
Head support with side support
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
