StarLock
Combines excellent pressure redistribution qualities with high stability.
Air Cell Locking Technology
In air cell cushions the combination of pressure redistributing qualities, positioning and stability have always been a difficult compromise. StarLock solves all these requirements.
With its patented Cell Locking technology, the flow between the StarLock air cells can be locked and thus be custom fitted to the user´s needs for positioning and stability while keeping it’s high pressure redisributing qualities. StarLock cushions provide the highest level of therapeutic prevention and treatment of pressure ulcers, for all pressure ulcers categories together with unique positioning possibillities and stability. Starlock is avaliable in heights of 5, 7.5, 10 and 13 cm. For users with severe atrophy in the gluteal area, we recommend 13 cm cell height. The Starlock cushion can also easily be used as a one compartment cushion.
Case story - Ian´s pressure ulcer improved in only 2 weeks using the StarLock air cell cushion
Read about Ian, who had to spend hours every day on bed rest due to a grade 4 pressure ulcer which wouldn´t heal. When he started to use the StarLock, the pressure ulcer started to improve after only 2 weeks.
Features
Pressure free zones
Locking down cells in a selected area of the cushion can relieve pressure on particularly vulnerable areas.
Corrective Stability
The StarLock air cell locking technology provides maximum stability and combines unique positioning possibilities with excellent pressure redistribution qualities.
Immersion and envelopment
The air cell design allows the user to immerse into the cushion. Higher cells provide the best envelopment. The StarLock is available in 5, 7.5, 10 and 13 cm cell heights.
Pressure redistribution
The StarLock cushion has excellent pressure redistribution properties. The air cells adapt to the body structure, minimizing tissue deformation. Perfect for prevention and treatment of pressure ulcers.
Variants and details
| Item number | A x B: Cell amount (W x D) | Cell height (mm) | Cell width (mm) | Maximum user weight | Suits wheelchair seat (mm) | |
|---|---|---|---|---|---|---|
| 26 x 26 cm | ESSL20909-1 | 5x5 | 50 | 50 | Unlimited | 220-250 |
| 26 x 30 cm | ESSL20911-1 | 5x6 | 50 | 50 | Unlimited | 220-250 |
| 26 x 34 cm | ESSL20913-1 | 5x7 | 50 | 50 | Unlimited | 220-250 |
| 30 x 26 cm | ESSL21109-1 | 6x5 | 50 | 50 | Unlimited | 260-300 |
| 30 x 30 cm | ESSL21111-1 | 6x6 | 50 | 50 | Unlimited | 260-300 |
| 30 x 34 cm | ESSL21113-1 | 6x7 | 50 | 50 | Unlimited | 260-300 |
| 30 x 39 cm | ESSL21115-1 | 6x8 | 50 | 50 | Unlimited | 260-300 |
| 34 x 26 cm | ESSL21309-1 | 7x5 | 50 | 50 | Unlimited | 310-350 |
| 34 x 30 cm | ESSL21311-1 | 7x6 | 50 | 50 | Unlimited | 310-350 |
| 34 x 34 cm | ESSL21313-1 | 7x7 | 50 | 50 | Unlimited | 310-350 |
| 34 x 39 cm | ESSL21315-1 | 7x8 | 50 | 50 | Unlimited | 310-350 |
| 34 x 44 cm | ESSL21317-1 | 7x9 | 50 | 50 | Unlimited | 310-350 |
| 39 x 30 cm | ESSL21511-1 | 8x6 | 50 | 50 | Unlimited | 360-400 |
| 39 x 34 cm | ESSL21513-1 | 8x7 | 50 | 50 | Unlimited | 360-400 |
| 39 x 39 cm | ESSL21515-1 | 8x8 | 50 | 50 | Unlimited | 360-400 |
| 39 x 44 cm | ESSL21517-1 | 8x9 | 50 | 50 | Unlimited | 360-400 |
| 39 x 49 cm | ESSL21519-1 | 8x10 | 50 | 50 | Unlimited | 360-400 |
| 39 x 53 cm | ESSL21521-1 | 8x11 | 50 | 50 | Unlimited | 360-400 |
| 44 x 34 cm | ESSL21713-1 | 9x7 | 50 | 50 | Unlimited | 400-440 |
| 44 x 39 cm | ESSL21715-1 | 9x8 | 50 | 50 | Unlimited | 400-440 |
| 44 x 44 cm | ESSL21717-1 | 9x9 | 50 | 50 | Unlimited | 400-440 |
| 44 x 49 cm | ESSL21719-1 | 9x10 | 50 | 50 | Unlimited | 400-440 |
| 44 x 53 cm | ESSL21721-1 | 9x11 | 50 | 50 | Unlimited | 400-440 |
| 49 x 39 cm | ESSL21915-1 | 10x8 | 50 | 50 | Unlimited | 440-490 |
| 49 x 44 cm | ESSL21917-1 | 10x9 | 50 | 50 | Unlimited | 440-490 |
| 49 x 49 cm | ESSL21919-1 | 10x10 | 50 | 50 | Unlimited | 440-490 |
| 49 x 53 cm | ESSL21921-1 | 10x11 | 50 | 50 | Unlimited | 440-490 |
| 53 x 39 cm | ESSL22115-1 | 11x8 | 50 | 50 | Unlimited | 490-540 |
| 53 x 44 cm | ESSL22117-1 | 11x9 | 50 | 50 | Unlimited | 490-540 |
| 53 x 49 cm | ESSL22119-1 | 11x10 | 50 | 50 | Unlimited | 490-540 |
| 53 x 53 cm | ESSL22121-1 | 11x11 | 50 | 50 | Unlimited | 490-540 |
| 58 x 44 cm | ESSL22317-1 | 12x9 | 50 | 50 | Unlimited | 540-600 |
| 58 x 49 cm | ESSL22319-1 | 12x10 | 50 | 50 | Unlimited | 540-600 |
| 58 x 53 cm | ESSL22321-1 | 12x11 | 50 | 50 | Unlimited | 540-600 |
| 58 x 58 cm | ESSL22323-1 | 12x12 | 50 | 50 | Unlimited | 540-600 |
| 26 x 26 cm | ESSL30909-1 | 5x5 | 75 | 50 | Unlimited | 220-250 |
| 26 x 30 cm | ESSL30911-1 | 5x6 | 75 | 50 | Unlimited | 220-250 |
| 26 x 34 cm | ESSL30913-1 | 5x7 | 75 | 50 | Unlimited | 220-250 |
| 30 x 26 cm | ESSL31109-1 | 6x5 | 75 | 50 | Unlimited | 260-300 |
| 30 x 30 cm | ESSL31111-1 | 6x6 | 75 | 50 | Unlimited | 260-300 |
| 30 x 34 cm | ESSL31113-1 | 6x7 | 75 | 50 | Unlimited | 260-300 |
| 30 x 39 cm | ESSL31115-1 | 6x8 | 75 | 50 | Unlimited | 260-300 |
| 34 x 26 cm | ESSL31309-1 | 7x5 | 75 | 50 | Unlimited | 310-350 |
| 34 x 30 cm | ESSL31311-1 | 7x6 | 75 | 50 | Unlimited | 310-350 |
| 34 x 34 cm | ESSL31313-1 | 7x7 | 75 | 50 | Unlimited | 310-350 |
| 34 x 39 cm | ESSL31315-1 | 7x8 | 75 | 50 | Unlimited | 310-350 |
| 34 x 44 cm | ESSL31317-1 | 7 x9 | 75 | 50 | Unlimited | 310-350 |
| 39 x 30 cm | ESSL31511-1 | 8x6 | 75 | 50 | Unlimited | 360-400 |
| 39 x 34 cm | ESSL31513-1 | 8x7 | 75 | 50 | Unlimited | 360-400 |
| 39 x 39 cm | ESSL31515-1 | 8x8 | 75 | 50 | Unlimited | 360-400 |
| 39 x 44 cm | ESSL31517-1 | 8x9 | 75 | 50 | Unlimited | 360-400 |
| 39 x 49 cm | ESSL31519-1 | 8x10 | 75 | 50 | Unlimited | 360-400 |
| 39 x 53 cm | ESSL31521-1 | 8x11 | 75 | 50 | Unlimited | 360-400 |
| 44 x 34 cm | ESSL31713-1 | 9x7 | 75 | 50 | Unlimited | 400-440 |
| 44 x 39 cm | ESSL31715-1 | 9x8 | 75 | 50 | Unlimited | 400-440 |
| 44 x 44 cm | ESSL31717-1 | 9x9 | 75 | 50 | Unlimited | 400-440 |
| 44 x 49 cm | ESSL31719-1 | 9x10 | 75 | 50 | Unlimited | 400-440 |
| 44 x 53 cm | ESSL31721-1 | 9x11 | 75 | 50 | Unlimited | 400-440 |
| 49 x 39 cm | ESSL31915-1 | 10x8 | 75 | 50 | Unlimited | 440-490 |
| 49 x 44 cm | ESSL31917-1 | 10x9 | 75 | 50 | Unlimited | 440-490 |
| 49 x 49 cm | ESSL31919-1 | 10x10 | 75 | 50 | Unlimited | 440-490 |
| 49 x 53 cm | ESSL31921-1 | 10x11 | 75 | 50 | Unlimited | 440-490 |
| 53 x 39 cm | ESSL32115-1 | 11x8 | 75 | 50 | Unlimited | 490-540 |
| 53 x 44 cm | ESSL32117-1 | 11x9 | 75 | 50 | Unlimited | 490-540 |
| 53 x 49 cm | ESSL32119-1 | 11x10 | 75 | 50 | Unlimited | 490-540 |
| 53 x 53 cm | ESSL32121-1 | 11x11 | 75 | 50 | Unlimited | 490-540 |
| 58 x 44 cm | ESSL32317-1 | 12x9 | 75 | 50 | Unlimited | 540-600 |
| 58 x 49 cm | ESSL32319-1 | 12x10 | 75 | 50 | Unlimited | 540-600 |
| 58 x 53 cm | ESSL32321-1 | 12x11 | 75 | 50 | Unlimited | 540-600 |
| 58 x 58 cm | ESSL32323-1 | 12x12 | 75 | 50 | Unlimited | 540-600 |
| 26 x 26 cm | ESSL40909-1 | 5x5 | 100 | 50 | Unlimited | 220-250 |
| 26 x 30 cm | ESSL40911-1 | 5x6 | 100 | 50 | Unlimited | 220-250 |
| 26 x 34 cm | ESSL40913-1 | 5x7 | 100 | 50 | Unlimited | 220-250 |
| 30 x 26 cm | ESSL41109-1 | 6x5 | 100 | 50 | Unlimited | 260-300 |
| 30 x 30 cm | ESSL41111-1 | 6x6 | 100 | 50 | Unlimited | 260-300 |
| 30 x 34 cm | ESSL41113-1 | 6x7 | 100 | 50 | Unlimited | 260-300 |
| 30 x 39 cm | ESSL41115-1 | 6x8 | 100 | 50 | Unlimited | 260-300 |
| 34 x 26 cm | ESSL41309-1 | 7x5 | 100 | 50 | Unlimited | 310-350 |
| 34 x 30 cm | ESSL41311-1 | 7x6 | 100 | 50 | Unlimited | 310-350 |
| 34 x 34 cm | ESSL41313-1 | 7x7 | 100 | 50 | Unlimited | 310-350 |
| 34 x 39 cm | ESSL41315-1 | 7x8 | 100 | 50 | Unlimited | 310-350 |
| 34 x 44 cm | ESSL41317-1 | 7x9 | 100 | 50 | Unlimited | 310-350 |
| 39 x 30 cm | ESSL41511-1 | 8x6 | 100 | 50 | Unlimited | 360-400 |
| 39 x 34 cm | ESSL41513-1 | 8x7 | 100 | 50 | Unlimited | 360-400 |
| 39 x 44 cm | ESSL41517-1 | 8x9 | 100 | 50 | Unlimited | 360-400 |
| 39 x 39 cm | ESSL41515-1 | 8x8 | 100 | 50 | Unlimited | 360-400 |
| 39 x 49 cm | ESSL41519-1 | 8x10 | 100 | 50 | Unlimited | 360-400 |
| 39 x 53 cm | ESSL41521-1 | 8x11 | 100 | 50 | Unlimited | 360-400 |
| 44 x 34 cm | ESSL41713-1 | 9x7 | 100 | 50 | Unlimited | 400-440 |
| 44 x 39 cm | ESSL41715-1 | 9x8 | 100 | 50 | Unlimited | 400-440 |
| 44 x 44 cm | ESSL41717-1 | 9x9 | 100 | 50 | Unlimited | 400-440 |
| 44 x 49 cm | ESSL41719-1 | 9x10 | 100 | 50 | Unlimited | 400-440 |
| 44 x 53 cm | ESSL41721-1 | 9x11 | 100 | 50 | Unlimited | 400-440 |
| 49 x 39 cm | ESSL41915-1 | 10x8 | 100 | 50 | Unlimited | 440-490 |
| 49 x 44 cm | ESSL41917-1 | 10x9 | 100 | 50 | Unlimited | 440-490 |
| 49 x 49 cm | ESSL41919-1 | 10x10 | 100 | 50 | Unlimited | 490-490 |
| 49 x 53 cm | ESSL41921-1 | 10x11 | 100 | 50 | Unlimited | 440-490 |
| 53 x 39 cm | ESSL42115-1 | 11x8 | 100 | 50 | Unlimited | 490-540 |
| 53 x 44 cm | ESSL42117-1 | 11x9 | 100 | 50 | Unlimited | 490-540 |
| 53 x 49 cm | ESSL42119-1 | 11x10 | 100 | 50 | Unlimited | 490-540 |
| 53 x 53 cm | ESSL42121-1 | 11x11 | 100 | 50 | Unlimited | 490-540 |
| 58 x 44 cm | ESSL42317-1 | 12x9 | 100 | 50 | Unlimited | 540-600 |
| 58 x 49 cm | ESSL42319-1 | 12x10 | 100 | 50 | Unlimited | 540-600 |
| 58 x 53 cm | ESSL42321-1 | 12x11 | 100 | 50 | Unlimited | 540-600 |
| 58 x 58 cm | ESSL42323-1 | 12x12 | 100 | 50 | Unlimited | 540-600 |
| 26 x 26 cm | ESSL51010-1 | 4x4 | 130 | 60 | Unlimited | 220-260 |
| 26 x 30 cm | ESSL51012-1 | 4x5 | 130 | 60 | Unlimited | 220-260 |
| 26 x 36 cm | ESSL51014-1 | 4x6 | 130 | 60 | Unlimited | 220-260 |
| 30 x 26 cm | ESSL51210-1 | 5x4 | 130 | 60 | Unlimited | 270-320 |
| 30 x 30 cm | ESSL51212-1 | 5x5 | 130 | 60 | Unlimited | 270-320 |
| 30 x 36 cm | ESSL51214-1 | 5x6 | 130 | 60 | Unlimited | 270-320 |
| 30 x 41 cm | ESSL51216-1 | 5x7 | 130 | 60 | Unlimited | 270-320 |
| 36 x 26 cm | ESSL51410-1 | 6x4 | 130 | 60 | Unlimited | 330-370 |
| 36 x 30 cm | ESSL51412-1 | 6x5 | 130 | 60 | Unlimited | 330-370 |
| 36 x 36 cm | ESSL51414-1 | 6x6 | 130 | 60 | Unlimited | 330-370 |
| 36 x 41 cm | ESSL51416-1 | 6x7 | 130 | 60 | Unlimited | 330-370 |
| 36 x 46 cm | ESSL51418-1 | 6x8 | 130 | 60 | Unlimited | 330-370 |
| 41 x 30 cm | ESSL51612-1 | 7x5 | 130 | 60 | Unlimited | 380-430 |
| 41 x 36 cm | ESSL51614-1 | 7x6 | 130 | 60 | Unlimited | 380-430 |
| 41 x 41 cm | ESSL51616-1 | 7x7 | 130 | 60 | Unlimited | 380-430 |
| 41 x 46 cm | ESSL51618-1 | 7x8 | 130 | 60 | Unlimited | 380-430 |
| 41 x 51 cm | ESSL51620-1 | 7x9 | 130 | 60 | Unlimited | 380-430 |
| 41 x 56 cm | ESSL51622-1 | 7x10 | 130 | 60 | Unlimited | 380-430 |
| 46 x 36 cm | ESSL51814-1 | 8x6 | 130 | 60 | Unlimited | 430-480 |
| 46 x 41 cm | ESSL51816-1 | 8x7 | 130 | 60 | Unlimited | 430-480 |
| 46 x 46 cm | ESSL51818-1 | 8x8 | 130 | 60 | Unlimited | 430-490 |
| 46 x 51 cm | ESSL51820-1 | 8x9 | 130 | 60 | Unlimited | 430-490 |
| 46 x 56 cm | ESSL51822-1 | 8x10 | 130 | 60 | Unlimited | 430-490 |
| 51 x 41 cm | ESSL52016-1 | 9x7 | 130 | 60 | Unlimited | 480-530 |
| 51 x 46 cm | ESSL52018-1 | 9x8 | 130 | 60 | Unlimited | 480-530 |
| 51 x 51 cm | ESSL52020-1 | 9x9 | 130 | 60 | Unlimited | 480-530 |
| 51 x 56 cm | ESSL52022-1 | 9x10 | 130 | 60 | Unlimited | 480-530 |
| 56 x 41 cm | ESSL52216-1 | 10x7 | 130 | 60 | Unlimited | 530-590 |
| 56 x 46 cm | ESSL52218-1 | 10x8 | 130 | 60 | Unlimited | 530-590 |
| 56 x 51 cm | ESSL52220-1 | 10x9 | 130 | 60 | Unlimited | 530-590 |
| 56 x 56 cm | ESSL52222-1 | 10x10 | 130 | 60 | Unlimited | 530-590 |
| 61 x 46 cm | ESSL52418-1 | 11x8 | 130 | 60 | Unlimited | 580-640 |
| 61 x 51 cm | ESSL52420-1 | 11x9 | 130 | 60 | Unlimited | 580-640 |
| 61 x 56 cm | ESSL52422-1 | 11x10 | 130 | 60 | Unlimited | 580-640 |
| 61 x 61 cm | ESSL52424-1 | 11x11 | 130 | 60 | Unlimited | 580-640 |
**FACTS **
**User weight **
No limits as long as the correct sized cushion is used for the user.
Material cushion
High quality latex free, gold coloured Neoprene. Adaptable and flame resistant.
Material cover
Top & sides: 83% Rip Stop Nylon (Non absorbent fabric that aids in evaporating moisture) 17% Lycra.
Bottom: Woven polyester fabric coated with polyvinyl compound. (Antimicrobial treated to inhibit growth of odor causing bacteria, mold and mildew.) Flame resistant.
Material incontinence cover
Top & sides: 78% Nylon 22% Spandex covered with a Polyurethane film.
Bottom: Woven polyester fabric coated with polyvinyl compound (see standard cover).
Cleaning - Cushion
Hand wash with soap, baking soda or vinegar. For disinfection, use 70% disinfectant solution.
Cleaning - Covers: Machine wash 60°C, no bleach.
Washing instructions
Wiping - the product can be wiped clean with a cleaning cloth
Clean the product with a 70% disinfectant solution.
The product is CE marked
Hand wash - max. temperature 40 °C/104 °F
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

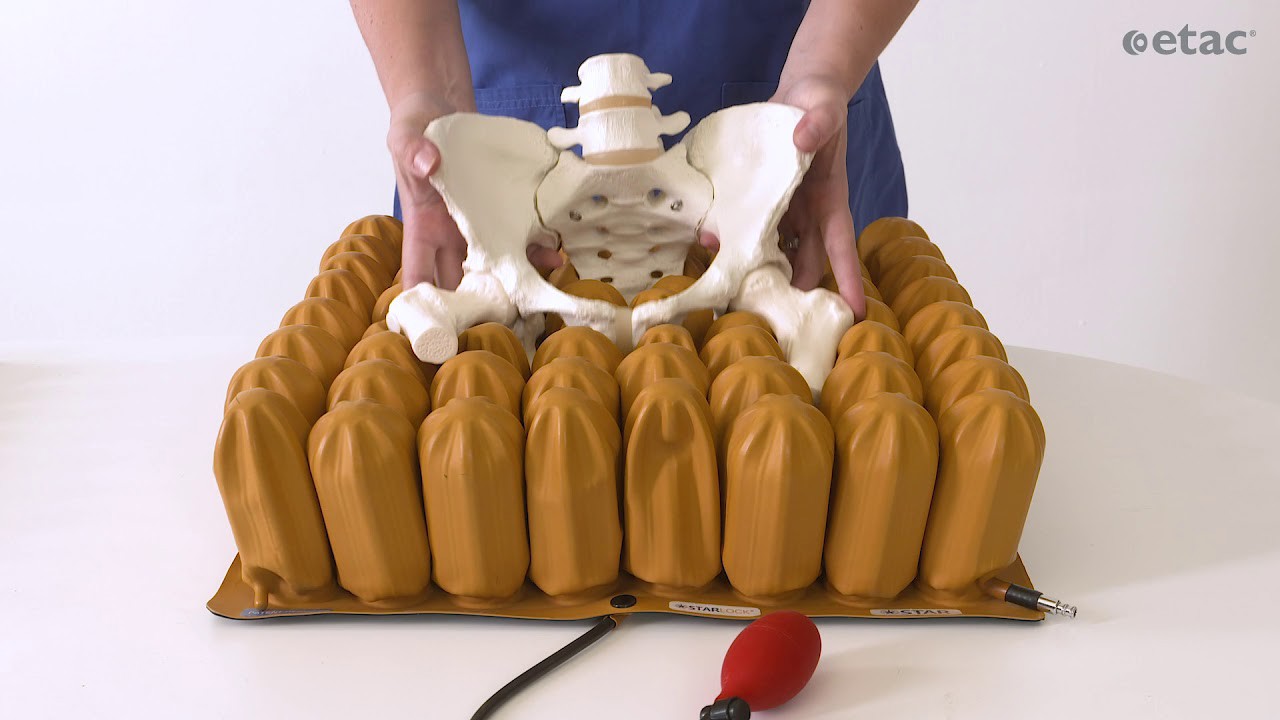

StarLock adjustment for pelvic obliquity
Basic StarLock adjustment principles
StarLock preparations before assessment in wheelchair
