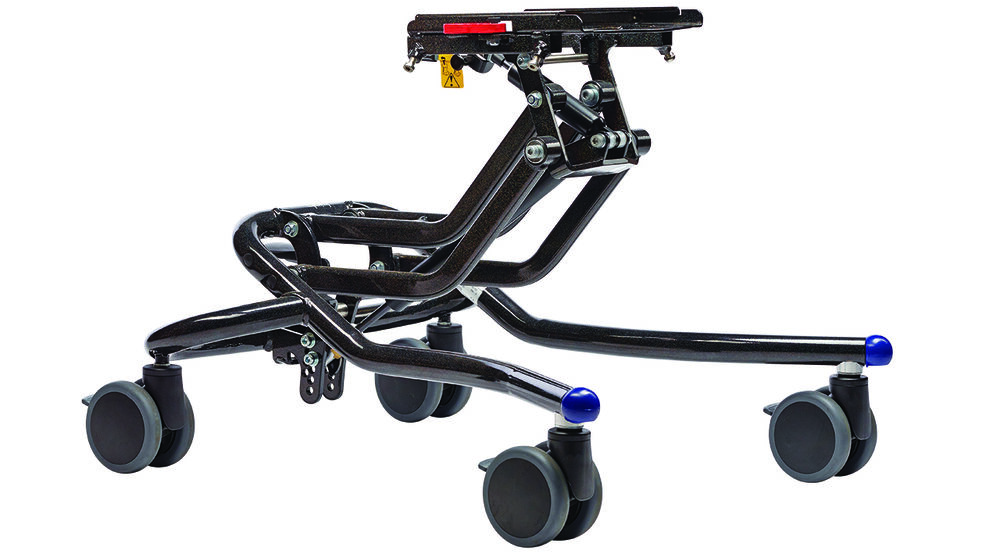

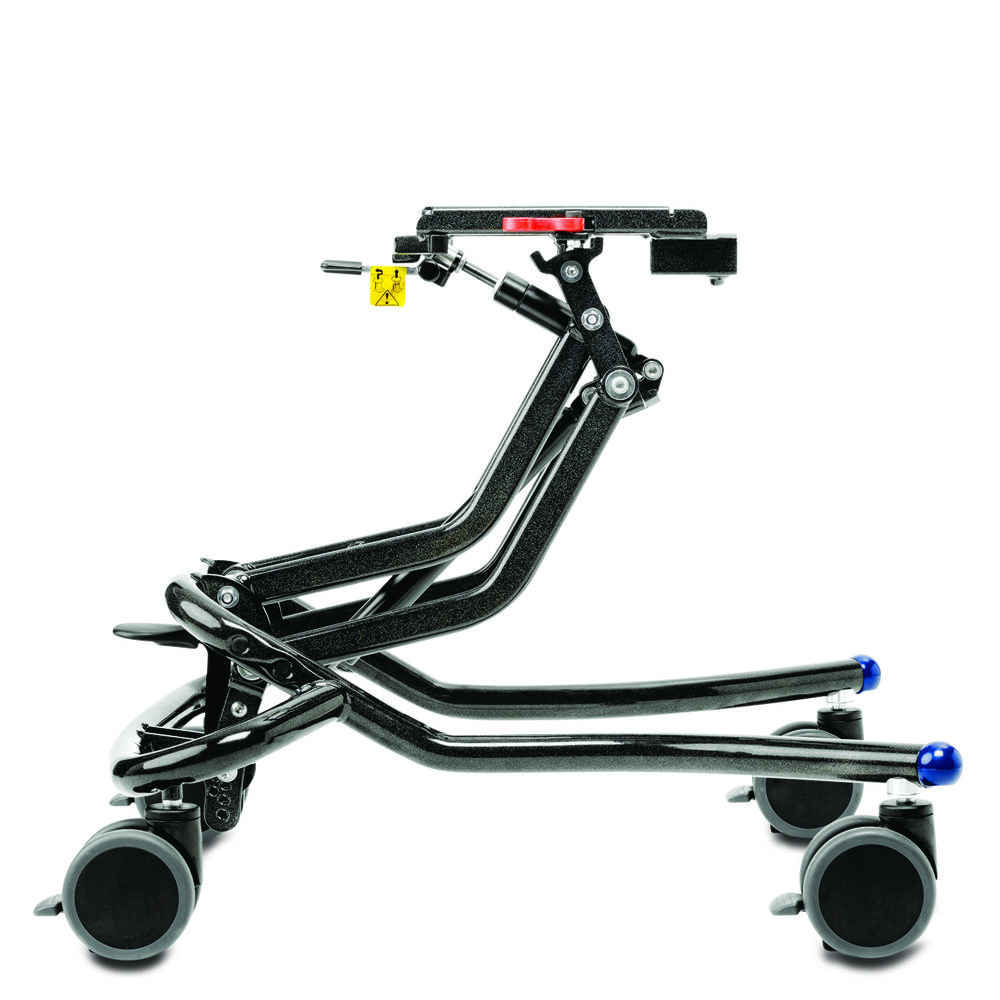

R82 High-low Frame
The High-low Frame is a stable base with a user friendly height adjustment from floor to table height.
The High-low Frame is available either as an indoor frame with small lockable castors or as an outdoor frame with large wheels and foot brake.
The frames are available with either gas or power height adjustment. The frames accommodate various seats, e.g. the Panda Futura seats from R82.
The High-low Frame is available in one size. The High-low Frame max load is 60 kg.
Features
Safe transportation in vehicles
The High-low Frame, outdoor, complies with the international transit wheelchair standard ISO 7176-19. The High-low Frame, outdoor, can be used with seat units that comply with ISO 16840-4
Height adjustment
The height is adjustable from floor to table height. The frames are available with either gas or power height adjustment
Interface
Various seats can be mounted on the High-low Frame by means of an interface
Angling of seat base
The seat base has an angle range of 40° which helps obtain varied seating positions. The base can be set to angle from 0° to 30° or from -10° to 20°
Variants and details
| Indoor frame with gas | Indoor frame with power | Outdoor frame with gas | Outdoor frame with power | |
|---|---|---|---|---|
| Item number | 89505-03 | 89505-03EL | 89516-03 | 89516-03EL |
| Footrest to adaptor plate (mm) | 50-290 | 50-290 | 50-290 | 50-290 |
| Length (mm) | 690 | 690 | 960 | 960 |
| Mass device (kg) | 12.3 | 12.8 | 17.5 | 18 |
| Max load (kg) | 60 | 60 | 60 | 60 |
| Max load at transportation (kg) | - | - | 43 | 43 |
| Maximum rated load (kg) | 74.3 | 74.8 | 79.5 | 80 |
| Overall width (mm) | 560 | 560 | 620 | 620 |
| Seat plane angle (°) | (-10) - 30 | (-10) - 30 | (-10) - 30 | (-10) - 30 |
| Seat surface height at front edge (mm) | 170-600 | 170-600 | 260-700 | 260-700 |
