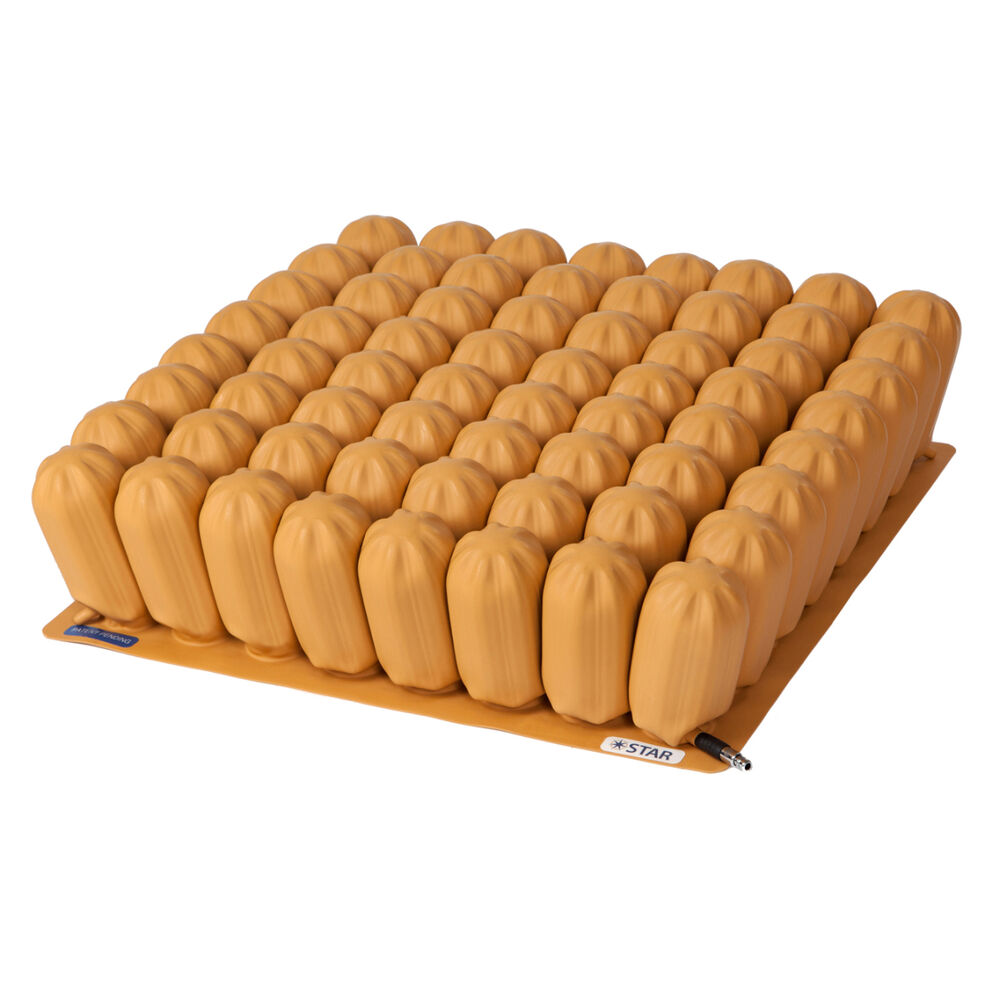

Star Standard Air

Single chamber air cell cushion with excellent pressure redistribution qualities.

Free Air Flow
The Standard Air cushion can be adjusted to ensure the user is optimally immersed, thus enabling excellent pressure redistribution.

Standard Air’s interconnected air cell structure creates a free airflow throughout the cushion, allowing it to adjust continuously to the user’s body shape as they move in their seat.

Features

Star Standard Air

Vertical Air Cell

Interconnected vertical air cell cushions have long been used for pressure redistribution due to high envelopment and immersive properties and reduced surface tension.
Star Standard Air

Adjustability

The air level can be adjusted and reset again and again to achieve the optimal amount of immersion for the individual.
Star Standard Air

Pressure Redistribution

The interconnected air cells ensure excellent pressure redistribution properties, continually readjusted to the user’s shape as they move in their seat.
Star Standard Air

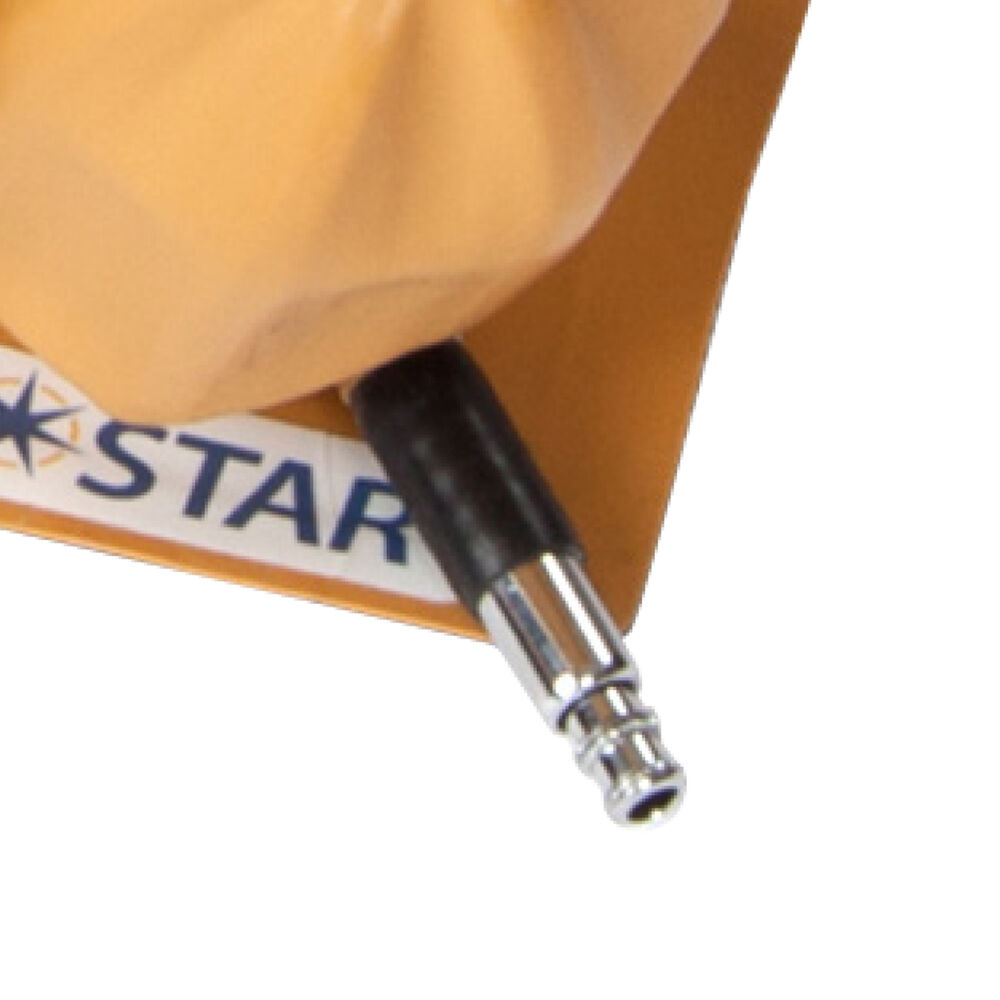

Single Chamber

Single chamber entails only one valve adjustment. The Standard Air Cushion is ideal for easy handling.

Variants and details

Item number
Cell height (mm)
Maximum user weight
Suits wheelchair seat depth (mm)
Suits wheelchair seat width (mm)
26 x 26 cm ESSCS0909-1 50 Unlimited 240-270 220-250
26 x 30 cm ESSCS0911-1 50 Unlimited 280-310 220-250
26 x 34 cm ESSCS0913-1 50 Unlimited 320-350 220-250
30 x 26 cm ESSCS1109-1 50 Unlimited 240-270 250-300
30 x 30 cm ESSCS1111-1 50 Unlimited 280-310 250-300
30 x 34 cm ESSCS1113-1 50 Unlimited 320-350 250-300
30 x 39 cm ESSCS1115-1 50 Unlimited 360-400 250-300
34 x 26 cm ESSCS1309-1 50 Unlimited 240-270 300-350
34 x 30 cm ESSCS1311-1 50 Unlimited 280-310 300-350
34 x 34 cm ESSCS1313-1 50 Unlimited 320-350 300-350
34 x 39 cm ESSCS1315-1 50 Unlimited 360-400 300-350
34 x 44 cm ESSCS1317-1 50 Unlimited 410-450 300-350
39 x 30 cm ESSCS1511-1 50 Unlimited 280-310 350-400
39 x 34 cm ESSCS1513-1 50 Unlimited 320-350 350-400
39 x 39 cm ESSCS1515-1 50 Unlimited 360-400 350-400
39 x 44 cm ESSCS1517-1 50 Unlimited 410-450 350-400
39 x 49 cm ESSCS1519-1 50 Unlimited 460-500 350-400
39 x 53 cm ESSCS1521-1 50 Unlimited 510-550 350-400
44 x 34 cm ESSCS1713-1 50 Unlimited 320-350 400-440
44 x 39 cm ESSCS1715-1 50 Unlimited 360-400 400-440
44 x 44 cm ESSCS1717-1 50 Unlimited 410-450 400-440
44 x 49 cm ESSCS1719-1 50 Unlimited 460-500 400-440
44 x 53 cm ESSCS1721-1 50 Unlimited 510-550 400-440
49 x 39 cm ESSCS1915-1 50 Unlimited 360-400 440-490
49 x 49 cm ESSCS1919-1 50 Unlimited 460-500 440-490
49 x 53 cm ESSCS1921-1 50 Unlimited 510-550 440-490
49 x 44 cm ESSCS1917-1 50 Unlimited 410-450 440-490
53 x 44 cm ESSCS2117-1 50 Unlimited 410-450 490-540
53 x 39 cm ESSCS2115-1 50 Unlimited 360-400 490-540
53 x 49 cm ESSCS2119-1 50 Unlimited 460-500 490-540
53 x 53 cm ESSCS2121-1 50 Unlimited 510-550 490-540
26 x 26 cm ESSC0909-1 100 Unlimited 240-270 220-250
26 x 30 cm ESSC0911-1 100 Unlimited 280-310 220-250
26 x 34 cm ESSC0913-1 100 Unlimited 320-350 220-250
30 x 26 cm ESSC1109-1 100 Unlimited 240-270 250-300
30 x 30 cm ESSC1111-1 100 Unlimited 280-310 250-300
30 x 34 cm ESSC1113-1 100 Unlimited 320-350 250-300
30 x 39 cm ESSC1115-1 100 Unlimited 360-400 250-300
34 x 26 cm ESSC1309-1 100 Unlimited 240-270 300-350
34 x 30 cm ESSC1311-1 100 Unlimited 280-310 300-350
34 x 34 cm ESSC1313-1 100 Unlimited 320-350 300-350
34 x 39 cm ESSC1315-1 100 Unlimited 360-400 300-350
34 x 44 cm ESSC1317-1 100 Unlimited 410-450 300-350
39 x 30 cm ESSC1511-1 100 Unlimited 280-310 350-400
39 x 34 cm ESSC1513-1 100 Unlimited 320-350 350-400
39 x 39 cm ESSC1515-1 100 - 360-400 350-400
39 x 44 cm ESSC1517-1 100 Unlimited 410-450 350-400
39 x 49 cm ESSC1519-1 100 - 460-500 350-400
39 x 53 cm ESSC1521-1 100 Unlimited 510-550 350-400
44 x 34 cm ESSC1713-1 100 Unlimited 320-350 400-440
44 x 39 cm ESSC1715-1 100 - 360-400 400-440
44 x 44 cm ESSC1717-1 100 - 410-450 400-440
44 x 49 cm ESSC1719-1 100 - 460-500 400-440
44 x 53 cm ESSC1721-1 100 Unlimited 510-550 400-440
49 x 39 cm ESSC1915-1 100 Unlimited 360-400 440-490
49 x 44 cm ESSC1917-1 100 - 410-450 440-490
49 x 49 cm ESSC1919-1 100 - 460-500 440-490
49 x 53 cm ESSC1921-1 100 - 510-550 400-440
53 x 39 cm ESSC2115-1 100 Unlimited 360-400 490-540
53 x 44 cm ESSC2117-1 100 - 410-450 490-540
53 x 49 cm ESSC2119-1 100 - 460-500 490-540
53 x 53 cm ESSC2121-1 100 - 510-550 490-540
